GLOWWORM
ULTIMATE 2 30C 2015 ONWARDS - (05 Hydraulics)
Appliance Code: 47-019-35

Appliance Diagram


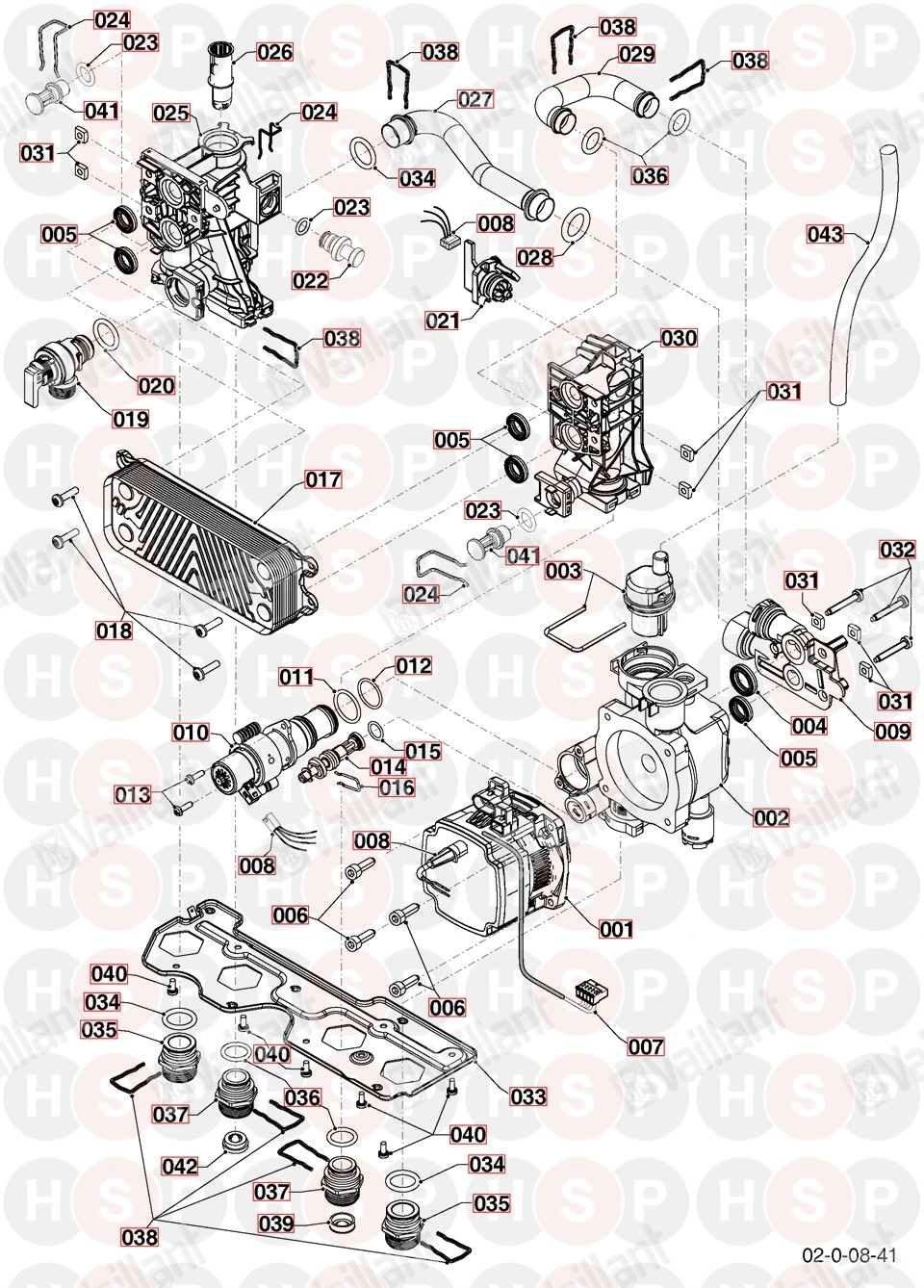

05 Hydraulics diagram for Glowworm Ultimate 2 30C 2015 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0020186159, Pump motor PUMP MOTOR
Glowworm part no. 0020186159
£183.06
2 Part number 0020207142, Housing, pump HOUSING, PUMP
Glowworm part no. 0020207142
£78.53
3 Part number 0020014161, automatic air vent AUTOMATIC AIR VENT
Glowworm part no. 0020014161
£21.92
4 Part number 0020014182, Gasket Type-C (PK10) GASKET TYPE-C (PK10)
Glowworm part no. 0020014182
£10.61
5 Part number 0020014166, Gasket, C-Type, (PK10) GASKET, C-TYPE, (PK10)
Glowworm part no. 0020014166
£10.01
6 Part number 0020207143, Screw, pump (x4) SCREW, PUMP (X4)
Glowworm part no. 0020207143
£6.61
7 Part number 0020197554, Cable CABLE
Glowworm part no. 0020197554
£10.13
8 Part number 0020186176, Harness, combi HARNESS, COMBI
Glowworm part no. 0020186176
£19.31
9 Part number 0020197547, Hydroblock HYDROBLOCK
Glowworm part no. 0020197547
£9.61
10 Part number 0020097214, Diverter valve 3 way DIVERTER VALVE 3 WAY
Glowworm part no. 0020097214
£57.05
11 Part number 0020097224, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020097224
£6.61
12 Part number 0020097226, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020097226
£6.61
13 Part number 0020097227, Screw (PK10) SCREW (PK10)
Glowworm part no. 0020097227
£6.61
14 Part number 0020014169, bypass BYPASS
Glowworm part no. 0020014169
£31.19
15 Part number 0020014195, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020014195
£6.61
16 Part number 0020047019, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020047019
£6.47
17 Part number 0020186153, Heat exchanger, 14 plates HEAT EXCHANGER, 14 PLATES
Glowworm part no. 0020186153
£81.54
19 Part number 0020047005, Pressure relief valve, 3 bar PRESSURE RELIEF VALVE, 3 BAR
Glowworm part no. 0020047005
£14.99
20 Part number 0020125448, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020125448
£7.70
21 Part number 0020197555, Flow sensor FLOW SENSOR
Glowworm part no. 0020197555
£27.37
22 Part number 0020097212, Plug, pressure sensor PLUG, PRESSURE SENSOR
Glowworm part no. 0020097212
£6.61
23 Part number 0020014177, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020014177
£6.61
24 Part number 0020097197, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020097197
£7.14
25 Part number 0020186163, Hydroblock HYDROBLOCK
Glowworm part no. 0020186163
£40.49
26 Part number 0020014178, filter FILTER
Glowworm part no. 0020014178
£12.13
27 Part number 0020186168, Tube, by-pass TUBE, BY-PASS
Glowworm part no. 0020186168
£16.32
28 Part number 0020097187, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020097187
£6.61
29 Part number 0020186167, Tube, pump-SHE TUBE, PUMP-SHE
Glowworm part no. 0020186167
£9.51
30 Part number 0020186165, Hydroblock HYDROBLOCK
Glowworm part no. 0020186165
£39.63
31 Part number 0020038639, Nut (PK3) NUT (PK3)
Glowworm part no. 0020038639
£6.61
32 Part number 0020097193, Screw M5x33 (PK10) SCREW M5X33 (PK10)
Glowworm part no. 0020097193
£6.74
33   SUPPORT BRACKET
Glowworm part no. 0020207116
£6.61
34   O-RING, (PK10)
Glowworm part no. 0020195272
£6.61
35   NIPPLE, G3/4 BRASS, HW
Glowworm part no. 0020186172
£6.61
36 Part number 0020166932, O ring (PK10) O RING (PK10)
Glowworm part no. 0020166932
£6.61
37   NIPPLE, G3/4, DW
Glowworm part no. 0020186171
£6.61
38 Part number 0020014176, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020014176
£12.38
39 Part number 0020014159, Filter D=20mm FILTER D=20MM
Glowworm part no. 0020014159
£6.61
40 Part number 0020097184, Screw (PK10) SCREW (PK10)
Glowworm part no. 0020097184
£6.61
41 Part number 0020098017, Plug PLUG
Glowworm part no. 0020098017
£6.61
42 Part number 05430300, Water quantity limiter (x10) WATER QUANTITY LIMITER (X10)
Glowworm part no. 05430300
£26.10
43   HOSE
Glowworm part no. 0020218975
£6.61
