WICKES 82 - (Exploded View)
Appliance Code: 47-333-17

Appliance Diagram

Exploded View diagram for Halstead Wickes 82 Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	OBSOLETE CASE LEFT/RIGHT PNTD-ACE Halstead part n^o. 190040WHI	£8.62
2	CASE FRONT PAINTED-ACE Halstead part n^o. 190042WHI	£50.57
3	OBSOLETE PLASTIC TRIM-ACE Halstead part n^o. 300677	£9.67
4	WALL HANGING PLATE SBK Halstead part n^o. 190081F	£7.40
4	WALL HANGING PLATE-ACE Halstead part n^o. 190057	£3.32
5	EXPANSION VESSEL-ACE Halstead part n^o. 450999	£131.47
6	BRAIDED S/S HOSE - ACE Halstead part n^o. 600524	£37.10
7	NO 81/2 FLANGED HEAD Halstead* part n^o. 204522	£0.73
8	OBSOLETE PRESSURE GAUGE 0-4 BAR Halstead part n^o. 450961
9	OBSOLETE 22MM BALL VALVE-ACE Halstead part n^o. 300562
10	15MM BALL VALVE-ACE Halstead part n^o. 300561	£16.70
11	15MM FITTING-ACE Halstead part n^o. 300563	£14.79
12	OBSOLETE PLASTIC SPACER 2.619.1 Halstead* part n^o. 250565
13	SEMI BLIND GROMMET -ACE Halstead part n^o. 352623	£4.20
14	OBSOLETE NO.83/4 SELF TAP Halstead* part n^o. 204512
15	M410 CAP HEAD SCREWS Halstead* part n^o. 202502	£0.86
16	SEALED CHAMBER DOOR-ACE Halstead part n^o. 190044	£61.79
16	OBSOLETE SEAL CHAMB DOOR COMBI Halstead part n^o. 190072F
17	PLASTIC SIGHT GLASS Halstead part n^o. 300541	£3.68
18	TOP & BOTTOM DOOR SEALS Halstead part n^o. 352595	£4.63
19	SIDE DOOR SEALS Halstead part n^o. 352596	£6.05
20	GRASSLIN CLOCK FM/1 STUH Halstead part n^o. 600520	£51.80
21	ACE NAME PLATE Halstead part n^o. 750838	£2.24
22	ACE PLASTIC FASCIA PIN Halstead part n^o. 300669	£1.97
23	ACE FILM FASCIA Halstead part n^o. 300666	£8.75
24	ACE PLASTIC SWITCH KNOB Halstead part n^o. 300668	£15.22
25	ACE PLASTIC POT KNOB Halstead part n^o. 300667	£15.22
26	ACE PCB ASSY C/W LEAFLET TP Halstead part n^o. 988410	£344.84
27	PLASTIC SPACERS - ACE Halstead part n^o. 250568	£4.23
28	OBSOLETE ACE PLASTIC PCB COVER Halstead part n^o. 300678
29	ACE IGNITION HARNESS Halstead part n^o. 401156	£12.23
30	INLET HARNESS Halstead part n^o. 401146	£12.39
31	CLOCK MOTOR HARNESS Halstead part n^o. 401143	£3.76
32	IGNITION ELECTRODE-R/H Halstead part n^o. 500621	£17.93
32	IGNITION ELECTRODE-L/H Halstead part n^o. 500620
32	IGNITION ELECTRODE-ACE Halstead part n^o. 500611	£15.82
33	DETECTION ELECTRODE-COMB Halstead part n^o. 500622	£17.93
33	SENSING ELECTRODE-ACE Halstead part n^o. 500612	£15.28
34	BURNER HOOD BRKT FINEST Halstead part n^o. 190017	£12.61
35	M5 HX FULL NUT BZP Halstead part n^o. 200502	£0.82
36	NO83/8 FLNG P/SELF TAP Halstead* part n^o. 204503	£0.82
37	WORGAS BURNER BLADE ASSY Halstead part n^o. 700560
37	OBSOLETE ACE BURNER Halstead part n^o. 700552
38	COLL HOOD TOP/FRONT ASSY Halstead part n^o. 190035	£29.72
38	SBK COLL HOOD TOP/FRONT Halstead part n^o. 190078F	£27.09
39	OBSOLETE FRONT INSULATION FINEST Halstead part n^o. 352593	£38.55
39	FRONT INSUL-COMBI SEDBUK Halstead part n^o. 352646	£28.06
40	COMB/CHAMB SURROUND-ACE Halstead part n^o. 190045	£94.98
40	SBK COMB/CHAMB SURR ACE Halstead part n^o. 190065F	£45.90
41	PLASTIC WASHER Halstead part n^o. 352630	£0.67
42	SILICONE PIPE GROMMET Halstead part n^o. 352625	£2.33
43	SIDE INSULATION FINEST Halstead part n^o. 352592	£27.06
45	REAR INSULATION FINEST Halstead part n^o. 352594	£23.15
46	FINEST/ACE HEAT EXCHANGER Halstead part n^o. 450979	£332.56
47	BRASS REDUCING BUSH Halstead part n^o. 450918	£5.52
48	AUTOMATIC AIR VENT Halstead part n^o. 450908	£38.65
49	8MM115MM SILICONE TUBES Halstead* part n^o. 352603	£2.26
50	NYLON SCREW INSULATOR Halstead part n^o. 202506	£0.52
51	SBK COMBI FAN ASSY UNIV Halstead part n^o. 988418	£254.31
51	ACE FAN ASSEMBLY Halstead part n^o. 988398	£213.66
52	COMBI AIR PRESSURE SWITCH Halstead part n^o. 500592	£85.52
52	AIR PRESSURE SWITCH-ACE Halstead part n^o. 500617	£93.64
53	CLEAR SILICONE TUBE Halstead part n^o. 352602	£10.04
56	RETURN PIPE Halstead part n^o. 450981	£74.72
57	FLOW PIPE Halstead part n^o. 450982	£46.26
58	GRUNDFOS PUMP UPS 15/60 Halstead part n^o. 851213	£216.59
58	GRUNDFOS 5MTR PUMP-ACE Halstead part n^o. 851214	£252.01
59	10 OHM THERMISTOR ASSY Halstead part n^o. 500590	£47.96
60	M10ID13MMOD1.62 WASHER Halstead part n^o. 202503	£0.86
61	10 PLATE HEAT EXCHANGER Halstead part n^o. 450997	£127.49
61	12 PLATE HEAT EXCHANGER TP Halstead part n^o. 450985	£169.58
62	SAFETY RELIEF VALVE-FINE Halstead part n^o. 450987	£49.84
63	THERMOSTAT LM7 P5107 Halstead part n^o. 550524	£59.00
63	SBK O/HEAT STAT BKT ACE Halstead part n^o. 190069F	£8.86
64	STAT RETENTION CLIP Halstead part n^o. 202505	£1.82
65	REGULATOR BROWN/YELLOW Halstead part n^o. 300717	£4.54
65	FLOW REGULATOR 15LM Halstead part n^o. 300715	£5.04
66	M516 CAP HEAD SCREW Halstead* part n^o. 204517	£0.99
67	FINEST INJECTOR Halstead part n^o. 700536	£6.03
67	OBSOLETE INJECTOR/WASHER NG-FINES Halstead part n^o. 701030
68	WORGAS BURNER MANIFOLD Halstead part n^o. 700561	£32.39
69	GAS MANIFOLD ACE Halstead part n^o. 450998	£35.64
70	OBSOLETE 3.5MM9.5MM P/POZI C/S Halstead* part n^o. 200563
71	ACE GAS VALVE ASSY TP Halstead part n^o. 988412	£257.86
72	OBSOLETE ELBOW FLANGE -FINEST/ACE Halstead part n^o. 450815
73	GASKET FOR VALVE ELBOW Halstead part n^o. 352645	£0.81
74	OBSOLETE O RING BS813 Halstead part n^o. 500506
75	1/2 GAS COCK ASSY Halstead part n^o. 300560	£26.64
77	CASE BASE-ACE Halstead part n^o. 190052F	£13.99
79	5MM HOSE TEE Halstead part n^o. 250604
80	FLUE RESTRICTOR RING Halstead part n^o. 251023	£5.02
80	AIR INLET ADAPTER-ACE Halstead part n^o. 190059	£2.27
82	CLIPS FOR BYPASS TUBE Halstead part n^o. 500598	£2.29
83	O RINGS FOR BYPASS TUBE Halstead part n^o. 500597	£3.06
84	O RINGS LE JOINT FRANCAS Halstead part n^o. 500600	£1.77
85	LONG PRESS TRANSFER TUBE Halstead part n^o. 500605
86	SHORT PRESS TRANSFER TUBE Halstead part n^o. 500606	£20.53
87	WRC WASHER 30MMOD20MMID Halstead* part n^o. 352542	£2.13
88	O RINGS FOR PRESSURE Halstead part n^o. 500595	£4.86
89	CLIPS FOR PRESSURE Halstead part n^o. 500596	£2.46
90	SANITARY DIAPHRAGM CHAMBER Halstead part n^o. 500594	£179.23
91	FUGAS ACE RETUR MANIFOLD Halstead part n^o. 500554	£223.52
92	FLOW MANIFOLD (SPARE) TP Halstead part n^o. 500601	£243.98
93	TUBE KIT FOR HYDROBLOCK Halstead part n^o. 840500	£31.23
94	CAP 4.9512.7 MM IL Halstead* part n^o. 250547	£3.23
97	O RING BS115 Halstead part n^o. 352572	£1.14
98	O RING BS111 Halstead part n^o. 352573	£1.14
99	PRESSURE PIPE Halstead part n^o. 450980
100	CBUN/0312/13 Halstead part n^o. 250514	£0.81
102	M36 PAN REC TAPTITE Halstead* part n^o. 204511	£0.83
104	O RING BS201 Halstead part n^o. 352571	£1.14
105	M38 CSK POZI STEEL Halstead* part n^o. 200562	£0.71
106	MULTI CABLE CLIP Halstead part n^o. 250529	£0.79
107	MICROSWITCH ASSY (SPARE) Halstead part n^o. 500593	£69.68
108	M58 PAN POZI BZP Halstead* part n^o. 203009	£0.47
109	OBSOLETE M68 HEX HEAD SCREWS Halstead* part n^o. 204520	£0.58
110	OBSOLETE TELESCOPIC FLUE SYSTEM Halstead part n^o. 130605
111	GREY COLLAR (MUSHROOM) Halstead part n^o. 352016	£14.75
112	WHITE COLLAR (MUSHROOM) Halstead part n^o. 352552	£14.87
113	TURRET GASKET BEST/FINE Halstead part n^o. 352559
114	WHITE FLUE ELBOW Halstead part n^o. 130596
116	230 VOLT HARNESS Halstead part n^o. 401147	£14.56
117	OBSOLETE LOW VOLTAGE HARNESS Halstead part n^o. 401148
118	PUMP HARNESS Halstead part n^o. 401145	£1.71
122	PRIME PRESS SWITCH KIT Halstead part n^o. 840501	£44.75
123	DIVERTER VALVE SERV KIT Halstead part n^o. 840503	£94.59
124	SANITARY DIAPHRAGM KIT Halstead part n^o. 840505	£64.43
125	22MM BROWN TEFLON SEAL Halstead part n^o. 352605	£2.23
126	15MM BROWN TEFLON SEAL Halstead part n^o. 352606	£2.19
127	SANITARY WATER SERV KIT Halstead part n^o. 840504	£60.33
128	LEFT HAND COVER Halstead part n^o. 190084F	£2.84
128	OBSOLETE REAR AIR DUCT L/H-ACE Halstead part n^o. 190055
129	OBSOLETE REAR AIR DUCT R/H-ACE Halstead part n^o. 190056
129	RIGHT HAND COVER Halstead part n^o. 190083F	£5.40
130	BODY LEFT HAND-ACE Halstead part n^o. 190047	£22.90
130	OBSOLETE BODY LEFT HAND ACE SBK Halstead part n^o. 190073F
131	BODY RIGHT HAND ACE SBK Halstead part n^o. 190074F	£17.34
131	BODY RIGHT HAND-ACE Halstead part n^o. 190048	£23.18
132	BODY BACK PNL UPPER-ACE Halstead part n^o. 190050	£41.92
132	SBK BODY UPPER ACE Halstead part n^o. 190067F	£3.06
133	BODY BACK PNL LOWER-ACE Halstead part n^o. 190051	£14.63
133	BODY LOWER ACE SBK Halstead part n^o. 190075F	£12.20
134	MANIFOLD AIR BAFFLE Halstead part n^o. 190077PF	£3.70
135	AIR DEFLECTOR L/H & R/H Halstead part n^o. 190076PF	£1.40
137	METAL FASCIA-ACE Halstead part n^o. 190058F	£8.38

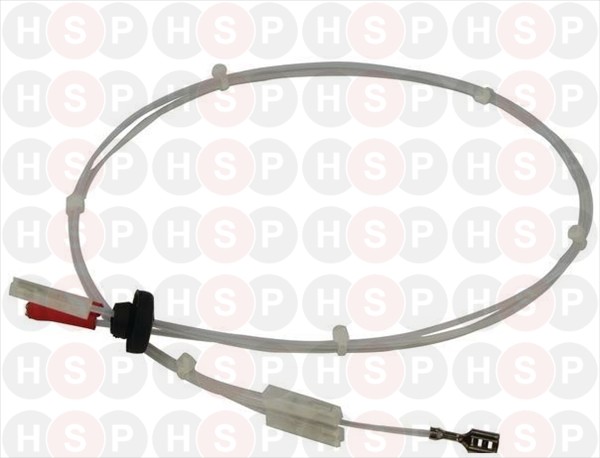

138	COMBI ELECTRODE GROMMET Halstead part n^o. 352022	£4.53
