NU-WAY
CH4 - (Burner 1)
Appliance Code: CH4

Appliance Diagram


Burner 1 diagram for Nu-Way CH4Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number G09001N, NUWAY GASKET TO DRG E9700 NOVIS 21 NUWAY GASKET TO DRG E9700 NOVIS 21
Nu-Way part no. G09001N		 £16.27
2 Part number U90318G, NUWAY ELECTRODES FOR CH4 ON/OFF PAIR NUWAY ELECTRODES FOR CH4 ON/OFF PAIR
Nu-Way part no. U90318G		 £90.32
3 Part number U90401V, HT LEADS FOR C4-5-6-7 PAIR (600MM) HT LEADS FOR C4-5-6-7 PAIR (600MM)
Nu-Way part no. U90401V		 £36.13
4 Part number G20001C, NGK PLUG COVER TYPE SB05E NGK PLUG COVER TYPE SB05E
Nu-Way part no. G20001C		 £6.42
5 Part number E05038W, FLEXIBLE OIL LINE .5BORE X 36IN .5BSP FLEXIBLE OIL LINE .5BORE X 36IN .5BSP
Nu-Way part no. E05038W		 £20.02
6 Part number G03006D, **USE BN11309403** FLEXIBLE COUPLING 145MM .437 X FAN SPLNE **USE BN11309403** FLEXIBLE COUPLING 145MM .437 X FAN SPLNE
Nu-Way part no. G03006D		 £38.17
7 Part number E03026Q, FILTER SELF CLEAN 1IN .012IN GA-V2100803 FILTER SELF CLEAN 1IN .012IN GA-V2100803
Nu-Way part no. E03026Q		 £204.97
8 Part number E03019Z, OIL FILTER FILTER ELEMENT A4-803 REF:F927 OIL FILTER FILTER ELEMENT A4-803 REF:F927
Nu-Way part no. E03019Z		 £28.97

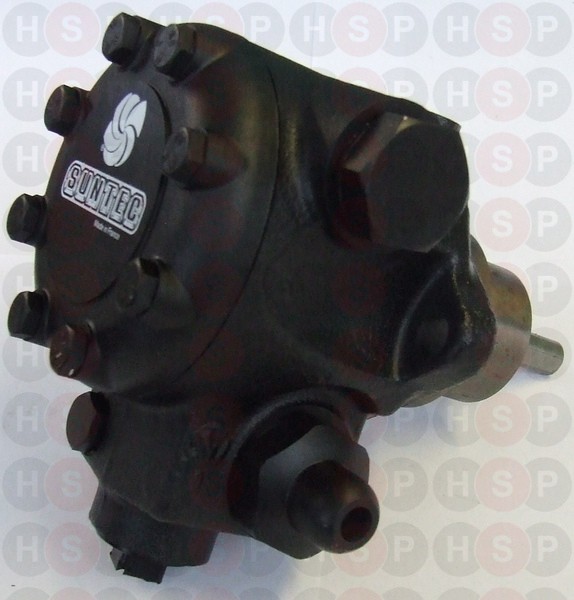

10 Part number E02004S, SUNTEC OIL PUMP E4 ND 1001 5P SUNTEC OIL PUMP E4 ND 1001 5P
Nu-Way part no. E02004S		 £424.97
11 Part number C03012Z, ELECTRODYN TRANS 35 MA INTERMITTENT 220V (ZM35/10) NO HT ELECTRODYN TRANS 35 MA INTERMITTENT 220V (ZM35/10) NO HT
Nu-Way part no. C03012Z		 £55.13
12 Part number C21106W, SIEMENS CONTROL BOX LAL1.25E OIL 220/240V SIEMENS CONTROL BOX LAL1.25E OIL 220/240V
Nu-Way part no. C21106W		 £257.23
12 Part number C21066Y, SATRONIC CONTROL BOX TMO 720/4 MOD 35/08001U SATRONIC CONTROL BOX TMO 720/4 MOD 35/08001U
Nu-Way part no. C21066Y
12 Part number C21138V, SIEMENS CONTROL BOX LOA24.171B27 OIL CONTROL WITHOUT BA SIEMENS CONTROL BOX LOA24.171B27 OIL CONTROL WITHOUT BA
Nu-Way part no. C21138V		 £57.61
12 Part number C21134R, SATRONIC CONTROL BOX TF832.3 H/L OIL CONT 230V(02431) SATRONIC CONTROL BOX TF832.3 H/L OIL CONT 230V(02431)
Nu-Way part no. C21134R		 £31.27
13   OBSOLETE SATR FZ711S (40001)+FLG(59074)
Nu-Way part no. C31043T
13 Part number C31014N, SIEMENS PHOTO CELL QRB1A-A150B70A SIEMENS PHOTO CELL QRB1A-A150B70A
Nu-Way part no. C31014N		 £8.22
13 Part number C31017R, SIEMENS PHOTO CELL QRB3(1) PHOTO-RESISTIVE CELL SIEMENS PHOTO CELL QRB3(1) PHOTO-RESISTIVE CELL
Nu-Way part no. C31017R		 £50.40
14 Part number A09013Y, BURNER MOTOR 750W 1HP 240V-1-50 2800 BURNER MOTOR 750W 1HP 240V-1-50 2800
Nu-Way part no. A09013Y		 £249.88
14 Part number A09014Z, 740W MOTOR 3/3030, 220/480-50/60 NEMA2 FLANGE 740W MOTOR 3/3030, 220/480-50/60 NEMA2 FLANGE
Nu-Way part no. A09014Z		 £160.27
15 Part number D09009J, PUNKER FAN TABLOCK 225X74 C4/23PUNKER PUNKER FAN TABLOCK 225X74 C4/23PUNKER
Nu-Way part no. D09009J		 £69.10
16 Part number E01004Z, LUCIFER SOLENOID VALVE 121-K-63 N/C 1/4INCH 220V 50HZ LUCIFER SOLENOID VALVE 121-K-63 N/C 1/4INCH 220V 50HZ
Nu-Way part no. E01004Z		 £98.87
16 Part number E01003Y, LUCIFER SOLENOID VALVE 122-K-8363 NORMALLY OPEN LUCIFER SOLENOID VALVE 122-K-8363 NORMALLY OPEN
Nu-Way part no. E01003Y		 £148.20
18 Part number E19001X, NUWAY HYDRAULIC RAM NUWAY HYDRAULIC RAM
Nu-Way part no. E19001X		 £83.68
19   DIFFUSER 6.0 X2.0 XS8879 IT5
Nu-Way part no. L04115W		 £49.03
20   F.TUBE ADAPTER A2-167 ITEM 1
Nu-Way part no. L04023V		 £20.62
23 Part number G16007S, WINDOW 78X65X3 PVC BLUE WINDOW 78X65X3 PVC BLUE
Nu-Way part no. G16007S		 £4.33
24 Part number G04005D, P/GAUGE 50MM DIA X .125BSP 0-600 PSI GLYCERINE FILLED P/GAUGE 50MM DIA X .125BSP 0-600 PSI GLYCERINE FILLED
Nu-Way part no. G04005D		 £24.29
25   PRE-HEATER TANK BATTERY 3KW
Nu-Way part no. T99115V		 £1,384.80
26 Part number C40029J, JOHNSON THERMOSTAT ACS B516 20-120 C 11INSTEM JOHNSON THERMOSTAT ACS B516 20-120 C 11INSTEM
Nu-Way part no. C40029J		 £250.93
27 Part number C40028R, JOHNSON THERMOSTAT ACS E571 0 - 160C 5/16DIA STEM JOHNSON THERMOSTAT ACS E571 0 - 160C 5/16DIA STEM
Nu-Way part no. C40028R		 £255.00
28 Part number C40031C, JOHNSON THERMOSTAT ACS C515 0/100 C 11IN STEM JOHNSON THERMOSTAT ACS C515 0/100 C 11IN STEM
Nu-Way part no. C40031C		 £228.28
29 Part number G09018N, GASKET FOR 3-6KW HTR TANK A4-1014 GASKET FOR 3-6KW HTR TANK A4-1014
Nu-Way part no. G09018N		 £6.38
30 Part number L04092T, FLAME TUBE 6.50X6.5L XS9580 ITEM 7 FLAME TUBE 6.50X6.5L XS9580 ITEM 7
Nu-Way part no. L04092T		 £101.95
32   MANIFOLD BLOCK CH5.6&7 A2-876
Nu-Way part no. M04603D		 £212.62
33 Part number E04061U, CARTRIDGE HEATER 80W 240V 12MM DIA X 2.5IN LG CARTRIDGE HEATER 80W 240V 12MM DIA X 2.5IN LG
Nu-Way part no. E04061U		 £75.37
34 Part number G03019H, QUICK RELEASE COUPLING 3/8INBSP QUICK RELEASE COUPLING 3/8INBSP
Nu-Way part no. G03019H		 £37.72
35 Part number E05013M, FLEXIBLE OIL LINE .375BOREX27INLONG .375X.375 FLEXIBLE OIL LINE .375BOREX27INLONG .375X.375
Nu-Way part no. E05013M		 £65.13
36   UNION BLOCK.122A63 VALVEA2-831
Nu-Way part no. M02024R		 £26.90
37   PRESS.VALVE BDY. CH&CX A4-1208
Nu-Way part no. M05014J		 £103.48
38   OBSOLETE
Nu-Way part no. C50061L
40 Part number C40072M, OIL MANIFOLD THERMOSTAT OIL MANIFOLD THERMOSTAT
Nu-Way part no. C40072M		 £58.75
41   FULLY CLOSING DAMPER.C4 & C5.
Nu-Way part no. U04800F		 £794.20
42   MICRO SWITCH MN6CTQMS
Nu-Way part no. B01015W		 £65.03
43   OBSOLETE TORQUE MOTOR G4-K70 220V-50/60
Nu-Way part no. A30006S
44 Part number B05002E, CAPACITOR TO SUIT MOTOR G4-K70 **NLA AFTER CURRENT STOCK** CAPACITOR TO SUIT MOTOR G4-K70 **NLA AFTER CURRENT STOCK**
Nu-Way part no. B05002E		 £22.17
45   RELAY 60.128230-0040 8PIN 230 AC VOLT 50HZ
Nu-Way part no. C51028G		 £30.73
46 Part number G03034Y, NUWAY COUPLING IN STEEL FOR CG/AG A4-1019 NUWAY COUPLING IN STEEL FOR CG/AG A4-1019
Nu-Way part no. G03034Y		 £298.17
47 Part number G05017Z, NUWAY PISTON CUT OFF O RING BS 012 VITON NUWAY PISTON CUT OFF O RING BS 012 VITON
Nu-Way part no. G05017Z		 £0.37
