APOLLO (LATER) 60 SI 1997 - (Appliance Overview)
Appliance Code: 41-494-40

Appliance Diagram


Appliance Overview diagram for Thorn Apollo (Later) 60 SI 1997Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE ASSY OUTER CASE
Thorn part no. 402A1948
4 Part number S/108/12, OBSOLETE SCREW NO.8X3/8 PN HD POZI OBSOLETE SCREW NO.8X3/8 PN HD POZI
Thorn part no. S/108/12
5   OBSOLETE ASSY INNER CASE
Thorn part no. 402A3381

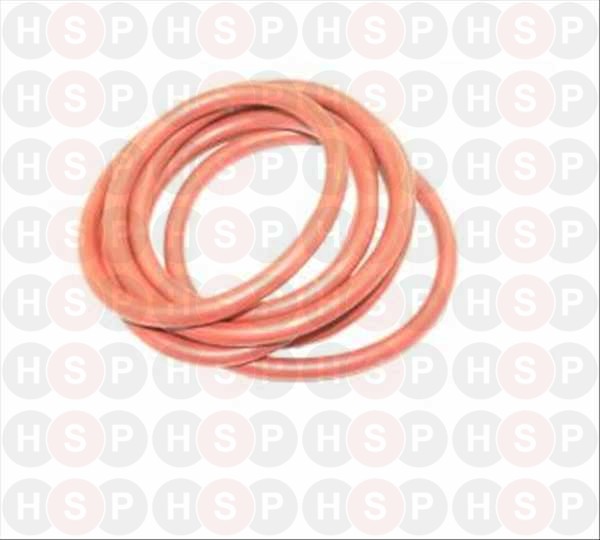

8   OBSOLETE O RING ANGUS R2015 GRADE P5
Thorn part no. 400A00157
10 Part number 402A2476, OBSOLETE ASSY.WINDOW OBSOLETE ASSY.WINDOW
Thorn part no. 402A2476
13   OBSOLETE DOOR BOTTOM COVER
Thorn part no. 402C3081
14   OBSOLETE DOOR RUNNER.
Thorn part no. 402C424
18   OBSOLETE COMBUSTION CHAMBER ASSY APOLL
Thorn part no. 402A3472
21   OBSOLETE C/CHBM INSULATION SIDE BAGGED
Thorn part no. 402C3304
21   OBSOLETE INSULATION SIDE BAGGED
Thorn part no. 402C104
22   OBSOLETE INSULATION C/CHMB FRONT BAGGED
Thorn part no. 402C3232
22   OBSOLETE C/CHMB INSULATION FRONT BAGGED
Thorn part no. 402C3305
23   OBSOLETE C/CHMB INSULATION REAR-BAGGED
Thorn part no. 402C3306
23   OBSOLETE INSULATION C/CHAMBER REAR
Thorn part no. 402C3233
24   OBSOLETE ASSY S/W COMB CHMB APOLLO
Thorn part no. 402A3077
25   OBSOLETE ASSY COMB CHMB FRONT AP 8
Thorn part no. 402A3141
25   OBSOLETE ASSY COMB CHMB FRONT AP 6
Thorn part no. 402A3140
29   OBSOLETE APOLLO 80 SI 82 FIN H/E.
Thorn part no. 402A3072
29   OBSOLETE APOLLO H/E ASSY.68 FIN.
Thorn part no. 402A3073
30   OBSOLETE H/E INLET PIPE ASSY.
Thorn part no. 402A3058
31   OBSOLETE H/E OUTLET PIPE ASSY.
Thorn part no. 402A3059
32   OBSOLETE LOCKNUT 28MM
Thorn part no. 402C416
32   OBSOLETE LOCKNUT 22MM
Thorn part no. 402C066
33   OBSOLETE NUT 22MM UNION
Thorn part no. 402C168
33   OBSOLETE NUT 28MM
Thorn part no. 402C417
34   OBSOLETE 22MM OLIVE.
Thorn part no. 402C169

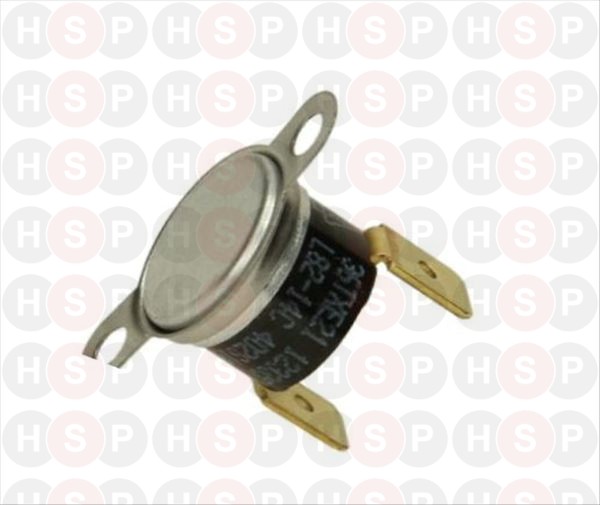

36 Part number 402S184, LIMIT STAT HI BROWN LIMIT STAT HI BROWN
Thorn part no. 402S184		 £13.60
37 Part number 402S185, LIMIT STAT LO WHITE LIMIT STAT LO WHITE
Thorn part no. 402S185		 £11.21
42   OBSOLETE AIR RESTRICTOR
Thorn part no. 402C3382
43 Part number 402S088, PUMP OVERRUN STAT. PUMP OVERRUN STAT.
Thorn part no. 402S088		 £20.08
46   OBSOLETE BRACKET HEAT SHLD/T STAT
Thorn part no. 402C1104
50   OBSOLETE BURNER BRAY AB24054M ISS
Thorn part no. 402S3224
50   OBSOLETE BURNER
Thorn part no. 402S3259
51   OBSOLETE INJECTOR CAT 10/2300
Thorn part no. 402S2724
51   OBSOLETE INJECTOR BURNER CAT 10/18
Thorn part no. 402S3427
56 Part number 402A2525, OBSOLETE ASSY SPARK ELECTRODE OBSOLETE ASSY SPARK ELECTRODE
Thorn part no. 402A2525
57   OBSOLETE SHIELD PILOT
Thorn part no. 402C2509
60   OBSOLETE PILOT PIPE 4.0
Thorn part no. 402C3428
60   OBSOLETE PILOT PIPE
Thorn part no. 402C3139
63   OBSOLETE PLATE RETAINING
Thorn part no. 402C1658
66   OBSOLETE O RING
Thorn part no. 402S098
67   OBSOLETE MANIFOLD OUTLET PAINTED
Thorn part no. 402A1495
68   OBSOLETE GASKET
Thorn part no. 402C387
70 Part number 635506, NUT M5 FULL BRASS NUT M5 FULL BRASS
Thorn part no. 635506
71   OBSOLETE ASSY PRESSURE TEST POINT
Thorn part no. 402S572
77   OBSOLETE COCK GAS
Thorn part no. 402S2447
86   OBSOLETE SWITCH 3 WAY
Thorn part no. 208S648
88   OBSOLETE BRACKET COMPONENT MOUNTING
Thorn part no. 402C111
92   OBSOLETE INSULATION TERMINAL BLOCK
Thorn part no. 402C113
98   OBSOLETE ASSY THERMOSTAT LEAD
Thorn part no. 402A1964
99   OBSOLETE SOCKET WIRING ASSY
Thorn part no. 402A028
100 Part number 402A029, ASSY TV SUPPRESSOR ASSY TV SUPPRESSOR
Thorn part no. 402A029
101   OBSOLETE ASSY PUMP O/R TSTAT HARN
Thorn part no. 402A1596
105   OBSOLETE IGNITION CONTROL MOUNTING BOX
Thorn part no. 402A2578
108   OBSOLETE PLATE IGNITION CONTROL MT
Thorn part no. 402C2579
111   OBSOLETE ASSY P.C.B. WIRE HARNESS
Thorn part no. 402A3298
112   OBSOLETE ASSY GAS VALVE LEAD TO PC
Thorn part no. 402A3547
112   OBSOLETE GAS VALVE LEAD
Thorn part no. 402A3150
113   OBSOLETE ASSY PCB SOCKET
Thorn part no. 402A2564
115 Part number 402A3672, IGN PCB ASSY RV IGN PCB ASSY RV
Thorn part no. 402A3672		 £297.28
118   OBSOLETE ASSY SIDE PANEL LH AP 60/
Thorn part no. 402A3056
119   OBSOLETE ASSY SIDE PANEL RH AP 60/
Thorn part no. 402A3055
122 Part number 402C2056, NOW USE 307C798 GASKET FOAM SEAL NOW USE 307C798 GASKET FOAM SEAL
Thorn part no. 402C2056
122 Part number 307C798, FOAM SEAL FOAM SEAL
Thorn part no. 307C798		 £18.94
123   OBSOLETE ASSY FLUE HOOD 60SI
Thorn part no. 402A3143
123   OBSOLETE ASSY FLUE HOOD 80SI
Thorn part no. 402A3146
124   OBSOLETE ROD TIE
Thorn part no. 402C1324
126   OBSOLETE ASSY FAN MTG. PLATE
Thorn part no. 402A3272
126   OBSOLETE ASSY FAN MTG PLATE 60SI
Thorn part no. 402A3149
128   OBSOLETE ASSY.FAN & SPIGOT 60SI
Thorn part no. 402A3420
128 Part number 402A3421, ASSY.FAN & SPIGOT 80SI. NLA ASSY.FAN & SPIGOT 80SI. NLA
Thorn part no. 402A3421
132 Part number 402S3409, FLEXIBLE TUBE FLEXIBLE TUBE
Thorn part no. 402S3409		 £4.64
134   OBSOLETE GASKET
Thorn part no. 402C2295
134   OBSOLETE GASKET
Thorn part no. 402C2042
135   OBSOLETE GASKET
Thorn part no. 402C2043
135   GASKET
Thorn part no. 402C2291		 £6.44
137   OBSOLETE DIVERTER FLUE
Thorn part no. 402C1249
138   OBSOLETE GASKET
Thorn part no. 402C1390
140   OBSOLETE CLAMP RING HALF
Thorn part no. 402C1514
143   OBSOLETE SEALING TAPE
Thorn part no. 402C1396
144   OBSOLETE ASSY OUTER WALL PLATE
Thorn part no. 402A1325
146   OBSOLETE PLATE SEALING OUTER
Thorn part no. 402C1327
147 Part number 402A1307, OUTER TERMINAL ASSY. OUTER TERMINAL ASSY.
Thorn part no. 402A1307
147 Part number 402A1308, OBSOLETE OUTER TERMINAL ASSY. OBSOLETE OUTER TERMINAL ASSY.
Thorn part no. 402A1308
147 Part number 402A1310, OUTER TERMINAL ASSY. OUTER TERMINAL ASSY.
Thorn part no. 402A1310		 £213.78
147 Part number 402A1309, OBSOLETE OUTER TERMINAL ASSY. OBSOLETE OUTER TERMINAL ASSY.
Thorn part no. 402A1309
147 Part number 402A1311, OBSOLETE OUTER TERMINAL ASSY. OBSOLETE OUTER TERMINAL ASSY.
Thorn part no. 402A1311
148   OBSOLETE INNER TERMINAL ASSY.
Thorn part no. 402A1302
148 Part number 402A1303, OBSOLETE INNER TERMINAL ASSY. OBSOLETE INNER TERMINAL ASSY.
Thorn part no. 402A1303
148 Part number 402A1304, INNER TERMINAL ASSY. INNER TERMINAL ASSY.
Thorn part no. 402A1304		 £120.27
148 Part number 402A1306, OBSOLETE INNER TERMINAL ASSY. OBSOLETE INNER TERMINAL ASSY.
Thorn part no. 402A1306
148 Part number 402A1305, OBSOLETE INNER TERMINAL ASSY. OBSOLETE INNER TERMINAL ASSY.
Thorn part no. 402A1305
150   OBSOLETE FANFARE TERM.KIT D.
Thorn part no. B4215
150 Part number B4210, FANFARE TERM.KIT C. FANFARE TERM.KIT C.
Thorn part no. B4210
150   OBSOLETE FANFARE TERM.KIT B
Thorn part no. B4205
151   OBSOLETE EXTENDED FLUE TERMINAL
Thorn part no. THL062128
155 Part number THLB4161, OBSOLETE PROGRAMMER KIT GREY APOLLO OBSOLETE PROGRAMMER KIT GREY APOLLO
Thorn part no. THLB4161
156   OBSOLETE ROCKER SWITCH 3 WAY 1 POL
Thorn part no. 402S3198
158   OBSOLETE TEMPLATE PAPER REAR EXIT
Thorn part no. 402C2053
160   OBSOLETE ASSY WALL MTG PLATE FINAL
Thorn part no. 402A1537
166   OBSOLETE OUTER FLUE TUBE.
Thorn part no. 402C2652
167   OBSOLETE VERTEX FLUE KIT ADAPTER
Thorn part no. 402C1754
168   OBSOLETE PLATE SEALING
Thorn part no. 402C1924
169   OBSOLETE GASKET.
Thorn part no. 402C1787
178   OBSOLETE INSTRUCTIONS USER
Thorn part no. 402C3117
