WORCESTER
HIGHFLOW 400 OF LPG - (ASSEMBLY 1)

Appliance Diagram



ASSEMBLY 1 diagram for Worcester HIGHFLOW 400 OF LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 87161212820, OBSOLETE DIVERTER VALVE COIL ASSEMBLY OBSOLETE DIVERTER VALVE COIL ASSEMBLY
Worcester part no. 87161212820

1 Part number 87161426070, BURNER AEROMATIC NG BURNER AEROMATIC NG
Worcester part no. 87161426070
£49.26
1 Part number 87161426080, BURNER AEROMATIC LPG BURNER AEROMATIC LPG
Worcester part no. 87161426080
£53.59
2 Part number 87161563370, MAIN BURNER INJECTOR 4.4 DIA. MAIN BURNER INJECTOR 4.4 DIA.
Worcester part no. 87161563370
£3.06
2 Part number 87161563380, INJEC. LPG 1/8 X120DEGX2.8DI INJEC. LPG 1/8 X120DEGX2.8DI
Worcester part no. 87161563380
£3.27
3 Part number 87161424370, OBSOLETE GAS VALVE - LPG V4600Q2133 OBSOLETE GAS VALVE - LPG V4600Q2133
Worcester part no. 87161424370

3 Part number 87161424480, GAS VALVE - N.G. V4600Q2125 GAS VALVE - N.G. V4600Q2125
Worcester part no. 87161424480
£194.60
4 Part number 87161426140, PILOT BURNER Q385A2010 PILOT BURNER Q385A2010
Worcester part no. 87161426140
£10.87
5 Part number 87161481530, INJECTOR(PILOT)LPG INJECTOR(PILOT)LPG
Worcester part no. 87161481530
£3.72
5 Part number 87161563000, INJECTOR(PILOT) INJECTOR(PILOT)
Worcester part no. 87161563000
£2.17
6 Part number 450010479, NOW USE Q309A2747 Thermocouple - Honeywell NOW USE Q309A2747 THERMOCOUPLE - HONEYWELL
Worcester part no. 450010479

7 Part number 87161421040, SPARK ELECTRODE SPARK ELECTRODE
Worcester part no. 87161421040
£5.45
8 Part number 87161466390, LEAD ASSY 0.7 PTFE CABLE 220MM LEAD ASSY 0.7 PTFE CABLE 220MM
Worcester part no. 87161466390
£2.51
9 Part number 87161421260, OBSOLETE SPARK IGNITOR OBSOLETE SPARK IGNITOR
Worcester part no. 87161421260

10 Part number 87161428020, GAS TO WATER HEAT EXCHANGER GAS TO WATER HEAT EXCHANGER
Worcester part no. 87161428020
£150.35
11 Part number 77161922270, INSULATION PACK INSULATION PACK
Worcester part no. 77161922270
£18.57
12 Part number 87161405000, AIR-VENT AUTOMATIC 3/8 (SS KIT) AIR-VENT AUTOMATIC 3/8 (SS KIT)
Worcester part no. 87161405000
£7.63
13 Part number 87161423250, PRESSURE GAUGE - 50MM 4 BAR PRESSURE GAUGE - 50MM 4 BAR
Worcester part no. 87161423250
£12.86
14 Part number 87161424220, PRESSURE RELIEF VALVE - 314439 PRESSURE RELIEF VALVE - 314439
Worcester part no. 87161424220
£11.65
15 Part number 87161431100, NOW USE 87161431030 PUMP NOW USE 87161431030 PUMP
Worcester part no. 87161431100

15 Part number 87161431030, PUMP & O-RINGS (59876601) PUMP & O-RINGS (59876601)
Worcester part no. 87161431030
£85.95
16 Part number 87161425010, OBSOLETE Expansion Vessel 12 Litres c/w Washer - Zilme OBSOLETE EXPANSION VESSEL 12 LITRES C/W WASHER - ZILME
Worcester part no. 87161425010

16 Part number 87161425070, EXPANSION VESSEL AND WASHERS EXPANSION VESSEL AND WASHERS
Worcester part no. 87161425070
£65.97
17 Part number 87161429040, SWEP HEAT EXCHANGER E8-18 ECP SWEP HEAT EXCHANGER E8-18 ECP
Worcester part no. 87161429040
£136.67
18 Part number 87161424820, OBSOLETE Diverter valve OBSOLETE DIVERTER VALVE
Worcester part no. 87161424820

18 Part number 87161207390, OBSOLETE DIVERTER VALVE WITH MOLEX PLUG OBSOLETE DIVERTER VALVE WITH MOLEX PLUG
Worcester part no. 87161207390

19 Part number 87161463120, PUMP OVERRUN BOARD PUMP OVERRUN BOARD
Worcester part no. 87161463120
£73.42
19 Part number 87161463090, NOW USE 77161922370 400-PCB REPLACEMENT KIT NOW USE 77161922370 400-PCB REPLACEMENT KIT
Worcester part no. 87161463090

19 Part number ZAGAS237, NOW USE 77161922370 400-PCB REPLACEMENT KIT NOW USE 77161922370 400-PCB REPLACEMENT KIT
Worcester part no. ZAGAS237

19 Part number 77161922370, 400-PCB REPLACEMENT KIT 400-PCB REPLACEMENT KIT
Worcester part no. 77161922370
£84.20
20 Part number 87161423380, T/STAT - RANCO LM7-P5079 (BBA) T/STAT - RANCO LM7-P5079 (BBA)
Worcester part no. 87161423380
£13.72
21 Part number SSAHAR013, OBSOLETE OVERHEAT THERMOSTAT OBSOLETE OVERHEAT THERMOSTAT
Worcester part no. SSAHAR013

22 Part number 87161423410, OBSOLETE T/STAT - RANCO K36-P1332 (CH) OBSOLETE T/STAT - RANCO K36-P1332 (CH)
Worcester part no. 87161423410

23 Part number 87161423400, OBSOLETE T/STAT - RANCO K36-P1333 (HW) OBSOLETE T/STAT - RANCO K36-P1333 (HW)
Worcester part no. 87161423400

24 Part number 87161208170, HARNESS - H.W. O.HEAT STAT HARNESS - H.W. O.HEAT STAT
Worcester part no. 87161208170
£18.63
25 Part number 87161423620, T/STAT T/DISC 60T13500103 T/STAT T/DISC 60T13500103
Worcester part no. 87161423620
£10.49
26 Part number 87161461060, SWITCH ARROW200400E839 AA 3POS SWITCH ARROW200400E839 AA 3POS
Worcester part no. 87161461060
£9.95
27 Part number 77161920070, ELECTRONIC TIMER-T230E7 ELECTRONIC TIMER-T230E7
Worcester part no. 77161920070
£114.58
28 Part number 87161208620, LAMP GREEN C/W CONNECTORS LAMP GREEN C/W CONNECTORS
Worcester part no. 87161208620
£6.26
29 Part number 87161208610, LAMP AMBER C/W CONNECTORS LAMP AMBER C/W CONNECTORS
Worcester part no. 87161208610
£5.82
30 Part number 87161484010, GAUZE FILTER GAUZE FILTER
Worcester part no. 87161484010
£2.92
31 Part number 87161405160, AIR VENT MANUAL 1/4 BSP AIR VENT MANUAL 1/4 BSP
Worcester part no. 87161405160
£6.93
32 Part number 87161207400, OBSOLETE SIKA F.SWITCH WITH MOLEX PLUG OBSOLETE SIKA F.SWITCH WITH MOLEX PLUG
Worcester part no. 87161207400

33 Part number 87161411420, FLOW REG. TYPE A 18 L/M PURPLE FLOW REG. TYPE A 18 L/M PURPLE
Worcester part no. 87161411420
£2.16
34 Part number 87161405070, FLEXIBLE HOSE C/W WASHERS FLEXIBLE HOSE C/W WASHERS
Worcester part no. 87161405070
£9.55
35 Part number 87161208180, HARNESS - T.T.B. HARNESS - T.T.B.
Worcester part no. 87161208180
£17.19
36 Part number 87161430170, TOP MANIFOLD TOP MANIFOLD
Worcester part no. 87161430170
£19.23
37 Part number 87161430160, BOTTOM MANIFOLD BOTTOM MANIFOLD
Worcester part no. 87161430160
£18.92
38 Part number 87161464230, IMPELLER IMPELLER
Worcester part no. 87161464230
£3.51
39 Part number 87161213180, OBSOLETE COOLING FAN ASSEMBLY OBSOLETE COOLING FAN ASSEMBLY
Worcester part no. 87161213180

40 Part number 77161922280, GASKET/O-RING PACK GASKET/O-RING PACK
Worcester part no. 77161922280
£22.33
41 Part number 87161207280, CABINET TOP PANEL ASSY. CABINET TOP PANEL ASSY.
Worcester part no. 87161207280
£56.51
42 Part number 87161207340, CABINET SIDE PANEL-LH ASSY CABINET SIDE PANEL-LH ASSY
Worcester part no. 87161207340
£66.64
43 Part number 87161207330, CABINET SIDE PANEL-RH ASSY CABINET SIDE PANEL-RH ASSY
Worcester part no. 87161207330
£64.18
44 Part number 87161210740, OBSOLETE Body Assembly - Electrical Box OBSOLETE BODY ASSEMBLY - ELECTRICAL BOX
Worcester part no. 87161210740

45 Part number 87161207250, CABINET FRONT PANEL ASSY CABINET FRONT PANEL ASSY
Worcester part no. 87161207250
£43.31
46 Part number 87161005850, LOWER FRONT PANEL LOWER FRONT PANEL
Worcester part no. 87161005850
£5.96
47 Part number 87161410870, KNOB CONTROL GREEN-GREY KNOB CONTROL GREEN-GREY
Worcester part no. 87161410870
£1.86
48 Part number 87161481290, OBSOLETE OBSOLETE
Worcester part no. 87161481290

49 Part number 87161481300, OBSOLETE HFLOW PLATE GREY OBSOLETE HFLOW PLATE GREY
Worcester part no. 87161481300

50 Part number 766290, OBSOLETE Screw M4 x 10 Taptite Recessed Pan Head OBSOLETE SCREW M4 X 10 TAPTITE RECESSED PAN HEAD
Worcester part no. 766290

51 Part number 87161006740, OBSOLETE Bracket - Thermostat OBSOLETE BRACKET - THERMOSTAT
Worcester part no. 87161006740

52 Part number 87161410600, PCB BLACK NYLON PILLARS AFTER FD989 PCB BLACK NYLON PILLARS AFTER FD989
Worcester part no. 87161410600
£1.79
53 Part number 87161007210, PIPE - DOMESTIC INLET OF. PIPE - DOMESTIC INLET OF.
Worcester part no. 87161007210
£4.51
54 Part number 87161207370, 15MM DOMESTIC INLET ASSY 15MM DOMESTIC INLET ASSY
Worcester part no. 87161207370
£11.61
55 Part number 87161207010, OPEN VENT KIT OPEN VENT KIT
Worcester part no. 87161207010
£11.74
56 Part number 87161207430, PIPE - 6MM PRESSURE RELIEF ASSY PIPE - 6MM PRESSURE RELIEF ASSY
Worcester part no. 87161207430
£6.26
57 Part number 87161210970, DRAIN TUBE ASSY-OF DRAIN TUBE ASSY-OF
Worcester part no. 87161210970
£17.19
59 Part number 87161210770, PIPE - RET DIV.MAN. TO PUMP ASSY PIPE - RET DIV.MAN. TO PUMP ASSY
Worcester part no. 87161210770
£18.63
60 Part number 87161007240, PIPE - TANK RETURN OF PIPE - TANK RETURN OF
Worcester part no. 87161007240
£17.11
61 Part number 87161006900, PIPE - CENTRAL HEAT. RET. PIPE - CENTRAL HEAT. RET.
Worcester part no. 87161006900
£7.41
62 Part number 87161210990, PIPE RELIEF FUNNEL ASSY OF PIPE RELIEF FUNNEL ASSY OF
Worcester part no. 87161210990
£17.19
63 Part number 87161006890, PIPE - PRESSURE RELIEF 15MM PIPE - PRESSURE RELIEF 15MM
Worcester part no. 87161006890
£4.33
64 Part number 87161007250, PIPE - FLOW OF. PIPE - FLOW OF.
Worcester part no. 87161007250
£16.34
65 Part number 87161007260, PIPE - RETURN OF. PIPE - RETURN OF.
Worcester part no. 87161007260
£8.19
66 Part number 87161207580, PIPE - 22 OUTLET ASSY OF PIPE - 22 OUTLET ASSY OF
Worcester part no. 87161207580
£23.66
67 Part number 87161207710, PIPE - RET HEAT EX. TO PUMP ASSY PIPE - RET HEAT EX. TO PUMP ASSY
Worcester part no. 87161207710
£45.46
68 Part number 87161210790, AIR VENT ADAPTOR ASSEMBLY AIR VENT ADAPTOR ASSEMBLY
Worcester part no. 87161210790
£13.31
69 Part number 87161030430, OBSOLETE Washer - fibre 23.9 x 17.2 x 1.5mm OBSOLETE WASHER - FIBRE 23.9 X 17.2 X 1.5MM
Worcester part no. 87161030430

71 Part number 87161006920, OBSOLETE Bracket - Support OBSOLETE BRACKET - SUPPORT
Worcester part no. 87161006920

72 Part number 87161006940, OBSOLETE Bracket - Front Pipe Guide OBSOLETE BRACKET - FRONT PIPE GUIDE
Worcester part no. 87161006940

74 Part number 87161550250, NOW USE 29124210290 Screw no.8 x 1 NOW USE 29124210290 SCREW NO.8 X 1
Worcester part no. 87161550250

74 Part number 29124210290, SCREW NO8 X 1 POZI FL HD ST MS ZP SCREW NO8 X 1 POZI FL HD ST MS ZP
Worcester part no. 29124210290
£1.73
75 Part number 87161482070, OBSOLETE OBSOLETE
Worcester part no. 87161482070

76 Part number 87161007300, INNER CABINET COVER INNER CABINET COVER
Worcester part no. 87161007300
£27.99
78 Part number 87161007040, OBSOLETE Side - Combustion Chamber LH OBSOLETE SIDE - COMBUSTION CHAMBER LH
Worcester part no. 87161007040

79 Part number 87161424290, OBSOLETE GAS COCK 90 DEG. ANGLE BODY OBSOLETE GAS COCK 90 DEG. ANGLE BODY
Worcester part no. 87161424290

80 Part number 87161402450, POCKET T/STAT 27-3 POCKET T/STAT 27-3
Worcester part no. 87161402450
£12.34
81 Part number 87161563660, 3/8 BSP X 1/2 BSPT REDUCER. 3/8 BSP X 1/2 BSPT REDUCER.
Worcester part no. 87161563660
£7.10
83 Part number 77161922230, DRAIN VALVE SPARES KIT DRAIN VALVE SPARES KIT
Worcester part no. 77161922230
£7.20
84 Part number 87161207690, OBSOLETE OBSOLETE
Worcester part no. 87161207690

84 Part number 87161206990, NOW USE 87161047190 TANK & BASE ASSEMBLY NOW USE 87161047190 TANK & BASE ASSEMBLY
Worcester part no. 87161206990

84 Part number 87161047190, TANK & BASE ASSEMBLY TANK & BASE ASSEMBLY
Worcester part no. 87161047190
£661.63
85 Part number 87161006820, OBSOLETE Base Plate OBSOLETE BASE PLATE
Worcester part no. 87161006820

86 Part number 87161424180, ISOLATOR VALVE 15MM-ONE C/NUT ISOLATOR VALVE 15MM-ONE C/NUT
Worcester part no. 87161424180
£13.93

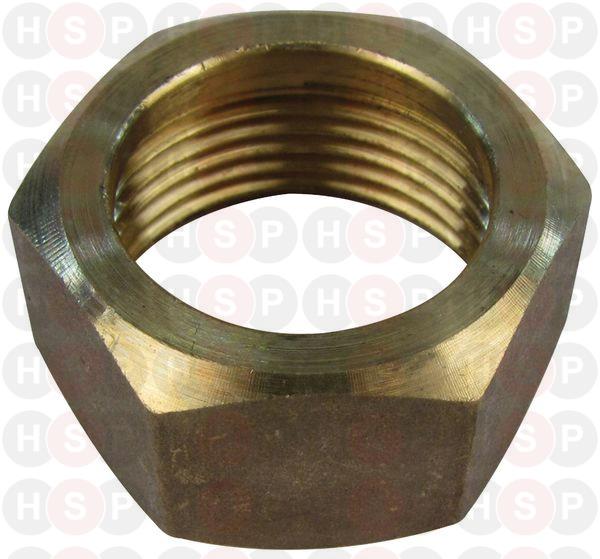

87 Part number 87161402850, NUT-G3/4 CLAMPING BRASS NUT-G3/4 CLAMPING BRASS
Worcester part no. 87161402850
£1.11
88 Part number 87161409190, WASHER 24 X 12 X 1.50 WASHER 24 X 12 X 1.50
Worcester part no. 87161409190
£1.79
89 Part number 87161563240, MINI VESSEL ADAPTOR MINI VESSEL ADAPTOR
Worcester part no. 87161563240
£10.30
90 Part number 766280, OBSOLETE Screw M4 x 8 Taptite Recessed Pan Head OBSOLETE SCREW M4 X 8 TAPTITE RECESSED PAN HEAD
Worcester part no. 766280

91 Part number 87161483210, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87161483210
£2.06
92 Part number 87161483230, CLIP - SMALL WIRE CLIP - SMALL WIRE
Worcester part no. 87161483230
£1.93
93 Part number 87161483220, CLIP - RETAINING CLIP - RETAINING
Worcester part no. 87161483220
£2.06
94 Part number 87161483100, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87161483100
£1.99
95 Part number 87161483200, CLIP - RETAINING CLIP - RETAINING
Worcester part no. 87161483200
£2.04
96 Part number S26520, OBSOLETE Precision Screw M5 x 10 Hexagon/Slotted Head OBSOLETE PRECISION SCREW M5 X 10 HEXAGON/SLOTTED HEAD
Worcester part no. S26520

97 Part number 87161006830, DRAIN COCK BRACKET DRAIN COCK BRACKET
Worcester part no. 87161006830
£4.67
98 Part number 87161480260, PUSH IN ELBOW PUSH IN ELBOW
Worcester part no. 87161480260
£9.65
99 Part number 68200103, OBSOLETE Machine Screw M5 x 16 Recessed Pan Head OBSOLETE MACHINE SCREW M5 X 16 RECESSED PAN HEAD
Worcester part no. 68200103

100 Part number 163400, OBSOLETE Bright Washer M5 Form A - 5.3 x 10 x 1 thick OBSOLETE BRIGHT WASHER M5 FORM A - 5.3 X 10 X 1 THICK
Worcester part no. 163400

101 Part number 87161207110, OBSOLETE OBSOLETE
Worcester part no. 87161207110

101 Part number 87161424340, 22MM ISOLATING VALVE-RETURN 22MM ISOLATING VALVE-RETURN
Worcester part no. 87161424340
£16.48
103 Part number 87161210700, OBSOLETE Keep Plate Assembly OBSOLETE KEEP PLATE ASSEMBLY
Worcester part no. 87161210700

104 Part number 87161408260, O-RING 3.0 SEC X 21.5 I/D E.P. O-RING 3.0 SEC X 21.5 I/D E.P.
Worcester part no. 87161408260
£1.90
105 Part number 87161408250, O-RING 14.6 X 2.4 (1X) O-RING 14.6 X 2.4 (1X)
Worcester part no. 87161408250
£1.89
106 Part number 87161408240, O-RING 1.6 SEC X 19.1 I/D E.P. O-RING 1.6 SEC X 19.1 I/D E.P.
Worcester part no. 87161408240
£1.89
107 Part number 87161408230, O-RING 3.53 SEC X 23.4 I/D E.P O-RING 3.53 SEC X 23.4 I/D E.P
Worcester part no. 87161408230
£1.93
108 Part number 87161408380, O-RING 2.4X5.6 I/D EPDM O-RING 2.4X5.6 I/D EPDM
Worcester part no. 87161408380
£1.77
109 Part number 87161408140, O-RING 2.0 X 16.00 ID EP (10X) O-RING 2.0 X 16.00 ID EP (10X)
Worcester part no. 87161408140
£1.89
110 Part number 87161408310, OBSOLETE O-RING 18,64X3,53 OBSOLETE O-RING 18,64X3,53
Worcester part no. 87161408310

111 Part number 87161402600, TOP MANIFOLD TAIL TOP MANIFOLD TAIL
Worcester part no. 87161402600
£9.33
112 Part number 87161006840, UPPER PUMP PLATE UPPER PUMP PLATE
Worcester part no. 87161006840
£4.20
113 Part number 87161006850, LOWER PUMP PLATE LOWER PUMP PLATE
Worcester part no. 87161006850
£3.11
115 Part number 29124212250, SCREW NO.8X1/2 F/H TYPE B SELF TAP (10X) SCREW NO.8X1/2 F/H TYPE B SELF TAP (10X)
Worcester part no. 29124212250
£1.65
116 Part number 87161483440, SPRING TENSION PIN SPRING TENSION PIN
Worcester part no. 87161483440
£3.46
117 Part number 87161209250, HF400 CLIP / SCREW PACK HF400 CLIP / SCREW PACK
Worcester part no. 87161209250
£6.45
119 Part number 87161211010, OBSOLETE Hardware/literature pack OBSOLETE HARDWARE/LITERATURE PACK
Worcester part no. 87161211010






TRACK YOU DELIVERY



Heating spares made simple this website is secured by Geotrust
