BAXI
DUO TEC 40 HE A (ISSUE 8) - (Combustion Box)
Appliance Code: 47-075-38

Appliance Diagram

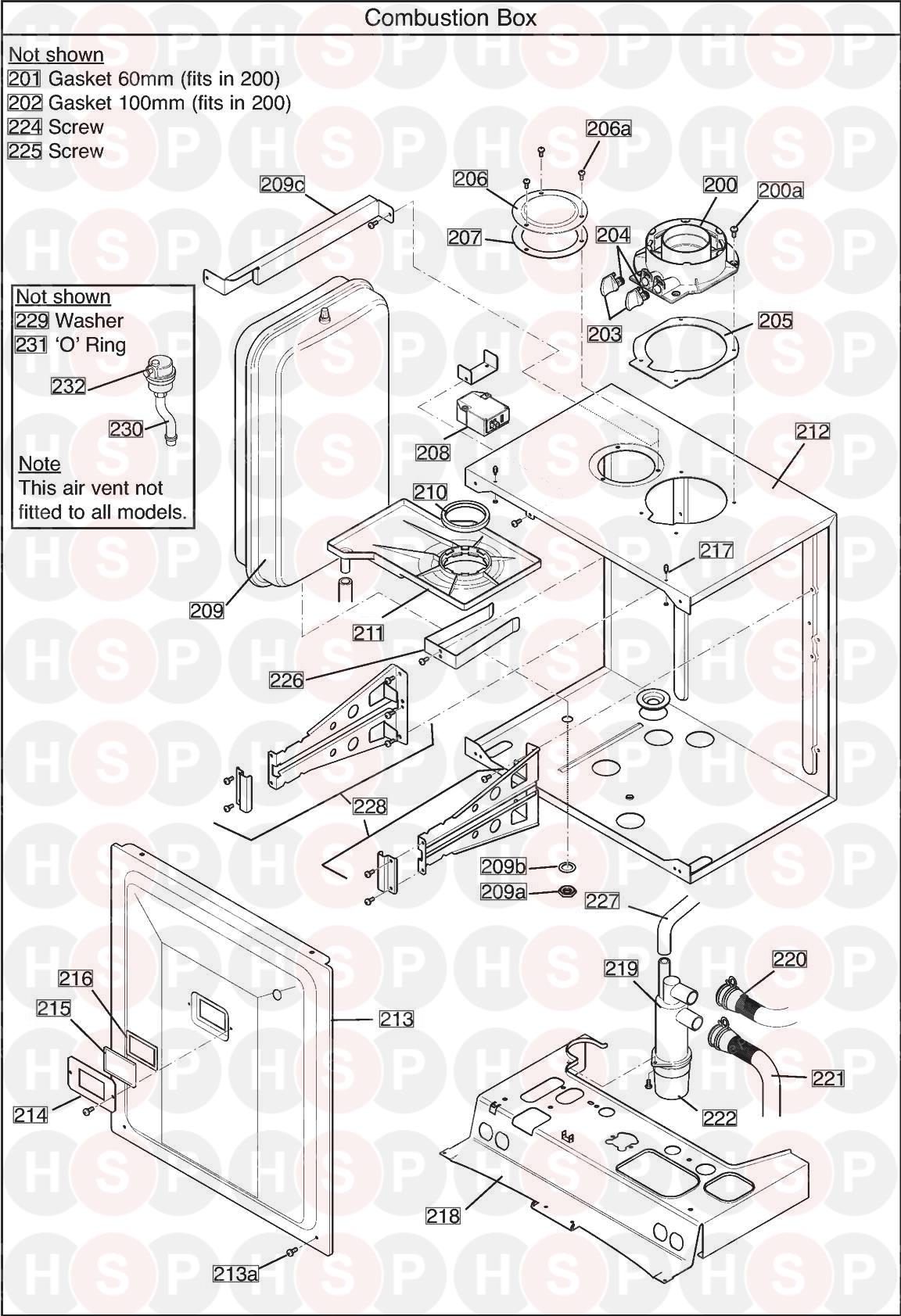

Combustion Box diagram for Baxi Duo Tec 40 HE A (Issue 8)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

200 Part number 5112369, FLUE ADAPTER HE (NO SEALS) FLUE ADAPTER HE (NO SEALS)
Baxi part no. 5112369		 £12,70
200A Part number 062617, SCR-ST-No8x1/2 PAN POZ.TYPE B SCR-ST-NO8X1/2 PAN POZ.TYPE B
Baxi part no. 062617		 £3,26
201 Part number 5112397, WASHER DIA 60 OUTLET BEND WASHER DIA 60 OUTLET BEND
Baxi part no. 5112397		 £6,05
202 Part number 5112398, WASHER DIA100 OUTER ADAPT SEAL WASHER DIA100 OUTER ADAPT SEAL
Baxi part no. 5112398		 £6,05
203 Part number 5113313, TAP ADAPTER TAP ADAPTER
Baxi part no. 5113313		 £4,71
204 Part number 5113314, O RING O RING
Baxi part no. 5113314		 £3,26
205 Part number 5112370, GASKET ADAPTER GASKET ADAPTER
Baxi part no. 5112370		 £4,71
206 Part number 247731, PLATE BLANKING PLATE BLANKING
Baxi part no. 247731		 £6,05
206A Part number 062617, SCR-ST-No8x1/2 PAN POZ.TYPE B SCR-ST-NO8X1/2 PAN POZ.TYPE B
Baxi part no. 062617		 £3,26
207 Part number 247732, GASKET - PLATE BLANKING GASKET - PLATE BLANKING
Baxi part no. 247732		 £3,26
208 Part number 5114766, IGNITOR IGNITOR
Baxi part no. 5114766		 £20,63
209 Part number 5114692, EXPANSION VESSEL 10L EXPANSION VESSEL 10L
Baxi part no. 5114692		 £91,45
209A Part number 223966, NUT-LOCK-M14 X 1-BRASS NUT-LOCK-M14 X 1-BRASS
Baxi part no. 223966		 £3,22
209B Part number 248000, WASHER - SEALING WASHER - SEALING
Baxi part no. 248000		 £3,26
209C   BRACKET - EXPANSION VESSEL
Baxi part no. 7686348		 £0,62
210 Part number 5114774, GASKET WITH DOUBLE LIP GASKET WITH DOUBLE LIP
Baxi part no. 5114774		 £3,36
211 Part number 5118375, DRIP TRAY/REDUCER DIA 80/60 DRIP TRAY/REDUCER DIA 80/60
Baxi part no. 5118375		 £20,71
212   COMBUSTION CHAMBER ASSY
Baxi part no. 5118374		 £93,65
213 Part number 5114693, COMBUSTION CHAMBER FRONT COMBUSTION CHAMBER FRONT
Baxi part no. 5114693		 £36,77
213A Part number 062617, SCR-ST-No8x1/2 PAN POZ.TYPE B SCR-ST-NO8X1/2 PAN POZ.TYPE B
Baxi part no. 062617		 £3,26
214 Part number 247437, SURROUND - VIEWING WINDOW SURROUND - VIEWING WINDOW
Baxi part no. 247437		 £6,05
215 Part number 247436, VIEWING WINDOW VIEWING WINDOW
Baxi part no. 247436		 £6,05
216 Part number 247435, VIEWING WINDOW GASKET VIEWING WINDOW GASKET
Baxi part no. 247435		 £3,46
217 Part number 248192, STUD - FRONT PANEL STUD - FRONT PANEL
Baxi part no. 248192		 £3,36
217A Part number 635431, NUT FULL M4 HEX. MS NICK.PLT NUT FULL M4 HEX. MS NICK.PLT
Baxi part no. 635431		 £3,22
218 Part number 5114735, MOUNTING PANEL - HYDRAULICS MOUNTING PANEL - HYDRAULICS
Baxi part no. 5114735		 £24,46
219 Part number 5118378, CONDENSATE BODY CONDENSATE BODY
Baxi part no. 5118378		 £18,65
220 Part number 5114762, TOP PIPE (SILICONE) TOP PIPE (SILICONE)
Baxi part no. 5114762		 £9,63
221 Part number 5114763, FLEXIBLE DISCHARGE PIPE SIPHON FLEXIBLE DISCHARGE PIPE SIPHON
Baxi part no. 5114763		 £12,31
222 Part number 5118972, CONDENSE SIPHON PLUG ASSEMBLY CONDENSE SIPHON PLUG ASSEMBLY
Baxi part no. 5118972		 £11,49
224   SCREW NO8X25 ABPAN POZ SZ
Baxi part no. 612827		 £3,26
224   NOW USE 612827 SCREW NO8X25 BPAN POZ SZ
Baxi part no. 670050
225   SCREW NO6X9.5 BPAN POZ SZ#
Baxi part no. 670046		 £3,11
226 Part number 5118377, FLUE SECURING BRKT FLUE SECURING BRKT
Baxi part no. 5118377
227 Part number 5118376, TRAY DRAIN PIPE TRAY DRAIN PIPE
Baxi part no. 5118376		 £40,43
228   HT EXCH BRKT 6E-40KW
Baxi part no. 720782401		 £29,67
229 Part number 248069, GASKET GASKET
Baxi part no. 248069		 £3,44
229 Part number 5122325, NOW USE 248069 SPARES KIT Air Vent Washer NOW USE 248069 SPARES KIT AIR VENT WASHER
Baxi part no. 5122325
230 Part number 5122322, PIPE ASSY - AIR VENT PIPE ASSY - AIR VENT
Baxi part no. 5122322		 £28,71
231 Part number 5122321, O-RING - AIR VENT O-RING - AIR VENT
Baxi part no. 5122321
232 Part number 5122330, AUTO AIR VENT AUTO AIR VENT
Baxi part no. 5122330		 £39,79
