GLOWWORM
ULTRACOM 30 CX - (Assembly 1)

Appliance Diagram


Assembly  1 diagram for Glowworm Ultracom 30 CXClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   COMPANY PLAQUE
Glowworm part no. 0020046141
£5.81
1   COMPANY PLAQUE
Glowworm part no. 0020046142
£5.81
2   FRONT PANEL KIT (BASIC)
Glowworm part no. 2000802454
£46.62
3 Part number 801681, SIDE PANEL LH SIDE PANEL LH
Glowworm part no. 801681
£47.84
4 Part number 2000802126, Side panel R/H SIDE PANEL R/H
Glowworm part no. 2000802126
£45.22
5 Part number 801700, SCREW 4.2X13.5MM SCREW 4.2X13.5MM
Glowworm part no. 801700
£5.27
6 Part number 801682, Door DOOR
Glowworm part no. 801682
£36.19
7 Part number 2000801843, Inner door seal, 1765mm INNER DOOR SEAL, 1765MM
Glowworm part no. 2000801843
£8.60
8   SCREW M8X40
Glowworm part no. 2000801671
£5.27
9 Part number 801654, ZIG IGNITOR BRACKET ZIG IGNITOR BRACKET
Glowworm part no. 801654
£5.69
10   SEAL - PIPE
Glowworm part no. 801658
£5.27
11 Part number 801656, GROMMET GROMMET
Glowworm part no. 801656
£5.27
12   SEAL - PIPE
Glowworm part no. 801657
£5.27
13   END TIP
Glowworm part no. 801660
£5.27
14   FIXING BRACKET-EXPANSION VESSEL
Glowworm part no. 801667
£10.24
15 Part number 801666, NOW USE 0020020744 EXPANSION VESSEL 8 LT NOW USE 0020020744 EXPANSION VESSEL 8 LT
Glowworm part no. 801666

15 Part number 0020020744, expansion vessel EXPANSION VESSEL
Glowworm part no. 0020020744
£81.46
16 Part number S208342, Washer WASHER
Glowworm part no. S208342
£4.17
17 Part number 0020037298, Pipe PIPE
Glowworm part no. 0020037298
£7.25
18 Part number 2000801616, NOW USE 0020038076 FLUE SEAL NOW USE 0020038076 FLUE SEAL
Glowworm part no. 2000801616

18 Part number 0020038076, Gasket exchanger / flue GASKET EXCHANGER / FLUE
Glowworm part no. 0020038076
£6.29
19 Part number 801614, FLUE ADAPTER FLUE ADAPTER
Glowworm part no. 801614
£99.89
20 Part number 2000801615, gasket heat exchanger GASKET HEAT EXCHANGER
Glowworm part no. 2000801615
£16.51
21 Part number 801617, NOW USE 0020057359 FLEXIBLE HOSE 120MM WITH SEAL NOW USE 0020057359 FLEXIBLE HOSE 120MM WITH SEAL
Glowworm part no. 801617

21 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359
£16.82
22 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359
£16.82
22 Part number 801624, NOW USE 0020057359 SIPHON ADAPTER NOW USE 0020057359 SIPHON ADAPTER
Glowworm part no. 801624

23 Part number 801732, NOW USE 0020057359 HOSE CONNECTOR NOW USE 0020057359 HOSE CONNECTOR
Glowworm part no. 801732

23 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359
£16.82
24 Part number 801733, Adapter clip-heat exchanger ADAPTER CLIP-HEAT EXCHANGER
Glowworm part no. 801733
£5.27
25 Part number 801625, O RING 18 X 3 O RING 18 X 3
Glowworm part no. 801625
£5.27
26 Part number 801626, O ring 15.6 ID X 2.4 SECT DIA O RING 15.6 ID X 2.4 SECT DIA
Glowworm part no. 801626
£5.27
27 Part number 0020020726, Pipe, condense drain PIPE, CONDENSE DRAIN
Glowworm part no. 0020020726
£8.42
28 Part number 2000802784, NOW USE 00200587359 SIPHON ADAPTER NOW USE 00200587359 SIPHON ADAPTER
Glowworm part no. 2000802784

28 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359
£16.82
29 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359
£16.82
29   NOW USE 0020057359 SEALING SYPHON ADAPTER
Glowworm part no. 2000802152

30 Part number 0020013712, FLOAT FLOAT
Glowworm part no. 0020013712
£5.27
31 Part number 0020013711, SIPHON SIPHON
Glowworm part no. 0020013711
£25.49
33 Part number 0020037309, FAN FAN
Glowworm part no. 0020037309
£158.09
34 Part number 801689, SEAL FAN SEAL FAN
Glowworm part no. 801689
£6.52
35 Part number 801648, O-ring for venturi plate O-RING FOR VENTURI PLATE
Glowworm part no. 801648
£5.27
36 Part number 801647, VENTURI PLATE FAN VENTURI PLATE FAN
Glowworm part no. 801647
£28.33
37 Part number S014277, Screw M4x10mm SCREW M4X10MM
Glowworm part no. S014277
£5.27
38 Part number 2000802664, Gas section GAS SECTION
Glowworm part no. 2000802664
£152.44
39 Part number S208040, O ring O RING
Glowworm part no. S208040
£5.27
40 Part number 801650, CONNECTOR GAS VALVE CONNECTOR GAS VALVE
Glowworm part no. 801650
£34.52
41 Part number S12780, Screw M4x12mm SCREW M4X12MM
Glowworm part no. S12780
£5.27
42   PIPE
Glowworm part no. 0020037296
£45.22
43 Part number 0020037297, O-ring O-RING
Glowworm part no. 0020037297
£5.27
44 Part number 2000801653, clip gas pipe CLIP GAS PIPE
Glowworm part no. 2000801653
£5.27
45 Part number 801644, NOW USE 0020018831 SCREW FAN ASSEMBLY NOW USE 0020018831 SCREW FAN ASSEMBLY
Glowworm part no. 801644

45 Part number 0020018831, Screw M6x20 (PK10) SCREW M6X20 (PK10)
Glowworm part no. 0020018831
£5.27
46 Part number S208294, Screw ( M5X14mm ) SCREW ( M5X14MM )
Glowworm part no. S208294
£5.27
46 Part number 801646, NOW USE S208294 SCREW EJOT M5X16 NOW USE S208294 SCREW EJOT M5X16
Glowworm part no. 801646

47 Part number 801641, MANIFOLD FAN (ASSEMBLY) MANIFOLD FAN (ASSEMBLY)
Glowworm part no. 801641
£117.19
48 Part number 2000802462, NOW USE 0020152564 ignition rod NOW USE 0020152564 IGNITION ROD
Glowworm part no. 2000802462

48 Part number 0020152564, Electrode (kit) ELECTRODE (KIT)
Glowworm part no. 0020152564
£32.82
49 Part number 801638, GASKET ELECTRODE GASKET ELECTRODE
Glowworm part no. 801638
£5.10
50 Part number 801639, screw electrode SCREW ELECTRODE
Glowworm part no. 801639
£5.27
51 Part number 801640, NOW USE 2000801640 SIGHT GLASS REPLACEMENT KIT NOW USE 2000801640 SIGHT GLASS REPLACEMENT KIT
Glowworm part no. 801640

51 Part number 2000801640, viewing glass (set) VIEWING GLASS (SET)
Glowworm part no. 2000801640
£8.76
52 Part number 801688, gasket h/e door/mixing arm GASKET H/E DOOR/MIXING ARM
Glowworm part no. 801688
£5.10
53 Part number 801631, HEAT EXCHANGER DOOR KIT HEAT EXCHANGER DOOR KIT
Glowworm part no. 801631
£98.69
54 Part number 801651, M6 washered nut M6 WASHERED NUT
Glowworm part no. 801651
£5.27
55 Part number 801635, NOW USE 0020018812 Seal heat exchanger door NOW USE 0020018812 SEAL HEAT EXCHANGER DOOR
Glowworm part no. 801635

55 Part number 0020018812, H/E door seal H/E DOOR SEAL
Glowworm part no. 0020018812
£14.26
56 Part number 2000802737, Insulation cover heat exchanger INSULATION COVER HEAT EXCHANGER
Glowworm part no. 2000802737
£49.23
57 Part number 801634, GASKET, BURNER GASKET, BURNER
Glowworm part no. 801634
£5.55
58 Part number 2000802463, Burner, kit with gaskets, 24kW BURNER, KIT WITH GASKETS, 24KW
Glowworm part no. 2000802463
£140.88
59 Part number 801633, Screw, burner SCREW, BURNER
Glowworm part no. 801633
£5.27
60 Part number 0020010866, Insulation, heat exchanger, 10 mm INSULATION, HEAT EXCHANGER, 10 MM
Glowworm part no. 0020010866
£32.35
61 Part number 801621, Heat exchanger HEAT EXCHANGER
Glowworm part no. 801621
£443.13
62 Part number 0020037295, Pipe, return PIPE, RETURN
Glowworm part no. 0020037295
£21.83
63 Part number 0020037288, Pipe, flow PIPE, FLOW
Glowworm part no. 0020037288
£27.81
64 Part number S212332, SEALING WASHER 24.5X18.2MM SEALING WASHER 24.5X18.2MM
Glowworm part no. S212332
£5.25
65 Part number 801692, SCREW M6 X120 POZI PAN SCREW M6 X120 POZI PAN
Glowworm part no. 801692
£5.27
66 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238
£5.27
67 Part number 801622, Clamp - Heat exchanger CLAMP - HEAT EXCHANGER
Glowworm part no. 801622
£5.27
68   H/E SUPPORT BRACKET - LH
Glowworm part no. 801618
£17.33
69   H/E SUPPORT BRACKET RH
Glowworm part no. 801619
£17.33
70 Part number 0020051491, Casing (Front) CASING (FRONT)
Glowworm part no. 0020051491
£42.53

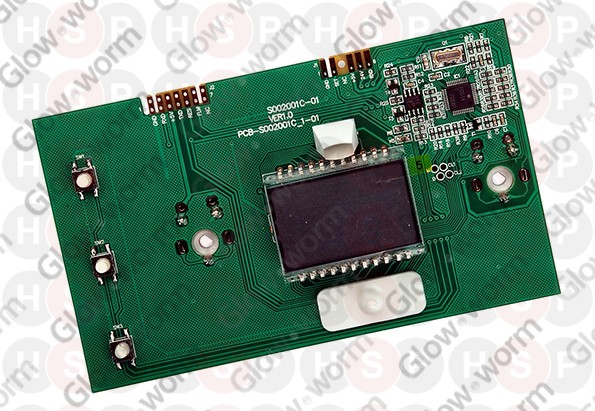

71 Part number 0020051492, Display DISPLAY
Glowworm part no. 0020051492
£84.03
72   BACK PANEL
Glowworm part no. 0020038063
£10.31
73 Part number 0020023825, PCB main PCB MAIN
Glowworm part no. 0020023825
£142.07
74   HARNESS
Glowworm part no. 0020051493
£19.06
75 Part number 0020026405, NOW USE 0020079603 fuse NOW USE 0020079603 FUSE
Glowworm part no. 0020026405

75 Part number 0020079603, Fuse 2,0 A T2H (PK10) FUSE 2,0 A T2H (PK10)
Glowworm part no. 0020079603
£11.23
76 Part number 801655, ZIG IGNITOR ZIG IGNITOR
Glowworm part no. 801655
£29.72
77 Part number SK7959, Screw, M3x6mm SCREW, M3X6MM
Glowworm part no. SK7959
£5.27
78 Part number 0020020781, NOW USE S5739800 temperature monitor NOW USE S5739800 TEMPERATURE MONITOR
Glowworm part no. 0020020781

78 Part number S5739800, Temperature sensor TEMPERATURE SENSOR
Glowworm part no. S5739800
£21.34
79 Part number 0020038263, fitting FITTING
Glowworm part no. 0020038263
£5.27
80   HOUSING
Glowworm part no. 0020046143
£54.43
81 Part number 0020038262, Box BOX
Glowworm part no. 0020038262
£27.05
82 Part number 0020014190, NOW USE 0020079644 CH PRESSURE SENSOR NOW USE 0020079644 CH PRESSURE SENSOR
Glowworm part no. 0020014190

82 Part number 0020079644, Sensor SENSOR
Glowworm part no. 0020079644
£22.71
83 Part number 0020037306, cable tree (harness) CABLE TREE (HARNESS)
Glowworm part no. 0020037306
£9.85
84 Part number 0020037302, NOW USE 0020152565 ELECTRODE KIT NOW USE 0020152565 ELECTRODE KIT
Glowworm part no. 0020037302

84 Part number 0020152565, Electrode (kit) ELECTRODE (KIT)
Glowworm part no. 0020152565
£35.21
85 Part number 0020037305, cable tree (harness) CABLE TREE (HARNESS)
Glowworm part no. 0020037305
£21.83
86 Part number 0020041105, Fittings Pack FITTINGS PACK
Glowworm part no. 0020041105
£214.61
87 Part number 0020041106, Pipe Pack PIPE PACK
Glowworm part no. 0020041106
£80.61
88 Part number 0020014183, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020014183
£8.93
89 Part number 801676, O-ring O-RING
Glowworm part no. 801676
£5.27
90 Part number 0020014160, sensor NTC (DHW outlet pipe) SENSOR NTC (DHW OUTLET PIPE)
Glowworm part no. 0020014160
£7.16
91 Part number 0020041285, harness HARNESS
Glowworm part no. 0020041285
£34.22
92 Part number 0020014195, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020014195
£5.27
93 Part number 0020026411, CH tap CH TAP
Glowworm part no. 0020026411
£51.51
94 Part number 0020026414, FILLING LOOP FILLING LOOP
Glowworm part no. 0020026414
£85.98
95 Part number 0020026409, Gas tap GAS TAP
Glowworm part no. 0020026409
£36.38
96 Part number 0020026408, Tap, central heating TAP, CENTRAL HEATING
Glowworm part no. 0020026408
£38.50
97 Part number 0020026413, DHW cold inlet tap DHW COLD INLET TAP
Glowworm part no. 0020026413
£53.96
98 Part number 0020014402, heat exchanger DHW (16 plates) HEAT EXCHANGER DHW (16 PLATES)
Glowworm part no. 0020014402
£92.47
99 Part number 0020038094, Screw M5X87 (PK4) SCREW M5X87 (PK4)
Glowworm part no. 0020038094
£8.40
100 Part number 0020014166, Gasket, C-Type, (PK10) GASKET, C-TYPE, (PK10)
Glowworm part no. 0020014166
£8.47
101 Part number 0020038227, connection piece CONNECTION PIECE
Glowworm part no. 0020038227
£11.40
102 Part number 0020038228, connection piece CONNECTION PIECE
Glowworm part no. 0020038228
£11.61
103 Part number 0020038230, pipe PIPE
Glowworm part no. 0020038230
£9.68
104 Part number 0020038089, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020038089
£5.27
106 Part number 0020038234, filter FILTER
Glowworm part no. 0020038234
£5.27
107 Part number 0020038083, pipe PIPE
Glowworm part no. 0020038083
£20.81
109 Part number 0020038092, pipe PIPE
Glowworm part no. 0020038092
£24.01
110 Part number 0020038093, pipe PIPE
Glowworm part no. 0020038093
£17.88
111 Part number 0020038091, pipe PIPE
Glowworm part no. 0020038091
£26.18
113 Part number 0020014168, valve VALVE
Glowworm part no. 0020014168
£112.75
114 Part number 0020014169, bypass BYPASS
Glowworm part no. 0020014169
£24.89
116 Part number 0020014164, Wire retaining clip (PK10) WIRE RETAINING CLIP (PK10)
Glowworm part no. 0020014164
£6.76
117 Part number 0020014176, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020014176
£9.87
118 Part number 0020014174, Flow sensor (black) FLOW SENSOR (BLACK)
Glowworm part no. 0020014174
£26.85
119 Part number 0020014175, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020014175
£6.47
120 Part number 0020038090, clip CLIP
Glowworm part no. 0020038090
£5.27
121 Part number 0020014186, Nut (PK4) NUT (PK4)
Glowworm part no. 0020014186
£5.97
122 Part number 0020014171, pump PUMP
Glowworm part no. 0020014171
£147.28
123 Part number 0020014161, automatic air vent AUTOMATIC AIR VENT
Glowworm part no. 0020014161
£18.53
124 Part number 0020014170, NOW USE 0020038628 clip NOW USE 0020038628 CLIP
Glowworm part no. 0020014170

124 Part number 0020038628, CLIP CLIP
Glowworm part no. 0020038628
£4.63
125 Part number 0020014185, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020014185
£14.59
126 Part number 0020014173, NOW USE 0020047005 pressure relief valve(3 bar) NOW USE 0020047005 PRESSURE RELIEF VALVE(3 BAR)
Glowworm part no. 0020014173

126 Part number 0020047005, Pressure relief valve, 3 bar PRESSURE RELIEF VALVE, 3 BAR
Glowworm part no. 0020047005
£11.00
127 Part number 0020014172, support SUPPORT
Glowworm part no. 0020014172
£26.42
128 Part number 0020038080, Screw (PK10) SCREW (PK10)
Glowworm part no. 0020038080
£5.27
129 Part number 0020014188, Screw (PK10) SCREW (PK10)
Glowworm part no. 0020014188
£5.27
131 Part number 0020014177, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020014177
£5.27
134   OBSOLETE SCREW, CPL. (SET OF 10)
Glowworm part no. 0020038079

135 Part number 0020038229, nut NUT
Glowworm part no. 0020038229
£5.27
136   PIPE, RETURN
Glowworm part no. 0020037292
£11.89
137 Part number 0020051514, Timer TIMER
Glowworm part no. 0020051514
£99.51
138 Part number 2000801872, KNOB KNOB
Glowworm part no. 2000801872
£19.78



Heating spares made simple this website is secured by Geotrust
