VOKERA
LINEA 28 HE REV 8 (11/2009) - (Burner)
Appliance Code: 47-094-89 REV 8

Appliance Diagram

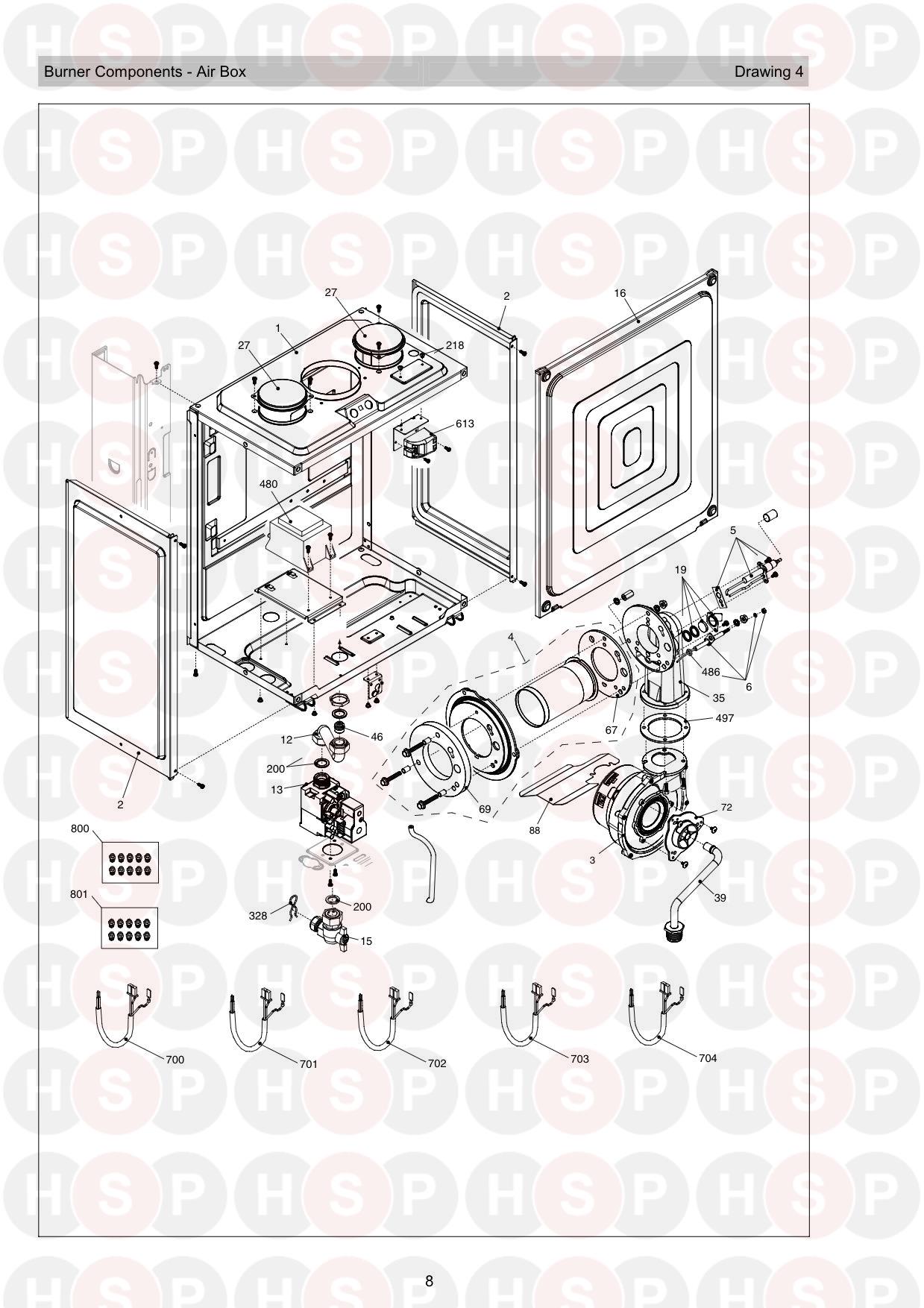

Burner diagram for Vokera Linea 28 HE Rev 8 (11/2009)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   ROOM SEALED CHAMBER
Vokera part no. 10028520
P.O.A.
2   ROOMSEALED CHAMBER SIDE
Vokera part no. 10026231
£33.11
3 Part number 10027316, Fan FAN
Vokera part no. 10027316
£175.07
4   NOW USE 10028537 BURNER
Vokera part no. 01005458

4 Part number 10028537, Burner (Rep 01005458 and 10026548) BURNER (REP 01005458 AND 10026548)
Vokera part no. 10028537
£162.97
5 Part number 10027864, Spark/Ignition electrode SPARK/IGNITION ELECTRODE
Vokera part no. 10027864
£30.24
6 Part number 10026316, Sensing electrode SENSING ELECTRODE
Vokera part no. 10026316
£12.30
12 Part number 10026318, Gas pipe GAS PIPE
Vokera part no. 10026318
£16.45
13 Part number 10028538, NOW USE 20039202 Gas valve NOW USE 20039202 GAS VALVE
Vokera part no. 10028538

13 Part number 20039202, Gas valve Rep 10028538 & 10027187 & 20025752 GAS VALVE REP 10028538 & 10027187 & 20025752
Vokera part no. 20039202
£170.04
15 Part number 10020897, Gas Cock GAS COCK
Vokera part no. 10020897
£26.04
16   ROOMSEALED CHAMBER COVER
Vokera part no. 10026230
£43.50
19 Part number 10026328, Glass assembly GLASS ASSEMBLY
Vokera part no. 10026328
£8.31
27   PLASTIC HOLE COVER
Vokera part no. 20005586
£1.65
35 Part number 10028420, Air gas conveyor AIR GAS CONVEYOR
Vokera part no. 10028420
£49.54
39   PIPE
Vokera part no. 10028204
£106.22
46   LPG TO NG JET (6.7)
Vokera part no. 10027161
£7.97
67 Part number 10026322, Washer WASHER
Vokera part no. 10026322
£21.67
69 Part number 10027089, NOW USE 20046833 TRYTON NOW USE 20046833 TRYTON
Vokera part no. 10027089

69   TRYTON AND SCREWS - REPLACED 10027089
Vokera part no. 20046833
£10.79
72 Part number 20015932, Mixer Replaced 10024295 MIXER REPLACED 10024295
Vokera part no. 20015932
£40.32
88 Part number 20006411, Fan baffle FAN BAFFLE
Vokera part no. 20006411
£8.46
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
480 Part number 10026236, Transformer with wires that connect onto CN01 TRANSFORMER WITH WIRES THAT CONNECT ONTO CN01
Vokera part no. 10026236
£90.16
486 Part number 10026325, O ring O RING
Vokera part no. 10026325
£2.52
497 Part number 10026796, Fan Gasket FAN GASKET
Vokera part no. 10026796
£7.18
613 Part number 20002969, Ignition transformer with wires Rep 10026237 & 20001563 IGNITION TRANSFORMER WITH WIRES REP 10026237 & 20001563
Vokera part no. 20002969
£42.16
700   SENSOR CABLE ANTI SPILLING
Vokera part no. 20006409
P.O.A.
701 Part number 10026336, J10 to Gas valve cable J10 TO GAS VALVE CABLE
Vokera part no. 10026336
£24.40
702 Part number 10026337, CN01 to Fan transformer CN01 TO FAN TRANSFORMER
Vokera part no. 10026337
£25.73
703 Part number 10026558, TSC1 (ignition transformer) to Spark electrode Wiring TSC1 (IGNITION TRANSFORMER) TO SPARK ELECTRODE WIRING
Vokera part no. 10026558
£10.79
704   IGNITION CABLE
Vokera part no. 20002045
£12.84
800 Part number 01005465, LPG to NG Conversion kit (6.7) LPG TO NG CONVERSION KIT (6.7)
Vokera part no. 01005465
£10.82
801 Part number 01005447, NG to LPG conversion kit (4.7) NG TO LPG CONVERSION KIT (4.7)
Vokera part no. 01005447
£17.73
