WORCESTER
15 CBI - (Heat Exchanger)
Appliance Code: 41-311-47

Appliance Diagram


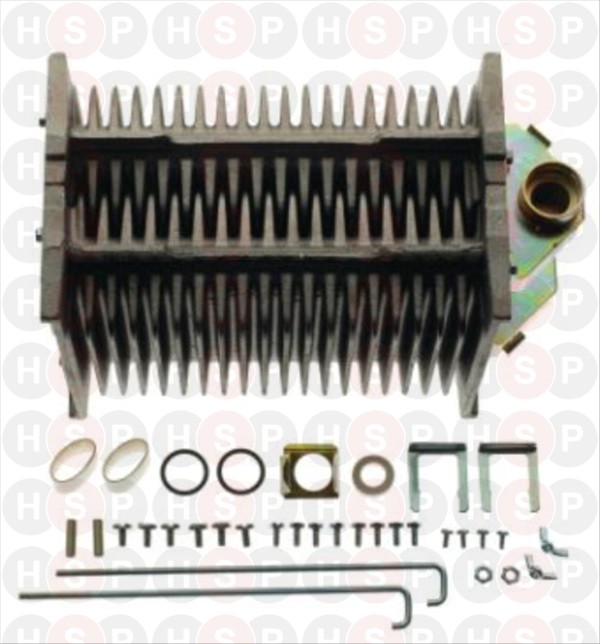

Heat Exchanger diagram for Worcester 15 CBIClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 87161017970, O-RING KIT HT/EXCHANGER O-RING KIT HT/EXCHANGER
Worcester part no. 87161017970
0 Part number 87161018540, INSULATION KIT 15CBI INSULATION KIT 15CBI
Worcester part no. 87161018540
0 Part number 87161217840, HARNESS MAIN HARNESS MAIN
Worcester part no. 87161217840		 £17.37
1 Part number 87161216990, HEAT EXCHANGER ASSEMBLY HEAT EXCHANGER ASSEMBLY
Worcester part no. 87161216990		 £345.02
2 Part number 87161018060, SIDE PLATE R.H. ASSEMBLY 15CBI SIDE PLATE R.H. ASSEMBLY 15CBI
Worcester part no. 87161018060		 £38.10
3 Part number 87161018050, SIDE PLATE L.H. ASSEMBLY SIDE PLATE L.H. ASSEMBLY
Worcester part no. 87161018050
4 Part number 87161031210, BAFFLE ASSEMBLY SHORT BAFFLE ASSEMBLY SHORT
Worcester part no. 87161031210		 £26.10
5 Part number 87161568520, INSULATION SIDES INSULATION SIDES
Worcester part no. 87161568520		 £13.55
6 Part number 87161049550, O-RING 3.53 X 20.22ID O-RING 3.53 X 20.22ID
Worcester part no. 87161049550
7 Part number 29111211500, SCREW M5 X 8 LG HEX SLOT HD SCREW M5 X 8 LG HEX SLOT HD
Worcester part no. 29111211500		 £2.38
7   SCREW M5X10MM HEX/SLOTTED HEAD
Worcester part no. 29111311520		 £1.90
8 Part number 29100011910, SCREW M6X10MM BZP SLT P/H M/S SCREW M6X10MM BZP SLT P/H M/S
Worcester part no. 29100011910		 £1.90
9 Part number 87161540150, PIPE - C/H ASSEMBLY PIPE - C/H ASSEMBLY
Worcester part no. 87161540150
10   PIPE - C/H ASSEMBLY
Worcester part no. 87161540130		 £10.83
11 Part number 87161480730, HEAT EXCHANGER MANIFOLDS HEAT EXCHANGER MANIFOLDS
Worcester part no. 87161480730
12 Part number 87161200370, DRAIN SCREW ASSEMBLY DRAIN SCREW ASSEMBLY
Worcester part no. 87161200370		 £3.32
13 Part number 87161408260, O-RING 3.0 SEC X 21.5 I/D E.P. O-RING 3.0 SEC X 21.5 I/D E.P.
Worcester part no. 87161408260		 £2.67
14 Part number 87161483650, CLIP - SPRING RETAINING CLIP - SPRING RETAINING
Worcester part no. 87161483650		 £3.54
15 Part number 87161423990, OVERHEAT THERMOSTAT OVERHEAT THERMOSTAT
Worcester part no. 87161423990
16 Part number 87161423020, NTC/THERMISTOR DHW NTC/THERMISTOR DHW
Worcester part no. 87161423020		 £12.41
17 Part number 87161483220, CLIP - RETAINING CLIP - RETAINING
Worcester part no. 87161483220		 £2.89
18 Part number 87161483620, RETAINER - INSULATION RETAINER - INSULATION
Worcester part no. 87161483620		 £2.92
19 Part number 87161019380, CLIP - BAFFLE RETAINING CLIP - BAFFLE RETAINING
Worcester part no. 87161019380		 £2.89
20   ACCESS PLATE C/W BACK PLATE & SCREWS
Worcester part no. 87161018300		 £11.08
21   INSULATING RING
Worcester part no. 87161023370		 £1.62
