PERFORMA 24 - (Hydraulics)
Appliance Code: 47-393-06

Appliance Diagram


Hydraulics diagram for Potterton Performa 24Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

70 Part number 248039, PIPE ASSEMBLY - RETURN - 80 PIPE ASSEMBLY - RETURN - 80
Potterton part no. 248039
£13.88
71 Part number 248193, CLIP - PLASTIC CLIP - PLASTIC
Potterton part no. 248193
£3.16
72 Part number 248041, NOW USE 7808435 PUMP (15-50) - 80 NOW USE 7808435 PUMP (15-50) - 80
Potterton part no. 248041

72 Part number 7808435, PUMP KIT UPMO PRE ERP PUMP KIT UPMO PRE ERP
Potterton part no. 7808435
£240.48
72 Part number 26009031, SCREW M6 X 25MM SCREW M6 X 25MM
Potterton part no. 26009031
£3.16
73 Part number 248043, AIR VENT - AUTOMATIC AIR VENT - AUTOMATIC
Potterton part no. 248043
£12.14
74 Part number 248044, O-RING - AIR VENT O-RING - AIR VENT
Potterton part no. 248044
£3.07
75 Part number 248045, GROMMET - PIPE ASSEMBLY GROMMET - PIPE ASSEMBLY
Potterton part no. 248045
£5.71
76 Part number 248046, NOW USE 7225724 HEAT EXCHANGER DHW (10 PLATES) NOW USE 7225724 HEAT EXCHANGER DHW (10 PLATES)
Potterton part no. 248046

76 Part number 7225724, PLATE HEAT EX 10 PLATES KIT PLATE HEAT EX 10 PLATES KIT
Potterton part no. 7225724
£96.80
77 Part number 248049, GASKET - PLATE HEAT EXCHANGER GASKET - PLATE HEAT EXCHANGER
Potterton part no. 248049
£5.62
80 Part number 248050, HYDRAULIC INLET ASSEMBLY HYDRAULIC INLET ASSEMBLY
Potterton part no. 248050
£113.03
82 Part number 248051, HYDRAULIC VENTURI ASSEMBLY HYDRAULIC VENTURI ASSEMBLY
Potterton part no. 248051
£14.55
84 Part number 248052, FILTER - DHW FILTER - DHW
Potterton part no. 248052
£5.71
85 Part number 248053, O RING VENTURI ASSEMBLY O RING VENTURI ASSEMBLY
Potterton part no. 248053
£4.44
86 Part number 247429, O RING 22 x 3 O RING 22 X 3
Potterton part no. 247429
£3.07
87 Part number 248054, PUMP CONNECTION ELEMENT PUMP CONNECTION ELEMENT
Potterton part no. 248054
£6.12
88 Part number 235948, FLOW REGULATOR 10L - BLUE FLOW REGULATOR 10L - BLUE
Potterton part no. 235948
£24.22
89 Part number 248000, WASHER - SEALING WASHER - SEALING
Potterton part no. 248000
£2.89
91 Part number 248055, DRAIN TAP DRAIN TAP
Potterton part no. 248055
£9.59
92 Part number 248056, SAFETY VALVE - 3 BAR (FEMALE) SAFETY VALVE - 3 BAR (FEMALE)
Potterton part no. 248056
£14.33
96 Part number 248057, PIPE - POSITIVE PRESSURE PIPE - POSITIVE PRESSURE
Potterton part no. 248057
£9.23
97 Part number 248058, PIPE - NEGATIVE PRESSURE PIPE - NEGATIVE PRESSURE
Potterton part no. 248058
£13.88
98 Part number 248059, PIPE ASSEMBLY - BYPASS PIPE ASSEMBLY - BYPASS
Potterton part no. 248059
£24.40
99 Part number 248060, CLIP FIXING - BYPASS CLIP FIXING - BYPASS
Potterton part no. 248060
£5.71
100 Part number 248018, O RING O RING
Potterton part no. 248018
£3.11
101 Part number 248061, NOW USE 7224344 HYDRAULIC OUTLET ASSEMBLY NOW USE 7224344 HYDRAULIC OUTLET ASSEMBLY
Potterton part no. 248061

101 Part number 7224344, HYDRAULIC OUTLET ASSY KIT HYDRAULIC OUTLET ASSY KIT
Potterton part no. 7224344
£232.57
102 Part number 7224343, 3 WAY VALVE ASSY KIT 3 WAY VALVE ASSY KIT
Potterton part no. 7224343
£183.75
102 Part number 248062, NOW USE 7224343 VALVE - 3 WAY ASSEMBLY NOW USE 7224343 VALVE - 3 WAY ASSEMBLY
Potterton part no. 248062

103 Part number 248063, NOW USE 7224342 PRESSURE DIFFERENTIAL ASSEMBLY NOW USE 7224342 PRESSURE DIFFERENTIAL ASSEMBLY
Potterton part no. 248063

103 Part number 7224342, PRESSURE DIFFERENTIAL ASSY KIT PRESSURE DIFFERENTIAL ASSY KIT
Potterton part no. 7224342
£119.11
104 Part number 248064, DHW OUTLET CONNECTION DHW OUTLET CONNECTION
Potterton part no. 248064
£66.16
105 Part number 247745, SEALING WASHER G. 3/4 SEALING WASHER G. 3/4
Potterton part no. 247745
£3.07
106 Part number 248021, O RING 17.86 x 2.62 O RING 17.86 X 2.62
Potterton part no. 248021
£3.07
112 Part number 248065, DIAPHRAGM - 3 WAY VALVE DIAPHRAGM - 3 WAY VALVE
Potterton part no. 248065
£10.46
122 Part number 248019, O RING O RING
Potterton part no. 248019
£4.44
127 Part number 248066, DIAPHRAGM - PRESS/DIFF VALVE DIAPHRAGM - PRESS/DIFF VALVE
Potterton part no. 248066
£11.09
128 Part number 248020, O RING O RING
Potterton part no. 248020
£3.16
130 Part number 248067, MICROSWITCH ASSEMBLY MICROSWITCH ASSEMBLY
Potterton part no. 248067
£6.95
131 Part number 248068, NOW USE 5108265 TEMPERATURE SENSOR 80Eco NOW USE 5108265 TEMPERATURE SENSOR 80ECO
Potterton part no. 248068

131 Part number 5108265, TEMPERATURE SENSOR TEMPERATURE SENSOR
Potterton part no. 5108265
£19.48
132 Part number 248069, GASKET GASKET
Potterton part no. 248069
£3.25

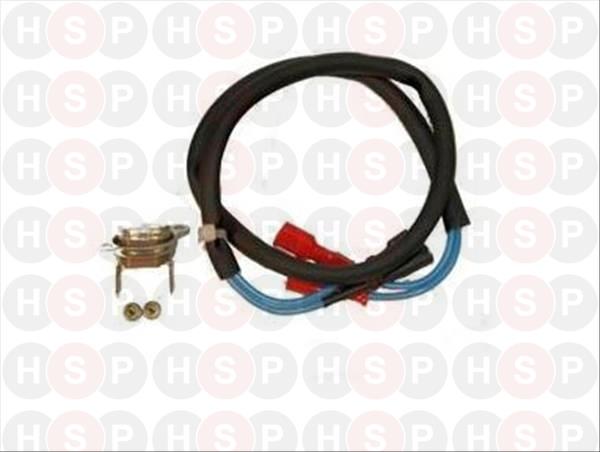

135 Part number 5115349, OVERHEAT STAT KIT OVERHEAT STAT KIT
Potterton part no. 5115349
£20.74
135 Part number 248078, NOW USE 5115349 THERMOSTAT LIMIT 80Eco NOW USE 5115349 THERMOSTAT LIMIT 80ECO
Potterton part no. 248078

136 Part number 248081, PIPE - FLOW - 80 PIPE - FLOW - 80
Potterton part no. 248081
£13.88
137 Part number 248082, ELBOW - GAS FLOW OUTLET ELBOW - GAS FLOW OUTLET
Potterton part no. 248082
£6.75
138 Part number 247741, O RING 22.22 x 2.62 O RING 22.22 X 2.62
Potterton part no. 247741
£2.89
139 Part number 248083, CONNECTOR - GAS VALVE INLET CONNECTOR - GAS VALVE INLET
Potterton part no. 248083
£9.23
140 Part number 248084, NOW USE 245341 GAS VALVE 80Eco NOW USE 245341 GAS VALVE 80ECO
Potterton part no. 248084

140 Part number 245341, KIT - VALVE MODULATING KIT - VALVE MODULATING
Potterton part no. 245341
£221.25
145 Part number 247776, CLAMP - INPUT CABLE CLAMP - INPUT CABLE
Potterton part no. 247776
£4.25
147 Part number 248087, PANEL - HYDRAULICS MOUNTING PANEL - HYDRAULICS MOUNTING
Potterton part no. 248087
£11.89
