POTTERTON
PERFORMA 28 - (Hydraulics)
Appliance Code: 47-393-07

Appliance Diagram


Hydraulics diagram for Potterton Performa 28Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

70 Part number 248040, PIPE ASSEMBLY - RETURN - 105 PIPE ASSEMBLY - RETURN - 105
Potterton part no. 248040
£14.28
72 Part number 248042, NOW USE 7722642 PUMP (15-60) - 105 NOW USE 7722642 PUMP (15-60) - 105
Potterton part no. 248042

72 Part number 7722642, PUMP 15-60 105 PUMP 15-60 105
Potterton part no. 7722642
£246.87
73 Part number 248043, AIR VENT - AUTOMATIC AIR VENT - AUTOMATIC
Potterton part no. 248043
£12.14
74 Part number 248044, O-RING - AIR VENT O-RING - AIR VENT
Potterton part no. 248044
£3.07
75 Part number 248045, GROMMET - PIPE ASSEMBLY GROMMET - PIPE ASSEMBLY
Potterton part no. 248045
£5.71
76 Part number 248048, NOW USE 7225723 HEAT EXCHANGER DHW (16 PLATES) NOW USE 7225723 HEAT EXCHANGER DHW (16 PLATES)
Potterton part no. 248048

76 Part number 710115301, SCREW M5X14 HEX POZI SCREW M5X14 HEX POZI
Potterton part no. 710115301
£2.47
76 Part number 7225723, PLATE HEAT EX 16 PLATES KIT PLATE HEAT EX 16 PLATES KIT
Potterton part no. 7225723
£110.52
77 Part number 248049, GASKET - PLATE HEAT EXCHANGER GASKET - PLATE HEAT EXCHANGER
Potterton part no. 248049
£5.62
80 Part number 248246, HYDRAULIC INLET ASSEMBLY - 105 HYDRAULIC INLET ASSEMBLY - 105
Potterton part no. 248246
£113.03
82 Part number 248051, HYDRAULIC VENTURI ASSEMBLY HYDRAULIC VENTURI ASSEMBLY
Potterton part no. 248051
£14.55
84 Part number 248052, FILTER - DHW FILTER - DHW
Potterton part no. 248052
£5.71
85 Part number 248053, O RING VENTURI ASSEMBLY O RING VENTURI ASSEMBLY
Potterton part no. 248053
£4.44
87 Part number 248054, PUMP CONNECTION ELEMENT PUMP CONNECTION ELEMENT
Potterton part no. 248054
£6.12
88 Part number 237473, FLOW REGULATOR 12L - RED FLOW REGULATOR 12L - RED
Potterton part no. 237473
£17.71
91 Part number 248055, DRAIN TAP DRAIN TAP
Potterton part no. 248055
£9.59
92 Part number 248056, SAFETY VALVE - 3 BAR (FEMALE) SAFETY VALVE - 3 BAR (FEMALE)
Potterton part no. 248056
£14.33
96 Part number 248057, PIPE - POSITIVE PRESSURE PIPE - POSITIVE PRESSURE
Potterton part no. 248057
£9.23
97 Part number 248058, PIPE - NEGATIVE PRESSURE PIPE - NEGATIVE PRESSURE
Potterton part no. 248058
£13.88
98 Part number 248059, PIPE ASSEMBLY - BYPASS PIPE ASSEMBLY - BYPASS
Potterton part no. 248059
£24.40
99 Part number 248060, CLIP FIXING - BYPASS CLIP FIXING - BYPASS
Potterton part no. 248060
£5.71
100 Part number 248018, O RING O RING
Potterton part no. 248018
£3.11
101 Part number 248061, NOW USE 7224344 HYDRAULIC OUTLET ASSEMBLY NOW USE 7224344 HYDRAULIC OUTLET ASSEMBLY
Potterton part no. 248061

101 Part number 7224344, HYDRAULIC OUTLET ASSY KIT HYDRAULIC OUTLET ASSY KIT
Potterton part no. 7224344
£232.57

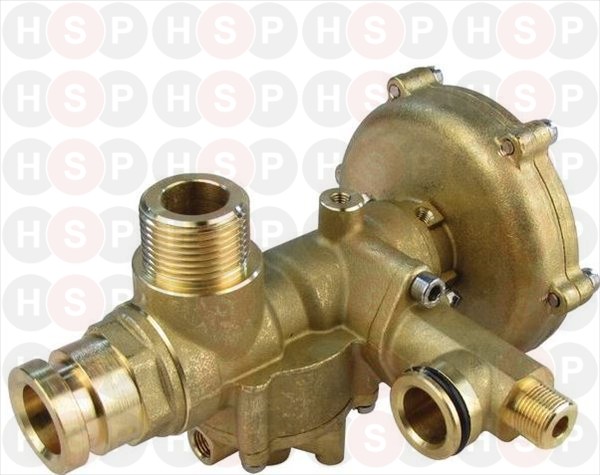

102 Part number 7224343, 3 WAY VALVE ASSY KIT 3 WAY VALVE ASSY KIT
Potterton part no. 7224343
£183.75
102 Part number 248062, NOW USE 7224343 VALVE - 3 WAY ASSEMBLY NOW USE 7224343 VALVE - 3 WAY ASSEMBLY
Potterton part no. 248062

103 Part number 248063, NOW USE 7224342 PRESSURE DIFFERENTIAL ASSEMBLY NOW USE 7224342 PRESSURE DIFFERENTIAL ASSEMBLY
Potterton part no. 248063

103 Part number 7224342, PRESSURE DIFFERENTIAL ASSY KIT PRESSURE DIFFERENTIAL ASSY KIT
Potterton part no. 7224342
£119.11
104 Part number 248064, DHW OUTLET CONNECTION DHW OUTLET CONNECTION
Potterton part no. 248064
£66.16
112 Part number 248065, DIAPHRAGM - 3 WAY VALVE DIAPHRAGM - 3 WAY VALVE
Potterton part no. 248065
£10.46
122 Part number 248019, O RING O RING
Potterton part no. 248019
£4.44
127 Part number 248066, DIAPHRAGM - PRESS/DIFF VALVE DIAPHRAGM - PRESS/DIFF VALVE
Potterton part no. 248066
£11.09
128 Part number 248020, O RING O RING
Potterton part no. 248020
£3.16
130 Part number 248067, MICROSWITCH ASSEMBLY MICROSWITCH ASSEMBLY
Potterton part no. 248067
£6.95
130 Part number 248207, MICROSWITCH ASSY C/W HARNESS MICROSWITCH ASSY C/W HARNESS
Potterton part no. 248207
£23.10
131 Part number 5108265, TEMPERATURE SENSOR TEMPERATURE SENSOR
Potterton part no. 5108265
£19.48
131 Part number 247394, NOW USE 5108265 TEMPERATURE SENSOR NOW USE 5108265 TEMPERATURE SENSOR
Potterton part no. 247394

132 Part number 248069, GASKET GASKET
Potterton part no. 248069
£3.25
135 Part number 248079, THERMOSTAT - LIMIT THERMOSTAT - LIMIT
Potterton part no. 248079
£12.19
136 Part number 248080, PIPE - FLOW - 105 PIPE - FLOW - 105
Potterton part no. 248080
£23.32
137 Part number 248082, ELBOW - GAS FLOW OUTLET ELBOW - GAS FLOW OUTLET
Potterton part no. 248082
£6.75
138 Part number 247741, O RING 22.22 x 2.62 O RING 22.22 X 2.62
Potterton part no. 247741
£2.89
139 Part number 248083, CONNECTOR - GAS VALVE INLET CONNECTOR - GAS VALVE INLET
Potterton part no. 248083
£9.23
140 Part number 248085, NOW USE 5107339 GAS VALVE VK4105A NOW USE 5107339 GAS VALVE VK4105A
Potterton part no. 248085

140 Part number 5107339, GAS VALVE ASSY INC O-RINGS GAS VALVE ASSY INC O-RINGS
Potterton part no. 5107339
£168.34
141 Part number 248086, MODULATION COIL AND SPRING MODULATION COIL AND SPRING
Potterton part no. 248086
£12.18
145 Part number 247776, CLAMP - INPUT CABLE CLAMP - INPUT CABLE
Potterton part no. 247776
£4.25
147 Part number 248087, PANEL - HYDRAULICS MOUNTING PANEL - HYDRAULICS MOUNTING
Potterton part no. 248087
£11.89
