BIASI
ACTIV A 15OV - (Pump)
Appliance Code: 41-583-15

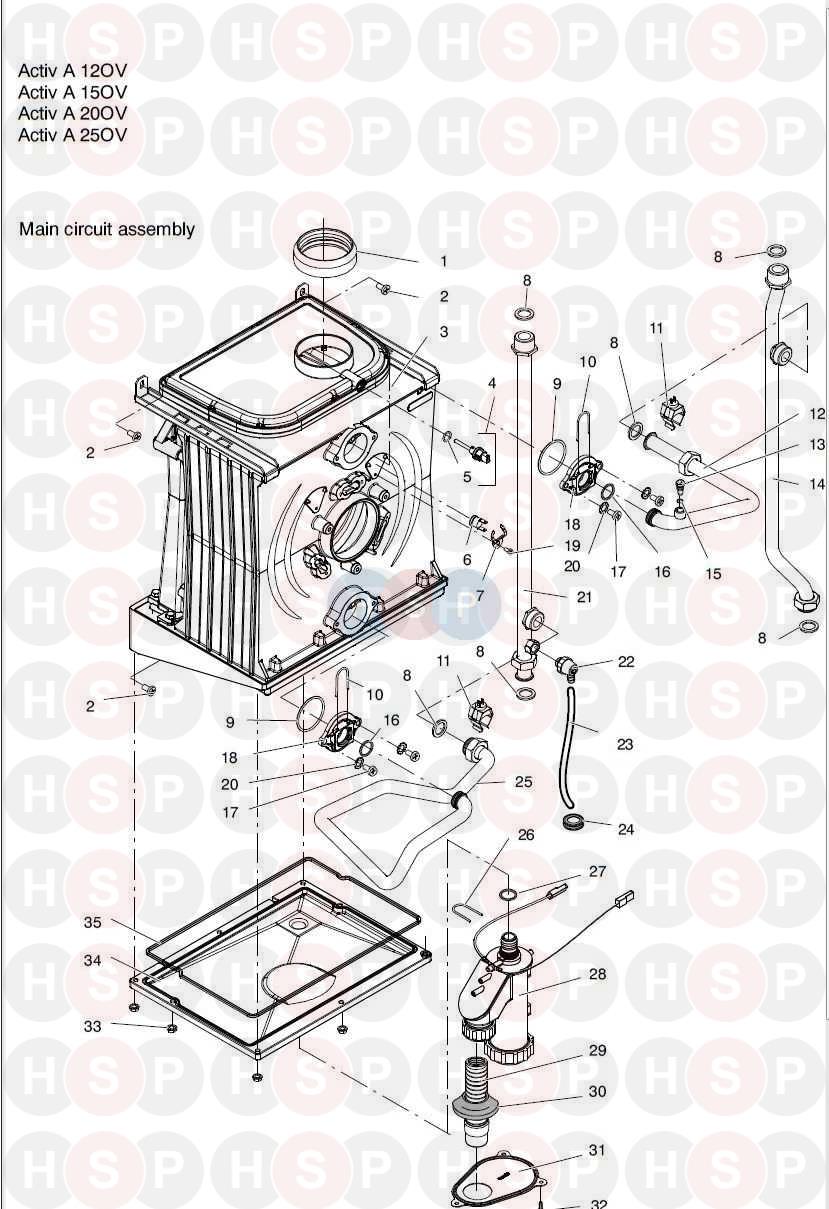

Appliance Diagram


Pump diagram for Biasi Activ A 15OVClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number BI1536101, FLUE OUTLET GASKET FLUE OUTLET GASKET
Biasi part no. BI1536101
£4.75
2   SCREWS FOR HEAT EXCHANGER
Biasi part no. BI1462118
£0.10
3 Part number Bi1462101, CONDENSING HEAT EXCHANGER 25C CONDENSING HEAT EXCHANGER 25C
Biasi part no. Bi1462101
£289.36
4 Part number BI1432102, FLUE NTC FLUE NTC
Biasi part no. BI1432102
£11.77
5 Part number BI1181110, O-RING 1.78 X 10.82 O-RING 1.78 X 10.82
Biasi part no. BI1181110
£1.23
6 Part number BI1172105, Overheat Thermostat OVERHEAT THERMOSTAT
Biasi part no. BI1172105
£14.32
7   OVERHEAT THERMOSTAT FIXING
Biasi part no. BI1462114
£0.80
8 Part number BI1001108, FLAT GASKET 3/4" FLAT GASKET 3/4"
Biasi part no. BI1001108
£0.48
9   O-RING GASKET 2.62 X 44.16
Biasi part no. BI1462117
£2.01
10 Part number KI1031101, Fork Step 20.5 FORK STEP 20.5
Biasi part no. KI1031101
£1.00
11 Part number BI1442106, SPRING MOUNTING TEMP PROBE SPRING MOUNTING TEMP PROBE
Biasi part no. BI1442106
£14.01
13   DHW DRAIN KIT
Biasi part no. KI1031501
£2.35
15 Part number KI1043145, O-Ring 2.90 X 1.78 O-RING 2.90 X 1.78
Biasi part no. KI1043145
£0.48
16 Part number BI1262112, O RING GASKET 2.62 X 17.86 O RING GASKET 2.62 X 17.86
Biasi part no. BI1262112
£0.66
18   COUPLING FLANGE
Biasi part no. BI1462113
£10.63
22 Part number BI1011104, DRAINAGE VALVE 1/4" DRAINAGE VALVE 1/4"
Biasi part no. BI1011104
£8.16
26   FORK FOR PRV
Biasi part no. BI1181101
£6.48
27   O-RING FOR CONDENSATE BOTTLE
Biasi part no. BI1512102
£3.53
28 Part number BI1462104, CONDENSATE TRAP CONDENSATE TRAP
Biasi part no. BI1462104
£51.96
29 Part number BI1253104, AIR HOSE FOR A BAND BOILER AIR HOSE FOR A BAND BOILER
Biasi part no. BI1253104
£32.53
30 Part number BI1002113, Grommet Seal Mfs GROMMET SEAL MFS
Biasi part no. BI1002113
£3.91
32   TAPPING SCREW
Biasi part no. BI1013110
£0.46
46   GAS CONNECTION
Biasi part no. BI1253106
£18.24
47   2.62 X 22.22 O-RING
Biasi part no. BI1253105
£4.52
48   AIR HOSE CLAMP
Biasi part no. BI1253115
£6.32
49 Part number BI1093107, Gas Valve On Operator Coils GAS VALVE ON OPERATOR COILS
Biasi part no. BI1093107
£43.23
50   240 L SILICONE PIPE
Biasi part no. BI1016107
£6.28
52   CONNECTION SPRING (M110)
Biasi part no. BI1253116
£0.45
53   SCREW M4 X 8MM
Biasi part no. BI1013114
£0.50
58   AIR/GAS BLENDING DEVICE 24SM/C
Biasi part no. BI1253111
£38.55
59   3.53 X 61.91 O-RING
Biasi part no. BI1253114
£1.16
66 Part number BI1084100, 3/4" SQUARE GAS COCK 3/4" SQUARE GAS COCK
Biasi part no. BI1084100
£26.66
84 Part number BI1016104, Flue Kit Gasket (Black) FLUE KIT GASKET (BLACK)
Biasi part no. BI1016104
£12.67
86 Part number BI1013101, Gasket For Gas Valve Vk4105 GASKET FOR GAS VALVE VK4105
Biasi part no. BI1013101
£1.86
91   AIR RESTRICTOR D 50
Biasi part no. BI1406115
£12.46
