ARISTON
ECO SYSTEM 27 RFFI - (Connections)
Appliance Code: 41-116-08

Appliance Diagram


Connections diagram for Ariston Eco System 27 RFFIClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   EXPANSION VESSEL
Ariston part no. 990683		 £95,45
3 Part number 998776, BUSH (EXPANSION VESSEL) BUSH (EXPANSION VESSEL)
Ariston part no. 998776		 £6,08
4 Part number 998581, LOCK NUT 3/8" LOCK NUT 3/8"
Ariston part no. 998581		 £4,28
5   PIPE (CONDENSATE TRAY - CONDENSATE TRAP)
Ariston part no. 65102072		 £6,15
6 Part number 990662, CLAMP CLAMP
Ariston part no. 990662		 £5,34
7 Part number 990665, DISCHARGE PIPE (CONDENSATE) DISCHARGE PIPE (CONDENSATE)
Ariston part no. 990665		 £5,89
8 Part number 65102548, CONDENSATE TRAP (UPPER) CONDENSATE TRAP (UPPER)
Ariston part no. 65102548		 £6,56
8 Part number 65102071, NOW USE 65102548 CONDENSATE TRAP (UPPER) NOW USE 65102548 CONDENSATE TRAP (UPPER)
Ariston part no. 65102071
9   CABLE HOLDER
Ariston part no. 998580		 £1,80
11 Part number 990695, O-RING (3175 EPDM D=44.9) O-RING (3175 EPDM D=44.9)
Ariston part no. 990695		 £3,10
12 Part number 65102070, CONDENSATE TRAP (LOWER) CONDENSATE TRAP (LOWER)
Ariston part no. 65102070		 £9,94
13 Part number 990686-01, TEMPERATURE PROBE + CLIP KIT TEMPERATURE PROBE + CLIP KIT
Ariston part no. 990686-01		 £10,93
13 Part number 990686, NOW USE 990686-01 TEMPERATURE PROBE + CLIP NOW USE 990686-01 TEMPERATURE PROBE + CLIP
Ariston part no. 990686
14 Part number 573727, DRAIN VALVE DRAIN VALVE
Ariston part no. 573727		 £6,77
15   OBSOLETE PIPE (C.H. FLOW)
Ariston part no. 990738
16 Part number 573520, GASKET 3/4" GASKET 3/4"
Ariston part no. 573520		 £1,65
17 Part number 65102068, UNION BY-PASS + O-RING UNION BY-PASS + O-RING
Ariston part no. 65102068		 £8,60
18 Part number 996046, BY-PASS BY-PASS
Ariston part no. 996046		 £9,68
19 Part number 996049, FLOW GROUP FLOW GROUP
Ariston part no. 996049		 £26,88
20 Part number 573528, GASKET 1/2" GASKET 1/2"
Ariston part no. 573528		 £1,60
21 Part number 998447, SAFETY VALVE SAFETY VALVE
Ariston part no. 998447		 £13,37
22 Part number 569390, GASKET 1/4 GASKET 1/4
Ariston part no. 569390		 £1,65
23 Part number 995903, LOW PRESSURE SWITCH LOW PRESSURE SWITCH
Ariston part no. 995903		 £10,24
24 Part number 573576, COMPENSATION TUBE COMPENSATION TUBE
Ariston part no. 573576		 £7,64
25 Part number 574279, GASKET (SPARK GENERATOR) GASKET (SPARK GENERATOR)
Ariston part no. 574279		 £1,65
26 Part number 65102247, GAS VALVE GAS VALVE
Ariston part no. 65102247		 £120,39
27 Part number 998809, DRAIN VALVE DRAIN VALVE
Ariston part no. 998809		 £7,18
28   RETURN GROUP
Ariston part no. 990708		 £22,84
29 Part number 998424, O-RING O-RING
Ariston part no. 998424		 £1,65
30 Part number 999162, PUMP BRACKET PUMP BRACKET
Ariston part no. 999162		 £4,55
31 Part number 999100, LOCK WASHER LOCK WASHER
Ariston part no. 999100		 £1,65
32 Part number 995364, SPACER PLATE (PUMP) SPACER PLATE (PUMP)
Ariston part no. 995364		 £0,48
34 Part number 65101481, P.C.B. P.C.B.
Ariston part no. 65101481		 £622,96
35   CONTROL PANEL
Ariston part no. 990740		 £10,55
36 Part number 990660, SPINDLE (CONTROL KNOB) SPINDLE (CONTROL KNOB)
Ariston part no. 990660		 £3,95
37 Part number 990679, CONTROL KNOB CONTROL KNOB
Ariston part no. 990679		 £4,68
39   BUTTON (RESET)
Ariston part no. 998751		 £0,61
40   L.E.D. LENS
Ariston part no. 998653		 £2,95
41   FILM (DISPLAY)
Ariston part no. 998766		 £5,45
42 Part number 990693, PRINTED CIRCUIT BOARD (DISPLAY) PRINTED CIRCUIT BOARD (DISPLAY)
Ariston part no. 990693		 £69,26
43 Part number 65100695, PRESSURE GAUGE PRESSURE GAUGE
Ariston part no. 65100695		 £16,06
43 Part number 999245, NOW USE 65100695 PRESSURE GAUGE NOW USE 65100695 PRESSURE GAUGE
Ariston part no. 999245
45   CONTROL PANEL CASE (REAR)
Ariston part no. 990673		 £9,17
46 Part number 571548, U-CLIP U-CLIP
Ariston part no. 571548		 £4,18
47   WIRING (POWER SUPPLY)
Ariston part no. 990690		 £7,60
48   LOW VOLTAGE WIRING
Ariston part no. 990743		 £29,75
49   HIGH VOLTAGE WIRING
Ariston part no. 990744		 £18,92
50 Part number 65102772, GASKET (ADHESIVE - 14X6 mm) GASKET (ADHESIVE - 14X6 MM)
Ariston part no. 65102772		 £12,00
52 Part number 998565, COVER (FLUE TEST POINT) (TO 03/06) COVER (FLUE TEST POINT) (TO 03/06)
Ariston part no. 998565		 £3,00
53 Part number 998636, GASKET (FLUE TEST POINT) (TO 03/06) GASKET (FLUE TEST POINT) (TO 03/06)
Ariston part no. 998636		 £6,12
54   FLUE (EXHAUST MANIFOLD / HEADER)
Ariston part no. 999400		 £30,05
54   NOW USE 999400 FLUE (EXHAUST MANIFOLD / HEADER)
Ariston part no. 990678
55 Part number 998637, GASKET (FLUE COLLAR) GASKET (FLUE COLLAR)
Ariston part no. 998637		 £1,95
56 Part number 998595, PLUG (AIR INTAKE) PLUG (AIR INTAKE)
Ariston part no. 998595		 £6,11
59 Part number 570717, SPRING (FASTENING) SPRING (FASTENING)
Ariston part no. 570717		 £4,99
61   BURNER JET
Ariston part no. 990656		 £7,71
61   BURNER JET
Ariston part no. 990657		 £4,68
62   RESTRICTOR (FAN)
Ariston part no. 990675		 £8,46
63   GASKET (FAN)
Ariston part no. 65100515		 £5,41
64 Part number 998888, FAN FAN
Ariston part no. 998888		 £311,47
65 Part number 65102065, ELBOW (FAN SUCTION SILENCER) ELBOW (FAN SUCTION SILENCER)
Ariston part no. 65102065		 £5,45
66 Part number 65107476, PIPE (SILENCER) PIPE (SILENCER)
Ariston part no. 65107476		 £29,94
66 Part number 990669, NOW USE 65107476 PIPE (SUCTION SILENCER) NOW USE 65107476 PIPE (SUCTION SILENCER)
Ariston part no. 990669
67 Part number 998589, BY-PASS PIPE BY-PASS PIPE
Ariston part no. 998589		 £8,57
68 Part number 998077, O-RING O-RING
Ariston part no. 998077		 £1,81
69 Part number 998064, SPRING (BY-PASS PIPE) SPRING (BY-PASS PIPE)
Ariston part no. 998064		 £3,79
70   GAS PIPE
Ariston part no. 990666		 £24,62
71 Part number 573521, GASKET 3/8" GASKET 3/8"
Ariston part no. 573521		 £1,60
72 Part number 999525, PIPE (EXPANSION VESSEL) PIPE (EXPANSION VESSEL)
Ariston part no. 999525		 £14,51
73   PIPE (C.H. RETURN)
Ariston part no. 990739		 £24,62
74 Part number 997153, U-CLIP U-CLIP
Ariston part no. 997153		 £1,74
75 Part number 569711, NYLON BUSH (10mm) NYLON BUSH (10MM)
Ariston part no. 569711		 £2,94
76   CONDENSATE TRAY
Ariston part no. 990677		 £48,08
77   SUPPORT (CONDENSATE TRAY)
Ariston part no. 999999		 £7,31
78   DOWEL (M6X35)
Ariston part no. 999523		 £3,12
79 Part number 999497, SEAL(SIL.-INSPECTION.COVER/COND.TRAY) SEAL(SIL.-INSPECTION.COVER/COND.TRAY)
Ariston part no. 999497		 £11,37
80   CABLE (FAN)
Ariston part no. 65100448		 £40,27
81 Part number 995983, CABLE (IGNITION ELECTRODE) CABLE (IGNITION ELECTRODE)
Ariston part no. 995983		 £18,86
82   EARTH CABLE (FAN)
Ariston part no. 65102067		 £2,77
83 Part number 995964, ELEC.DE (IGNITION/DETECTION) ELEC.DE (IGNITION/DETECTION)
Ariston part no. 995964		 £30,41
84 Part number 998782, SIGHT GLASS (BURNER) SIGHT GLASS (BURNER)
Ariston part no. 998782		 £10,16
85 Part number 998769, GASKET (ELECTRODE INSULATION) GASKET (ELECTRODE INSULATION)
Ariston part no. 998769		 £3,82
87 Part number 998680, GASKET (BURNER) GASKET (BURNER)
Ariston part no. 998680		 £5,80
88   BURNER
Ariston part no. 998668		 £72,09
89   NIPPLE (GAS - 3/4 M/M)
Ariston part no. 998666		 £6,10
90   PANEL (FRONT - SEALED CHAMBER)
Ariston part no. 990674		 £22,97
91   LIP GASKET
Ariston part no. 998423		 £6,09
93   MAIN EXCHANGER (ALUMINIUM)
Ariston part no. 65102320		 £810,74
95   ALUMINIUM INSPECTION LID
Ariston part no. 998777		 £33,80
96   DOWEL (M6X25)
Ariston part no. 990663		 £2,42
97 Part number 997745, COVER COVER
Ariston part no. 997745		 £6,15
98 Part number 998517, O-RING O-RING
Ariston part no. 998517		 £1,65
301   CASE PANEL (L.H. SIDE)
Ariston part no. 990681		 £17,83
302   CASE PANEL (FRONT)
Ariston part no. 990671		 £21,65
303   CASE PANEL (R.H. SIDE)
Ariston part no. 990680		 £30,47
304 Part number 995305, WASHER WASHER
Ariston part no. 995305		 £7,68
401 Part number 998644, O-RING (PUMP) O-RING (PUMP)
Ariston part no. 998644		 £5,38
402 Part number 998643, AUTO AIR VENT + O-RING AUTO AIR VENT + O-RING
Ariston part no. 998643		 £15,62
403 Part number 998738, GASKET (PUMP HEAD) GASKET (PUMP HEAD)
Ariston part no. 998738		 £4,67
404 Part number 996615, KIT (MOTOR PUMP) KIT (MOTOR PUMP)
Ariston part no. 996615		 £145,99
501 Part number 570744, ISOLATING VALVE - 3/4" FLOW ISOLATING VALVE - 3/4" FLOW
Ariston part no. 570744		 £19,84
502 Part number 999702, PIPE (C.H. FLOW) PIPE (C.H. FLOW)
Ariston part no. 999702		 £14,60

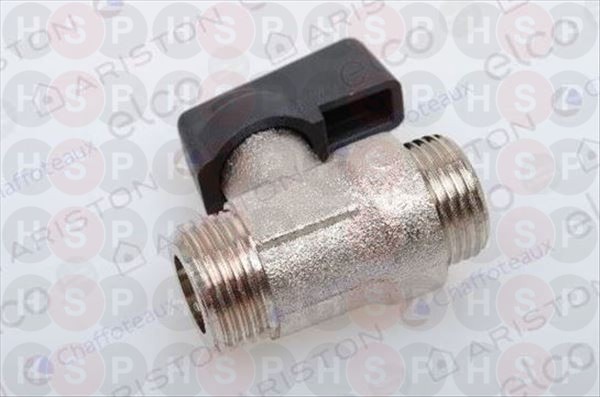

504 Part number 573543, TAP (M-M 3/8 ) TAP (M-M 3/8 )
Ariston part no. 573543		 £9,89
504 Part number 990742, NOW USE 573543 TAP (M/M 3/8 - C.H. FLOW) NOW USE 573543 TAP (M/M 3/8 - C.H. FLOW)
Ariston part no. 990742
506 Part number 65102016, TAP (M/M 3/8 ) TAP (M/M 3/8 )
Ariston part no. 65102016		 £20,35
507 Part number 990737, FILLING LOOP PIPE FILLING LOOP PIPE
Ariston part no. 990737		 £12,69
508 Part number 571000, ISOLATING VALVE - GAS INLET ISOLATING VALVE - GAS INLET
Ariston part no. 571000		 £17,23
509   PIPE (GAS INLET)
Ariston part no. 991909		 £4,64
510 Part number 999582, ISOLATING VALVE (3/4 RETURN) ISOLATING VALVE (3/4 RETURN)
Ariston part no. 999582		 £21,22
