R40 G20 3747469 - (Riello Burner R40 G20)
Appliance Code: 3747469

Appliance Diagram

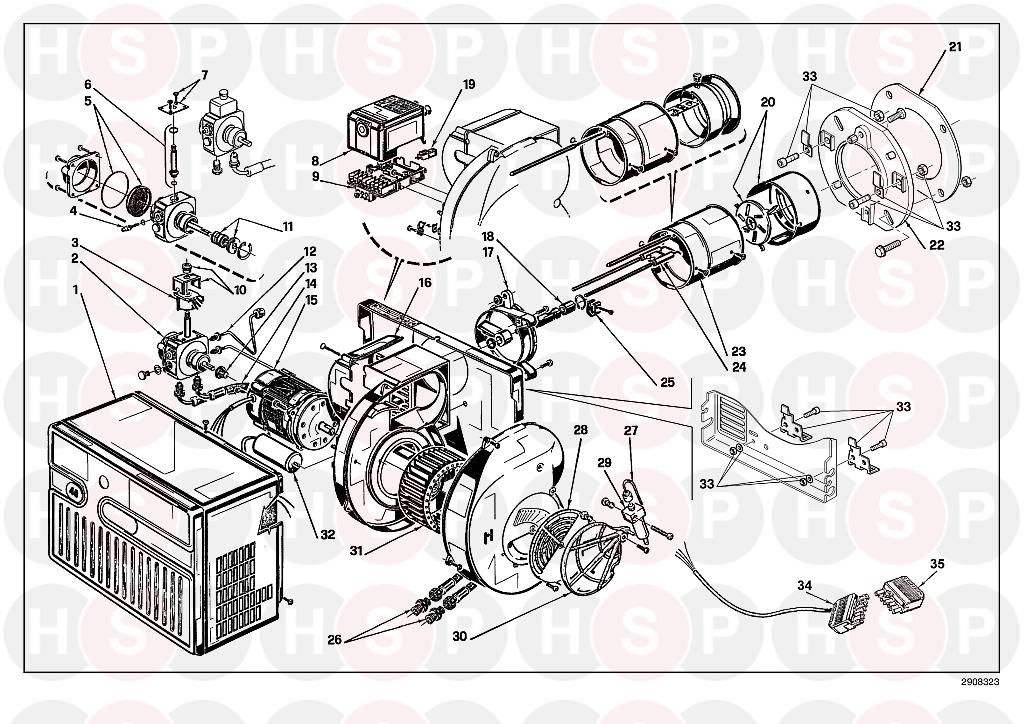

Riello Burner R40 G20 diagram for Riello R40 G20 3747469Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   CASING G20/G20S
Riello part no. 3007235		 £79.53
2 Part number 20031996, RIELLO - OIL PUMP RIELLO - OIL PUMP
Riello part no. 20031996		 £122.86
3 Part number 3002279, COIL COIL
Riello part no. 3002279		 £16.30
4 Part number 3007202, OBSOLETE REGULATOR (G5BF) OBSOLETE REGULATOR (G5BF)
Riello part no. 3007202		 £6.43
5 Part number 3020436, PUMP FILTER 3020436 RDB 3008653 PUMP FILTER 3020436 RDB 3008653
Riello part no. 3020436		 £8.40
6 Part number 3020437, NEEDLE VALVE NEEDLE VALVE
Riello part no. 3020437		 £40.35
7 Part number 3007203, PLATE (5 PCS) G5BF PLATE (5 PCS) G5BF
Riello part no. 3007203		 £10.07
8 Part number 3001156, CONTROL BOX 530 SE CONTROL BOX 530 SE
Riello part no. 3001156		 £107.98
9 Part number 3002278, CONTROL BOX BASE (G5-G20) CONTROL BOX BASE (G5-G20)
Riello part no. 3002278		 £12.78
10 Part number 3006553, COVER CAGE AND NUT COVER CAGE AND NUT
Riello part no. 3006553		 £6.66
11   PUMP SEAL
Riello part no. 3020443		 £39.31
12   PIPE (TUBE)
Riello part no. 3005819		 £10.12
13 Part number 3000443, COUPLING (10PCS) COUPLING (10PCS)
Riello part no. 3000443		 £7.74
14 Part number 20022601, Oil Hose Line 3/8" Angled Male 3/8" OIL HOSE LINE 3/8" ANGLED MALE 3/8"
Riello part no. 20022601		 £18.69
15 Part number 3005820, MOTOR MOTOR
Riello part no. 3005820		 £129.46
16   ACCESS PLATE
Riello part no. 3006558		 £7.04
17 Part number 3005810, COLLAR COLLAR
Riello part no. 3005810		 £19.69
18 Part number 3005764, NOZZLE HOLDER MTN 10 NOZZLE HOLDER MTN 10
Riello part no. 3005764		 £13.87
19   FLAME SENSOR (REPLACES 3002280)
Riello part no. 20132573		 £28.53
19 Part number 3002280, NOW USE 20132573 PHOTOCELL NOW USE 20132573 PHOTOCELL
Riello part no. 3002280
20 Part number 3006264, RING AND DIFFUSER DISC RING AND DIFFUSER DISC
Riello part no. 3006264		 £35.84
21 Part number 3005813, FLANGE GASKET FLANGE GASKET
Riello part no. 3005813		 £9.08
22 Part number 3005814, FLANGE FLANGE
Riello part no. 3005814		 £25.03
23 Part number 3006265, BLAST TUBE BLAST TUBE
Riello part no. 3006265		 £52.50
24 Part number 3002919, CERAMIC ELECTRODE (WAS 3005816) CERAMIC ELECTRODE (WAS 3005816)
Riello part no. 3002919		 £30.01
25 Part number 3006552, ELECTRODE CLAMP (10 PCS) ELECTRODE CLAMP (10 PCS)
Riello part no. 3006552		 £19.47
26 Part number 3009068, CONNECTOR 3/8 X 3/8 CONNECTOR 3/8 X 3/8
Riello part no. 3009068		 £3.92
27 Part number 3007816, TUBE TUBE
Riello part no. 3007816		 £11.97

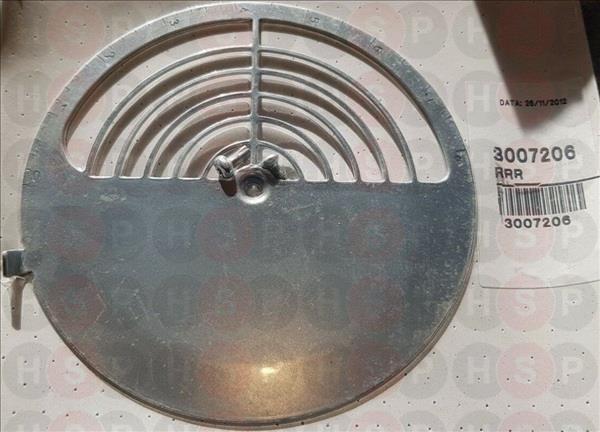

28 Part number 3007206, AIR DAMPER AIR DAMPER
Riello part no. 3007206		 £19.20
29 Part number 3020500, HYDRAULIC JACK RAM HYDRAULIC JACK RAM
Riello part no. 3020500
30   SHUTTER ASSEMBLY AIR DAMPER
Riello part no. 3000880		 £19.46
31 Part number 3005799, FAN FAN
Riello part no. 3005799		 £48.67
32 Part number 3005802, OBSOLETE CONDENSER OBSOLETE CONDENSER
Riello part no. 3005802
34 Part number 3006386, 7 PIN Socket (female) 7 PIN SOCKET (FEMALE)
Riello part no. 3006386

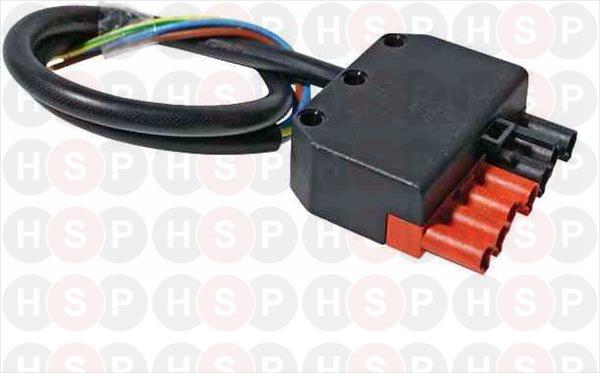

35 Part number 3006937, PLUG - 7 PIN - MALE PLUG - 7 PIN - MALE
Riello part no. 3006937		 £25.54
