VOKERA
MYNUTE I30 REV 3 (06/2015) - (Hydraulics 2)
Appliance Code: 41-094-82 REV 3

Appliance Diagram


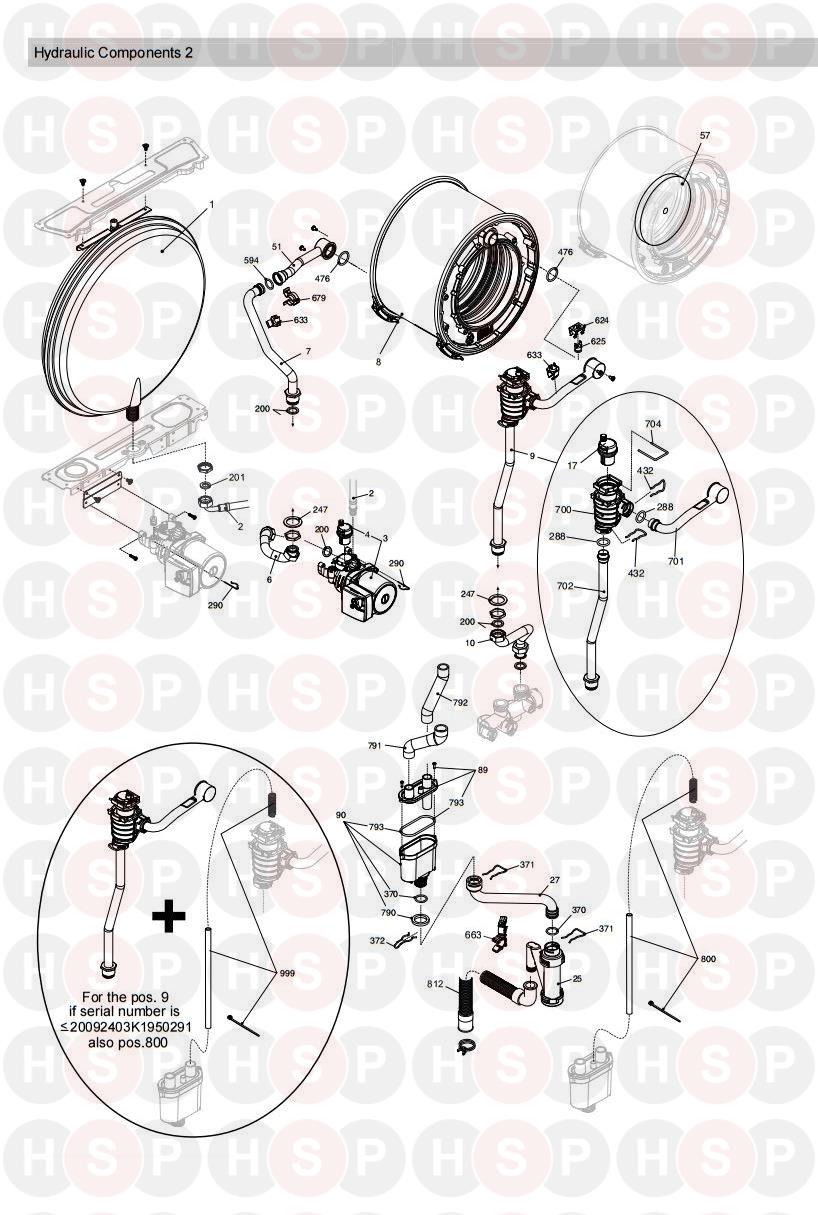

Hydraulics 2 diagram for Vokera Mynute i30 Rev 3 (06/2015)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 2204, NOW USE 20187349 8 Litre Expansion Vessel NOW USE 20187349 8 LITRE EXPANSION VESSEL
Vokera part no. 2204

1   EXPANSION VESSEL - REPLACED 20138102 AND 2204
Vokera part no. 20187349
£97.14
2 Part number 10025188, Flexible pipe for Expansion vessel FLEXIBLE PIPE FOR EXPANSION VESSEL
Vokera part no. 10025188
£15.43
3 Part number 10027258, NOW USE 20185332 Pump NOW USE 20185332 PUMP
Vokera part no. 10027258

3   ERP PUMP - REPLACED 10027571 10027258 20039926 & 20005582
Vokera part no. 20185332
£202.10
4 Part number 10025485, Auto air vent bottle (Pump) AUTO AIR VENT BOTTLE (PUMP)
Vokera part no. 10025485
£19.12
6   PIPE
Vokera part no. 10028617
£23.98
7   PIPE
Vokera part no. 20057861
£42.92
8   NOW USE 20123398 CONDENSING EXCHANGER ASSEMBLY
Vokera part no. 20058630

8   CONDENSING EXCHANGER ASSEMBLY - REPLACED 20058630
Vokera part no. 20123398
£462.61
9   PIPE
Vokera part no. 20058634
£70.03
10   PIPE
Vokera part no. 20078171
£36.92
17 Part number 20019768, Auto air vent (Black) AUTO AIR VENT (BLACK)
Vokera part no. 20019768
£5.81
25 Part number 20025733, SIPHON SIPHON
Vokera part no. 20025733
£11.00
27 Part number 20025743, PIPE TRAP PIPE TRAP
Vokera part no. 20025743
£7.24
51   PIPE
Vokera part no. 20057866
£68.12
57 Part number 20086269, HEAT EXCHANGER INSULATION HEAT EXCHANGER INSULATION
Vokera part no. 20086269
£8.65
89   SIPHON COVER
Vokera part no. 20063464
£6.29
90   SIPHON
Vokera part no. 20063463
£8.71
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
201 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026
£0.39
247 Part number 5203, Plastic Washer PLASTIC WASHER
Vokera part no. 5203
£0.21
288 Part number 6898, O Ring O RING
Vokera part no. 6898
£1.03
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757
£0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165

370 Part number 10023533, O Ring O RING
Vokera part no. 10023533
£1.36
371 Part number 10023532, Locking Pin LOCKING PIN
Vokera part no. 10023532
£13.63
372   CLIP
Vokera part no. 2588
£0.83
432 Part number 10024958, Locking Pin LOCKING PIN
Vokera part no. 10024958
£0.98
476 Part number 10026324, O ring O RING
Vokera part no. 10026324
£2.85
594 Part number 20000131, O ring O RING
Vokera part no. 20000131
£1.07
624 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472
£1.34
625 Part number 20005585, HIGH LIMIT STAT HIGH LIMIT STAT
Vokera part no. 20005585
£3.08
633 Part number 20081926, Thermistor/NTC Replaced 20003819 and 20004365 THERMISTOR/NTC REPLACED 20003819 AND 20004365
Vokera part no. 20081926
£16.76
663   PRICE ON APPLICATION
Vokera part no. 0000

679   SPRING CLIP
Vokera part no. 20024086
£4.80
696 Part number 20028744, O RING O RING
Vokera part no. 20028744
£1.77
700 Part number 20032553, NOW USE 20019888 DEGASSER KIT NOW USE 20019888 DEGASSER KIT
Vokera part no. 20032553

700 Part number 20019888, Air Separator (UP TO SERIAL NO. 20097278PR05P005812) AIR SEPARATOR (UP TO SERIAL NO. 20097278PR05P005812)
Vokera part no. 20019888
£17.63
701   PIPE
Vokera part no. 20067580
£31.14
702   PIPE
Vokera part no. 20058635
£46.26
704 Part number 20019767, Locking Pin LOCKING PIN
Vokera part no. 20019767
£0.43
790   WASHER
Vokera part no. 20063468
£1.26
791   CONDENSING PIPE
Vokera part no. 20063466
£7.43
812   FLEXIBLE PIPE
Vokera part no. 20076889
£5.36
900   DEGASSER CONNECTION ASSEMBLY
Vokera part no. 20096202
£3.87
