VAILLANT
ECOTEC PLUS 825 VUW 256/5-5 R4 2015 ONWARDS - (08c Connection Parts)
Appliance Code: 47-044-57

Appliance Diagram

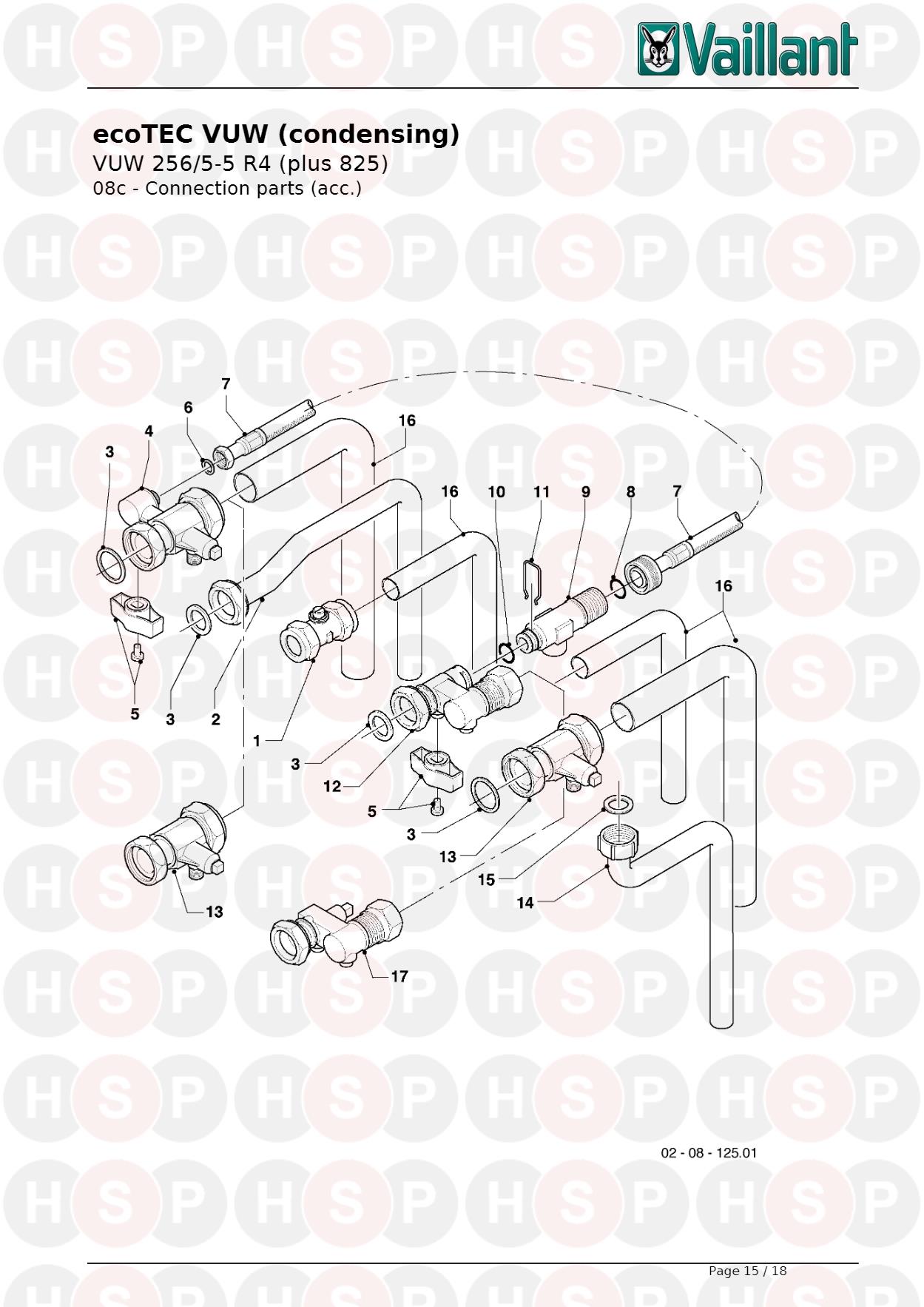

08c Connection Parts diagram for Vaillant Ecotec Plus 825 VUW 256/5-5 R4 2015 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 082782, Gas shut-off valve, 15 x 15 GAS SHUT-OFF VALVE, 15 X 15
Vaillant part no. 082782
£36.19
2 Part number 0020010290, pipe PIPE
Vaillant part no. 0020010290
£21.29
3 Part number 981140, Sealing ring, 3/4 (PK10) SEALING RING, 3/4 (PK10)
Vaillant part no. 981140
£7.05
4 Part number 0020010291, Service cock SERVICE COCK
Vaillant part no. 0020010291
£55.34
5 Part number 0020010292, Handle, (PK2) HANDLE, (PK2)
Vaillant part no. 0020010292
£7.05
6 Part number 981146, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981146
£6.69
7 Part number 0020010293, Flexible tube FLEXIBLE TUBE
Vaillant part no. 0020010293
£22.46
8 Part number 981165, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981165
£6.69
9 Part number 0020010294, Valve VALVE
Vaillant part no. 0020010294
£20.56
10 Part number 981154, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981154
£6.69
11 Part number 0020107694, Clip, (PK5) CLIP, (PK5)
Vaillant part no. 0020107694
£7.03
12 Part number 0020010295, Valve VALVE
Vaillant part no. 0020010295
£36.91
13 Part number 0020010296, service cock SERVICE COCK
Vaillant part no. 0020010296
£44.50
14 Part number 0020010297, Tube, pressure relief valve (copper) TUBE, PRESSURE RELIEF VALVE (COPPER)
Vaillant part no. 0020010297
£36.14
15 Part number 0020010298, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 0020010298
£16.66
