VAILLANT
VEK 5/3S WATER HEATER 1987-1995 - (Exploded View)
Appliance Code: VEK S

Appliance Diagram


Exploded View diagram for Vaillant VEK 5/3S Water Heater 1987-1995Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE TOP COVER
Vaillant part no. 135147
2   OBSOLETE HEAT EXCHANGER
Vaillant part no. 067137
3   OBSOLETE PACKING RING
Vaillant part no. 980820
6 Part number 981147, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981147
7   OBSOLETE NIPPLE
Vaillant part no. 136309
17   OBSOLETE SUPPORT
Vaillant part no. 086083
18   DISC
Vaillant part no. 070338		 £3,91
19 Part number 105740, cylinder screw CYLINDER SCREW
Vaillant part no. 105740
23 Part number 101357, selection limiter SELECTION LIMITER
Vaillant part no. 101357		 £25,85
24   HEXAGONAL NUT
Vaillant part no. 040009		 £5,63
25   DISC
Vaillant part no. 950239		 £5,13
26 Part number 060036, spring lock washer SPRING LOCK WASHER
Vaillant part no. 060036		 £3,91
27   OBSOLETE SCREW
Vaillant part no. 060025
28   OBSOLETE SPRING WASHER
Vaillant part no. 280706
29   DISC
Vaillant part no. 060021		 £3,91
30   SCREW
Vaillant part no. 235723		 £3,91
32   OBSOLETE BUZZER
Vaillant part no. 254202
33 Part number 492147, Lens head screw LENS HEAD SCREW
Vaillant part no. 492147
34 Part number 060018, screw SCREW
Vaillant part no. 060018		 £6,86
36   OBSOLETE NOZZLE SCREW
Vaillant part no. 020372
39   OBSOLETE TRANSMISSION OF HEAT
Vaillant part no. 252513
41   OBSOLETE PLUG CONNECTION
Vaillant part no. 250243
42 Part number 101462, temperature regulator TEMPERATURE REGULATOR
Vaillant part no. 101462
46 Part number 0020093100, SIEVE WITH SPRING SIEVE WITH SPRING
Vaillant part no. 0020093100		 £6,86
46 Part number 010051, NOW USE 0020093100 water filter NOW USE 0020093100 WATER FILTER
Vaillant part no. 010051
47 Part number 0020093100, SIEVE WITH SPRING SIEVE WITH SPRING
Vaillant part no. 0020093100		 £6,86
47 Part number 010056, NOW USE 0020093100 clip NOW USE 0020093100 CLIP
Vaillant part no. 010056
48 Part number 981141, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981141		 £6,86
49 Part number 0020096368, Connection, Cold Water CONNECTION, COLD WATER
Vaillant part no. 0020096368		 £35,33
49 Part number 080937, NOW USE 0020096368 cold water connection NOW USE 0020096368 COLD WATER CONNECTION
Vaillant part no. 080937
50   OBSOLETE UPPER PART OF VALVE
Vaillant part no. 012736
51 Part number 981165, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981165		 £6,89
52   OBSOLETE O RING
Vaillant part no. 982359
53 Part number 012738, upper part of valve UPPER PART OF VALVE
Vaillant part no. 012738		 £9,77
54 Part number 981148, Gasket (PK10) GASKET (PK10)
Vaillant part no. 981148		 £6,86
55 Part number 981164, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981164		 £6,86
56   OBSOLETE KNOB (BLUE)
Vaillant part no. 125282
57   OBSOLETE KNOB (RED)
Vaillant part no. 125281
58   OBSOLETE KNOB (GREY)
Vaillant part no. 125283
59   OBSOLETE KNOB
Vaillant part no. 280835
60   OBSOLETE LOWER COVER, CPL.
Vaillant part no. 074611
61 Part number 190997, OBSOLETE tube OBSOLETE TUBE
Vaillant part no. 190997
62 Part number 081922, NOW USE 0020096376 swing spout NOW USE 0020096376 SWING SPOUT
Vaillant part no. 081922

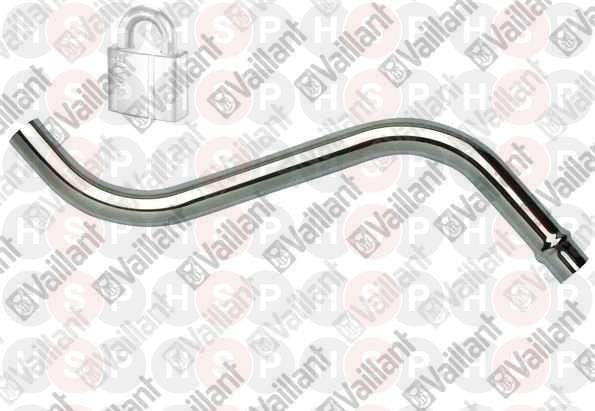

62 Part number 0020096376, Swivelling spout, brown SWIVELLING SPOUT, BROWN
Vaillant part no. 0020096376		 £49,37
63   OBSOLETE CABLE TREE, CPL.
Vaillant part no. 250896
