WORCESTER
HEATSLAVE 12/18 EXT (FEB 2007 ONWARDS) 7716100117 - (Sterling Burner)
Appliance Code: 7716100117

Appliance Diagram


Sterling Burner diagram for Worcester Heatslave 12/18 Ext (Feb 2007 Onwards) 7716100117Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   HARNESS 5 - WAY
Worcester part no. 87161053740		 £20.42

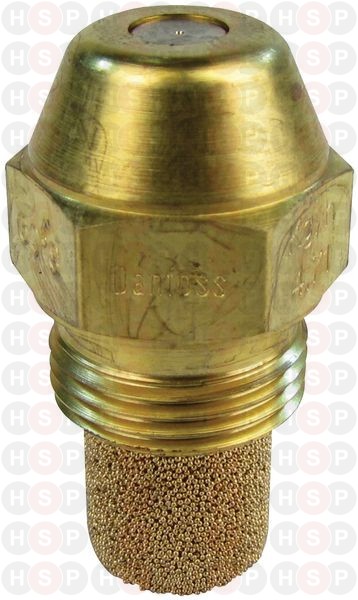

0 Part number 87161060620, NOZZLE DANFOSS 0.35 80DEG S NOZZLE DANFOSS 0.35 80DEG S
Worcester part no. 87161060620		 £27.60
0   ELECTRODE LEADS(PAIR)-STERLING133/146 (BEFORE FD008)
Worcester part no. 87161100330		 £23.46
0   CAPACITOR BRACKET
Worcester part no. 87161100950		 £9.04
0   AIR GUIDE
Worcester part no. 87161126030		 £13.17
0   COMBUSTION HEAD PL 8/4/16/8-E
Worcester part no. 87161126040		 £54.07
0   NOZZLE DANFOSS 0.35 80 DEG SR
Worcester part no. 87161126280		 £19.55
0 Part number 87161153110, OIL HOSE HNBR 700mm (BEFORE FD008) OIL HOSE HNBR 700MM (BEFORE FD008)
Worcester part no. 87161153110		 £30.64
0 Part number 8716118364, SATRONIC CONTROL BOX DKO972 (BEFORE FD008) SATRONIC CONTROL BOX DKO972 (BEFORE FD008)
Worcester part no. 8716118364		 £206.58
0 Part number 87161405540, NIPPLE 1/4" CONICAL X 1/4" CONICAL (BEFORE FD008) NIPPLE 1/4" CONICAL X 1/4" CONICAL (BEFORE FD008)
Worcester part no. 87161405540		 £20.66
0 Part number 87161427300, EBI 052F0004 TRANSFORMER (BEFORE FD008) EBI 052F0004 TRANSFORMER (BEFORE FD008)
Worcester part no. 87161427300		 £150.59
0 Part number 87161427360, PUMP BFP11L3 OIL (LEFT HAND) (BEFORE FD008) PUMP BFP11L3 OIL (LEFT HAND) (BEFORE FD008)
Worcester part no. 87161427360		 £202.79
0 Part number 87161427370, COIL SOLENOID VALVE BFP21L3 (BEFORE FD008) COIL SOLENOID VALVE BFP21L3 (BEFORE FD008)
Worcester part no. 87161427370		 £92.68
0 Part number 87161427520, IGNITION ELECTRODE 11593701 IGNITION ELECTRODE 11593701
Worcester part no. 87161427520		 £16.24
0 Part number 87161427530, ELECTRODE HOLDER ELECTRODE HOLDER
Worcester part no. 87161427530		 £10.00
0   NOZZLE DANFOSS 0.65 80 DEG S
Worcester part no. 87161427590		 £24.98
0 Part number 87161427610, CABLE TRANSFORMER SUPPLY-(DANFOSS EBI) (BEFORE FD008) CABLE TRANSFORMER SUPPLY-(DANFOSS EBI) (BEFORE FD008)
Worcester part no. 87161427610		 £19.10
0 Part number 87161427780, PUMP ARMATURE FOR DANFOSS BFP (BEFORE FD008) PUMP ARMATURE FOR DANFOSS BFP (BEFORE FD008)
Worcester part no. 87161427780		 £103.94
0   NOZZLE DANFOSS 1.10 60 DEG S (AFTER FD008)
Worcester part no. 87161427950		 £23.09
0 Part number 87161466200, LEAD FOR BFP11L3 OIL PUMP (BEFORE FD008) LEAD FOR BFP11L3 OIL PUMP (BEFORE FD008)
Worcester part no. 87161466200		 £19.68
0 Part number 87161565110, NOZZLE DANFOSS 1.25 60 DEG S NOZZLE DANFOSS 1.25 60 DEG S
Worcester part no. 87161565110		 £23.09
0 Part number 87161565210, SHROUD FOR EBI TRANSFORMER SHROUD FOR EBI TRANSFORMER
Worcester part no. 87161565210		 £5.21
0 Part number 87161565340, MOTOR/PUMP COUPLING MOTOR/PUMP COUPLING
Worcester part no. 87161565340		 £15.71
0   NOZZLE DANFOSS 0.85 60 DEG S (BEFORE FD008)
Worcester part no. 87161565380		 £23.09
0   COUPLING FLEX DRIVE
Worcester part no. 87161565650		 £59.50
0 Part number 87161566450, AEG 90W BURNER MOTOR EOGB MO2-1-90-11 AEG 90W BURNER MOTOR EOGB MO2-1-90-11
Worcester part no. 87161566450		 £269.98
0   REAR COVER PLATE SCREW (BEFORE FD008)
Worcester part no. 87161566500		 £7.25
0   PRESSURE GAUGE EXTENSION BAR (BEFORE FD008)
Worcester part no. 87161566520		 £14.42
0   AIR REGULATION PLATE - STERLING 35/40/50
Worcester part no. 87161566530		 £8.59
0   SCALE AIR REGULATION - STERLING 35/40/50 (BEFORE FD008)
Worcester part no. 87161566560		 £13.25
0   COVER PLATE AIR REGULATION (BEFORE FD008)
Worcester part no. 87161566570		 £6.31
0 Part number 87161566580, NOZZLE HOLDER CHECK VALVE DANFOSS (BEFORE FD008) NOZZLE HOLDER CHECK VALVE DANFOSS (BEFORE FD008)
Worcester part no. 87161566580		 £32.80
0   O-RING 121X1.6
Worcester part no. 87161566590		 £5.14
0   GASKET- BURNER BODY FRONT PLATE
Worcester part no. 87161566610		 £11.51
0 Part number 87161566620, TRANSFORMER HOLDING SPRING-DANFOSS EBI (BEFORE FD008) TRANSFORMER HOLDING SPRING-DANFOSS EBI (BEFORE FD008)
Worcester part no. 87161566620		 £7.79
0 Part number 87161566650, 3 UF CAPACITOR FOR AEG MOTOR [+/-5%] (BEFORE FD008) 3 UF CAPACITOR FOR AEG MOTOR [+/-5%] (BEFORE FD008)
Worcester part no. 87161566650		 £26.06
0   NOZZLE DANFOSS 1.00 60 DEG ES (AFTER FD009)
Worcester part no. 87161566750		 £23.09
0   NOZZLE DANFOSS 1.65 60 DEG S
Worcester part no. 87161566780		 £23.09
0   NOZZLE ADJUSTMENT COVER PLATE-STERLING (BEFORE FD008)
Worcester part no. 87161566840		 £15.10
0   NOZZLE ADJUSTMENT SCREW STERLING35/40/50 (BEFORE FD008)
Worcester part no. 87161566850		 £16.35
0   BUSHING - STERLING 35/40/50 (BEFORE FD008)
Worcester part no. 87161566860		 £11.72
0   NOZZLE HOLDER - STERLING 50
Worcester part no. 87161566880		 £71.30
0   REAR COVER PLATE - STERLING 35/40/50 (BEFORE FD008)
Worcester part no. 87161566890		 £16.53
0   DRIVE COUPLING - STERLING 35/40/50
Worcester part no. 87161566900		 £18.62
0 Part number 87161566910, SATRONIC MZ770S PHOTOCELL LEAD ONLY (BEFORE FD008) SATRONIC MZ770S PHOTOCELL LEAD ONLY (BEFORE FD008)
Worcester part no. 87161566910		 £14.97
0 Part number 87161566920, SATRONIC MZ770S PHOTOCELL C/W FLANGE&LEAD (BEFORE FD008) SATRONIC MZ770S PHOTOCELL C/W FLANGE&LEAD (BEFORE FD008)
Worcester part no. 87161566920		 £49.88
0   FAN HOUSING FRONT PLATE ST120
Worcester part no. 87161566940		 £30.23
0   FAN HOUSING SHIELD PLATE ST120
Worcester part no. 87161566950		 £46.68
0   FAN WHEEL - ST108 - 108X42X8
Worcester part no. 87161570000		 £45.31
0   MOTOR CABLE - AEG(FHP)
Worcester part no. 87161570120		 £13.05
0 Part number 87161570140, PUMP SUNTEC AS47C (BEFORE FD008) PUMP SUNTEC AS47C (BEFORE FD008)
Worcester part no. 87161570140		 £194.62
0 Part number 87161570150, PIPE - TWO CONVERSION SCREW - DANFOSS (BEFORE FD008) PIPE - TWO CONVERSION SCREW - DANFOSS (BEFORE FD008)
Worcester part no. 87161570150		 £8.88
0   PIPE - TWO CONVERSION SCREW - SUNTEC AS4 (BEFORE FD008)
Worcester part no. 87161570160		 £11.51
0 Part number 87161570420, CONTROL BOX BASE-SATRONIC (BEFORE FD008) CONTROL BOX BASE-SATRONIC (BEFORE FD008)
Worcester part no. 87161570420		 £46.39
0   BURNER STERLING 40 BEFORE FD005
Worcester part no. 87161125070
0   STERLING 40 OIL-PIPE GREENSTAR
Worcester part no. 87161142050
0   BURNER MAIN BODY - STERLING 35/40/50
Worcester part no. 87161566930
