BAXI
PLUS 30S SYSTEM - (Exploded View)
Appliance Code: 41-077-94A

Appliance Diagram


Exploded View diagram for Baxi Plus 30S SystemClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1001   CASING FRONT PANEL
Baxi part no. 7600386		 £35.44
1002 Part number S62708, SCREW M5 X 20 (20 PCS.) SCREW M5 X 20 (20 PCS.)
Remeha-Broag part no. S62708		 £30.74
1002 Part number 720539301, NOW USE S62708 SCREW M5 X 20 (20PCS) NOW USE S62708 SCREW M5 X 20 (20PCS)
Baxi part no. 720539301
1003   FIXING STRIP HEAT EXCH 30/35KW
Baxi part no. 720726301		 £10.86
1004 Part number 720539401, NOW USE S62748 SEAL FOR FRONT CASING (10M) NOW USE S62748 SEAL FOR FRONT CASING (10M)
Baxi part no. 720539401
1005   GROMMET 48MM X 28MM (5PCS)
Baxi part no. S62711		 £25.05
1005 Part number 720539601, NOW USE S62711 GROMMET 48mm X 28mm (5PCS) NOW USE S62711 GROMMET 48MM X 28MM (5PCS)
Baxi part no. 720539601
1006 Part number 720547101, GROMMET 46X15mm (10PCS) GROMMET 46X15MM (10PCS)
Baxi part no. 720547101		 £20.58
1007   CABLE CLAMP
Baxi part no. 720541401		 £20.02
1008   SCREW 3.5 X 6.5MM (15 PCS)
Baxi part no. 720540301		 £13.56
1009 Part number 720540901, GROMMET 20mm (15PCS) GROMMET 20MM (15PCS)
Baxi part no. 720540901		 £22.41
1010   MOUNTING PLATE
Baxi part no. 720545601		 £54.62
1012   MOUNTING SET FOR BOILER
Baxi part no. 720545701		 £13.77
2001 Part number S100014, HEAT EXCHANGER 35C HEAT EXCHANGER 35C
Remeha-Broag part no. S100014		 £850.14
2001 Part number 720593901, NOW USE S100014 HEAT EXCHANGER 24V/30V/30S/35C NOW USE S100014 HEAT EXCHANGER 24V/30V/30S/35C
Baxi part no. 720593901
2002   HEAT EX FRONT PLATE 35KW
Baxi part no. 720531401		 £308.46
2003 Part number S100017, BURNER 35KW(39KW LPG) BURNER 35KW(39KW LPG)
Remeha-Broag part no. S100017		 £68.30
2003 Part number 720435501, NOW USE S100017 BURNER 24V/30S/35C (39KW LPG) NOW USE S100017 BURNER 24V/30S/35C (39KW LPG)
Baxi part no. 720435501
2004 Part number S62743, ignition/ionisation electrode IGNITION/IONISATION ELECTRODE
Remeha-Broag part no. S62743		 £36.85
2004 Part number 720481201, NOW USE S62743 ELECTRODE IGN/IONISATION+LEAD NOW USE S62743 ELECTRODE IGN/IONISATION+LEAD
Baxi part no. 720481201
2005   GLASS INSPECTION SET
Baxi part no. S59118		 £42.99
2005 Part number 720537401, NOW USE S59118 GLASS INSPECTION SET NOW USE S59118 GLASS INSPECTION SET
Baxi part no. 720537401
2006 Part number 7219281, INSULATION BURNER FRONT PLATE INSULATION BURNER FRONT PLATE
Baxi part no. 7219281		 £81.18
2007 Part number 720543701, FLUE GAS/AIR INLET CONN PIPE FLUE GAS/AIR INLET CONN PIPE
Baxi part no. 720543701
2008 Part number 720538801, SCREW CAP FLUE GAS MEAS PT 5PCS SCREW CAP FLUE GAS MEAS PT 5PCS
Baxi part no. 720538801
2009 Part number 720534401, PIPING SET 24/28/35KW PIPING SET 24/28/35KW
Baxi part no. 720534401		 £252.68
2010   AUTO AIR VENT BLEED DEVICE 3/8
Baxi part no. S62728		 £44.29
2010 Part number 720480901, NOW USER S62728 VENT AUTO AIR BLEED DEVICE NOW USER S62728 VENT AUTO AIR BLEED DEVICE
Baxi part no. 720480901
2011 Part number 720481401, PUMP 35/39KW PUMP 35/39KW
Baxi part no. 720481401		 £125.92
2011 Part number 720532801, PUMP AIR VENT PUMP AIR VENT
Baxi part no. 720532801		 £56.33
2012 Part number S62749, SYPHON ASSEMBLY SYPHON ASSEMBLY
Remeha-Commercial part no. S62749		 £34.09
2012 Part number 720542001, NOW USE S62749 SYPHON ASSEMBLY NOW USE S62749 SYPHON ASSEMBLY
Baxi part no. 720542001
2013 Part number 720480501, SENSOR TEMPERATURE (2PCS) SENSOR TEMPERATURE (2PCS)
Baxi part no. 720480501		 £55.07
2014   GASKET COVER PLATE HEATEX 10PCS
Baxi part no. 720538401		 £68.79
2015 Part number 720480101, GASKET FOR BURNER (5PCS) GASKET FOR BURNER (5PCS)
Baxi part no. 720480101		 £37.95
2016 Part number S62718, O-RING 94 X 2 (10 PCS.) O-RING 94 X 2 (10 PCS.)
Remeha-Broag part no. S62718		 £25.93
2016 Part number 720540101, NOW USE S62718 O-RING 94 X 2 (10PCS) NOW USE S62718 O-RING 94 X 2 (10PCS)
Baxi part no. 720540101
2017 Part number S62105, PLATE SEALING ELECTRODE IGN PLATE SEALING ELECTRODE IGN
Baxi part no. S62105		 £29.92
2017 Part number 720538601, NOW USE S62105 GASKET FOR ELECTRODE (10PCS) NOW USE S62105 GASKET FOR ELECTRODE (10PCS)
Baxi part no. 720538601
2018 Part number 720538301, HAIRPIN SPRING 18mm (10PCS) HAIRPIN SPRING 18MM (10PCS)
Baxi part no. 720538301		 £29.57
2019 Part number 720536101, HAIRPIN SPRING (10PCS) HAIRPIN SPRING (10PCS)
Baxi part no. 720536101		 £16.49
2020 Part number 720538501, O-RING (10PCS) O-RING (10PCS)
Baxi part no. 720538501		 £16.98

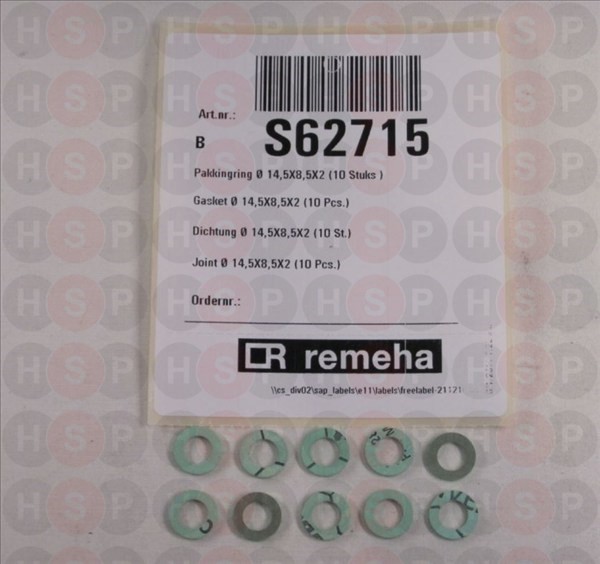

2021 Part number S62715, GASKET 14,5X8,5X2 (10 PCS.) GASKET 14,5X8,5X2 (10 PCS.)
Remeha-Broag part no. S62715		 £22.56
2021 Part number 720540001, NOW USE S62715 GASKET 14,5X5,5X2 (10PCS) NOW USE S62715 GASKET 14,5X5,5X2 (10PCS)
Baxi part no. 720540001
2022 Part number 720538201, SCREW M5X8 (20PCS) SCREW M5X8 (20PCS)
Baxi part no. 720538201		 £11.41
2023 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755		 £29.29
2023 Part number 720535501, NOW USE S54755 NUT FLANGE M6 (20PCS) NOW USE S54755 NUT FLANGE M6 (20PCS)
Baxi part no. 720535501
2024   SCREW M4X10 (50 PCS.)
Baxi part no. S48950		 £17.27
2024 Part number 720535301, NOW USE S48950 SCREW M4X10 (50PCS) NOW USE S48950 SCREW M4X10 (50PCS)
Baxi part no. 720535301
2025 Part number 720536001, O-RING (10PCS) O-RING (10PCS)
Baxi part no. 720536001		 £15.02
2026 Part number 720481001, NOW USE S62733 GAUGE PRESSURE C/W CAPILLARY NOW USE S62733 GAUGE PRESSURE C/W CAPILLARY
Baxi part no. 720481001		 £11.95
2026 Part number S62733, GAUGE PRESSURE C/W CAPILLARY GAUGE PRESSURE C/W CAPILLARY
Baxi part no. S62733		 £27.57
2027 Part number 720542101, COVER GAS/AIR CHAMBER COVER GAS/AIR CHAMBER
Baxi part no. 720542101		 £62.51
2028 Part number S62719, GASKET BETWEEN FRONT PLATE AND MIXING CHAMBER (10 PCS.) GASKET BETWEEN FRONT PLATE AND MIXING CHAMBER (10 PCS.)
Remeha-Broag part no. S62719		 £41.18
2028 Part number 720540201, NOW USE S62719 GASKET-FRONT PL+MIX CHAM 10PCS NOW USE S62719 GASKET-FRONT PL+MIX CHAM 10PCS
Baxi part no. 720540201
2029 Part number S62742, COVER PLATE FOR BURNER COVER PLATE FOR BURNER
Remeha-Broag part no. S62742		 £40.28
2029 Part number 720541801, NOW USE S62742 COVER PLATE FOR BURNER NOW USE S62742 COVER PLATE FOR BURNER
Baxi part no. 720541801
2030   VALVE NON RETURN (FOR AUTO AIR
Baxi part no. S62729		 £34.86
2030 Part number 720541001, NOW USE S62729 VALVE NON RETURN NOW USE S62729 VALVE NON RETURN
Baxi part no. 720541001
2032   NUT M 8 (10 PCS.)
Baxi part no. S44483		 £17.53
2032 Part number 720534901, NOW USE S44483 NUT M8 (10PCS) NOW USE S44483 NUT M8 (10PCS)
Baxi part no. 720534901
2033 Part number 720536401, HAIRPIN SPRING 17mm (10PCS) HAIRPIN SPRING 17MM (10PCS)
Baxi part no. 720536401		 £27.69
2034 Part number S62433, O-rings 16 x 3.6mm (Pack of 10) O-RINGS 16 X 3.6MM (PACK OF 10)
Remeha-Broag part no. S62433		 £7.50
2034 Part number 720539101, NOW USE S62433 O-RING 16X3.6 (10PCS) NOW USE S62433 O-RING 16X3.6 (10PCS)
Baxi part no. 720539101
2035 Part number S62753, EXPANSION VESSEL EXPANSION VESSEL
Remeha-Broag part no. S62753		 £97.58
2035 Part number 720542301, NOW USE S62753 EXPANSION VESSEL NOW USE S62753 EXPANSION VESSEL
Baxi part no. 720542301
2036 Part number S62715, GASKET 14,5X8,5X2 (10 PCS.) GASKET 14,5X8,5X2 (10 PCS.)
Remeha-Broag part no. S62715		 £22.56
2036 Part number 720540001, NOW USE S62715 GASKET 14,5X5,5X2 (10PCS) NOW USE S62715 GASKET 14,5X5,5X2 (10PCS)
Baxi part no. 720540001
2037 Part number S62714, O-RING 9.19 X 2.62 (10 PCS.) O-RING 9.19 X 2.62 (10 PCS.)
Remeha-Broag part no. S62714		 £15.84
2037 Part number 720539901, NOW USE S62714 O-RING 9,19 X 2,62 (10PCS) NOW USE S62714 O-RING 9,19 X 2,62 (10PCS)
Baxi part no. 720539901
2038   HAIRPIN SPRING 10 (10PCS)
Baxi part no. 720539701		 £9.82
2039 Part number 720539001, SEALING RING SYPHON SEALING RING SYPHON
Baxi part no. 720539001		 £32.94
2040   O-RING 20 X 2,5 (10PCS)
Baxi part no. S62713		 £16.57
2040 Part number 720539801, NOW USE S62713 O-RING 20 X 2,5 (10PCS) NOW USE S62713 O-RING 20 X 2,5 (10PCS)
Baxi part no. 720539801
2041   SPACER 15MM (5PCS)
Baxi part no. 720545801		 £27.36
2042   PIPE BETWEEN PUMP+EXP VESSEL
Baxi part no. 720542701		 £17.20
2043   CAP MEASURE POINT AIR INLET X5
Baxi part no. S62233		 £29.04
2043 Part number 720538901, NOW USE S62233 CAP MEAS POINT AIR INLET 5PCS NOW USE S62233 CAP MEAS POINT AIR INLET 5PCS
Baxi part no. 720538901
2044 Part number 720534301, PRESSURE SWITCH PRESSURE SWITCH
Baxi part no. 720534301		 £57.71
2045 Part number 720534101, CLIP 10.3 (5PCS) 28C CLIP 10.3 (5PCS) 28C
Baxi part no. 720534101		 £12.51
2046 Part number 7600485, HOSE SYPHON HOSE SYPHON
Baxi part no. 7600485		 £11.85
3001 Part number 720480001, FAN ASSEMBLY 24V FAN ASSEMBLY 24V
Baxi part no. 720480001		 £252.61
3002 Part number 720535801, VENTURI VENTURI
Baxi part no. 720535801		 £79.38
3003 Part number 720543601, AIR SUPPLY SILENCER AIR SUPPLY SILENCER
Baxi part no. 720543601		 £43.64
3004   PIPE GAS
Baxi part no. 720728301		 £56.27
3005 Part number 720480401, VALVE GAS COMBINATION BLOCK VALVE GAS COMBINATION BLOCK
Baxi part no. 720480401		 £136.89
3006 Part number 720535001, NOW USE S45182 GASKET FOR FLUE FAN (10PCS) NOW USE S45182 GASKET FOR FLUE FAN (10PCS)
Baxi part no. 720535001
3006 Part number S45182, Gasket for flue fan (10 pcs.) GASKET FOR FLUE FAN (10 PCS.)
Remeha-Commercial part no. S45182
3007 Part number 720536301, O-RING 63X3 (10PCS) O-RING 63X3 (10PCS)
Baxi part no. 720536301		 £23.41
3008 Part number 720536501, O-RING 14,5X2 (10PCS) O-RING 14,5X2 (10PCS)
Baxi part no. 720536501		 £13.99
3009 Part number S62715, GASKET 14,5X8,5X2 (10 PCS.) GASKET 14,5X8,5X2 (10 PCS.)
Remeha-Broag part no. S62715		 £22.56
3009 Part number 720540001, NOW USE S62715 GASKET 14,5X5,5X2 (10PCS) NOW USE S62715 GASKET 14,5X5,5X2 (10PCS)
Baxi part no. 720540001
3010   NUT FLANGE M5 (10 PCS.)
Baxi part no. S46687		 £14.68
3010 Part number 720535201, NOW USE S46687 NUT FLANGE M5 (10PCS) NOW USE S46687 NUT FLANGE M5 (10PCS)
Baxi part no. 720535201
3011 Part number 720537901, SCREW M6X12 (15PCS) SCREW M6X12 (15PCS)
Baxi part no. 720537901		 £13.56
3012 Part number 720536401, HAIRPIN SPRING 17mm (10PCS) HAIRPIN SPRING 17MM (10PCS)
Baxi part no. 720536401		 £27.69
3013   NUT 1/2" (5PCS)
Baxi part no. 720545901		 £22.13
3014 Part number 720535701, GASKET 18.3X12.7X2mm (10PCS) GASKET 18.3X12.7X2MM (10PCS)
Baxi part no. 720535701		 £12.21
3015 Part number S62752, GAS COCK GAS COCK
Remeha-Broag part no. S62752		 £27.84
3015 Part number 720542201, NOW USE S62752 GAS COCK NOW USE S62752 GAS COCK
Baxi part no. 720542201
3016 Part number 720540701, HAIRPIN SPRING 22mm (25PCS) HAIRPIN SPRING 22MM (25PCS)
Baxi part no. 720540701
3017   PIPE AND NUT GAS
Baxi part no. S62760		 £28.91
3017 Part number 720543001, NOW USE S62760 PIPE AND NUT GAS NOW USE S62760 PIPE AND NUT GAS
Baxi part no. 720543001
4001 Part number 7225198, CONTROL BOARD ErP CONTROL BOARD ERP
Baxi part no. 7225198		 £240.86
4002   DISPLAY PRINT BOARD
Remeha-Broag part no. S103026		 £76.22
4002 Part number 720481101, NOW USE S103026 PCB DISPLAY PRINT BOARD NOW USE S103026 PCB DISPLAY PRINT BOARD
Baxi part no. 720481101
4003 Part number S62750, TRANSFORMER IGNITION (NO LEAD OR PROBE) TRANSFORMER IGNITION (NO LEAD OR PROBE)
Remeha-Commercial part no. S62750		 £44.09
4003 Part number 720481501, NOW USE S62750 TRANSFORMER IGN. NO LEAD/PROBE NOW USE S62750 TRANSFORMER IGN. NO LEAD/PROBE
Baxi part no. 720481501
4004 Part number 7225200, CABLE SET ERP CABLE SET ERP
Baxi part no. 7225200		 £136.12
4005   CONTROL PANEL - FRONT
Baxi part no. 7637693		 £43.85
4005   NOW USE 7637693 CONTROL PANEL FRONT
Baxi part no. 720541501
4005   NOW USE 7637693CONTROL PANEL FRONT
Baxi part no. 7225201
4006 Part number 720541301, CONTROL PANEL BACK CONTROL PANEL BACK
Baxi part no. 720541301		 £19.12
4007 Part number S62710, SCREW K3,5X10 (50 PCS.) SCREW K3,5X10 (50 PCS.)
Remeha-Broag part no. S62710		 £18.93
4007 Part number 720539501, NOW USE S62710 SCREW M3,5X10 (50PCS) NOW USE S62710 SCREW M3,5X10 (50PCS)
Baxi part no. 720539501
4008 Part number S14254, Sheet-metal screw 4,2x9,5 (20 pcs.) SHEET-METAL SCREW 4,2X9,5 (20 PCS.)
Remeha-Commercial part no. S14254		 £12.67
4008 Part number 720534501, NOW USE S14254 SHEET-METAL SCREW 4,2X9,5-20PC NOW USE S14254 SHEET-METAL SCREW 4,2X9,5-20PC
Baxi part no. 720534501
4009   CONTROL PANEL - FRONT
Baxi part no. 7637693		 £43.85
4009   NOW USE 7637693 COVER DISPLAY (CHROME)
Baxi part no. 720533301
4009   NOW USE 7637693CONTROL PANEL FRONT
Baxi part no. 7225201
4010 Part number 720534601, SCREW M4X16 (10PCS) SCREW M4X16 (10PCS)
Baxi part no. 720534601		 £12.16
4011   FUSES GLASS 2 AMP SLOW PACK 10
Baxi part no. S43561		 £31.30
4011 Part number 720480301, NOW USE S43561 FUSES GLASS 2AMP SLOW(PK10) NOW USE S43561 FUSES GLASS 2AMP SLOW(PK10)
Baxi part no. 720480301
4012   CABLE CLAMP
Baxi part no. 720538101		 £15.87
4013 Part number S62726, GASKET CLOCK BLANK (5 PCS.) GASKET CLOCK BLANK (5 PCS.)
Remeha-Broag part no. S62726		 £19.04
4013 Part number 720540801, NOW USE S62726 GASKET CLOCK BLANK (5PCS) NOW USE S62726 GASKET CLOCK BLANK (5PCS)
Baxi part no. 720540801
4014   COVER PLATE CLOCK BLANK
Remeha-Broag part no. S100001		 £20.64
4014   NOW USE S100001 COVER PLATE CLOCK BLANK
Baxi part no. 720726501
5003   HYDRO BLOCK RIGHT SYSTEM
Baxi part no. 720544001		 £103.43
5004   HYDRO BLOCK LEFT SYSTEM
Baxi part no. 720543901		 £196.73
5010 Part number 720535601, GASKET 23.8X17.2X2mm 20PCS GASKET 23.8X17.2X2MM 20PCS
Baxi part no. 720535601		 £15.74
5011 Part number 720537701, SCREW M5X18 (15PCS) SCREW M5X18 (15PCS)
Baxi part no. 720537701		 £12.91
5012 Part number 720538201, SCREW M5X8 (20PCS) SCREW M5X8 (20PCS)
Baxi part no. 720538201		 £11.41
5013 Part number 720532101, FILTER SYS/PLATE X PRIM FLOW FILTER SYS/PLATE X PRIM FLOW
Baxi part no. 720532101		 £27.03
5014   HAIRPIN SPRING 16,5 (10PCS)
Baxi part no. 720540401		 £22.06
5015 Part number 720481601, SAFETY PRES.RELIEF VALVE+PIPE SAFETY PRES.RELIEF VALVE+PIPE
Baxi part no. 720481601		 £53.31
5017 Part number 720536401, HAIRPIN SPRING 17mm (10PCS) HAIRPIN SPRING 17MM (10PCS)
Baxi part no. 720536401		 £27.69
5018 Part number S62433, O-rings 16 x 3.6mm (Pack of 10) O-RINGS 16 X 3.6MM (PACK OF 10)
Remeha-Broag part no. S62433		 £7.50
5018 Part number 720539101, NOW USE S62433 O-RING 16X3.6 (10PCS) NOW USE S62433 O-RING 16X3.6 (10PCS)
Baxi part no. 720539101
5019 Part number 720534801, OLIVE RING 22mm (10PCS) OLIVE RING 22MM (10PCS)
Baxi part no. 720534801		 £24.76
5020 Part number 720540701, HAIRPIN SPRING 22mm (25PCS) HAIRPIN SPRING 22MM (25PCS)
Baxi part no. 720540701
5021 Part number S62730, GASKET27,4X18,2X2 (20 PCS.) GASKET27,4X18,2X2 (20 PCS.)
Remeha-Broag part no. S62730		 £27.76
5021 Part number 720541101, NOW USE S62730 GASKET 27,4X18,2X2 (20PCS) NOW USE S62730 GASKET 27,4X18,2X2 (20PCS)
Baxi part no. 720541101
5023 Part number 720543401, VALVE TAP-22mm FLOW & RET PIPE VALVE TAP-22MM FLOW & RET PIPE
Baxi part no. 720543401		 £44.50
5026 Part number 720543101, CONNECTION TAIL HTG PIPE 22mm CONNECTION TAIL HTG PIPE 22MM
Baxi part no. 720543101		 £37.27
5028 Part number S62754, PIPE F/R BYPASS PIPE F/R BYPASS
Remeha-Broag part no. S62754		 £29.99
5028 Part number 720542401, NOW USE S62754 PIPE F/R BYPASS NOW USE S62754 PIPE F/R BYPASS
Baxi part no. 720542401
5029 Part number 720539201, VALVE PRES REL FOR F/R BYPASS VALVE PRES REL FOR F/R BYPASS
Baxi part no. 720539201		 £7.29
5031 Part number 720535101, NUT 22mm COPPER OLIVE 10PC NUT 22MM COPPER OLIVE 10PC
Baxi part no. 720535101		 £35.04


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2025 Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter/X
