BAXI
24 COMBI ECOBLUE ERP - (Combustion Box)
Appliance Code: 47-077-11

Appliance Diagram

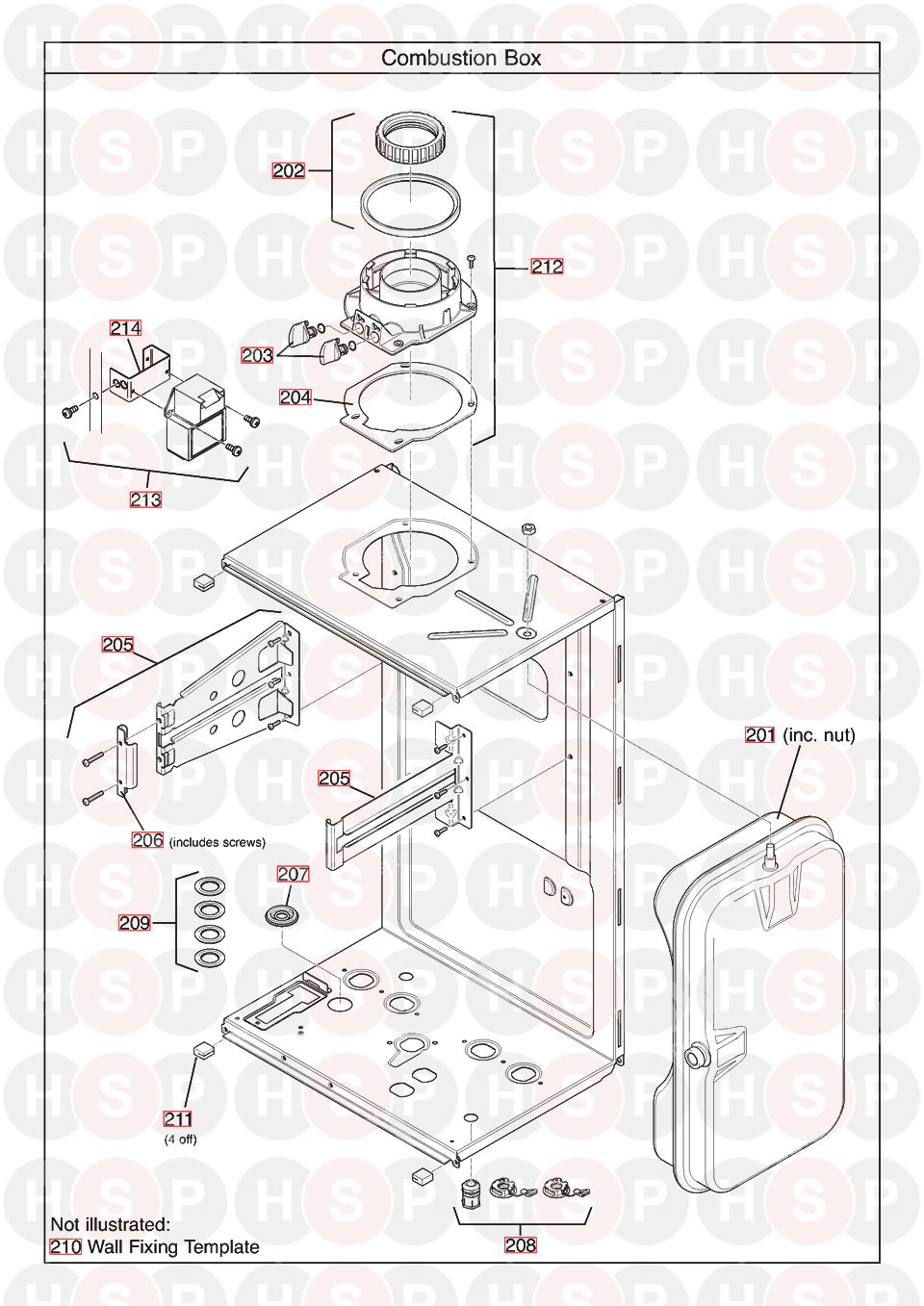

Combustion Box diagram for Baxi 24 Combi Ecoblue ERPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

201   EXPANSION VESSEL 6L
Baxi part no. 720759301
£94.86
202   FLUE GASKET KIT
Baxi part no. 7857597
£6.32
203 Part number 720850801, FLUE ADAPTER PLUG FLUE ADAPTER PLUG
Baxi part no. 720850801
£10.65
204   GASKET FLUE ADAPTER
Baxi part no. 720851001
£7.91
205   HEAT EXCH BRKT L&RH 4E 24 28KW
Baxi part no. 720759501
£32.55
206   HEAT EXCHANGER FIXING PLATE
Baxi part no. 720760501
£8.93
207   GROMMET PRESSURE RELIEF VALVE
Baxi part no. 720761101
£19.53
208   CABLE FIXING
Baxi part no. 720760901
£13.76
209 Part number 720782801, SEAL HYDRO GROUP SEAL HYDRO GROUP
Baxi part no. 720782801
£11.16
210   TEMPLATE COMPACT COMBI/SYS
Baxi part no. 7215554
£15.81
211   GASKET C FRAME - PACK OF 4
Baxi part no. 720761901
£7.53
212 Part number 720851201, FLUE ADAPTER FLUE ADAPTER
Baxi part no. 720851201
£30.69
212   SCREW ST 4.2 X13 (PACK OF 10)
Baxi part no. 7214224
£15.44
213 Part number 720913201, IGNITER ASSEMBLY IGNITER ASSEMBLY
Baxi part no. 720913201
£37.20
214   IGNITER SUPPORT BRKT & SCREW
Baxi part no. 720913401
£16.74
