VAILLANT
ECOTEC PLUS 831 VUW 316/3-5 2005-2013 - (08 Connection Parts (Hydroblock))
Appliance Code: 47-044-32

Appliance Diagram

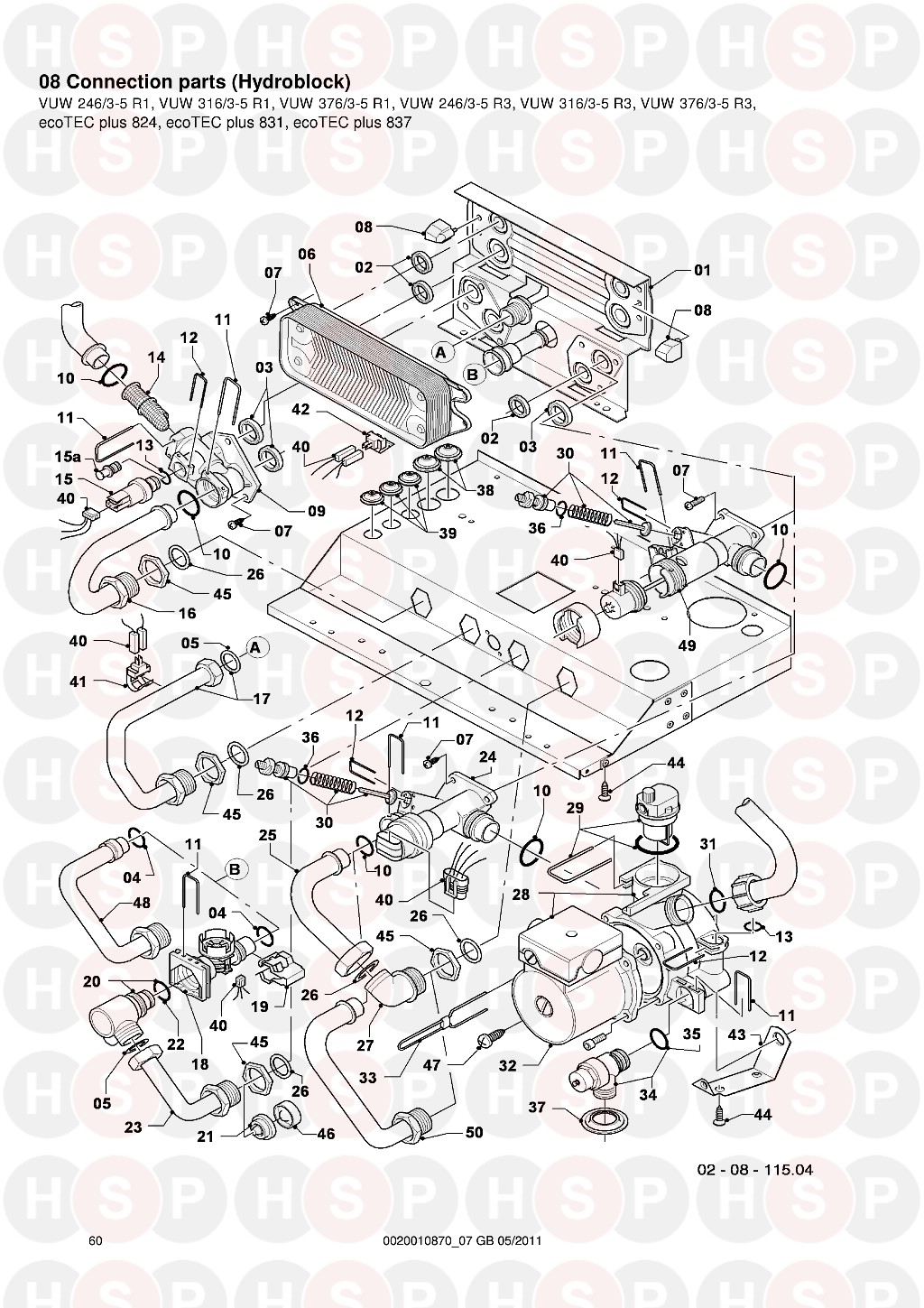

08 Connection Parts (Hydroblock) diagram for Vaillant Ecotec Plus 831 VUW 316/3-5 2005-2013Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 178965, support SUPPORT
Vaillant part no. 178965		 £69.27
2 Part number 178969, Gasket, C-Type (PK10) GASKET, C-TYPE (PK10)
Vaillant part no. 178969		 £9.12
3 Part number 193535, Gasket, C-Type (PK10) GASKET, C-TYPE (PK10)
Vaillant part no. 193535		 £11.23
4 Part number 178991, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 178991		 £6.86
5 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142		 £8.62
6 Part number 178973, Heat exchanger dhw (20 plates) HEAT EXCHANGER DHW (20 PLATES)
Vaillant part no. 178973		 £148.84
7 Part number 178967, Screw, M5 x 18 mm (PK10) SCREW, M5 X 18 MM (PK10)
Vaillant part no. 178967		 £6.89

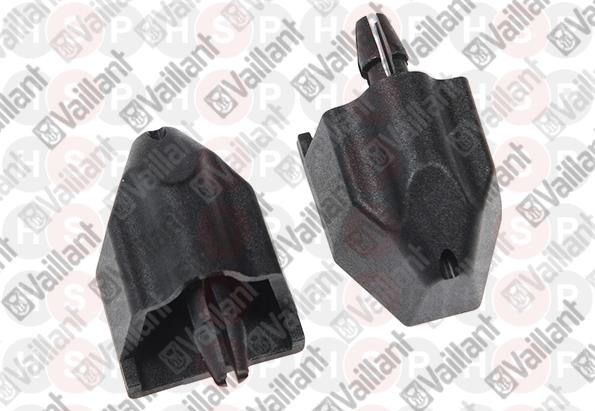

8 Part number 193536, Guide, (PK2) GUIDE, (PK2)
Vaillant part no. 193536		 £6.86
9 Part number 179031, Connection, brass CONNECTION, BRASS
Vaillant part no. 179031		 £50.36
10 Part number 193537, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 193537		 £9.77
11 Part number 178992, Clip, (PK10) CLIP, (PK10)
Vaillant part no. 178992		 £8.42
12 Part number 0020107694, Clip, (PK5) CLIP, (PK5)
Vaillant part no. 0020107694		 £7.24
13 Part number 178993, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 178993		 £6.89
14 Part number 179030, filter FILTER
Vaillant part no. 179030		 £6.89
15 Part number 0020059717, sensor (water pressure) SENSOR (WATER PRESSURE)
Vaillant part no. 0020059717		 £26.26
15A   PRICE ON APPLICATION
Vaillant part no. 0000
16 Part number 179033, pipe PIPE
Vaillant part no. 179033		 £17.16
17 Part number 179034, pipe PIPE
Vaillant part no. 179034		 £18.06
18 Part number 178988, Flow sensor FLOW SENSOR
Vaillant part no. 178988		 £28.87
19 Part number 178966, clip CLIP
Vaillant part no. 178966		 £6.86
20 Part number 179032, Connection piece CONNECTION PIECE
Vaillant part no. 179032		 £25.34
21 Part number 0020018069, Limiter 10.4l/min LIMITER 10.4L/MIN
Vaillant part no. 0020018069		 £9.24
22 Part number 981163, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981163		 £7.24
23 Part number 179037, pipe PIPE
Vaillant part no. 179037		 £39.29
24 Part number 0020132682, Diverter valve, brass, with Adapter DIVERTER VALVE, BRASS, WITH ADAPTER
Vaillant part no. 0020132682		 £143.98
24 Part number 178978, NOW USE 0020132682 diverter valve cpl. NOW USE 0020132682 DIVERTER VALVE CPL.
Vaillant part no. 178978
25 Part number 179036, pipe PIPE
Vaillant part no. 179036		 £13.69
26 Part number 981140, Sealing ring, 3/4 (PK10) SEALING RING, 3/4 (PK10)
Vaillant part no. 981140		 £7.25
27 Part number 179035, connection piece CONNECTION PIECE
Vaillant part no. 179035		 £26.96
28   PUMP, HIGH-EFFICIENCY (IF THIS IS THE REPLACEMENT PART THEN PART NUMBER 0010030691 - CABLE IS ALSO REQUIRED)
Vaillant part no. 0010030632		 £245.77
28 Part number 178983, NOW USE 0010030632 Pump NOW USE 0010030632 PUMP
Vaillant part no. 178983
29 Part number 0010033857, Automatic air vent AUTOMATIC AIR VENT
Vaillant part no. 0010033857		 £19.63
29 Part number 104521, NOW USE 0010033857 automatic air vent NOW USE 0010033857 AUTOMATIC AIR VENT
Vaillant part no. 104521
30 Part number 178980, bypass BYPASS
Vaillant part no. 178980		 £25.87
31 Part number 193539, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 193539		 £17.17
32   PRICE ON APPLICATION
Vaillant part no. 0000
33 Part number 178981, clip CLIP
Vaillant part no. 178981		 £6.86
34 Part number 178985, Pressure relief valve, 3 bar PRESSURE RELIEF VALVE, 3 BAR
Vaillant part no. 178985		 £15.51
35 Part number 178986, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 178986		 £6.86
36 Part number 981165, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981165		 £6.89
37 Part number 0020085467, Gasket GASKET
Vaillant part no. 0020085467		 £6.74
37 Part number 980765, NOW USE 0020085467 grommet NOW USE 0020085467 GROMMET
Vaillant part no. 980765
38 Part number 509120, Gasket, (PK10) GASKET, (PK10)
Vaillant part no. 509120		 £12.95
39 Part number 509121, Gasket (PK10) GASKET (PK10)
Vaillant part no. 509121		 £8.81
40 Part number 0020128697, WIRING HARNESS WIRING HARNESS
Vaillant part no. 0020128697		 £45.83
41 Part number 103429, Sensor NTC, DHW outlet pipe SENSOR NTC, DHW OUTLET PIPE
Vaillant part no. 103429		 £8.89
42 Part number 103430, Sensor NTC, DHW heat exchanger SENSOR NTC, DHW HEAT EXCHANGER
Vaillant part no. 103430		 £8.97
43 Part number 178984, Support SUPPORT
Vaillant part no. 178984		 £12.26
44 Part number 0020107695, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020107695		 £6.86
44 Part number 235715, NOW USE 0020107695 Tapping screw ISO 7049 NOW USE 0020107695 TAPPING SCREW ISO 7049
Vaillant part no. 235715
45 Part number 193598, Nut, (PK4) NUT, (PK4)
Vaillant part no. 193598		 £6.86
46 Part number 074514, Filter FILTER
Vaillant part no. 074514		 £6.86
47 Part number 235756, Screw, tapping (ST 4,8x19) SCREW, TAPPING (ST 4,8X19)
Vaillant part no. 235756		 £4.36
