VAILLANT
AQUA PLUS VUI 362-7 R3 2005-2008 - (05 Gas Section R3)
Appliance Code: 47-044-29 (306592)

Appliance Diagram

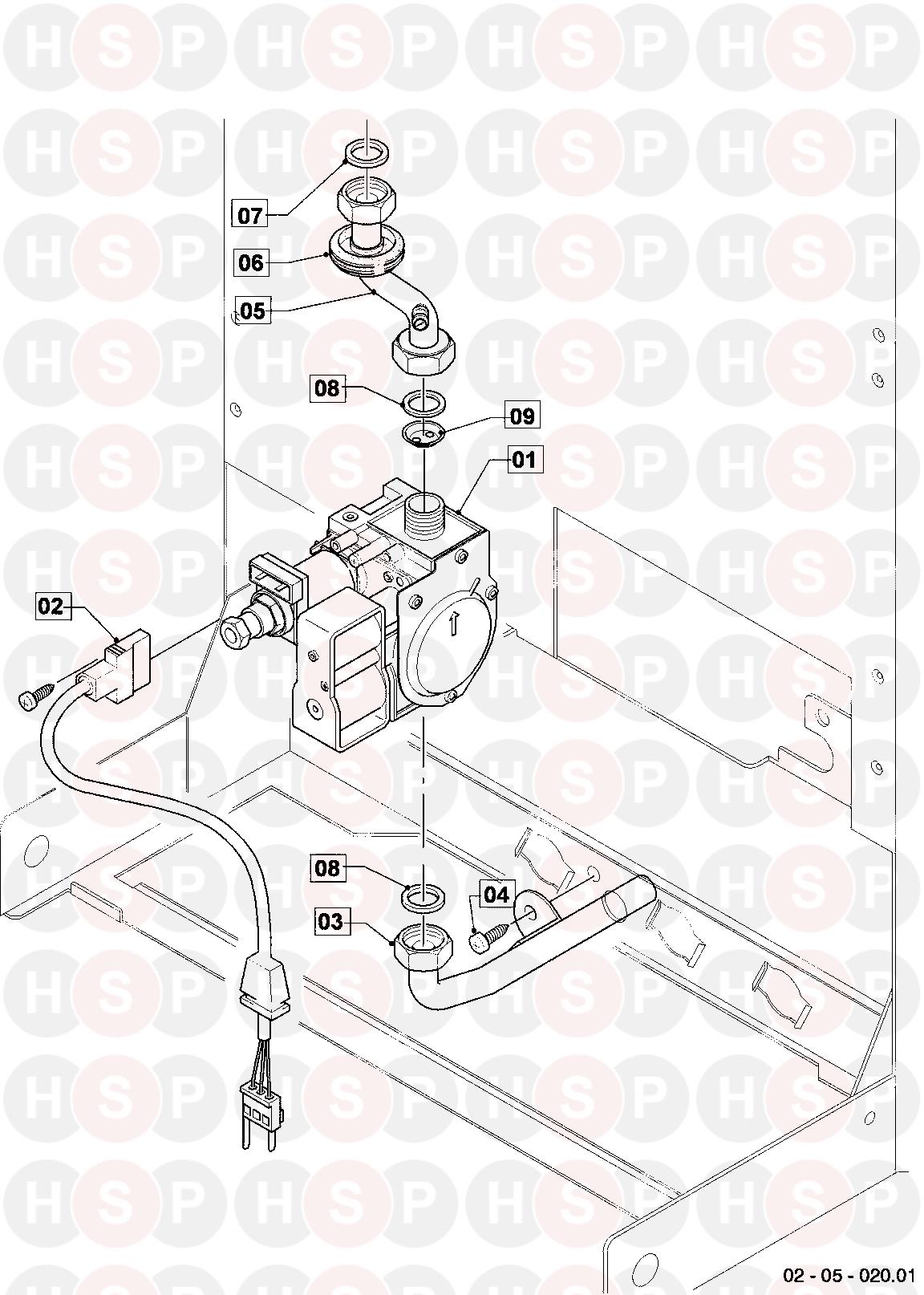

05 Gas Section R3 diagram for Vaillant Aqua Plus VUI 362-7 R3 2005-2008Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 114189, Gas section H-gas GAS SECTION H-GAS
Vaillant part no. 114189		 £96.73
1 Part number 053561, Gas section GAS SECTION
Vaillant part no. 053561		 £140.66
2 Part number 090915, Connection cable CONNECTION CABLE
Vaillant part no. 090915		 £13.23
3 Part number 123503, gas tube GAS TUBE
Vaillant part no. 123503		 £20.64
4 Part number 0020107695, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020107695		 £6.28
5   GAS TUBE
Vaillant part no. 123502		 £17.16
6 Part number 0020085467, Gasket GASKET
Vaillant part no. 0020085467		 £6.17
7 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142		 £6.63
8 Part number 981307, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981307		 £6.28
9 Part number 049754, Throttle jet 2 x 4.75 THROTTLE JET 2 X 4.75
Vaillant part no. 049754		 £6.34
