VAILLANT
TURBOMAX PRO 28E VUW 282/2-3 R1 2002-2003 - (08A Hydraulic Parts R1)
Appliance Code: 47-044-11-R1

Appliance Diagram


08A Hydraulic Parts R1 diagram for Vaillant Turbomax Pro 28E VUW 282/2-3 R1 2002-2003Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   PUMP, HIGH-EFFICIENCY (IF THIS IS THE REPLACEMENT PART THEN PART NUMBER 0010032769 CABLE IS ALSO REQUIRED)
Vaillant part no. 0010030634		 £230.09
1 Part number 160928, NOW USE 0010030634 Pump VP5 NOW USE 0010030634 PUMP VP5
Vaillant part no. 160928
2 Part number 0010033857, Automatic air vent AUTOMATIC AIR VENT
Vaillant part no. 0010033857		 £19.63
2 Part number 061707, automatic de-aerator AUTOMATIC DE-AERATOR
Vaillant part no. 061707		 £20.36
2 Part number 104521, NOW USE 0010033857 automatic air vent NOW USE 0010033857 AUTOMATIC AIR VENT
Vaillant part no. 104521
3 Part number 118951, Pan head screw, M6x28,5 PAN HEAD SCREW, M6X28,5
Vaillant part no. 118951		 £4.92
4 Part number 019383, Connecting tube CONNECTING TUBE
Vaillant part no. 019383		 £26.96
4   OBSOLETE CONNECTING TUBE
Vaillant part no. 114193
4A Part number 712087, pressure sensor PRESSURE SENSOR
Vaillant part no. 712087		 £23.57
4B Part number 114192, Connection cable CONNECTION CABLE
Vaillant part no. 114192
5 Part number 019381, Connecting tube CONNECTING TUBE
Vaillant part no. 019381		 £26.96
5 Part number 104597, Connecting tube with NTC-sensor CONNECTING TUBE WITH NTC-SENSOR
Vaillant part no. 104597		 £35.33

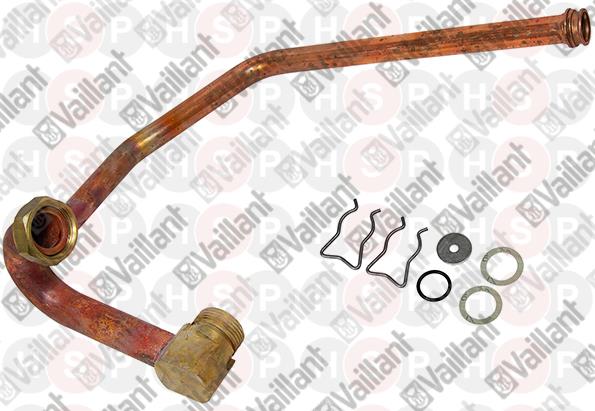

6 Part number 022778, Connecting tube CONNECTING TUBE
Vaillant part no. 022778		 £40.49
6 Part number 104602, Connecting tube CONNECTING TUBE
Vaillant part no. 104602		 £17.16
7 Part number 252805, Sensor - NTC SENSOR - NTC
Vaillant part no. 252805		 £23.36
8 Part number 256097, Wiring harness WIRING HARNESS
Vaillant part no. 256097
11B Part number 022783, Connecting tube CONNECTING TUBE
Vaillant part no. 022783		 £72.55
12 Part number 252457, Diverter valve DIVERTER VALVE
Vaillant part no. 252457		 £143.60
13 Part number 140429, Actuator - diverter valve ACTUATOR - DIVERTER VALVE
Vaillant part no. 140429		 £58.90
14 Part number 065131, Heat exchanger dhw (12 plates) HEAT EXCHANGER DHW (12 PLATES)
Vaillant part no. 065131		 £136.70
15 Part number 022776, Warm water connection tube WARM WATER CONNECTION TUBE
Vaillant part no. 022776
15A Part number 014737, non-return valve NON-RETURN VALVE
Vaillant part no. 014737
16 Part number 0020029604, Impeller from aqua sensor IMPELLER FROM AQUA SENSOR
Vaillant part no. 0020029604		 £18.75
16 Part number 194819, Aqua-sensor AQUA-SENSOR
Vaillant part no. 194819		 £87.53
18 Part number 711933, Sensor, hall effect SENSOR, HALL EFFECT
Vaillant part no. 711933		 £23.13
19A Part number 139471, plug (compl.) PLUG (COMPL.)
Vaillant part no. 139471		 £6.86
20 Part number 125151, handle for drain cock HANDLE FOR DRAIN COCK
Vaillant part no. 125151		 £7.24
22 Part number 022782, Connecting tube CONNECTING TUBE
Vaillant part no. 022782		 £25.85
23 Part number 019377, Connecting tube CONNECTING TUBE
Vaillant part no. 019377		 £26.96
24 Part number 190732, pressure relief valve PRESSURE RELIEF VALVE
Vaillant part no. 190732		 £45.83
25 Part number 019392, Connecting piece CONNECTING PIECE
Vaillant part no. 019392		 £86.37
26 Part number 101271, Pressure gauge PRESSURE GAUGE
Vaillant part no. 101271		 £38.09
27 Part number 0020107709, Support SUPPORT
Vaillant part no. 0020107709		 £6.86
28 Part number 019372, Connecting tube CONNECTING TUBE
Vaillant part no. 019372		 £16.08
29 Part number 181057, expansion vessel 10 ltr. EXPANSION VESSEL 10 LTR.
Vaillant part no. 181057		 £123.38
29 Part number 181061, Expansion Vessel 6 Ltr. EXPANSION VESSEL 6 LTR.
Vaillant part no. 181061		 £116.81
30 Part number 208495, Covering plate COVERING PLATE
Vaillant part no. 208495		 £7.05
31 Part number 074514, Filter FILTER
Vaillant part no. 074514		 £6.86
31A Part number 012976, Limiter 9.4l/min LIMITER 9.4L/MIN
Vaillant part no. 012976		 £6.86
32 Part number 118937, Pan head screw (M 5x12) PAN HEAD SCREW (M 5X12)
Vaillant part no. 118937		 £5.13
33 Part number 0020107694, Clip, (PK5) CLIP, (PK5)
Vaillant part no. 0020107694		 £7.24
34 Part number 219621, Spring clamp, (PK10) SPRING CLAMP, (PK10)
Vaillant part no. 219621		 £9.77
35 Part number 219622, Spring clamp (PK10) SPRING CLAMP (PK10)
Vaillant part no. 219622		 £9.77
35 Part number 219636, Clip (PK2) CLIP (PK2)
Vaillant part no. 219636		 £7.25
35A Part number 154194, Bow (PK10) BOW (PK10)
Vaillant part no. 154194		 £9.77
36 Part number 219623, Spring clamp (PK10) SPRING CLAMP (PK10)
Vaillant part no. 219623		 £9.77
37 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142		 £8.62
38 Part number 981146, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981146		 £6.89
39 Part number 981140, Sealing ring, 3/4 (PK10) SEALING RING, 3/4 (PK10)
Vaillant part no. 981140		 £7.25
40 Part number 981149, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981149		 £8.20
41 Part number 981165, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981165		 £6.89
42 Part number 981163, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981163		 £7.24
43 Part number 981154, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981154		 £6.89
44 Part number 981151, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981151		 £8.09
45 Part number 981155, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981155		 £6.53
46 Part number 0020085467, Gasket GASKET
Vaillant part no. 0020085467		 £6.74
