VAILLANT
THERMOCOMPACT VU 242/1E 1998-2001 - (05 Gas Section)
Appliance Code: 41-044-18

Appliance Diagram

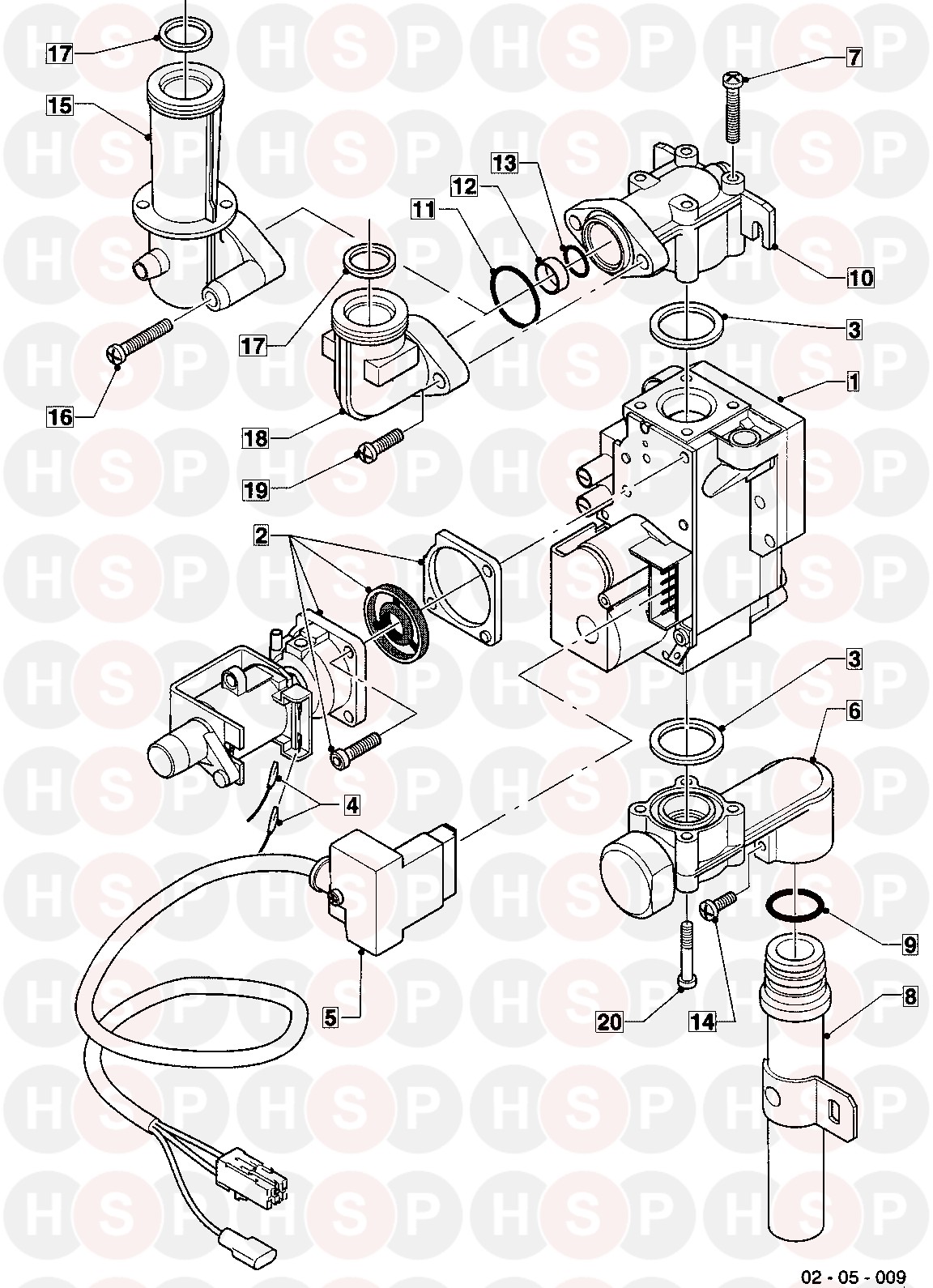

05 Gas Section diagram for Vaillant Thermocompact VU 242/1E 1998-2001Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 053473, Gas section, H-gas GAS SECTION, H-GAS
Vaillant part no. 053473
£174.09
1 Part number 053499, Gas section P/B-gas GAS SECTION P/B-GAS
Vaillant part no. 053499
£138.51
2   PRICE ON APPLICATION
Vaillant part no. 0000

3 Part number 982315, O-ring O-RING
Vaillant part no. 982315

4 Part number 256063, Wiring harness WIRING HARNESS
Vaillant part no. 256063

5 Part number 089695, Connection line CONNECTION LINE
Vaillant part no. 089695
£48.66
6 Part number 081664, OBSOLETE Connection piece OBSOLETE CONNECTION PIECE
Vaillant part no. 081664

7   LENS HEAD SCREW M4X40-ZA-8.8-Z-A3G
Vaillant part no. 118966
£5.13
8 Part number 124282, Gas connection tube GAS CONNECTION TUBE
Vaillant part no. 124282
£9.16
9 Part number 0020072913, O-ring (PK10) O-RING (PK10)
Vaillant part no. 0020072913
£6.28
10 Part number 081663, OBSOLETE Connection piece OBSOLETE CONNECTION PIECE
Vaillant part no. 081663

11 Part number 982446, Gasket GASKET
Vaillant part no. 982446
£6.28
12 Part number 049612, Throttle jet 2 x 3.50 THROTTLE JET 2 X 3.50
Vaillant part no. 049612
£4.36
13 Part number 982481, Gasket GASKET
Vaillant part no. 982481
£5.13
15 Part number 081641, Connection piece CONNECTION PIECE
Vaillant part no. 081641
£34.14
16 Part number 118944, lens head screw LENS HEAD SCREW
Vaillant part no. 118944
£5.13
17 Part number 981169, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981169
£6.28
19 Part number 118965, Lens head screw M5x20-8.8-Z-A3(++) LENS HEAD SCREW M5X20-8.8-Z-A3(++)
Vaillant part no. 118965
£6.28
20   LENS HEAD SCREW M4X33-ZA-8.8-Z-A3G
Vaillant part no. 118967
£5.13
