VAILLANT
MAG 9/1 XZ 1999-2011 - (02 Gas Section)
Appliance Code: 9/1 XZ

Appliance Diagram

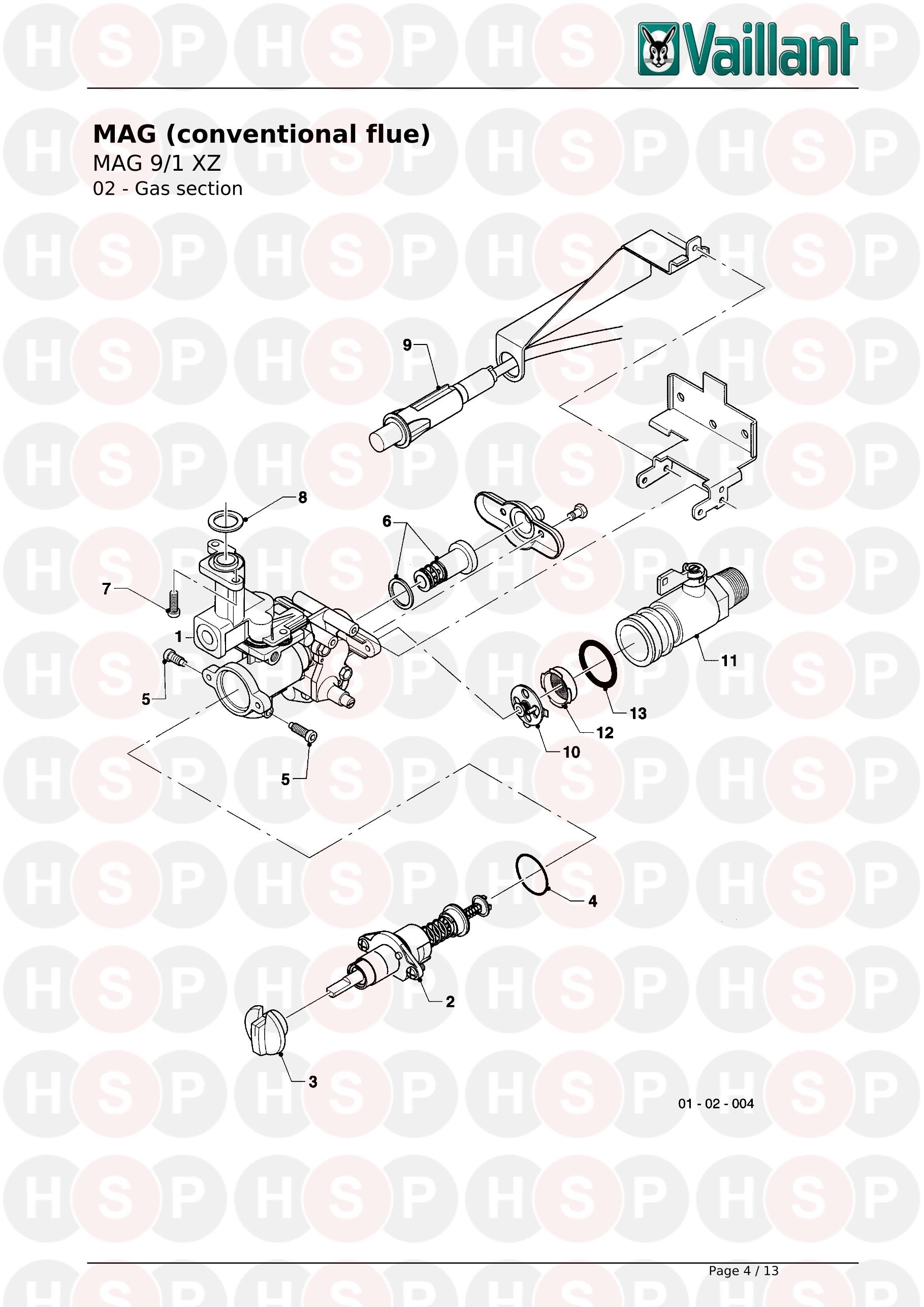

02 Gas Section diagram for Vaillant Mag 9/1 XZ 1999-2011Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 053403, gas section GAS SECTION
Vaillant part no. 053403

2 Part number 014651, Valve VALVE
Vaillant part no. 014651
£14.73
3 Part number 114276, Knob KNOB
Vaillant part no. 114276
£6.28
4 Part number 981123, Gasket (PK10) GASKET (PK10)
Vaillant part no. 981123
£6.28
5 Part number 105829, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 105829
£6.28
6 Part number 170383, Magneto MAGNETO
Vaillant part no. 170383
£17.16
7 Part number 105829, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 105829
£6.28
8 Part number 981125, Gasket (PK10) GASKET (PK10)
Vaillant part no. 981125
£6.28
9 Part number 091081, Piezo ignition PIEZO IGNITION
Vaillant part no. 091081
£7.18
10 Part number 149505, valve seat VALVE SEAT
Vaillant part no. 149505
£6.65
12 Part number 128522, gas filter GAS FILTER
Vaillant part no. 128522
£6.28
13 Part number 982346, O-ring O-RING
Vaillant part no. 982346
£6.28
