VAILLANT
GEOTHERM VWS 101/2 230V - (12 Control Box)
Appliance Code: 0010002780

Appliance Diagram

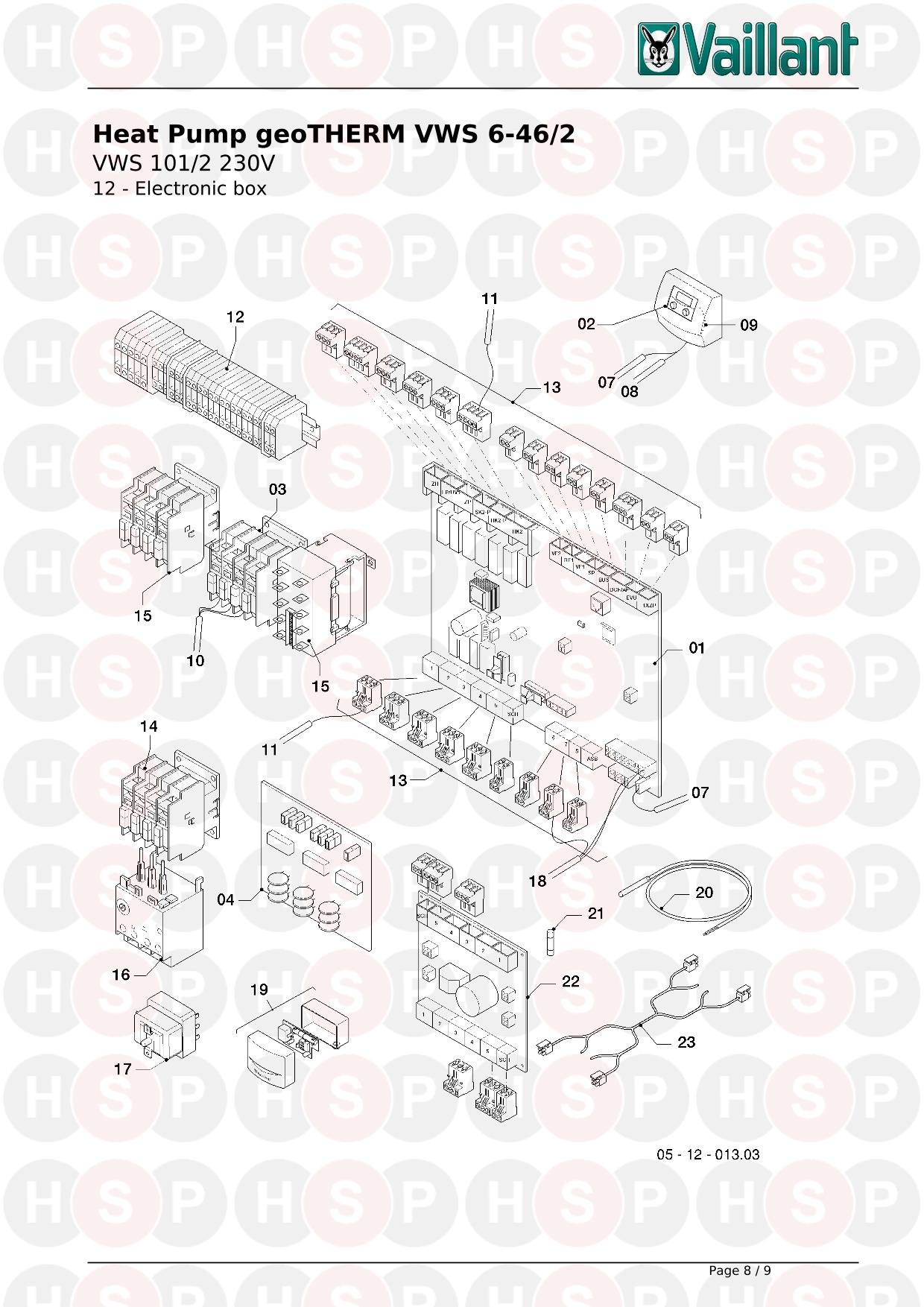

12 Control Box diagram for Vaillant Geotherm VWS 101/2 230VClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 0020117288, Wiring harness, AMU/3-geoTHERM/2 WIRING HARNESS, AMU/3-GEOTHERM/2
Vaillant part no. 0020117288
£15.74
1 Part number 0020032005, Fastening kit, printed circuit FASTENING KIT, PRINTED CIRCUIT
Vaillant part no. 0020032005
£12.96

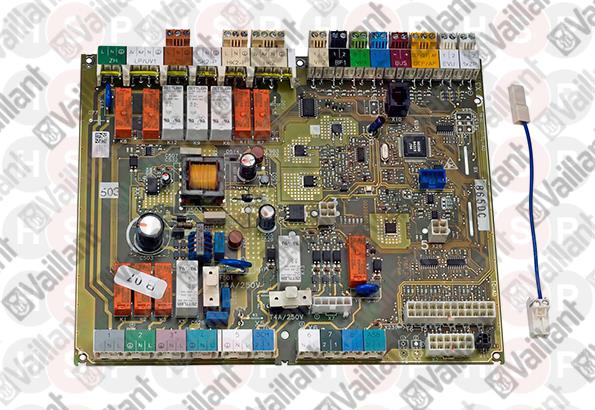

1 Part number 0020093196, Printed circuit board, geoTHERM PRINTED CIRCUIT BOARD, GEOTHERM
Vaillant part no. 0020093196
£434.33

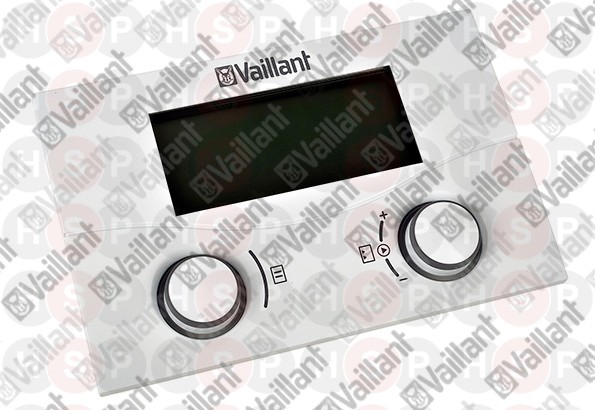

2 Part number 0020093224, Control, geoTHERM N CONTROL, GEOTHERM N
Vaillant part no. 0020093224
£281.57

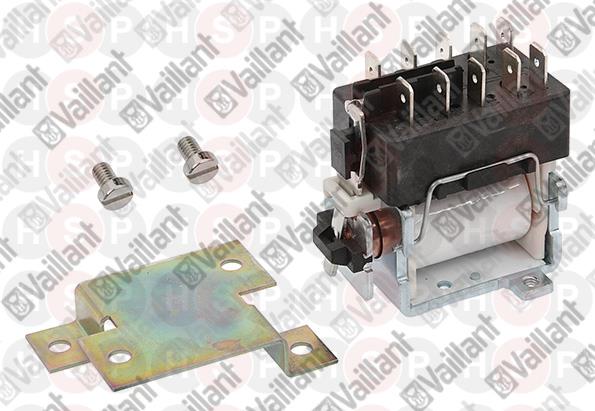

3 Part number 0020030694, Relay, A16-30-01 RELAY, A16-30-01
Vaillant part no. 0020030694
£64.51
4 Part number 0020064070, Printed circuit ICL, 230V PRINTED CIRCUIT ICL, 230V
Vaillant part no. 0020064070
£298.42

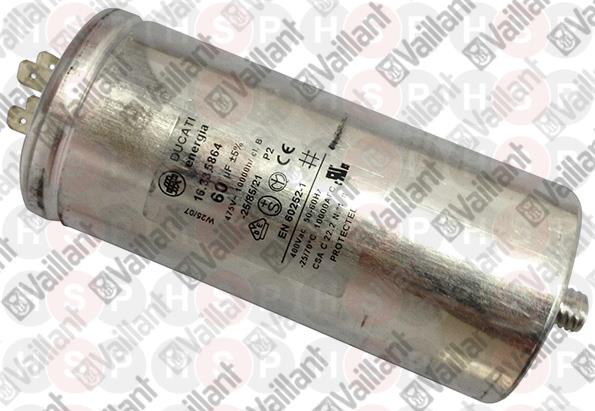

5 Part number 0020055708, Capacitor, 60uF CAPACITOR, 60UF
Vaillant part no. 0020055708
£71.14
7 Part number 0020032002, Harness, User Interface HARNESS, USER INTERFACE
Vaillant part no. 0020032002
£18.06
8 Part number 0020032003, Harness, vrnet-adapter HARNESS, VRNET-ADAPTER
Vaillant part no. 0020032003
£18.06
9 Part number 0020032004, Harness, front panel HARNESS, FRONT PANEL
Vaillant part no. 0020032004
£6.86
10 Part number 0020055169, Cable tree (harness), compressor 230V CABLE TREE (HARNESS), COMPRESSOR 230V
Vaillant part no. 0020055169
£71.14

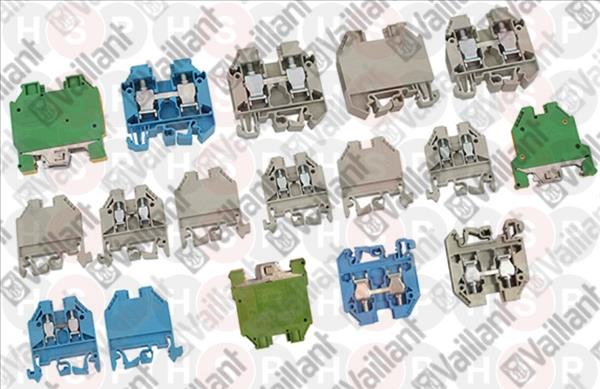

12 Part number 0020060860, Terminal strip TERMINAL STRIP
Vaillant part no. 0020060860
£157.91

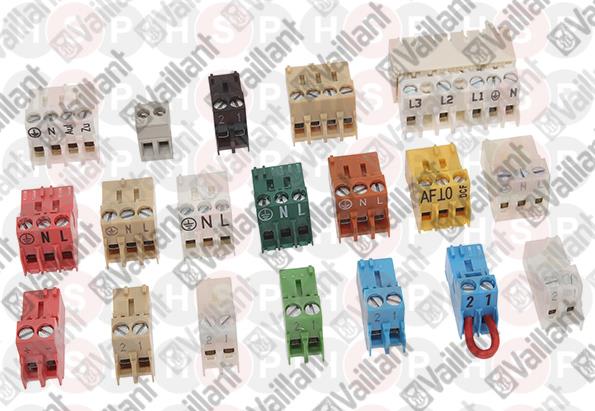

13 Part number 0020066202, Connector (kit) CONNECTOR (KIT)
Vaillant part no. 0020066202
£30.86
15 Part number 257003, Contactor CONTACTOR
Vaillant part no. 257003
£63.18
15 Part number 560679, Contactor, A09-30-01 CONTACTOR, A09-30-01
Vaillant part no. 560679
£92.16
17 Part number 560680, Thermostat, for backup heater THERMOSTAT, FOR BACKUP HEATER
Vaillant part no. 560680
£102.11
18 Part number 0020032000, Harness, sensor HARNESS, SENSOR
Vaillant part no. 0020032000
£57.27
19 Part number 009535, Radio-Controlled Clock Receiver RADIO-CONTROLLED CLOCK RECEIVER
Vaillant part no. 009535
£84.99
20 Part number 306787, TEMPERATURE SENSOR VR10 TEMPERATURE SENSOR VR10
Vaillant part no. 306787

21 Part number 251957, Fuse T4H (PK10) FUSE T4H (PK10)
Vaillant part no. 251957
£7.25
