GLOWWORM
ULTIMATE 3 25S - (05 Hydraulics)
Appliance Code: 41-019-51

Appliance Diagram


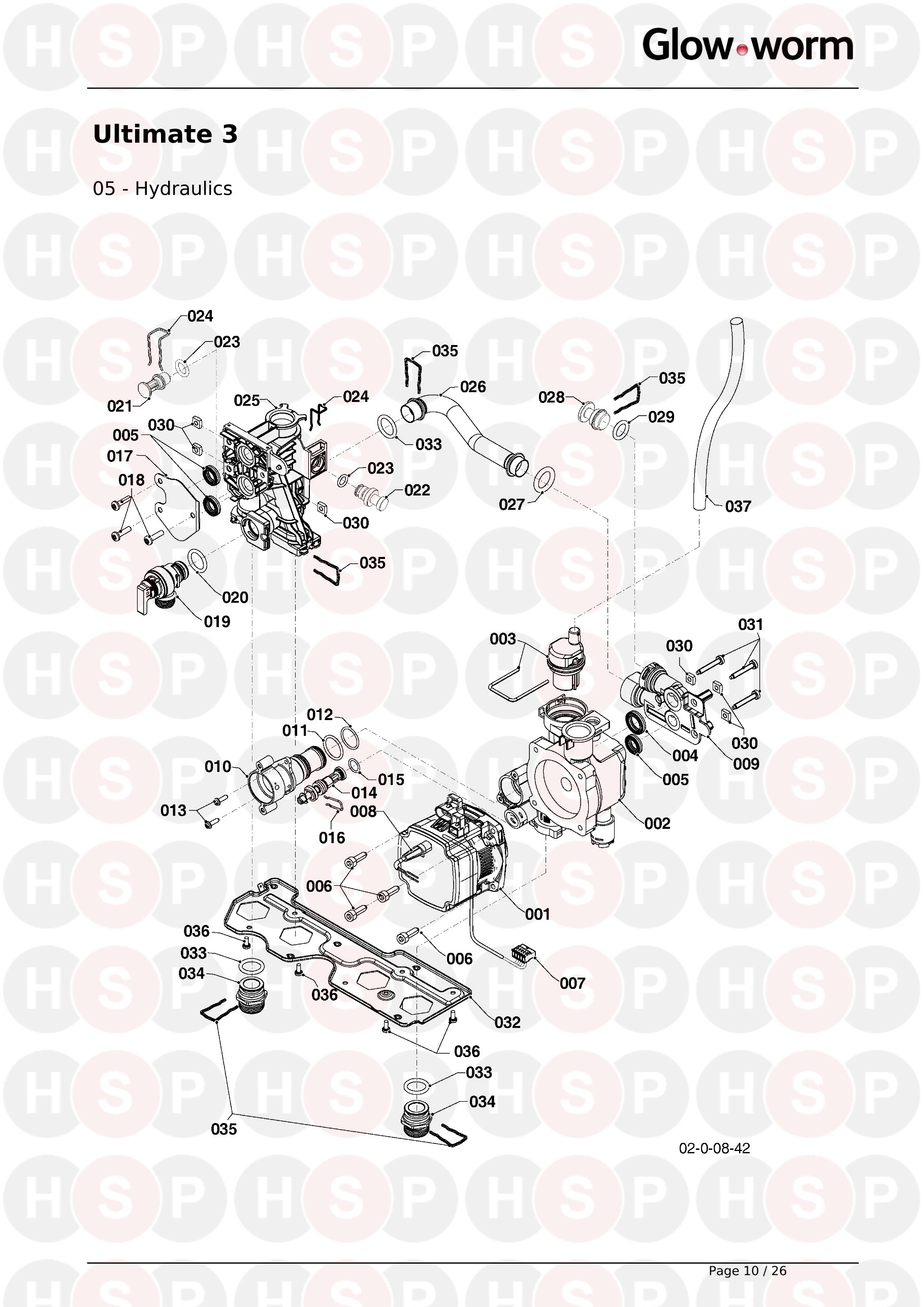

05 Hydraulics diagram for Glowworm Ultimate 3 25SClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0020186159, Pump motor PUMP MOTOR
Glowworm part no. 0020186159		 £210.52
2 Part number 0020207142, Housing, pump HOUSING, PUMP
Glowworm part no. 0020207142		 £80.89
3 Part number 0020014161, automatic air vent AUTOMATIC AIR VENT
Glowworm part no. 0020014161		 £22.57
4 Part number 0020014182, Gasket Type-C (PK10) GASKET TYPE-C (PK10)
Glowworm part no. 0020014182		 £10.93
5 Part number 0020014166, Gasket, C-Type, (PK10) GASKET, C-TYPE, (PK10)
Glowworm part no. 0020014166		 £10.31
6 Part number 0020207143, Screw, pump (x4) SCREW, PUMP (X4)
Glowworm part no. 0020207143		 £6.80
7 Part number 0020197554, Cable CABLE
Glowworm part no. 0020197554		 £10.43
8 Part number 0020186177, Harness, system UK HARNESS, SYSTEM UK
Glowworm part no. 0020186177		 £12.65
9 Part number 0020197547, Hydroblock HYDROBLOCK
Glowworm part no. 0020197547		 £9.90
10 Part number 0020097231, Valve for 3WV, dummy VALVE FOR 3WV, DUMMY
Glowworm part no. 0020097231		 £6.80
11 Part number 0020097224, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020097224		 £6.80
12 Part number 0020097226, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020097226		 £6.80
13 Part number 0020097227, Screw (PK10) SCREW (PK10)
Glowworm part no. 0020097227		 £6.80
14 Part number 0020014169, bypass BYPASS
Glowworm part no. 0020014169		 £32.13
15 Part number 0020014195, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020014195		 £6.80
16 Part number 0020047019, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020047019		 £6.67
17 Part number 0020207118, Support bracket SUPPORT BRACKET
Glowworm part no. 0020207118		 £10.92
18 Part number A000024274, Screw M5x20 H/E plate (PK25) SCREW M5X20 H/E PLATE (PK25)
Glowworm part no. A000024274		 £32.11
19 Part number 0020047005, Pressure relief valve, 3 bar PRESSURE RELIEF VALVE, 3 BAR
Glowworm part no. 0020047005		 £15.44
20 Part number 0020125448, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020125448		 £7.93

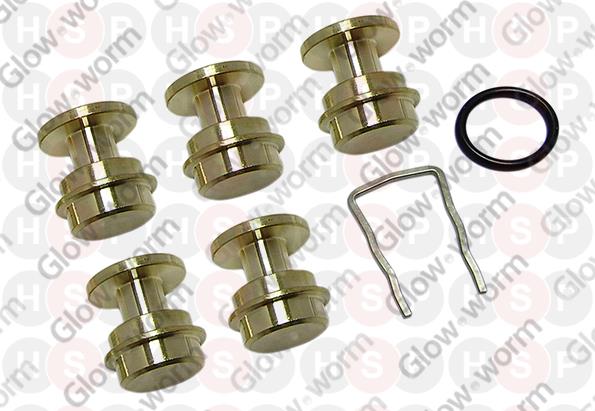

21 Part number 0020098017, Plug PLUG
Glowworm part no. 0020098017		 £6.80
22 Part number 0020097212, Plug, pressure sensor PLUG, PRESSURE SENSOR
Glowworm part no. 0020097212		 £6.80
23 Part number 0020014177, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020014177		 £6.80
24 Part number 0020097197, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020097197		 £7.35
25 Part number 0020186163, Hydroblock HYDROBLOCK
Glowworm part no. 0020186163		 £41.71
26 Part number 0020186168, Tube, by-pass TUBE, BY-PASS
Glowworm part no. 0020186168		 £16.80
27 Part number 0020097187, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020097187		 £6.80
28 Part number 0020186174, Plug PLUG
Glowworm part no. 0020186174		 £16.23
29 Part number 0020166932, O ring (PK10) O RING (PK10)
Glowworm part no. 0020166932		 £6.80
30 Part number 0020038639, Nut (PK3) NUT (PK3)
Glowworm part no. 0020038639		 £6.80
31 Part number 0020097193, Screw M5x33 (PK10) SCREW M5X33 (PK10)
Glowworm part no. 0020097193		 £6.94
32   SUPPORT BRACKET
Glowworm part no. 0020207116		 £6.80
33   O-RING, (PK10)
Glowworm part no. 0020195272		 £6.80
34   NIPPLE, G3/4 BRASS, HW
Glowworm part no. 0020186172		 £6.80
35 Part number 0020014176, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020014176		 £12.75
36 Part number 0020097184, Screw (PK10) SCREW (PK10)
Glowworm part no. 0020097184		 £6.80
37   HOSE
Glowworm part no. 0020218975		 £6.80
