GLOWWORM
ULTRACOM 2 35 STORE 2011 2015 - (09 Hydraulics)
Appliance Code: 47-019-15

Appliance Diagram

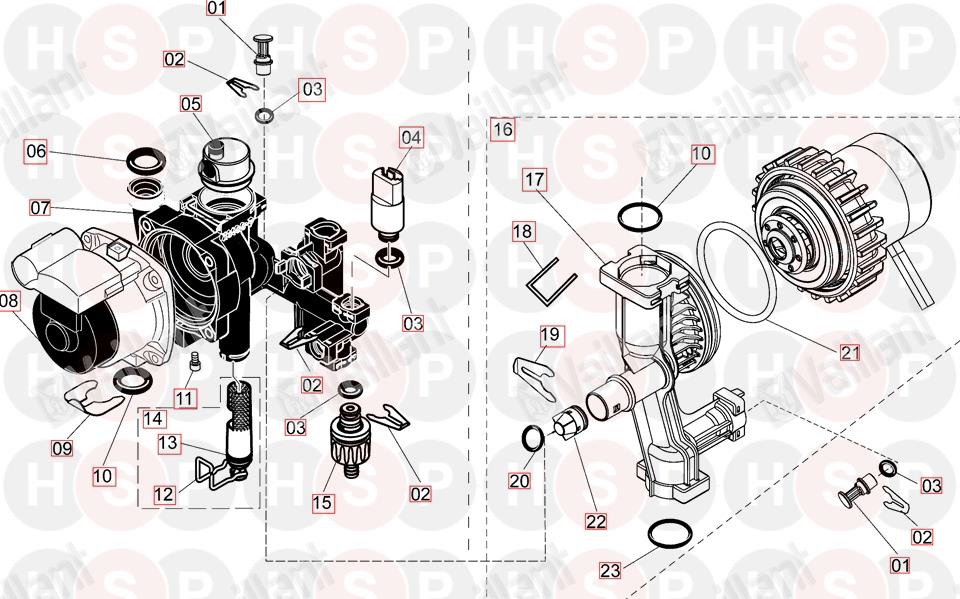

09 Hydraulics diagram for Glowworm Ultracom 2 35 Store 2011 2015Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   HYDRAULIC TAPS (KIT) + CLIPS AND O-RINGS
Glowworm part no. 0020018590
£17.74
2 Part number S5466200, Clip 10mm (PK10) CLIP 10MM (PK10)
Glowworm part no. S5466200
£9.95
2 Part number 2000801951, NOW USE S5466200clip 10mm NOW USE S5466200CLIP 10MM
Glowworm part no. 2000801951

3 Part number 2000801950, O-ring for pipe (PK20) O-RING FOR PIPE (PK20)
Glowworm part no. 2000801950
£11.15
4 Part number S5720500, Pressure Sensor PRESSURE SENSOR
Glowworm part no. S5720500
£27.83
4 Part number A000024135, NOW USE S5720500 Pressure sensor d=10mm NOW USE S5720500 PRESSURE SENSOR D=10MM
Glowworm part no. A000024135

5 Part number S1024500, Automatic de-aerator AUTOMATIC DE-AERATOR
Glowworm part no. S1024500
£22.91
5 Part number 0020018569, NOW USE S1024500 automatic air vent NOW USE S1024500 AUTOMATIC AIR VENT
Glowworm part no. 0020018569

6 Part number S5466500, O-ring (PK20) O-RING (PK20)
Glowworm part no. S5466500
£16.31
6 Part number 2000801954, NOW USE S5466500 o-ring (20 pieces) NOW USE S5466500 O-RING (20 PIECES)
Glowworm part no. 2000801954

7 Part number 0020037988, Pump block PUMP BLOCK
Glowworm part no. 0020037988
£195.70
8   PUMP - HIGH EFFICENCY (IF THIS IF THE REPLACEMENT PART THEN CABLE 0010032765 IS REQUIRED)
Glowworm part no. 0010034166
£204.77
8 Part number 0020084525, NOW USE 0010034166 Motor pump NOW USE 0010034166 MOTOR PUMP
Glowworm part no. 0020084525

9 Part number S5455000, Clip 20mm (PK10) CLIP 20MM (PK10)
Glowworm part no. S5455000
£7.99
9 Part number 2000801945, NOW USE S5455000 clip cv-filter (set of 10) NOW USE S5455000 CLIP CV-FILTER (SET OF 10)
Glowworm part no. 2000801945

10 Part number 2000801956, O-ring (PK10) O-RING (PK10)
Glowworm part no. 2000801956
£9.77
11 Part number 0020097185, Screw (PK10) SCREW (PK10)
Glowworm part no. 0020097185
£6.80
12 Part number S1035900, Clip (pk10) CLIP (PK10)
Glowworm part no. S1035900
£6.58
13 Part number S5466400, O-Ring (PK20) O-RING (PK20)
Glowworm part no. S5466400
£18.02
13 Part number 2000801953, NOW USE S5466400 o-ring 13mm cv-filter (20 pieces) NOW USE S5466400 O-RING 13MM CV-FILTER (20 PIECES)
Glowworm part no. 2000801953

14 Part number S1024400, Heating filter HEATING FILTER
Glowworm part no. S1024400
£13.34
15 Part number 0020129830, DRAIN TAP DRAIN TAP
Glowworm part no. 0020129830
£6.58
16 Part number 0020111412, Pump PUMP
Glowworm part no. 0020111412
£273.20
17 Part number 0020129815, Housing of motor pump dcw HOUSING OF MOTOR PUMP DCW
Glowworm part no. 0020129815
£45.25
18 Part number 0020018450, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020018450
£34.08
18   CLIP DOMESTIC HOT WATER SENSOR (PK10)
Glowworm part no. 0020022948
£5.66
19 Part number S5465700, Clip 18mm (PK10) CLIP 18MM (PK10)
Glowworm part no. S5465700
£11.13
19 Part number 2000801947, NOW USE S5465700 clip pressure relief valve NOW USE S5465700 CLIP PRESSURE RELIEF VALVE
Glowworm part no. 2000801947

20 Part number 2000801948, O-ring, (PK20) O-RING, (PK20)
Glowworm part no. 2000801948
£12.41
20   NOW USE 2000801948 O RING (PK 20)
Glowworm part no. 0020038530

21 Part number 0020125437, O-ring O-RING
Glowworm part no. 0020125437
£6.58
22   NON RETURN VALVE
Glowworm part no. 0020125436
£12.96
23 Part number 0020125439, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020125439
£6.58
