GLOWWORM
60-80 CI - (07 Electronics)
Appliance Code: 41-047-29

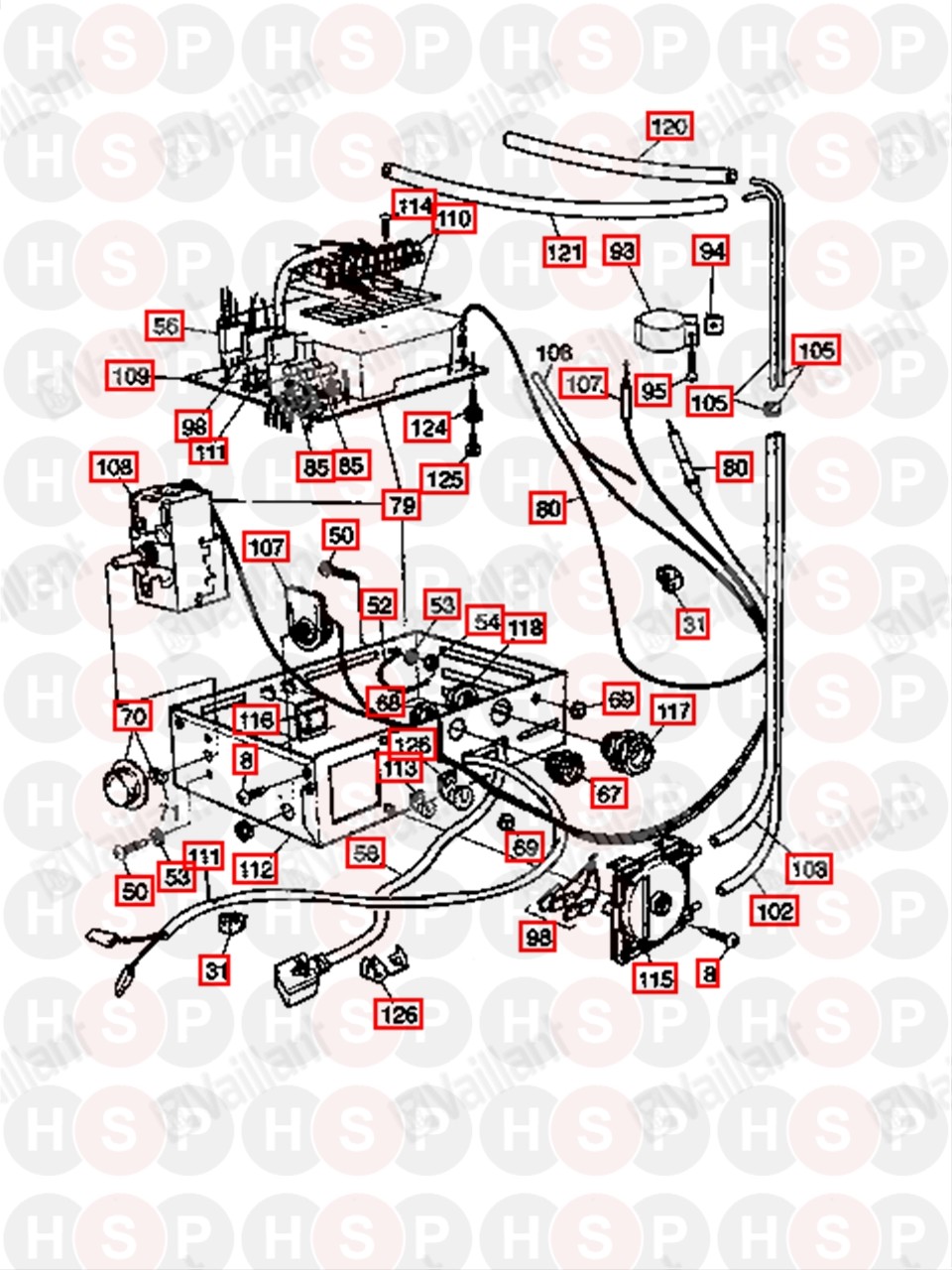

Appliance Diagram


07 Electronics diagram for Glowworm 60-80 CIClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

8 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308
£6.23
31   CLIP - EDGE CABLE
Glowworm part no. SK6899
£6.23
50   SCREW - M4X10MM
Glowworm part no. SK6359
£6.23
52   LEAD
Glowworm part no. SWW4405

53 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
£6.23
54 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218
£6.23
56 Part number S446375, Plug + cable PLUG + CABLE
Glowworm part no. S446375
£29.43
67   CORD GRIP
Glowworm part no. S204239
£6.23
68   LOCKNUT
Glowworm part no. S204240
£6.23
69   GROMMET
Glowworm part no. S204220
£6.23
70 Part number 2000800400, Control knob with clip CONTROL KNOB WITH CLIP
Glowworm part no. 2000800400

79   OBSOLETE CONTROL BOX ASSY ULT70-80FF
Glowworm part no. S446494

80 Part number S202626, ELECTRODE ELECTRODE
Glowworm part no. S202626
£22.33
85 Part number S202015, Fuse-1A 20mm FUSE-1A 20MM
Glowworm part no. S202015
£6.23
93   CLAMP - PIPE
Glowworm part no. S446369
£4.91
94   NUT-SPIRE CAPT NO.6
Glowworm part no. S208520
£6.23
95   SCREW - NO.6X3/4
Glowworm part no. S50812002

98 Part number S443104, Harness - Pressure switch HARNESS - PRESSURE SWITCH
Glowworm part no. S443104
£59.29
102 Part number S230335, Silicone tube -430mm red SILICONE TUBE -430MM RED
Glowworm part no. S230335

103   SILICONE TUBE -430MM
Glowworm part no. S230336

105   PIPE + GROMMET - AIR PRESSURE
Glowworm part no. 2000800424

107 Part number 800272, O/Heat stat + heat O/HEAT STAT + HEAT
Glowworm part no. 800272
£56.57
108 Part number S800850, Control stat (2 pin) CONTROL STAT (2 PIN)
Glowworm part no. S800850
£34.56
109 Part number S900847, PCB (inc tpo 7 wire-2 fuse) PCB (INC TPO 7 WIRE-2 FUSE)
Glowworm part no. S900847
£166.05
110   TERMINAL BLOCK
Glowworm part no. S443176

111 Part number S443106, Harness - Fan HARNESS - FAN
Glowworm part no. S443106
£44.73
112   OBSOLETE CONTROL BOX BODY SUB ASSY
Glowworm part no. S446441

113   BUSH RELIEF
Glowworm part no. S204226
£6.23
114   SCREW -NO.4X3/4 PLASTITE
Glowworm part no. S230226
£6.23
115 Part number S202201, NOW USE 0020248909 AIR PRESSURE SWITCH NOW USE 0020248909 AIR PRESSURE SWITCH
Glowworm part no. S202201

115 Part number 0020248909, AIR PRESSURE SWITCH AIR PRESSURE SWITCH
Glowworm part no. 0020248909
£20.31
116   CLIP CABLE
Glowworm part no. S204200
£6.23
117 Part number S204259, Bush-cord grip BUSH-CORD GRIP
Glowworm part no. S204259
£6.23
118   LOCKNUT
Glowworm part no. S204260
£6.23
120 Part number S230246, Silicone tube-230mm red SILICONE TUBE-230MM RED
Glowworm part no. S230246

121   SILICONE TUBE -380MM
Glowworm part no. S230334

124   SUPPORT
Glowworm part no. S204294
£6.23
125   SCREW - NO.6X1/4
Glowworm part no. S50754002
£6.23
126   BUSH RELIEF
Glowworm part no. S204228
£6.23
