REMEHA-COMMERCIAL
QUINTA 30 - (Exploded View)
Appliance Code: 5.6 28 KW

Appliance Diagram

Exploded View diagram for Remeha-Commercial Quinta 30 Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	FAN ASSEMBLY EBM G1G 126 AC 13 Q30/W40/SELECTA C/W X21 CONNECTOR Remeha-Commercial part n^o. S103212	£281,88
1	NOW USE S103212 FAN ASSEMBLY EBM G1G 126 AC 13 Q30/W40/SELECTA C/W X21 CONNECTOR Remeha-Broag part n^o. S54878
2	GASKET FOR FLUE FAN (10 PCS.) Remeha-Commercial part n^o. S45182
3	SCREW M4X10 (50 PCS.) Remeha-Commercial part n^o. S48950	£20,34
3	NOW USE S48950 SCREW M4 X 10 Remeha-Broag part n^o. 48950
4	GASKET RING VENTURI/GAS SUPPLY PIPE (5 PCS) Remeha-Commercial part n^o. S59215	£21,98
4	NOW USE S59215 GASKET GAS COMBI BLOCK/VENTURI Remeha-Broag part n^o. 54768
5	SEALING FOR VENTURI - (PACK OF 5) Remeha-Commercial part n^o. S54777	£32,55
5	SEALING FOR VENTURI ( ORDER S54777 - NOW SOLD IN PACKS OF 5) Remeha-Broag part n^o. 54777
6	GASKET FOR BURNER TO FRONT PLATE Remeha-Broag part n^o. 50541
7	GASKET/INSULATION FOR COVER PLATE HEAT EXCHANGER QUINTA 30 Remeha-Commercial part n^o. S54362	£92,34
8	FLANGE NUT M6 Remeha-Commercial part n^o. S54755	£29,29
8	(NOW USE S54755) NUT M6 Remeha-Broag part n^o. 54755
9	VALVE MULTI BLOCK VK8115V12343 Remeha-Commercial part n^o. S56505	£263,66
10	GASKET PLATE HEAT X SECONDARY UNIONS 18.3MM O/D X 12.7MM I/D X 2MM Remeha-Commercial part n^o. S56157	£23,60
10	(NOW USE S56157) GASKET PLATE HEAT X SECONDARY UNIONS 18.3MM O/D X 12.7MM I/D X 2MM Remeha-Broag part n^o. 56157
12	TORX-KEY Remeha-Broag part n^o. 49510	£9,65
13	AUTO AIR VENT BLEED DEVICE 3/8" Remeha-Commercial part n^o. S62728	£50,58
13	NEW PART NUMBER S62728 VENT AUTO AIR BLEED DEVICE 3/8" FOR W40/60, QUINTA, GAS6, GAS2000/3000, SELECTA Remeha-Broag part n^o. S37628
14	HOSE SILICONE D:4MM I/D-8MM (1 METER) Remeha-Commercial part n^o. S47170	£21,98
14	NOW USE S47170 HOSE SILICONE 4MM I/D-8MM PER M FOR GAS VALVE VENTURI & AIR VENT DISCHARGE Remeha-Broag part n^o. 47170
15	PRESSURE GAUGE + GROMMET Remeha-Commercial part n^o. S58938	£34,18
16	NON RETURN VALVE (FOR CAPILLARY CONNECTION) Q45/65 Remeha-Commercial part n^o. S46850	£55,89
16	(USE S46850) POCKET ASSEMBLY FOR PRESSURE GAUGE CONNECTION Remeha-Broag part n^o. 46850
17	QUINTA ECO ELECTRODE IGNITION/IONISATION MX REBA INC GASKET AND 2 SCREWS L=58 Remeha-Commercial part n^o. S54339	£45,54
18	GROMMET FOR IGNITION ELECTRODE Remeha-Broag part n^o. S55409	£7,84
18	(USE S55409) GROMMET FOR IGNITION ELECTRODE Remeha-Broag part n^o. 55409
19	GASKET FOR IGNITION ELECTRODE (PACK OF 10) Remeha-Commercial part n^o. S53489	£32,55
20	WASHER SPRING RING A4,3 (10 PCS.) Remeha-Commercial part n^o. S21473	£9,70
20	NOW USE S21473 WASHER SPRING RING 4MM O/D X 3MM I/D FOR IGN ELECTRODE MTG SCREWS X 2 Remeha-Broag part n^o. 21473
21	CABLE IGNITION C/W CAP (QUINTA 30) Remeha-Commercial part n^o. S55805	£60,68
22	GLASS INSPECTION C/W GASKET 32X32X3MM AND SCREWS Remeha-Commercial part n^o. S45004	£55,65
23	GASKET FOR INSPECTION GLASS (5 PCS) Remeha-Commercial part n^o. S35458	£13,41
23	(NOW USE S35458) GASKET FOR INSPECTION GLASS Remeha-Broag part n^o. 35458
24	MOUNTING FRAME (FOR INSPECTION GLASS) Remeha-Commercial part n^o. S54822	£15,36
24	(USE S54822) MOUNTING FRAME (FOR INSPECTION GLASS) Remeha-Broag part n^o. 54822
25	FLUE GASKET 70MM (Q30) Remeha-Commercial part n^o. S56416	£13,41
25	GASKET 1-JOGLLE D=70(NEW PART NO. S56416) Remeha-Broag part n^o. 56416
27	TEMPERATURE SENSOR (FLOW AND RETURN) ELMWOOD NTC 12K/007 Remeha-Commercial part n^o. S44698	£43,92
28	FLUE GAS TEMP. SENSOR NTC 12KOHM 3% (BLUE DOT-ECO BOILER) Remeha-Commercial part n^o. S49297	£35,79
30	OBSOLETE CAP FOR FLUE GAS TEMPERATURE SENSOR Remeha-Broag part n^o. 53240	£0,67
31	SEALANT CAP 12X10X4 Remeha-Broag part n^o. S55668	£4,38
31	NOW USE S55668 SEALANT CAP 12X10X4 Remeha-Broag part n^o. 55668
32	ACTUATOR THREE-WAY-VALVE (DHW) VC4012ZZ00E 220V FOR QUINTA 30 Remeha-Commercial part n^o. S49777	£182,32
33	THREE-WAY-VALVE (DHW) VCZMF6000E FOR QUINTA 30 Remeha-Commercial part n^o. S49776	£124,99
35	CONTROL MCBA 1461/5461 D V3.1 REV 2 (NOT Q115) Remeha-Commercial part n^o. S59402	£822,56
37	FUSES GLASS 2 AMP FAST PACK OF 10 Remeha-Commercial part n^o. S43563	£26,03
37	NOW USE S43563 FUSE GLASS 2 AMP FAST Remeha-Broag part n^o. 43563
38	PCB DISPLAY PRINT Remeha-Commercial part n^o. S54802	£140,94
39	PRINT AM3-2 (3 RELAIS) Remeha-Commercial part n^o. S63316	£126,36
41	SEALING RING 44 X 32 X 4 PACK OF 5 Remeha-Commercial part n^o. S51103	£6,80
41	(NOW USE S51103) SEALING RING 44X32X4MM - SINGLE ITEM Remeha-Broag part n^o. 51103
42	QUINTA DOOR MAGNETS Remeha-Commercial part n^o. S54811	£48,95
42	(USE S54811) MAGNET ROUND 8MM FOR DOOR CLOSURE Remeha-Broag part n^o. 54811
43	INSPECTION HATCH HEAT EXCHANGER Remeha-Commercial part n^o. S56205	£296,46
44	VENTURI Q30 Remeha-Commercial part n^o. S56501	£227,21
45	SCREW M5X12 Remeha-Commercial part n^o. 44830	£0,30
46	SCREW 7985 M4X10 Remeha-Commercial part n^o. 32786	£0,30
47	AIR SUPPLY DAMPER Remeha-Broag part n^o. 56504	£6,67

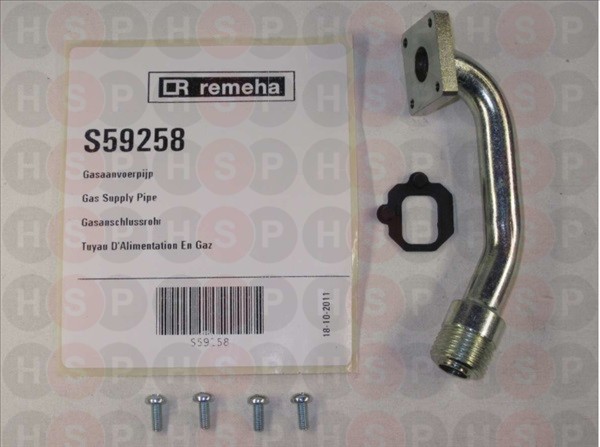

48	GAS SUPPLY PIPE VENTURI Remeha-Commercial part n^o. S59258	£62,19
48	GAS FLOW PIPE VENTURI (NEW PART NO. S59258) Remeha-Broag part n^o. 56206
49	GAS FLOW PIPE GASBLOCK OUTLET Remeha-Broag part n^o. 56207	£7,80
50	BURNER FURIGAS 18SR QUINTA 30 Remeha-Commercial part n^o. S57888	£148,23
50	(USE S57888) BURNER FURIGAS Q30 18SR Remeha-Broag part n^o. S56495
51	FLOW PIPE/AIR SEPARATOR Q30 Remeha-Broag part n^o. 56263	£25,08
51	AIR SEPARATOR WITH FLOW PIPE Remeha-Commercial part n^o. S100479	£263,66
52	FLOW PIPE THREE WAY VALVE CALORIFIER Remeha-Broag part n^o. 56262	£18,34
54	FLOW PIPE THREE WAY VALVE CENTRAL HEAT. Remeha-Commercial part n^o. 56261	£11,43
56	HOSE PVC 27/19 Remeha-Commercial part n^o. 49441	£15,72
57	GAS FLOW PIPE GASBLOCK INLET Remeha-Commercial part n^o. S56208	£43,92
58	CASING SIDE LEFT OR RIGHT Q85 & Q115 Remeha-Commercial part n^o. S56168	£109,39
59	CASING FRONT FOR QUINTA ECO (INCLUDES TOP & BOTTOM TRIM) Remeha-Commercial part n^o. S54783	£274,59
59	CASING FRONT FOR Q45/Q65 - NOW USE S54783 FOR ALL QUINTAS Remeha-Broag part n^o. 59278
60	GREY DROP DOWN DOOR FOR QUINTA 30/45/65/85/115 Remeha-Commercial part n^o. S100213	£86,27
61	FRAME + TOP PLATE Remeha-Broag part n^o. 56486	£38,58
62	BOX INSTRUMENT PANEL Remeha-Broag part n^o. 56167	£16,40
63	FLOOR PLATE INSTRUMENT PANEL Remeha-Broag part n^o. 56318	£27,00
64	ADAPTER SUPPORT Remeha-Broag part n^o. 56317	£3,96
65	DOCUMENTATION HOLDER A5 Remeha-Broag part n^o. 54812	£9,65
66	BOTTOM PLATE FOR DRAUGHT BLEEDER Remeha-Broag part n^o. 56319	£16,40
67	CABLE SUPPORT Remeha-Broag part n^o. 49196	£2,28
68	DOOR R/H Remeha-Commercial part n^o. S54800	£26,03
68	(USE S54800)PANEL DISPLAY Remeha-Broag part n^o. 54800
69	DOOR R/H COVER Remeha-Commercial part n^o. S56940	£34,18
69	(USE S56940)DOOR DISPLAY Remeha-Broag part n^o. 56940
71	PANEL TEM FRONT PLATE Remeha-Commercial part n^o. S59480	£15,72
71	(USE S59480) PANEL TEM FRONT PLATE Remeha-Broag part n^o. 54797
72	HOUSING TEM (OPEN) Remeha-Commercial part n^o. S56087	£45,64
74	(USE S54805) CABLE FLAT CONNECTOR Remeha-Broag part n^o. 54805
75	SNAPPER FOR CONTROL BOX Remeha-Broag part n^o. 54794	£1,41

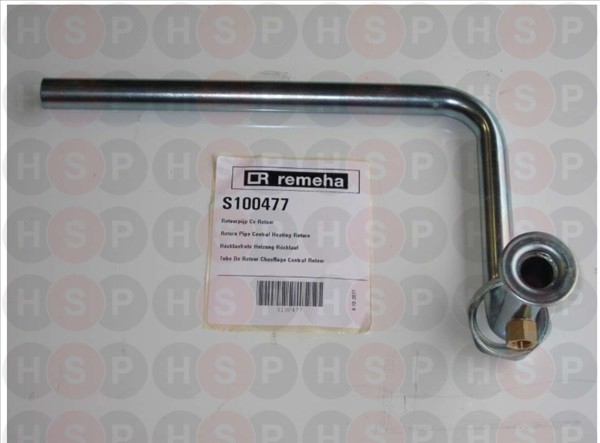

76	RETURN PIPE CENTRAL HEATING-RETURN (QUINTA 30) Remeha-Commercial part n^o. S100477	£76,55
76	RETURN PIPE CENTRAL HEATING-RETURN NOW P/N S100477 (Q30) Remeha-Broag part n^o. 56260
77	SCREW PLUG HOLLOW 1/2" Remeha-Commercial part n^o. 57430	£4,59
78	HINGE PIN (INSTRUMENT DOOR) Remeha-Broag part n^o. 54798	£4,56
79	SYPHON SUPPLY TUBE (HEAT EXCHANGER CONNECTION) Remeha-Commercial part n^o. S53480	£18,55
80	SYPHON ASSEMBLY C/W OUTLET PIPE Remeha-Commercial part n^o. S54761	£39,05
81	STOOL PIECE (INTERNAL FLOW PIPE) Remeha-Commercial part n^o. S49424	£161,60
82	CLAMP BRACKET FOR PIPES (FRONT) Remeha-Commercial part n^o. 52066	£4,06
83	CLAMP BRACKET FOR PIPES (REAR) Remeha-Broag part n^o. 56541	£3,15
84	INLET PLATE Q10/25/30 Remeha-Broag part n^o. 56290	£15,43
85	BRACKET FOR HEAT EXCHANGER QUINTA 30 Remeha-Broag part n^o. 56912	£14,48
86	MOUNTING FRAME EXPANSION VESSEL Remeha-Broag part n^o. 56316	£12,54
87	DISTANCE HOLDER Remeha-Broag part n^o. 47174	£0,28
88	FLUE GAS PIPE R80/70 Remeha-Commercial part n^o. S56209	£60,68
90	FLUE CONNECTION 125MM DIA Remeha-Commercial part n^o. S54748	£59,06
90	(USE S54748)FLUE CONNECTION 125MM DIA Remeha-Broag part n^o. 54748
91	FLUE CONNECTION D=125MM CONCENTRIC Remeha-Commercial part n^o. S54751	£45,54
92	FLUE CONNECTION D=80MM EXCENTRIC FOR QP30/45 (COVER) Remeha-Commercial part n^o. S54750	£50,58
94	HEAT EXCHANGER Q30 Remeha-Commercial part n^o. S56419	£1.801,85
95	SCREW M4,2X19 Remeha-Broag part n^o. 56322	£0,31
96	SIGHT COVER FOR DISPLAY Remeha-Commercial part n^o. S54813	£20,84
96	(USE S54813) INSPECTION WINDOW PLASTIC Remeha-Broag part n^o. 54813
97	EXPANSION VESSEL 16 LITRES Remeha-Commercial part n^o. 49294	£350,80
98	EURO PLUG (MALE) Remeha-Commercial part n^o. 45165	£16,92
99	EURO SOCKET (MALE) Remeha-Commercial part n^o. 42460	£15,13
103	CAP FOR CONNECTION PIECE CHIMNEY (PK2) Remeha-Commercial part n^o. S57163	£23,60
104	EXTENSION PIECE AIR SUPPLY Remeha-Broag part n^o. 56245	£3,96
105	COVER PLATE FOR CONDENSATION CONNECTION Remeha-Commercial part n^o. 56963	£3,70
