RAVENHEAT
CSI 120/150 T LOW NOX NG/LPG WITH/WITHOUT TIMER - (Exploded View)

Appliance Diagram


Exploded View diagram for Ravenheat CSI 120/150 T Low NOx NG/LPG With/Without TimerClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3 Part number 0012POT11005/0, D.H.W/C.H. POTENTIOMETER - LOW NOX D.H.W/C.H. POTENTIOMETER - LOW NOX
Ravenheat part no. 0012POT11005/0
£31.93
4 Part number 0006IDR11005/0, WATER PRESSURE GAUGE WATER PRESSURE GAUGE
Ravenheat part no. 0006IDR11005/0
£30.79
5 Part number TM6192, DIGITAL TIMER DIGITAL TIMER
Ravenheat part no. TM6192
£51.69
6   DIGITAL DISPLAY BOARD - 120 / 230V
Ravenheat part no. 0012CIR11030/0
£52.54
8 Part number 0012FUS01015/0, INTERNAL FUSE - 3A INTERNAL FUSE - 3A
Ravenheat part no. 0012FUS01015/0
£0.69
9   MODULATING CONTROL BOARD - 120 / 230V
Ravenheat part no. 0012CIR11025/0
£167.15
10   CIRCULATION PUMP CSI120 / 230V
Ravenheat part no. 0009CIR13005/0
£64.35
12 Part number 0002COL11005/0, FLUE GAS EXHAUST MANIFOLD FLUE GAS EXHAUST MANIFOLD
Ravenheat part no. 0002COL11005/0
£51.02
14 Part number 0003BRU11005/0, BURNER - CSI120 BURNER - CSI120
Ravenheat part no. 0003BRU11005/0
£81.99
15   HEAT EXCHANGER COVER ASSEMBLY
Ravenheat part no. 0002COP11005/0
£132.38
15 Part number 0012CAN11005/0, IGNITION ELECTRODE - CSI120 IGNITION ELECTRODE - CSI120
Ravenheat part no. 0012CAN11005/0
£7.63
15 Part number 0012CAN11010/0, SENSING ELECTRODE - CSI120 SENSING ELECTRODE - CSI120
Ravenheat part no. 0012CAN11010/0
£7.63
16 Part number 0007TER08005/0, OVERHEAT STAT AUTO RESET-0204 20/20 CSI OVERHEAT STAT AUTO RESET-0204 20/20 CSI
Ravenheat part no. 0007TER08005/0
£11.01
17 Part number 0007SON11010/0, CLIP ON SENSOR 18MM CH CLIP ON SENSOR 18MM CH
Ravenheat part no. 0007SON11010/0
£16.72
18   IGNITION CONTROL BOARD 120/230V
Ravenheat part no. 0012GEN11010/0
£151.02
19 Part number 0014RAC11005/0, CONDENSATE TRAP - CSI120 CONDENSATE TRAP - CSI120
Ravenheat part no. 0014RAC11005/0
£23.56
20   FAN - CSI120 / 230V
Ravenheat part no. 0012VEN11015/0
£187.73
21 Part number 0008VAL11005/0, NOW USE 0008VAL11005/1 GAS VALVE NOW USE 0008VAL11005/1 GAS VALVE
Ravenheat part no. 0008VAL11005/0

21 Part number 0008VAL11005/1, DUNGS GAS VALVE CSI 120 DUNGS GAS VALVE CSI 120
Ravenheat part no. 0008VAL11005/1
£176.04
23 Part number 0011GRU11005/0, FLOW MANIFOLD - CSI150 FLOW MANIFOLD - CSI150
Ravenheat part no. 0011GRU11005/0
£46.61
24 Part number 0008VAL01018/1, SAFETY RELIEF VALVE - PUSH TO PUSH FIT SAFETY RELIEF VALVE - PUSH TO PUSH FIT
Ravenheat part no. 0008VAL01018/1
£11.27
25 Part number 0007TER05005/0, DHW/CH SENSOR RSF82/84/100/CSI85/LS80 DHW/CH SENSOR RSF82/84/100/CSI85/LS80
Ravenheat part no. 0007TER05005/0
£14.81
26 Part number 0012RIV11005/0, FLOW DETECTOR SWITCH - CSI150 FLOW DETECTOR SWITCH - CSI150
Ravenheat part no. 0012RIV11005/0
£31.68

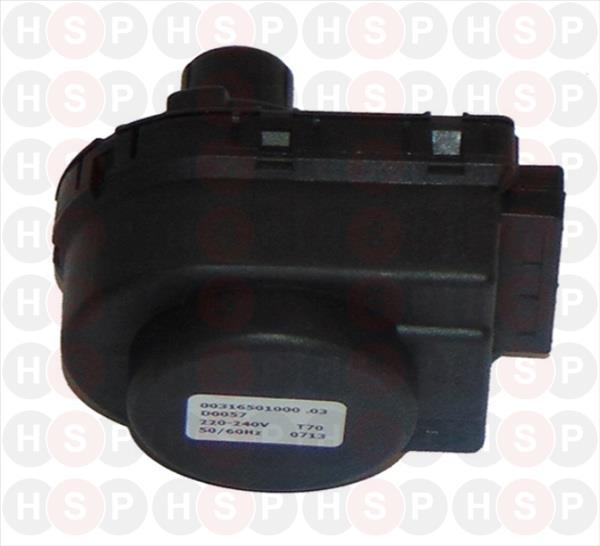

27 Part number 0012MOT11005/0, DIVERTER VALVE MOTOR - CSI150 DIVERTER VALVE MOTOR - CSI150
Ravenheat part no. 0012MOT11005/0
£40.45
28   CH DIV VALVE SPRING ASSEMBLY - 120/150
Ravenheat part no. 0011OTT11005/0
£28.84
30 Part number 0005PRE11015/0, DIFFERENTIAL WATER PRESSURE SWITCH DIFFERENTIAL WATER PRESSURE SWITCH
Ravenheat part no. 0005PRE11015/0
£78.84
33 Part number 0013ORI11005/0, O-RING - GAS VALVE / MIXER - 64 X 3 O-RING - GAS VALVE / MIXER - 64 X 3
Ravenheat part no. 0013ORI11005/0
£2.77
34 Part number 0013ORI11035/0, GASKET 17 x 4 - CSI150 GASKET 17 X 4 - CSI150
Ravenheat part no. 0013ORI11035/0
£0.50
35   O-RING- PUMP/PRESSURE GAUGE-5.23X2.62
Ravenheat part no. 0013ORI11015/0
£0.60
36 Part number 0013ORI11025/0, O-RING - HEAT EXCHANGER-17.86 X 2.62 O-RING - HEAT EXCHANGER-17.86 X 2.62
Ravenheat part no. 0013ORI11025/0
£1.45
37   CABLE SENSING ELECTRODE - CSI120/230V
Ravenheat part no. 0012CAV11012/0
£9.44
