E-TEC 28 - (Exploded View)
Appliance Code: 47-532-69

Appliance Diagram


Exploded View diagram for Alpha E-Tec 28Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   FLUE TURRET WITH SEALS
Alpha part no. 3.027702		 £16,65
4   FRONT CASING TOP STUD
Alpha part no. 1.019438		 £1,01
5 Part number 1.021483, FLUE ADAPTER 60mm SEAL CD BLR FLUE ADAPTER 60MM SEAL CD BLR
Alpha part no. 1.021483		 £3,39
6   SCREW
Alpha part no. 1.2275		 £0,68
8   CASING INSULATING PANEL
Alpha part no. 1.039360		 £7,46
9   OPEN RIVET (M4)
Alpha part no. 1.036912		 £0,71
10   NOW USE 2.016058 FRONT CASING
Alpha part no. 2.015700
10   FRONT CASING
Alpha part no. 2.016058		 £33,72
11   FRONT CASING INSULATING PANEL
Alpha part no. 1.039233		 £31,69
12   ADHESIVE FOAM STRIP (D.8X3)
Alpha part no. 1.034871		 £4,75
13   SCREW 3.9X16 - SELF TAPPING
Alpha part no. 1.8532		 £0,27
15   ROUND PLATE FOR CLOCK HOLE
Alpha part no. 1.040447		 £2,56
16   RELIEF VALVE TO CONDENSE CONN
Alpha part no. 1.037890		 £11,31
17   SCREW SWAGEFORM M4 X 10
Alpha part no. 1.7030		 £1,00
18   RING M4
Alpha part no. 1.4246		 £0,99
19   OUTLET JOINING PLUG
Alpha part no. 1.039744		 £0,95
20   CONDENSATE DRAIN ELBOW
Alpha part no. 1.023581		 £12,32
21   SCREW M4 X 6 - CONDENSATE TRAP
Alpha part no. 1.0153		 £1,12
22   CONDENSATE TRAP
Alpha part no. 1.039244
23   CONDENSATE DRAIN EXTENSION
Alpha part no. 1.039684
24   PRIM HT EXCHANGE ASSEMBLY 28KW
Alpha part no. 3.027697		 £249,32
25   BURNER 28 KW
Alpha part no. 1.040334		 £47,37
26 Part number 1.033913, EDPM MANIFOLD SEAL EDPM MANIFOLD SEAL
Alpha part no. 1.033913		 £2,92
27   SCREW FIXING PACK
Alpha part no. 1.028020		 £9,56
28 Part number 1.024296, FLUE TEMPERATURE SENSOR FLUE TEMPERATURE SENSOR
Alpha part no. 1.024296		 £22,36
29   NUT (M6)
Alpha part no. 1.025911		 £1,06
31   M5 X 10 HEX SCREW
Alpha part no. 1.033429		 £1,71
32   MANIFOLD PANEL
Alpha part no. 1.040668		 £28,96
33   M5 LOCK WASHER -STAINLESS STEEL (CD50)
Alpha part no. 1.012468		 £1,17
34   BURNER SEAL
Alpha part no. 1.025910		 £13,03
37   GAS MANIFOLD
Alpha part no. 1.039152
38   HEX SOCKET SCREW (M4X10)
Alpha part no. 1.027485
39   BURNER INSP WINDOW BRACKET
Alpha part no. 2.013322		 £2,40
40   SIGHT GLASS
Alpha part no. 1.034606		 £4,57
41   INSPECTION WINDOW SEAL
Alpha part no. 1.024898		 £3,55
42 Part number 1.039673, ELECTRODE ELECTRODE
Alpha part no. 1.039673
43 Part number 1.030251, IGNITION ELECTRODE GASKET IGNITION ELECTRODE GASKET
Alpha part no. 1.030251		 £4,22
44   AIR INTAKE PIPE
Alpha part no. 1.039128		 £42,15
45   SCREW M4 X 10
Alpha part no. 1.7349		 £1,33
48 Part number 1.039285, EXPANSION VESSEL EXPANSION VESSEL
Alpha part no. 1.039285		 £88,58
49   SEAL 14.8X8X2 AFM34
Alpha part no. 1.023993		 £1,06
50   EXPANSION VESSEL HOT WATER MAN
Alpha part no. 1.034035		 £16,52
51   4.2 X 13 SCREW
Alpha part no. 1.0110		 £1,12
53 Part number 1.039944, GAS VALVE GAS VALVE
Alpha part no. 1.039944
54 Part number 1.023992, GASKET (24x16x2) GASKET (24X16X2)
Alpha part no. 1.023992		 £1,81
55   INJECTOR (NG) 5MM
Alpha part no. 3.027857		 £27,58
56   GAS PIPE TO FAN MANIFOLD
Alpha part no. 1.039140		 £11,22
57 Part number 1.020393, CLIP - GAS PIPE CONNECTIONS CLIP - GAS PIPE CONNECTIONS
Alpha part no. 1.020393		 £12,59
58 Part number 1.037816, GAS PIPE O-RING GAS PIPE O-RING
Alpha part no. 1.037816		 £3,69
59   SCREW M5 X 25
Alpha part no. 1.023578		 £0,53
60 Part number 1.0017, SCREW M6 X 12 (CB50) SCREW M6 X 12 (CB50)
Alpha part no. 1.0017		 £1,28
61   FAN FLANGE FOR PIPE FIXING
Alpha part no. 1.033902		 £7,09
62   NOW USE 3.031567 NITRILE O-RING (63X3 SH)
Alpha part no. 1.026530
62   NITRILE O-RING (63X3 SH)
Alpha part no. 3.031567		 £14,25
64   FAN
Alpha part no. 3.027699		 £114,53
66   VENTURI
Alpha part no. 1.039154		 £20,11
67 Part number 1.028570, NOW USE 1.035365 FLOW SWITCH NOW USE 1.035365 FLOW SWITCH
Alpha part no. 1.028570
67 Part number 1.035365, DHW FLOW SWITCH DHW FLOW SWITCH
Alpha part no. 1.035365		 £42,68
68   HEX SOCKET SCREW M5 X 16
Alpha part no. 1.030602		 £0,80
70   NOW USE 3.018189 O RING 17.86X2.62 EPDM
Alpha part no. 1.026459

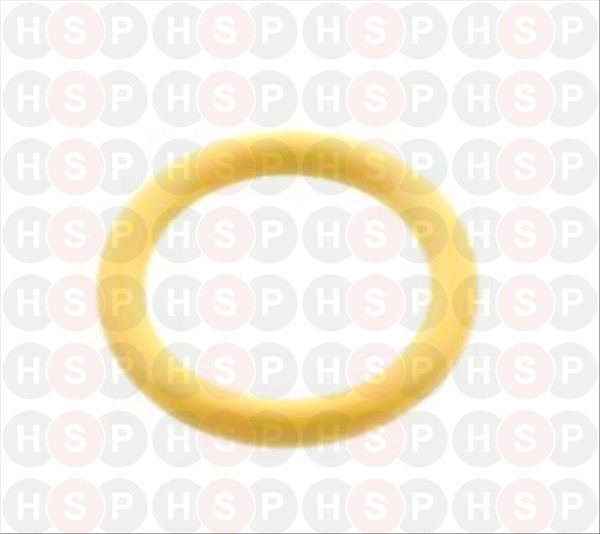

70   O RING 17.86 X 2.62 PACK OF 20
Alpha part no. 3.018189		 £14,57
71 Part number 1.028647, COLD INLET BLOCK COLD INLET BLOCK
Alpha part no. 1.028647		 £45,22
72   HEX SOCKET SCREW (M5X45) INTEC
Alpha part no. 1.028645		 £1,78
74   PRESSURE SWITCH LOCKING CLIP
Alpha part no. 1.031892		 £3,13
75   METAL SHEET CLIP - INTEC
Alpha part no. 2.014033		 £1,40
76   GASKET GRUNDFOS
Alpha part no. 1.028559		 £3,13
77   FLUE SAMPLING CAP
Alpha part no. 3.026794		 £16,98
79 Part number 1.038162, PUMP HEAD - HIGH EFFICIENCY PUMP HEAD - HIGH EFFICIENCY
Alpha part no. 1.038162		 £186,97
80   PUMP BODY
Alpha part no. 1.033591		 £89,95
81   BOILER WALL BRACKET
Alpha part no. 2.015350		 £11,31
83   ETEC/EVOKE CONNECTION VALVES
Alpha part no. 3.027624		 £108,13
83 Part number 6.5500001A, NOW USE 3.027624 ECO VALVE CONNECTION KIT NOW USE 3.027624 ECO VALVE CONNECTION KIT
Alpha part no. 6.5500001A
84   ETEC/EVOKE CONNECTION VALVES
Alpha part no. 3.027624		 £108,13
84 Part number 6.5500001A, NOW USE 3.027624 ECO VALVE CONNECTION KIT NOW USE 3.027624 ECO VALVE CONNECTION KIT
Alpha part no. 6.5500001A
85   ETEC/EVOKE CONNECTION VALVES
Alpha part no. 3.027624		 £108,13
85 Part number 6.5500001A, NOW USE 3.027624 ECO VALVE CONNECTION KIT NOW USE 3.027624 ECO VALVE CONNECTION KIT
Alpha part no. 6.5500001A
86   ETEC/EVOKE CONNECTION VALVES
Alpha part no. 3.027624		 £108,13
86 Part number 6.5500001A, NOW USE 3.027624 ECO VALVE CONNECTION KIT NOW USE 3.027624 ECO VALVE CONNECTION KIT
Alpha part no. 6.5500001A
87 Part number 1.028650, AUTO BYPASS HOUSING AUTO BYPASS HOUSING
Alpha part no. 1.028650		 £103,51
88 Part number 3.021689, BY-PASS ASSEMBLY BY-PASS ASSEMBLY
Alpha part no. 3.021689		 £33,38
89 Part number 1.028561, SAFETY RELIEF VALVE 3 BAR SAFETY RELIEF VALVE 3 BAR
Alpha part no. 1.028561		 £29,40
91   PIPE CLIP D.18
Alpha part no. 1.038458		 £1,57
92   CONDENSATION MODULE D.18
Alpha part no. 1.039137		 £8,65
94   FLOW / RETURN SENSOR
Alpha part no. 1.039476
95   DHW TEMPERATURE SENSOR
Alpha part no. 1.039477
96   SCREW M5 X 16
Alpha part no. 1.010289		 £0,34
99   TUBE FITTING 1/2 INCH
Alpha part no. 1.039685		 £8,65
100 Part number 3.022783, DHW 14 PLATE HEAT EXCHANGER WITH SEAL KIT DHW 14 PLATE HEAT EXCHANGER WITH SEAL KIT
Alpha part no. 3.022783		 £148,58
101 Part number 1.027110, AUTOMATIC AIR VENT AUTOMATIC AIR VENT
Alpha part no. 1.027110		 £56,22
102 Part number 1.027277, PRIMARY PRESSURE SWITCH PRIMARY PRESSURE SWITCH
Alpha part no. 1.027277		 £23,12
103 Part number 1.028548, HOUSING, OUTLET MANIFOLD HOUSING, OUTLET MANIFOLD
Alpha part no. 1.028548		 £84,04
104 Part number 3.025230, DIVERTER CARTRIDGE DIVERTER CARTRIDGE
Alpha part no. 3.025230		 £99,66
105 Part number 1.033918, DIVERTER VALVE MOTOR DIVERTER VALVE MOTOR
Alpha part no. 1.033918		 £48,54
106 Part number 1.019654, L.600 HOSE (CD24S/C) L.600 HOSE (CD24S/C)
Alpha part no. 1.019654		 £16,27
107   PUMP COUPLER FITTING
Alpha part no. 1.027137		 £7,89
109 Part number 1.027108, DRAIN FITTING DRAIN FITTING
Alpha part no. 1.027108		 £13,90
111 Part number 1.040051, WIRING IGNITION WIRING IGNITION
Alpha part no. 1.040051		 £23,40
113   PCB FACIA COVER
Alpha part no. 1.038623		 £30,39
114   CABLE CLAMP
Alpha part no. 1.4072		 £0,70
115   RELAY FIXING SCREW - 3X10
Alpha part no. 1.035248		 £0,13
116   CLAMPING PLATE
Alpha part no. 1.035385		 £3,38
117   RX CASING KIT
Alpha part no. 3.027700		 £25,03
118 Part number 1.037031, MAIN PCB MAIN PCB
Alpha part no. 1.037031		 £159,40
119   ADHESIVE FOR DISPLAY
Alpha part no. 1.039226		 £5,25
120   SILICONE KEYBOARD
Alpha part no. 1.038624		 £11,62
121   BEZEL CONTROL PANEL
Alpha part no. 1.038583		 £30,13
122   CONNECTION GROUP COVER
Alpha part no. 1.039203		 £8,82
123   ESTHETIC COVER
Alpha part no. 1.040448		 £17,34
124   E-TEC 28 BADGE
Alpha part no. 1.039250		 £10,10
125   RUBBER BUFFER CD25/28/35C
Alpha part no. 1.024204		 £0,58
126 Part number 1.0346, NOW USE 1.034600 MANOMETER NOW USE 1.034600 MANOMETER
Alpha part no. 1.0346
126 Part number 1.034600, PRESSURE GAUGE PRESSURE GAUGE
Alpha part no. 1.034600		 £31,46
129   SELF TAPPING SCREW 3, 5X 6
Alpha part no. 1.037773		 £0,82
130   ETEC/EVOKE CONNECTION VALVES
Alpha part no. 3.027624		 £108,13
130 Part number 6.5500001A, NOW USE 3.027624 ECO VALVE CONNECTION KIT NOW USE 3.027624 ECO VALVE CONNECTION KIT
Alpha part no. 6.5500001A
131   SCREW M4 X 16 (CB50)
Alpha part no. 1.6985		 £0,31
132   OUTLET MANIFOLD CLIP
Alpha part no. 1.028605		 £1,06
134   SCREW R/S CHAMBER
Alpha part no. 1.5244		 £1,22
136   TELESCOPIC JOINT
Alpha part no. 1.039171		 £2,99
138   SCREW M5 X 8
Alpha part no. 1.1176		 £1,51
139   GASKET (18, 5X11, 5X2)
Alpha part no. 1.034405		 £19,87
140   BRACKET, GASKET HANGER
Alpha part no. 2.016007		 £1,18
141   D.14 PIPE HOT OUTLET
Alpha part no. 1.039686		 £18,18
142   D18 PIPE MODULE DELIVERY MANIF
Alpha part no. 1.039164		 £19,81
143   CABLE CLAMP (CB50)
Alpha part no. 1.7908		 £1,01
144   PUMP GROUP
Alpha part no. 3.025935		 £234,52
145   INSULATING PANEL REAR
Alpha part no. 1.040351		 £47,37
146 Part number 1.019144, PIPE- CONDENSATION DISCHARGE PIPE- CONDENSATION DISCHARGE
Alpha part no. 1.019144		 £11,76
147   SILICONE PIPE 4 X 8
Alpha part no. 1.025986		 £10,61
148 Part number 1.016187, SILICONE TUBE 8 X 12 750mm SILICONE TUBE 8 X 12 750MM
Alpha part no. 1.016187		 £13,94
149   WALL TEMPLATE
Alpha part no. 1.039776		 £20,94
150   LX CASING KIT
Alpha part no. 3.027701		 £25,03
