CAMRAY QUARTET UTIL SYST 90/110 (JUNE 1995-JAN 1999) 7716139067 - (Heat Exchanger)
Appliance Code: 7716139067

Appliance Diagram


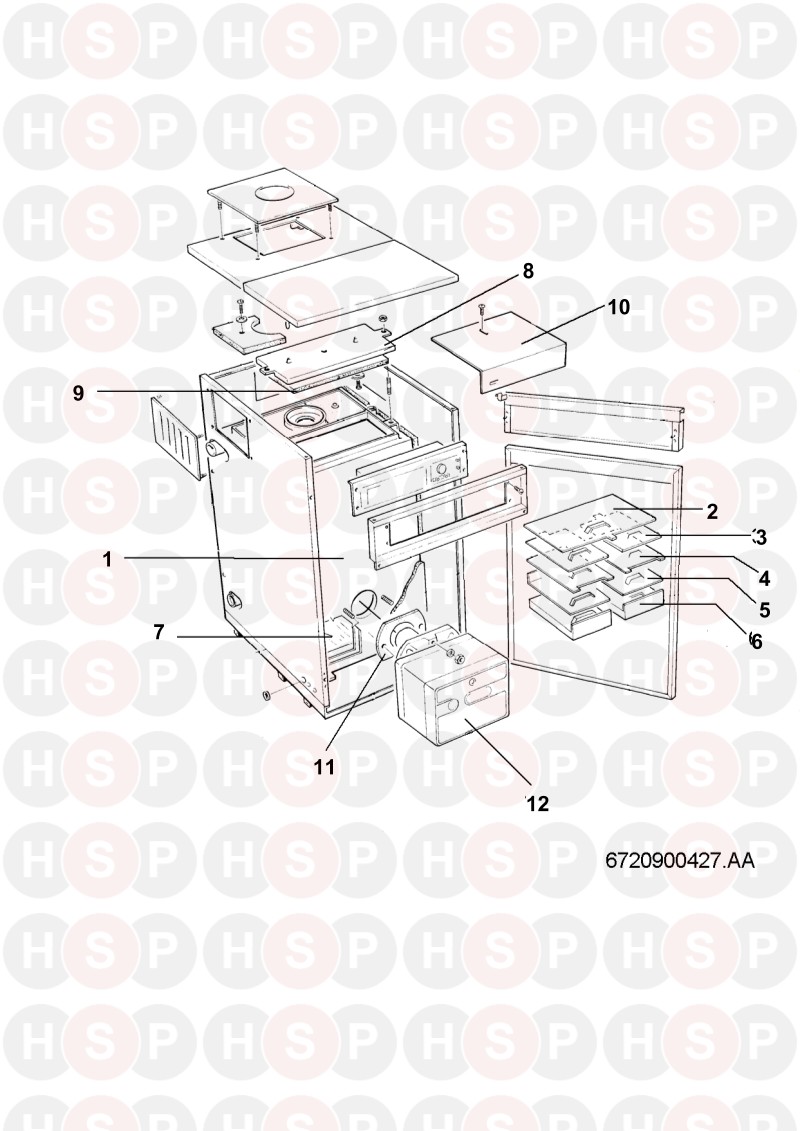

Heat Exchanger diagram for Worcester Camray Quartet Util Syst 90/110 (June 1995-Jan 1999) 7716139067Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   CIRCULATING PUMP
Worcester part no. 87161084050		 £159.17
2   TOP BAFFLE ASSEMBLY QUARTET 110/150
Worcester part no. 87161094550
3   BAFFLE PLATE SECOND ASSEMBLY 90/110
Worcester part no. 87161094610
4   BAFFLE PLATE THIRD WELDING ASSEMBLY
Worcester part no. 87161094630
5   4TH BAFFLE
Worcester part no. 87161094650
6 Part number 87161095380, FIFTH BAFFLE ASSEMBLY 90/110 FIFTH BAFFLE ASSEMBLY 90/110
Worcester part no. 87161095380
7   COMBUSTION CHAMBER BASE INSULATION
Worcester part no. 87161076030		 £19.02
8   INSPECTION COVER COMPLETE
Worcester part no. 87161075570		 £18.30
9   OBSOLETE INSPECTION COVER INSULATION
Worcester part no. 87161100200
10   HEAT SHIELD
Worcester part no. 87161071590		 £2.42
11 Part number 87161072420, GASKET G2,3,5 FLANGE GASKET G2,3,5 FLANGE
Worcester part no. 87161072420		 £7.57
12   RIELLO BURNER QUARTET 90-110
Worcester part no. 87161110110
