HEATLINE
HYDROLINE B24 2003- 2007 - (02 Chassis)
Appliance Code: 47-157-18

Appliance Diagram

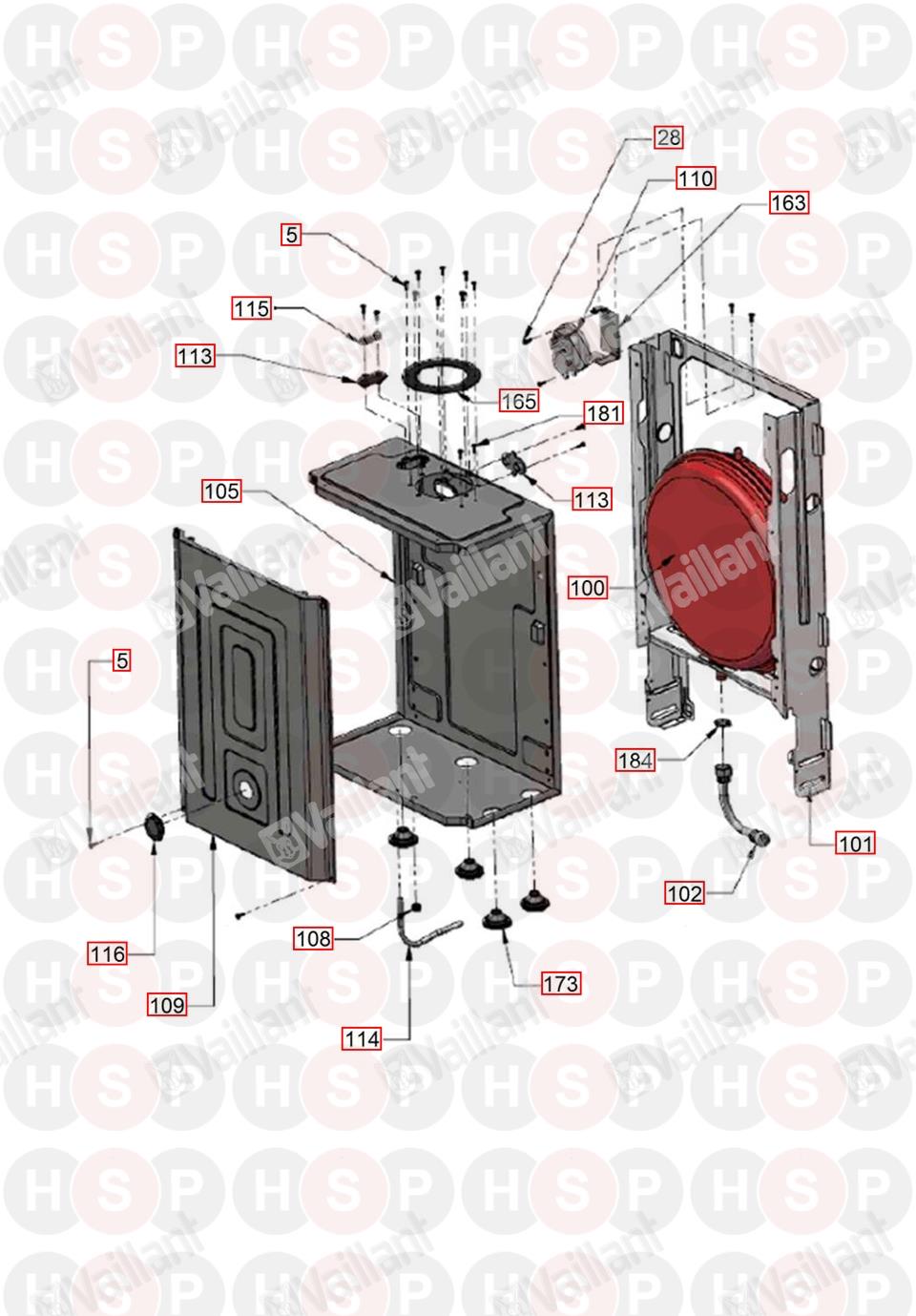

02 Chassis diagram for Heatline Hydroline B24 2003- 2007Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

5   SCREW 3.9 X 13 MM (PK10)
Glowworm part no. D003200057
£6.03
28   SCREW, 3.5 X 9.5 MM (PK10)
Glowworm part no. D002006870
£6.03
100 Part number D003200028, Expansion Vessel (7 Lt.) EXPANSION VESSEL (7 LT.)
Glowworm part no. D003200028
£170.75
101   MAIN FRAME REAR 20 KW - 24 KW
Glowworm part no. D003200053
£133.25
102 Part number D020112905, Flexible pipe set, Expansion Vessel FLEXIBLE PIPE SET, EXPANSION VESSEL
Glowworm part no. D020112905
£34.12
105   BACK PANEL, HERMETIC (24KW)
Glowworm part no. D003200168
£53.82
108   GROMMET, SPARK PLUG 12X2.5X1 (PK10)
Glowworm part no. D002024304
£6.03
109   HERMETIC CABIN FRONT COVER (24KW)
Glowworm part no. D001060011
£199.07
110 Part number D003200032, Air Pressure Switch - 0.85/0.7 mbar AIR PRESSURE SWITCH - 0.85/0.7 MBAR
Glowworm part no. D003200032
£94.13
113   PRESSURE CHECK POINT SOCKET
Glowworm part no. D002199000
£6.03
114 Part number D003200051, Silicone Pipe (for Air Pressure Switch) SILICONE PIPE (FOR AIR PRESSURE SWITCH)
Glowworm part no. D003200051
£6.49
115   CAP (PRESSURE CHECK POINT) (PK10)
Glowworm part no. D003200050
£6.03
116 Part number D003202233, Sight glass SIGHT GLASS
Glowworm part no. D003202233
£13.04
163   BRACKET - AIR PRESSURE SWITCH
Glowworm part no. D002194404
£6.03
165   GAS RESTRICTOR DISC 24 KW
Glowworm part no. D003201964
£6.03
173   GROMMET - LARGE (PK10)
Glowworm part no. D003201273
£6.56
181   SCREW M 4 X 10 (PK10)
Glowworm part no. D003200946
£6.03
184   EXPANSION VESSEL SUPPORT RING PK 10
Glowworm part no. D003201350
£6.56
