IDEAL
IMAX W100 - (Boiler Exploded 100)
Appliance Code: W-100

Appliance Diagram

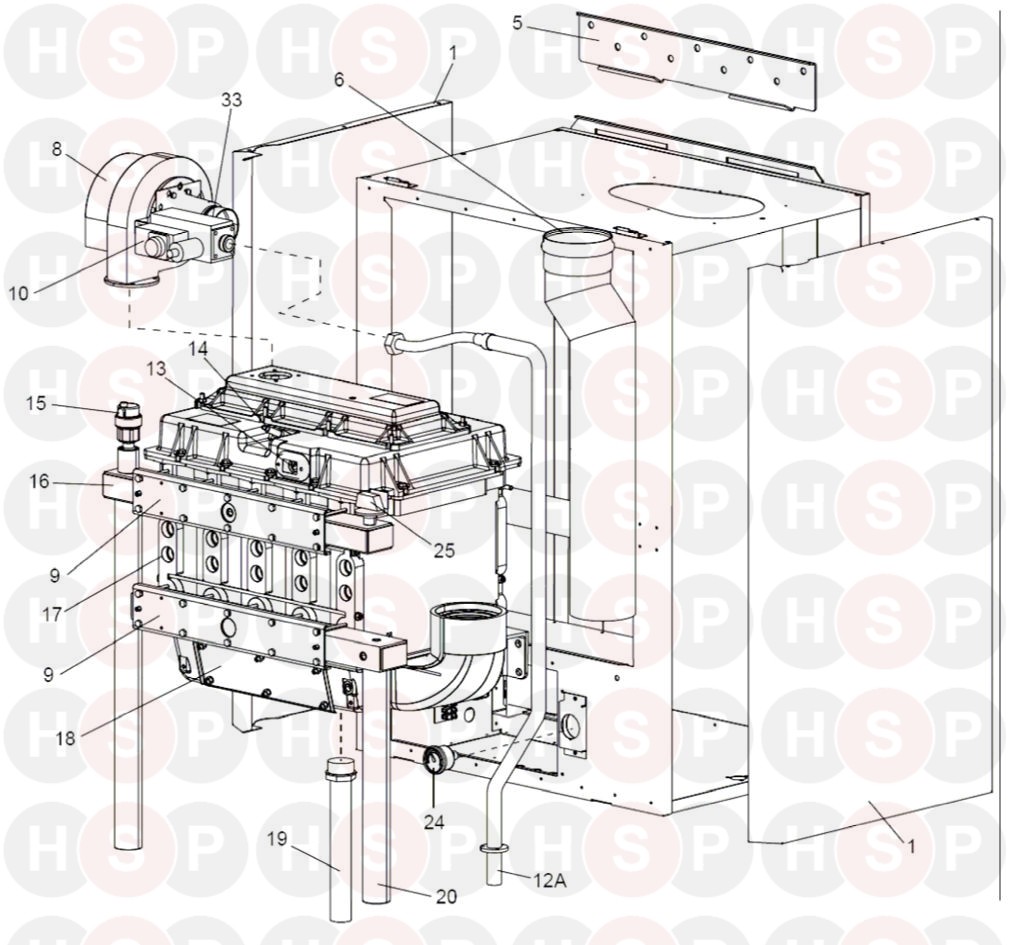

Boiler Exploded 100 diagram for Ideal Imax W100Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   JACKET SIDE PANEL - IMAX W
Ideal part no. 172688
£66.04
6 Part number 172673, INTERNAL FLUE TUBE 100MM W80 & P & W100 INTERNAL FLUE TUBE 100MM W80 & P & W100
Ideal part no. 172673
£120.13
8 Part number 175227, FAN - IMAX W100 FAN - IMAX W100
Ideal part no. 175227

9   MOUNTING PLATE MANIFOLD W80 & P & W100
Ideal part no. 172636
£39.17
10 Part number 175228, GAS VALVE - IMAX W100 GAS VALVE - IMAX W100
Ideal part no. 175228
£268.67
13 Part number 172670, SIGHT GLASS COMPLETE - IMAX W SIGHT GLASS COMPLETE - IMAX W
Ideal part no. 172670
£18.91
14 Part number 172665, IGNITION ELECTRODE - IMAX W IGNITION ELECTRODE - IMAX W
Ideal part no. 172665
£44.33
15 Part number 172668, AUTO AIR VENT - IMAX W AUTO AIR VENT - IMAX W
Ideal part no. 172668
£19.26
16   MANIFOLD FLOW W80 & P & W100
Ideal part no. 172633

17   AH-5 HEAT EXCHANGER ASSY W80 & P & W100
Ideal part no. 172628

18 Part number 172630, INSPECTION COVER ASSY W80 & P & W100 INSPECTION COVER ASSY W80 & P & W100
Ideal part no. 172630
£69.07
19 Part number 172637, CONDENSATE OUTLET PIPE IMAX W CONDENSATE OUTLET PIPE IMAX W
Ideal part no. 172637

20   MANIFOLD RETURN W80 & P & W100
Ideal part no. 172634
£148.85
24 Part number 172669, PRESSURE GAUGE - IMAX W PRESSURE GAUGE - IMAX W
Ideal part no. 172669
£36.01
25 Part number 172667, WATER PRESSURE SWITCH - IMAX W WATER PRESSURE SWITCH - IMAX W
Ideal part no. 172667
£40.51
33   VENTURI - IMAX W100
Ideal part no. 175232
£96.37
