RD430I (MAY 2003 ONWARDS) 7712231670 - (Pump And Tubes)
Appliance Code: 41-108-06

Appliance Diagram


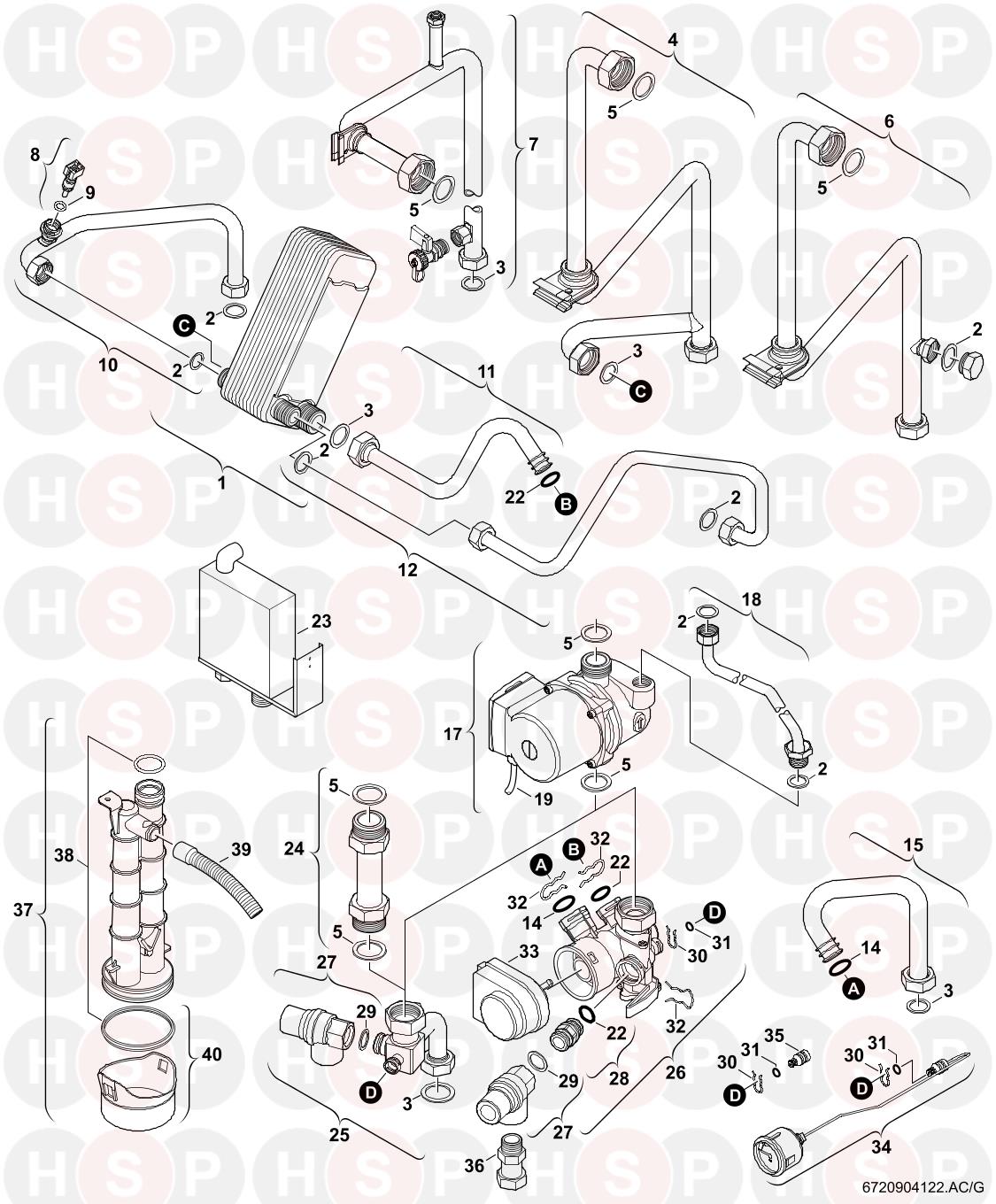

Pump And Tubes diagram for Worcester RD430I (May 2003 Onwards) 7712231670Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.81
2 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.82
5 Part number 87101030460, WASHER 1" (10X) WASHER 1" (10X)
Worcester part no. 87101030460		 £2.81
5 Part number 87161156820, WASHER 1" (1X) WASHER 1" (1X)
Worcester part no. 87161156820		 £2.81
6   PIPE - FLOW
Worcester part no. 87107256330		 £147.83
18 Part number 87107259830, PIPE - VENTING PIPE - VENTING
Worcester part no. 87107259830		 £68.86
19   PUMP CABLE
Worcester part no. 87144113070
22 Part number 87161165490, O-RING 13,87X3,53 (10X) O-RING 13,87X3,53 (10X)
Worcester part no. 87161165490		 £2.98
22 Part number 87167711550, NOW USE 87161165490 O-RING 13,87X3,53 (10X) NOW USE 87161165490 O-RING 13,87X3,53 (10X)
Worcester part no. 87167711550
23 Part number 87107253280, SYPHON SYPHON
Worcester part no. 87107253280		 £46.93
26 Part number 87170100620, 3-WAY VALVE 3-WAY VALVE
Worcester part no. 87170100620		 £140.63
27 Part number 87174010120, SAFETY RELIEF VALVE 3BAR SAFETY RELIEF VALVE 3BAR
Worcester part no. 87174010120		 £30.99
28 Part number 87155044740, ADAPTER ADAPTER
Worcester part no. 87155044740		 £62.29
29 Part number 87302039980, WASHER (10X) WASHER (10X)
Worcester part no. 87302039980		 £3.20
30   WIREFORM SPRING (10X)
Worcester part no. 87112000150		 £0.76
31 Part number 87102050870, O-RING O-RING
Worcester part no. 87102050870		 £0.56
32 Part number 87112000160, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87112000160		 £0.56
33 Part number 87172043450, MOTOR MOTOR
Worcester part no. 87172043450		 £86.09
34 Part number 87172080790, MANOMETER MANOMETER
Worcester part no. 87172080790		 £43.62
35 Part number 87105062170, GROMMET GROMMET
Worcester part no. 87105062170
36 Part number 87133056450, CONNECTION UNION CONNECTION UNION
Worcester part no. 87133056450		 £30.99
37 Part number 87107254480, SYPHON SYPHON
Worcester part no. 87107254480		 £43.62
38 Part number 87101031540, WASHER SET WASHER SET
Worcester part no. 87101031540		 £4.00
39 Part number 87182201060, HOSE HOSE
Worcester part no. 87182201060		 £6.81
40 Part number 87105062020, PROTECTIVE CAP PROTECTIVE CAP
Worcester part no. 87105062020		 £10.34
