WORCESTER
C1-FSN-GB NG COMBI - (Pump & Hydraulics)
Appliance Code: 47-311-53

Appliance Diagram


Pump & Hydraulics diagram for Worcester C1-FSN-GB NG CombiClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   HARNESS PUMP SI/C1
Worcester part no. 87161028460		 £22.99
0 Part number 87161412190, BOILER DRAIN TUBE BOILER DRAIN TUBE
Worcester part no. 87161412190		 £6.74
1 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £3.04
1 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.88
2   PIPE - FLOW SWITCH INLET ASSEMBLY
Worcester part no. 87161215580		 £11.99
3 Part number 87170021100, WATER VALVE WATER VALVE
Worcester part no. 87170021100		 £128.58
4 Part number 87161215490, PIPE - FLOW DHW ASSEMBLY PIPE - FLOW DHW ASSEMBLY
Worcester part no. 87161215490		 £20.23
5   VENTURI (D)
Worcester part no. 87161167180		 £4.05
6   PIPE - RETURN DHW ASSEMBLY
Worcester part no. 87161215510		 £24.77

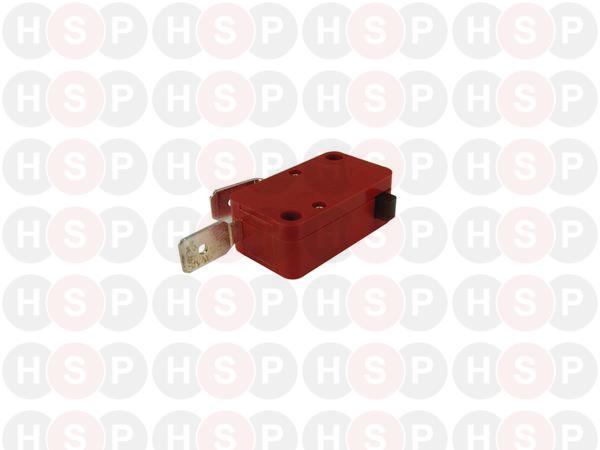

7 Part number 87161461570, MICRO SWITCH MICRO SWITCH
Worcester part no. 87161461570		 £10.37
8 Part number 87161484100, WATER FILTER WATER FILTER
Worcester part no. 87161484100		 £2.30
9 Part number 87161215520, OBSOLETE PUMP INLET MANIFOLD ASSEMBLY OBSOLETE PUMP INLET MANIFOLD ASSEMBLY
Worcester part no. 87161215520
10 Part number 87161567640, PRESSURE RELIEF VALVE/HOSE PRESSURE RELIEF VALVE/HOSE
Worcester part no. 87161567640		 £14.65
11   PUMP HEAD UPMO 7M C/W INST PLUG
Worcester part no. 8716120416		 £195.02
11 Part number 87161135940, NOW USE 8716120416 STANDARD 15/60 PUMP HEAD NOW USE 8716120416 STANDARD 15/60 PUMP HEAD
Worcester part no. 87161135940
11 Part number 87161431140, PUMP GRUNDFOS PUMP GRUNDFOS
Worcester part no. 87161431140
12 Part number 87161409200, WASHER 30.5X22.2X1.5 WASHER 30.5X22.2X1.5
Worcester part no. 87161409200		 £3.53
13   PIPE - RETURN ASSEMBLY
Worcester part no. 87161215500
14   PIPE - BYPIPE - PASS ASSEMBLY
Worcester part no. 87161215530		 £9.71
15 Part number 87161483230, CLIP - SMALL WIRE CLIP - SMALL WIRE
Worcester part no. 87161483230		 £2.92
16 Part number 87161408380, O-RING 2.4X5.6 I/D EPDM O-RING 2.4X5.6 I/D EPDM
Worcester part no. 87161408380		 £2.68
17   PIPE - PRIMARY FLOW ASSEMBLY
Worcester part no. 87161215480
18 Part number 87161423880, PRESSURE GAUGE 4 BAR PRESSURE GAUGE 4 BAR
Worcester part no. 87161423880
19 Part number 87161215590, PIPE - EXPANSION VESSEL ASSEMBLY PIPE - EXPANSION VESSEL ASSEMBLY
Worcester part no. 87161215590
20   GAS INLET MANIFOLD ASSEMBLY
Worcester part no. 87161215600
21 Part number 87470033810, GAS VALVE GAS VALVE
Worcester part no. 87470033810		 £208.22
22 Part number 87161216170, ADAPTER BURNER TO GAS VALVE ASSEMBLY ADAPTER BURNER TO GAS VALVE ASSEMBLY
Worcester part no. 87161216170		 £9.90
23   CLIP
Worcester part no. 87167602330		 £2.88
24 Part number 87101030600, WASHER 1" (10X) WASHER 1" (10X)
Worcester part no. 87101030600		 £3.14
24 Part number 87161156810, WASHER 1" (1X) WASHER 1" (1X)
Worcester part no. 87161156810
25 Part number 87161423870, PRESSURE DIFFERENTIAL PRESSURE DIFFERENTIAL
Worcester part no. 87161423870
26 Part number 87161165480, AIR PRESSURE SWITCH BRACKET BEFORE RD385 AIR PRESSURE SWITCH BRACKET BEFORE RD385
Worcester part no. 87161165480		 £2.68
27 Part number 87161423020, NTC/THERMISTOR DHW NTC/THERMISTOR DHW
Worcester part no. 87161423020		 £13.42
28 Part number 87161483130, CLIP - DOMESTIC H.W. THERMISTOR CLIP - DOMESTIC H.W. THERMISTOR
Worcester part no. 87161483130		 £3.92
29 Part number 87161412130, DISCHARGE ELBOW DISCHARGE ELBOW
Worcester part no. 87161412130
30 Part number 87161215900, HARNESS - MAIN/FAN HARNESS - MAIN/FAN
Worcester part no. 87161215900		 £54.32
31   SPLIT CABLE WRAP
Worcester part no. 87161412300		 £6.83
34 Part number 87161483560, WIREFORM SPRING (10X) WIREFORM SPRING (10X)
Worcester part no. 87161483560		 £4.10
