HEATSLAVE 26/32-RSO-GB-OIL COM (FEB 2001 ONWARDS) 7716100066 - (Casing)
Appliance Code: 7716100066

Appliance Diagram

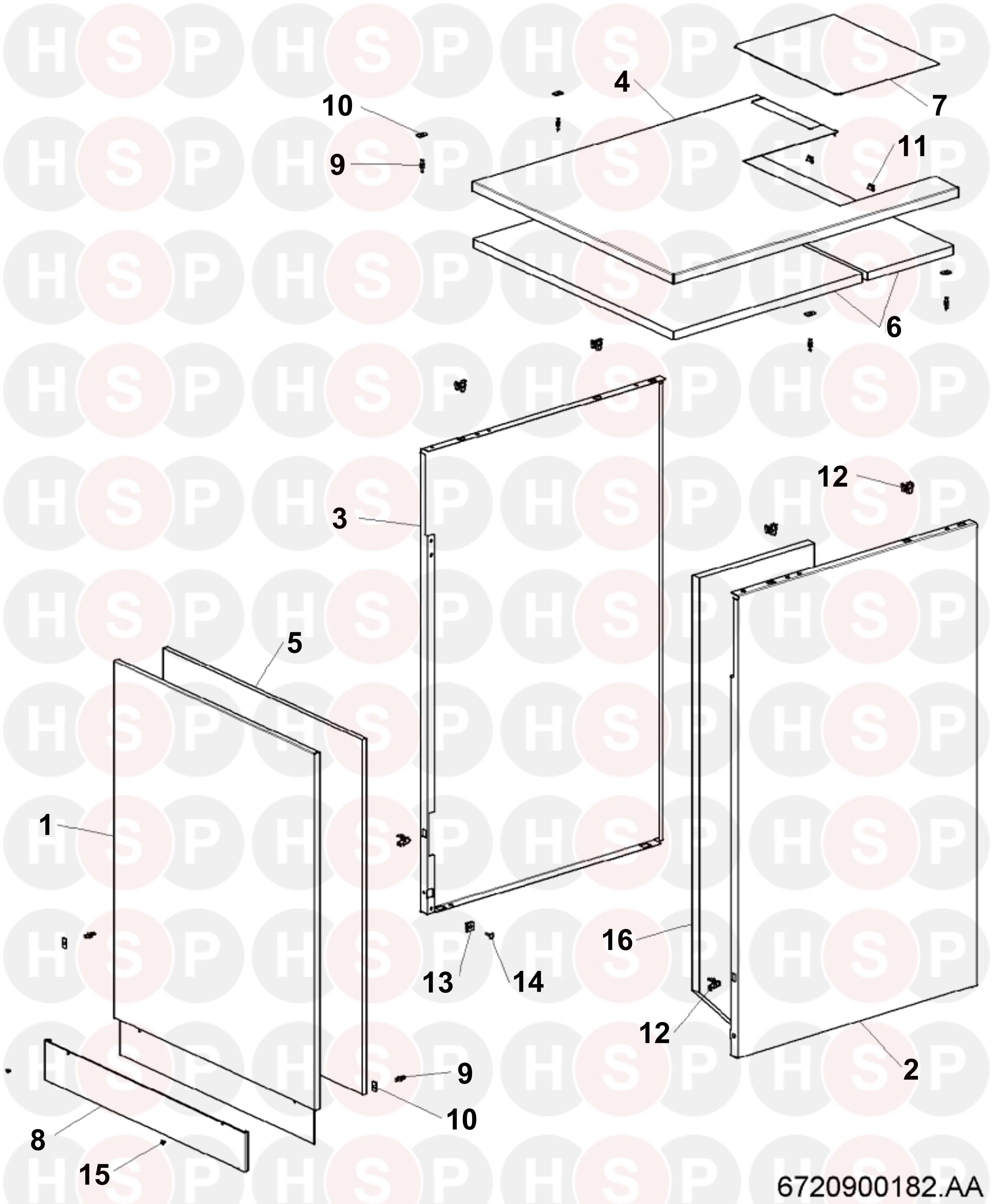

Casing diagram for Worcester Heatslave 26/32-RSO-GB-Oil COM (Feb 2001 Onwards) 7716100066Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   CABINET FRONT ASSEMBLY
Worcester part no. 87161020190
£154.18
2 Part number 87161202580, CABINET SIDE PANEL ASSEMBLY RH CABINET SIDE PANEL ASSEMBLY RH
Worcester part no. 87161202580
£67.62
3 Part number 87161202870, SIDE PANEL ASSY LH SIDE PANEL ASSY LH
Worcester part no. 87161202870
£53.63
4   CABINET TOP ASSEMBLY (RS)
Worcester part no. 87161020230
£137.29
5   INSULATION CABINET FRONT PANEL
Worcester part no. 87161020500
£16.71
6 Part number 87161020470, INSULATION TOP PANEL INSET INSULATION TOP PANEL INSET
Worcester part no. 87161020470
£31.80
6 Part number 87161020480, INSULATION TOP PANEL SPLIT INSULATION TOP PANEL SPLIT
Worcester part no. 87161020480
£31.80
7   KICK STRIP
Worcester part no. 87161020210
£35.88
8 Part number 87161405120, STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991 STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991
Worcester part no. 87161405120
£3.03
10 Part number 87161405130, CLIP - SPRING REF MFO319 SOFT (5 PACK) BEFORE FD991 CLIP - SPRING REF MFO319 SOFT (5 PACK) BEFORE FD991
Worcester part no. 87161405130
£9.24
10 Part number 87161550020, NUT 2BA FLAT BLACK M/S BEFORE FD991 NUT 2BA FLAT BLACK M/S BEFORE FD991
Worcester part no. 87161550020
£2.57
12 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060
£3.59
13 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040
£4.24
13 Part number 87161550390, BLACK NYLON SNAP RIVET BLACK NYLON SNAP RIVET
Worcester part no. 87161550390
£14.23
14   SIDE PANEL INSULATION-RH
Worcester part no. 87161003270
£9.51
