WORCESTER
GREENSTAR FSP GB COMBI LPG 7713244855 - (Casing)
Appliance Code: 47-311-45 7713244855

Appliance Diagram

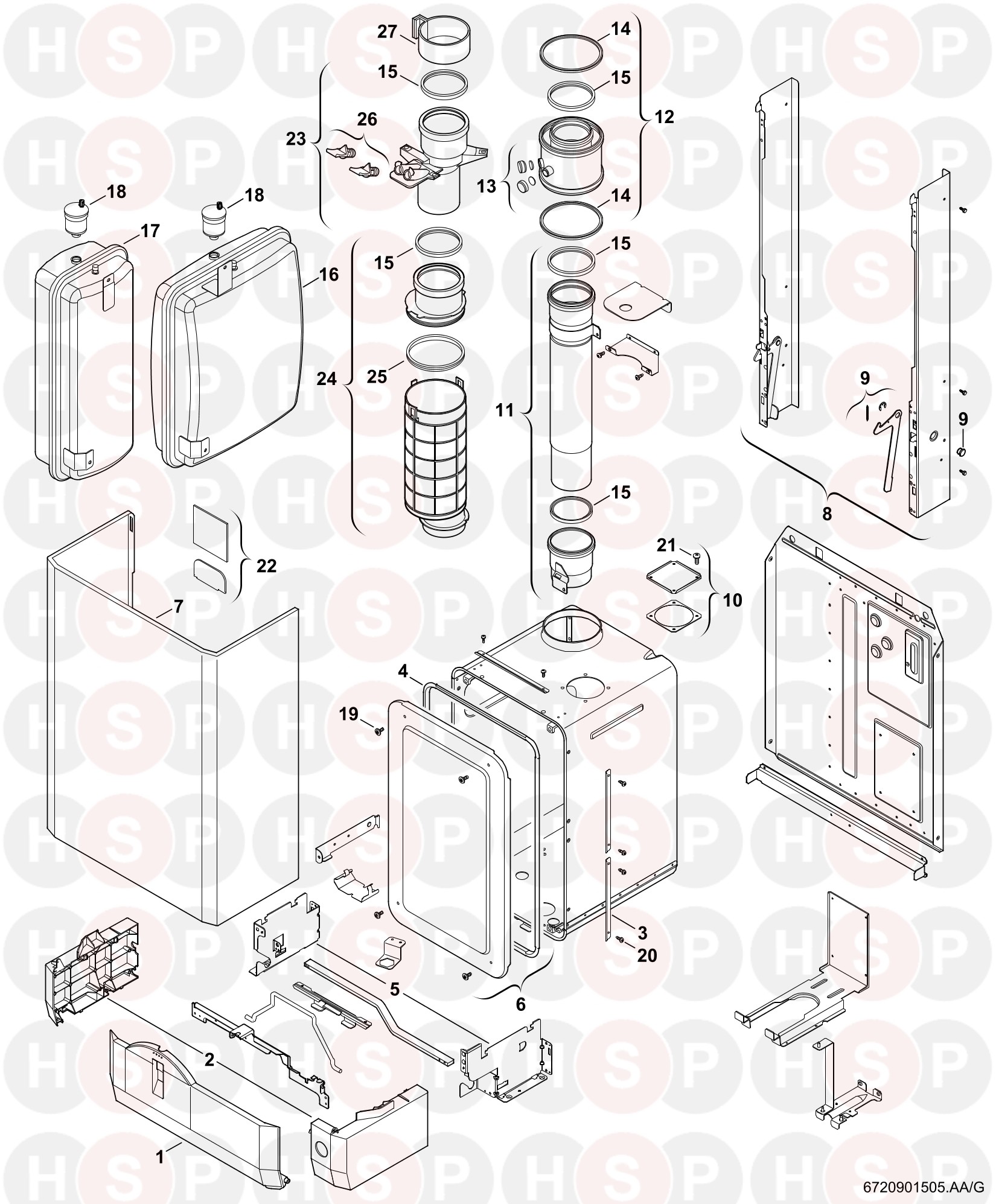

Casing diagram for Worcester Greenstar FSP GB Combi LPG 7713244855Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   COVER
Worcester part no. 87155062760		 £42.22
2   SIDE SHIELD
Worcester part no. 87155062730		 £40.18
3   FIXING BRACKET
Worcester part no. 87113021100		 £2.13
4   RUBBER PROFILE
Worcester part no. 87107031130		 £27.46
5   CONNECTION PLATE
Worcester part no. 87180066520		 £83.57
6   INNER CASING COVER
Worcester part no. 87180055230		 £51.24
7   FRONT SHELL
Worcester part no. 87154012770		 £88.43
8   SIDE FRAME
Worcester part no. 87180036800		 £99.62
9   FIXING SET
Worcester part no. 87131010510		 £8.18
10 Part number 87110002190, COVER COVER
Worcester part no. 87110002190		 £6.73
11   FLUE GAS DUCT
Worcester part no. 87155055850		 £113.59
12   OBSOLETE FLUE CONNECTOR.
Worcester part no. 77190017680
13 Part number 87290002590, CAP (PLUG) CAP (PLUG)
Worcester part no. 87290002590		 £12.48
14 Part number 87290001670, SEAL OUTER 125MM SEAL OUTER 125MM
Worcester part no. 87290001670		 £10.40
15 Part number 87110042320, WASHER 80MM WASHER 80MM
Worcester part no. 87110042320		 £9.55
17 Part number 87154071760, EXPANSION VESSEL 10L EXPANSION VESSEL 10L
Worcester part no. 87154071760		 £204.76
18 Part number 87185050140, AUTOMATIC PURGER AUTOMATIC PURGER
Worcester part no. 87185050140		 £30.99
19 Part number 87134030120, SCREW NO10X16 TYPE AB SELF TAP(10X) SCREW NO10X16 TYPE AB SELF TAP(10X)
Worcester part no. 87134030120		 £0.76
20 Part number 29106144310, SCREW 4,8X9,5 (10X) SCREW 4,8X9,5 (10X)
Worcester part no. 29106144310		 £2.13
21 Part number 29106124320, NOW USE 87134030390 SCREW TAPPING NO10 X 13 PAN HEAD NOW USE 87134030390 SCREW TAPPING NO10 X 13 PAN HEAD
Worcester part no. 29106124320
21 Part number 87134030390, SCREW 4.8 X 30MM SET OF 3 SCREW 4.8 X 30MM SET OF 3
Worcester part no. 87134030390		 £4.39
22   INSULATION PLATE
Worcester part no. 87110030560		 £3.20
23 Part number 87107253740, CONNECTOR CONNECTOR
Worcester part no. 87107253740		 £43.62
24 Part number 87107253730, FLUE GAS DUCT FLUE GAS DUCT
Worcester part no. 87107253730		 £47.96
25 Part number 87110042780, SEAL SEAL
Worcester part no. 87110042780		 £9.06
26 Part number 87105061990, GROMMET GROMMET
Worcester part no. 87105061990		 £10.34
27 Part number 87113010840, CLIP CLIP
Worcester part no. 87113010840		 £47.96
