IDEAL
OPTIA FF100 - (Controls)
Appliance Code: 41-392-01

Appliance Diagram

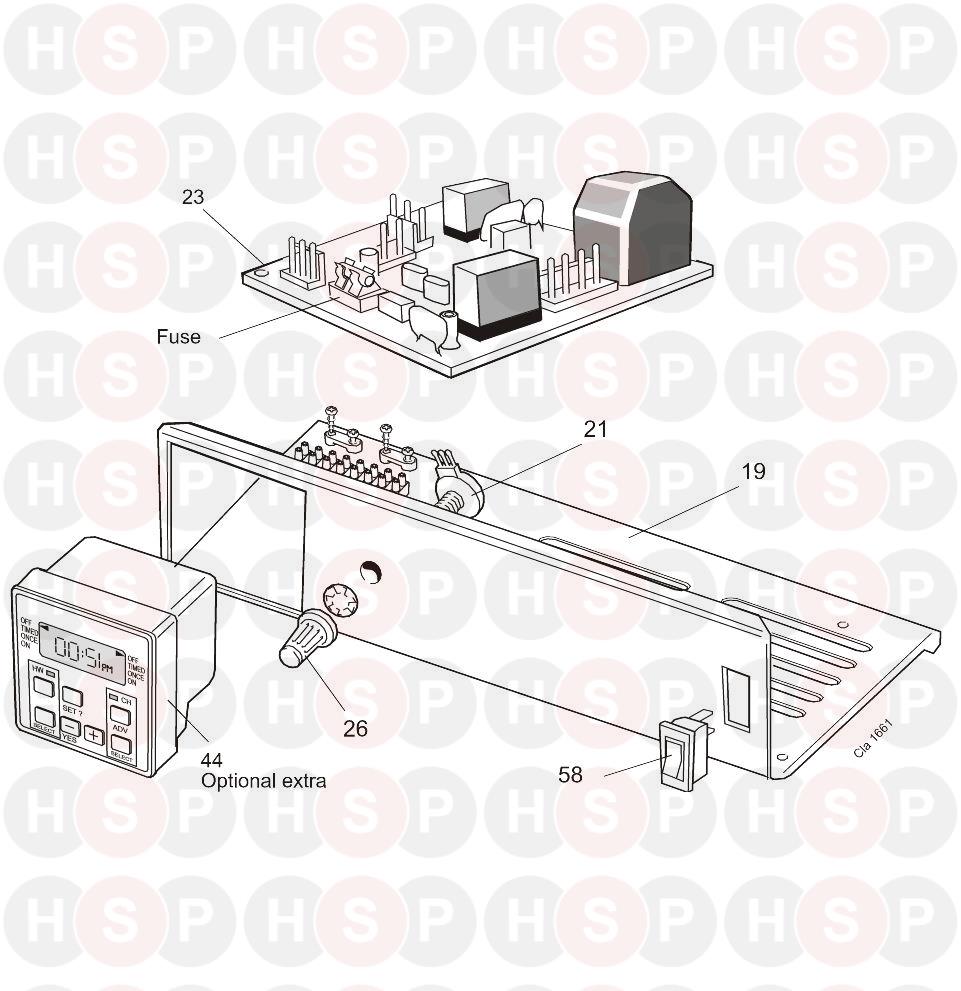

Controls diagram for Ideal Optia FF100Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

19   CONTROL BOX KIT CLA FF
Ideal part no. 171892		 £43.85
19 Part number 171894, OBSOLETE CONTROL BOX KIT(COMPLETE WITH PCB)CLA FF OBSOLETE CONTROL BOX KIT(COMPLETE WITH PCB)CLA FF
Ideal part no. 171894
21 Part number 171877, POT HARNESS KIT(INCL NUT & WASHER)RD1 POT HARNESS KIT(INCL NUT & WASHER)RD1
Ideal part no. 171877		 £14.99
23   OBSOLETE 1 AMP FUSES BOARD 7
Ideal part no. 065668
23 Part number 171881, PCB HARNESS KIT CLA FF PCB HARNESS KIT CLA FF
Ideal part no. 171881		 £9.42
23 Part number 173799, PCB 25E PCB 25E
Ideal part no. 173799		 £156.84
26 Part number 171504, POTENTIOMETER KNOB & CAP KIT CLA FF POTENTIOMETER KNOB & CAP KIT CLA FF
Ideal part no. 171504		 £7.89
44 Part number 171484, PROGRAMMER ASSY KIT CLA FF PROGRAMMER ASSY KIT CLA FF
Ideal part no. 171484		 £259.34
58 Part number 171496, SINGLE POLE HTG SWITCH-ON/OFF KIT CLA FF SINGLE POLE HTG SWITCH-ON/OFF KIT CLA FF
Ideal part no. 171496
