VOKERA
LINEA ONE ERP REV 13 (02/2017) - (Burner Air Box)

Appliance Diagram

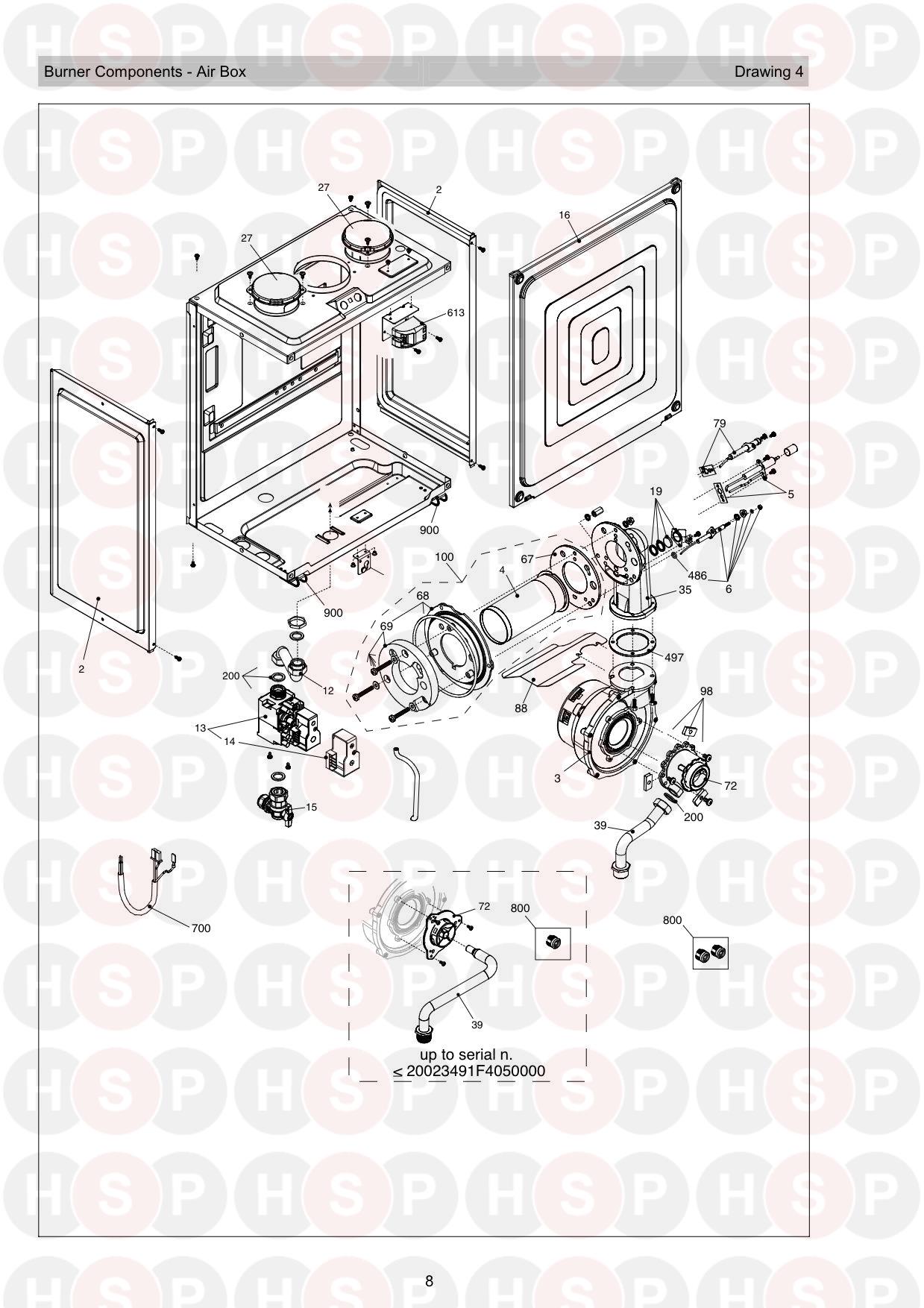

Burner Air Box diagram for Vokera Linea One ERP Rev 13 (02/2017)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   ROOMSEALED CHAMBER SIDE
Vokera part no. 10026231
£29.33
3   FAN
Vokera part no. 20083136
P.O.A.
4   BURNER
Vokera part no. 20086250
£48.54
5 Part number 10027620, NOW USE 20074728 Spark/Ignition electrode Replaced NOW USE 20074728 SPARK/IGNITION ELECTRODE REPLACED
Vokera part no. 10027620

5 Part number 20074728, Spark/Ignition electrode Replaced 10027620 SPARK/IGNITION ELECTRODE REPLACED 10027620
Vokera part no. 20074728
£18.99
6 Part number 10026316, Sensing electrode SENSING ELECTRODE
Vokera part no. 10026316
£10.90
12 Part number 10026318, Gas pipe GAS PIPE
Vokera part no. 10026318
£14.57
13 Part number 20039202, Gas valve Rep 10028538 & 10027187 & 20025752 GAS VALVE REP 10028538 & 10027187 & 20025752
Vokera part no. 20039202
£150.64
14 Part number 20040675, Gas Valve Solenoid (Fits 20039202/20035533) GAS VALVE SOLENOID (FITS 20039202/20035533)
Vokera part no. 20040675
£70.50
15 Part number 10020897, Gas Cock GAS COCK
Vokera part no. 10020897
£23.07
16   ROOMSEALED CHAMBER COVER
Vokera part no. 10026230
£38.54
19 Part number 10026328, Glass assembly GLASS ASSEMBLY
Vokera part no. 10026328
£7.36
27   PLASTIC HOLE COVER
Vokera part no. 20005586
£1.46
35 Part number 10028420, Air gas conveyor AIR GAS CONVEYOR
Vokera part no. 10028420
£43.89
39   GAS PIPE REPLACED 10027196
Vokera part no. 10028206
£21.15
39   GAS PIPE
Vokera part no. 20024600
£15.79
67 Part number 10026322, Washer WASHER
Vokera part no. 10026322
£19.19
68   FLANGE AND INSULATION
Vokera part no. 20046837
£28.95
69 Part number 20046839, Tryton and Screws TRYTON AND SCREWS
Vokera part no. 20046839
£15.13
72 Part number 20015932, Mixer Replaced 10024295 MIXER REPLACED 10024295
Vokera part no. 20015932
£35.72
72   MIXER (RED)
Vokera part no. 20031497
£84.60
79 Part number 10028422, Flame detection electrode FLAME DETECTION ELECTRODE
Vokera part no. 10028422
£18.73
88 Part number 20006411, Fan baffle FAN BAFFLE
Vokera part no. 20006411
£7.85
98   MIXER SPACER
Vokera part no. 20036990
£0.66
100   BURNER ASSEMBLY
Vokera part no. 20016328
£114.35
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.39
486 Part number 10026325, O ring O RING
Vokera part no. 10026325
£2.23
497 Part number 10026796, Fan Gasket FAN GASKET
Vokera part no. 10026796
£6.36
613 Part number 20001563, NOW USE 20002969 IGNITION TRANSFORMER NOW USE 20002969 IGNITION TRANSFORMER
Vokera part no. 20001563

613 Part number 20002969, Ignition transformer with wires Rep 10026237 & 20001563 IGNITION TRANSFORMER WITH WIRES REP 10026237 & 20001563
Vokera part no. 20002969
£37.35
700 Part number 10026336, J10 to Gas valve cable J10 TO GAS VALVE CABLE
Vokera part no. 10026336
£21.62
700 Part number 10026558, TSC1 (ignition transformer) to Spark electrode Wiring TSC1 (IGNITION TRANSFORMER) TO SPARK ELECTRODE WIRING
Vokera part no. 10026558
£9.56
700   IGNITION FLAME WIRING HARNESS
Vokera part no. 20016280
£25.37
700   PUMP CABLE (PWM)
Vokera part no. 20024202
£26.32
700   PUMP CABLE
Vokera part no. 20025884
£14.10
800 Part number 01005448, NG to LPG conversion kit (5.0 jet) Replaced 01005390 NG TO LPG CONVERSION KIT (5.0 JET) REPLACED 01005390
Vokera part no. 01005448
£15.70
800   LPG TO NG CONVERSION KIT (7.0 JET)
Vokera part no. 01005466
£9.59
800   LPG TO NG CONVERSION KIT
Vokera part no. 20031414

800   LPG CONVERSION KIT
Vokera part no. 20031415
£25.85
900   COMBUSTION CHAMBER CLIP AND 2 RIVETS
Vokera part no. 20061168
£2.06
