VOKERA
LINEA 28 MARK 2 (AFTER SER # REF 164370001) - (Hydraulics)

Appliance Diagram


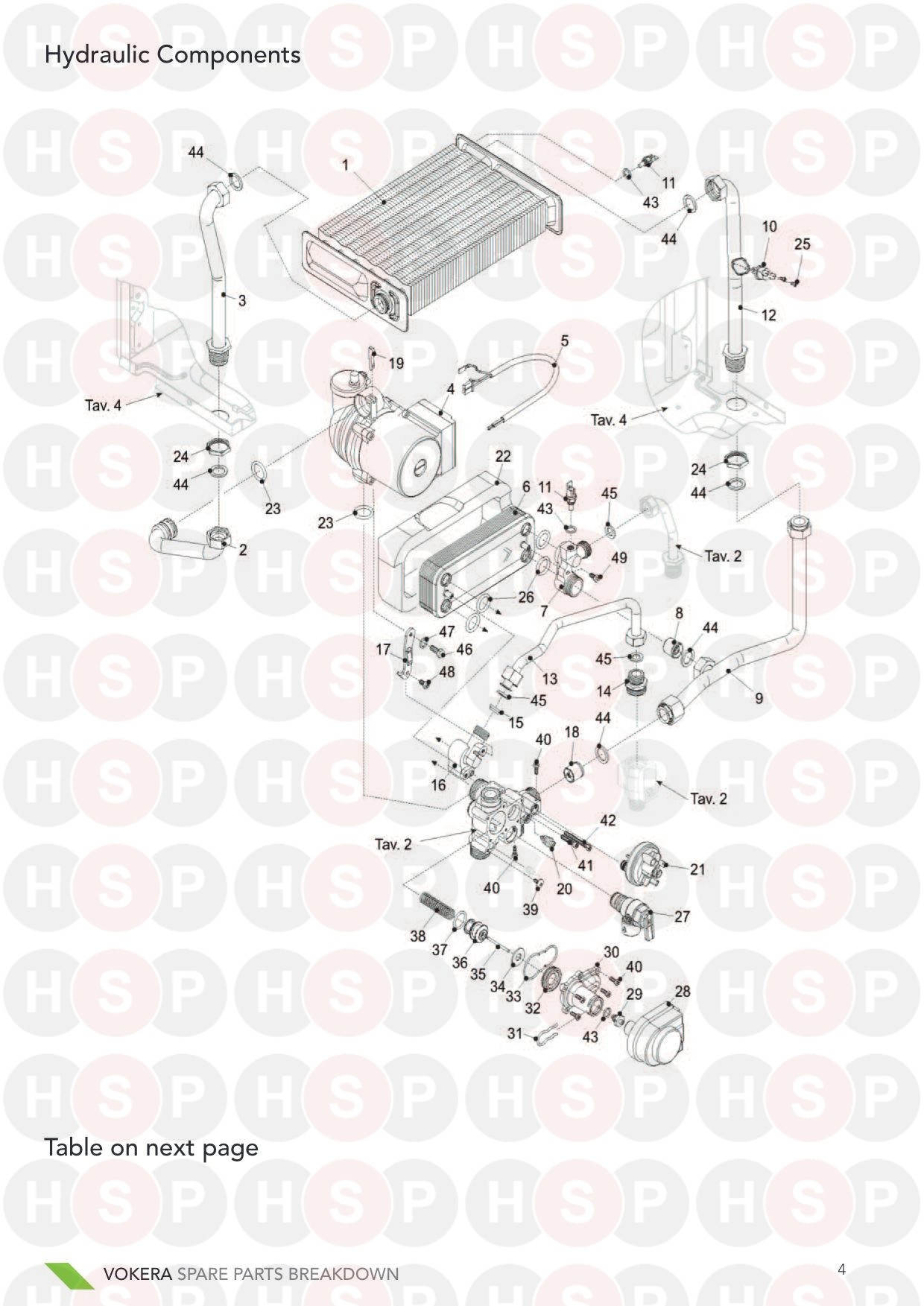

Hydraulics diagram for Vokera Linea 28 Mark 2 (After Ser # Ref 164370001)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 01005246, Main Heat Exchanger rep 2378 & 1914 MAIN HEAT EXCHANGER REP 2378 & 1914
Vokera part no. 01005246
£221.64
2   PIPE
Vokera part no. 10023202
£15.23
2   NOW USE 10023202 PUMP PIPE
Vokera part no. 1917

3 Part number 1847, Pipe PIPE
Vokera part no. 1847
£13.07
4 Part number 10021792, Pump Rep 10020437 PUMP REP 10020437
Vokera part no. 10021792
£187.25
5 Part number 1845, M15 to Pump Wiring M15 TO PUMP WIRING
Vokera part no. 1845
£7.38
6 Part number 8037, Domestic Heat Exchanger DOMESTIC HEAT EXCHANGER
Vokera part no. 8037
£122.25
7 Part number 9807, Fitting/union FITTING/UNION
Vokera part no. 9807
£16.26
8 Part number 2908, Non Return Valve NON RETURN VALVE
Vokera part no. 2908
£2.27
9   PIPE
Vokera part no. 1918

10 Part number 2258, High Limit Thermostat HIGH LIMIT THERMOSTAT
Vokera part no. 2258
£7.94
11 Part number 10027352, Thermistor/NTC Sensor (20004978) THERMISTOR/NTC SENSOR (20004978)
Vokera part no. 10027352
£12.03
12   PIPE
Vokera part no. 1846
£25.38
13 Part number 10022125, Pipe PIPE
Vokera part no. 10022125
£16.73
13 Part number 1779, NOW USE 10022125 Pipe NOW USE 10022125 PIPE
Vokera part no. 1779

14   FITTING/UNION
Vokera part no. 2946
£3.15
15 Part number 8009, Flow governor (Blue) FLOW GOVERNOR (BLUE)
Vokera part no. 8009
£3.13
16 Part number 2903, DHW Inlet Manifold DHW INLET MANIFOLD
Vokera part no. 2903
£17.30
17   BRACKET
Vokera part no. 2940
£1.97
18 Part number 2047, Heating bypass valve HEATING BYPASS VALVE
Vokera part no. 2047
£5.51
19   PUMP LOCK KEY
Vokera part no. 9263
£0.79
20   FRAME ASSEMBLY
Vokera part no. 01005133
£72.63
21 Part number 10028141, NOW USE 20003181 Water Pressure switch NOW USE 20003181 WATER PRESSURE SWITCH
Vokera part no. 10028141

21 Part number 20003181, Water pressure switch - Replaced 10028141 WATER PRESSURE SWITCH - REPLACED 10028141
Vokera part no. 20003181
£8.71
22 Part number 20007057, Heat exchanger jacket (Rep 1807) HEAT EXCHANGER JACKET (REP 1807)
Vokera part no. 20007057
£3.01
23 Part number 6898, O Ring O RING
Vokera part no. 6898
£0.93
24 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026
£1.22
25   SCREW
Vokera part no. 5077
£0.13
26 Part number 7999, O-RING O-RING
Vokera part no. 7999
£0.61
27 Part number 1806, NOW USE 2907 Safety Valve (Push Fit) NOW USE 2907 SAFETY VALVE (PUSH FIT)
Vokera part no. 1806

27 Part number 2907, Safety valve Replaced 8433 (Push Fit) SAFETY VALVE REPLACED 8433 (PUSH FIT)
Vokera part no. 2907
£12.69
28 Part number 2905, Motorised Valve MOTORISED VALVE
Vokera part no. 2905
£41.36
29 Part number 6919, Front Seal FRONT SEAL
Vokera part no. 6919
£4.37
30 Part number 10020335, Manifold Top Rep 2904 MANIFOLD TOP REP 2904
Vokera part no. 10020335
£8.62
31 Part number 2906, Motorised Valve Fixing Wrench MOTORISED VALVE FIXING WRENCH
Vokera part no. 2906
£0.39
32 Part number 7134, Seating Plate SEATING PLATE
Vokera part no. 7134
£4.26
33 Part number 8444, O-RING O-RING
Vokera part no. 8444
£1.60
34 Part number 2913, Bobbin Seating Washer BOBBIN SEATING WASHER
Vokera part no. 2913
£1.47
35 Part number 6887, Push Rod PUSH ROD
Vokera part no. 6887
£1.88
36 Part number 2910, 3 Port Valve Bobbin 3 PORT VALVE BOBBIN
Vokera part no. 2910
£3.09
37 Part number 6895, O-RING O-RING
Vokera part no. 6895
£2.20
38 Part number 6862, Spring SPRING
Vokera part no. 6862
£2.64
39 Part number 6903, Screw SCREW
Vokera part no. 6903
£1.38
40 Part number 5184, Machine Screw Hex Head M4 x 12 MACHINE SCREW HEX HEAD M4 X 12
Vokera part no. 5184
£0.85
41 Part number 5214, Large Screw DHW Heat Exchanger LARGE SCREW DHW HEAT EXCHANGER
Vokera part no. 5214
£0.89
42   SMALL SCREW DHW HEAT EXCHANGER
Vokera part no. 5213
£0.79
43 Part number 5041, Washer WASHER
Vokera part no. 5041
£0.17
44 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.39
45 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026
£0.35
46   SCREW
Vokera part no. 5228

47   WASHER
Vokera part no. 5111

48   MACHINE SCREW 10MM L X 5MM 0
Vokera part no. 5092

49   SCREW
Vokera part no. 5235
£0.62
