VOKERA
AQUA NOVA 17 NG - (Casing Electrics)

Appliance Diagram

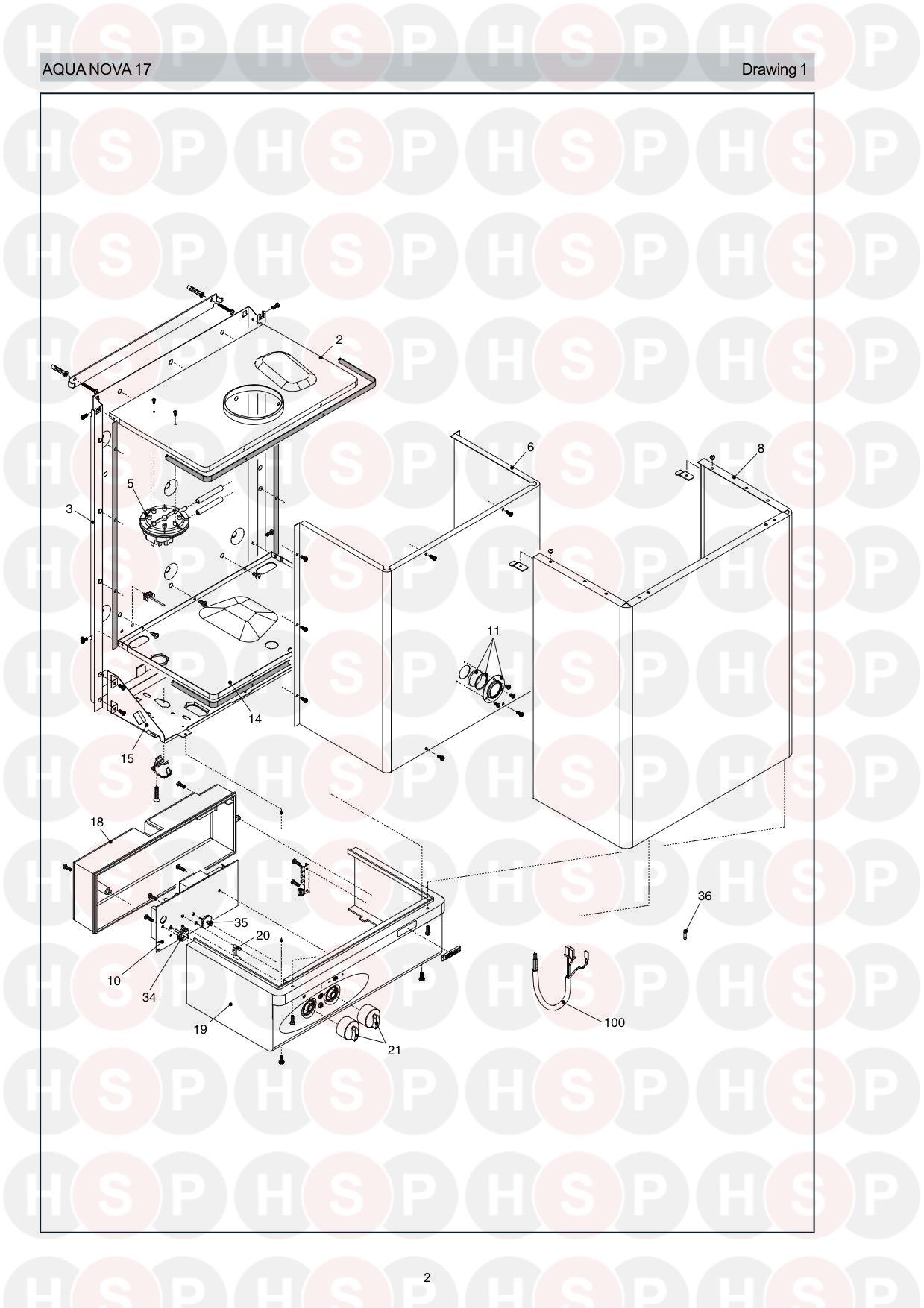

Casing Electrics diagram for Vokera Aqua Nova 17 NGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   UPPER PROOF
Vokera part no. 10021131
£12.04
3   FRAME
Vokera part no. 10022790
P.O.A.
5 Part number 10020889, Air Pressure Switch AIR PRESSURE SWITCH
Vokera part no. 10020889
£35.79
6   PROOF CHAMBER COVER
Vokera part no. 10022794
P.O.A.
8   CASE - AQUANOVA
Vokera part no. 10020679
£51.10
10 Part number 10024554, NOW USE 20028963 PCB NOW USE 20028963 PCB
Vokera part no. 10024554

10 Part number 20028963, PCB Replaces 10028996 & 10024554 PCB REPLACES 10028996 & 10024554
Vokera part no. 20028963
£169.99
11   SIGHT GLASS KIT
Vokera part no. S612
£7.46
14   OBSOLETE AIR CHAMBER BOTTOM
Vokera part no. 10020661

15   CARTER
Vokera part no. 10020663
P.O.A.
18   INST. PANEL BACK PAN
Vokera part no. 10021120
£23.22
19   INSTRUMENT PANEL
Vokera part no. 20078519
£17.57
20   LED LIGHT GUIDE
Vokera part no. 10020676
£4.65

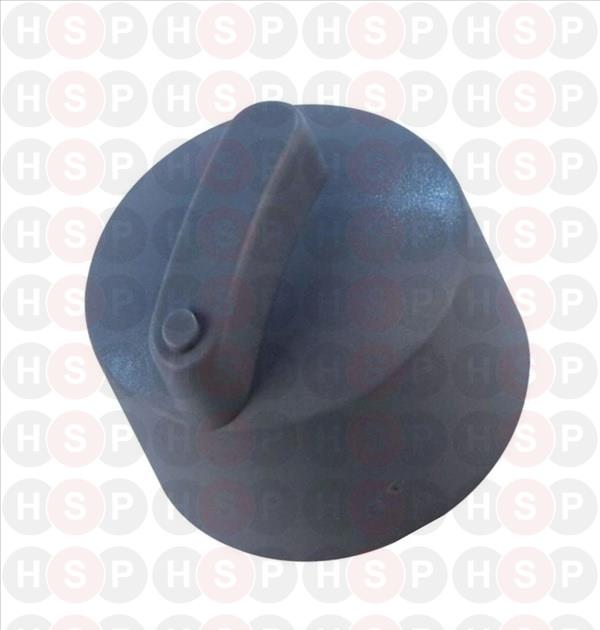

21 Part number 10020674, Knob KNOB
Vokera part no. 10020674
£4.15
34   ON/OFF SHAFT
Vokera part no. 10020669
£3.70
35 Part number 10020670, Temperature Shaft TEMPERATURE SHAFT
Vokera part no. 10020670
£3.70
36   FUSE
Vokera part no. 3479
P.O.A.
100   FULL LOOM
Vokera part no. 10020688
£94.11
