VOKERA
COMPACT 25 A ERP REV 3 (02/2017) - (Burner)

Appliance Diagram

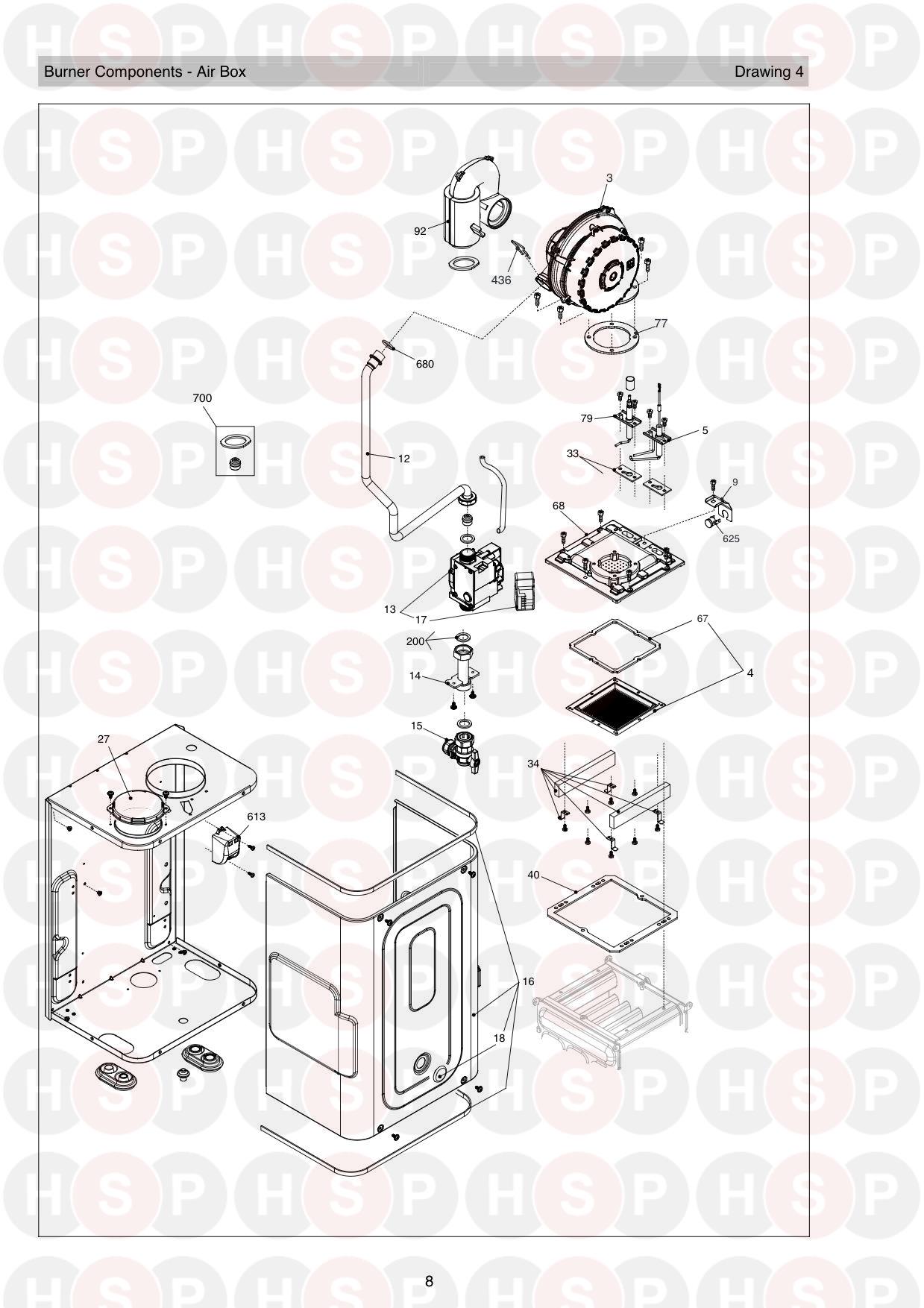

Burner diagram for Vokera Compact 25 A ERP Rev 3 (02/2017)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3 Part number 20081316, Fan Assembly with Built in Mixer FAN ASSEMBLY WITH BUILT IN MIXER
Vokera part no. 20081316
£226.54
4 Part number 20044892, Burner 25 kw (Ceramat) and top gasket (20116624) BURNER 25 KW (CERAMAT) AND TOP GASKET (20116624)
Vokera part no. 20044892
£104.15
5 Part number 20025737, Ignition electrode with Lead IGNITION ELECTRODE WITH LEAD
Vokera part no. 20025737
£17.71
9   CLIP FOR HIGH LIMIT STAT ONTO HEAT EXCHANGER
Vokera part no. 20093799
£5.03
12   PIPE
Vokera part no. 20025745
£25.76
13 Part number 20039202, Gas valve Rep 10028538 & 10027187 & 20025752 GAS VALVE REP 10028538 & 10027187 & 20025752
Vokera part no. 20039202
£150.64
14   GAS PIPE
Vokera part no. 20005553
£21.81
15 Part number 10020897, Gas Cock GAS COCK
Vokera part no. 10020897
£23.07
16   COMBUSTION CHAMBER COVER
Vokera part no. 20005594
£31.96
17 Part number 20040675, Gas Valve Solenoid (Fits 20039202/20035533) GAS VALVE SOLENOID (FITS 20039202/20035533)
Vokera part no. 20040675
£70.50
18   PLUG
Vokera part no. 20005550
£1.02
27   PLASTIC HOLE COVER
Vokera part no. 20005586
£1.46
33 Part number 20025740, Seal for Ignition electrode SEAL FOR IGNITION ELECTRODE
Vokera part no. 20025740
£0.92
34 Part number 20044890, Lateral insulation panel LATERAL INSULATION PANEL
Vokera part no. 20044890
£12.06
40 Part number 20044894, BURNER GASKET BURNER GASKET
Vokera part no. 20044894
£10.54
67 Part number 20116624, Gasket for top of 25kw burner (20044892) GASKET FOR TOP OF 25KW BURNER (20044892)
Vokera part no. 20116624
£6.62
68   EXCHANGER COVER
Vokera part no. 20044895
£30.17
77 Part number 20025753, WASHER WASHER
Vokera part no. 20025753
£3.27
79 Part number 20043523, IONISATION ELECTRODE IONISATION ELECTRODE
Vokera part no. 20043523
£12.30
92 Part number 20025760, SUCTION PIPE SUCTION PIPE
Vokera part no. 20025760
£5.26
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.39
436 Part number 10025062, Locking Pin LOCKING PIN
Vokera part no. 10025062
£0.89
613 Part number 20001563, NOW USE 20002969 IGNITION TRANSFORMER NOW USE 20002969 IGNITION TRANSFORMER
Vokera part no. 20001563

613 Part number 20002969, Ignition transformer with wires Rep 10026237 & 20001563 IGNITION TRANSFORMER WITH WIRES REP 10026237 & 20001563
Vokera part no. 20002969
£37.35
625 Part number 20005585, HIGH LIMIT STAT HIGH LIMIT STAT
Vokera part no. 20005585
£2.73
680 Part number 20024869, O RING O RING
Vokera part no. 20024869
£0.65
700   LPG TO NG CONVERSION KIT (FROM SERIAL NO. 20071534K0550073)
Vokera part no. 20082915
£13.87
700 Part number 20082917, NG to LPG conversion kit (FROM SERIAL NO. 20071534K0550073) NG TO LPG CONVERSION KIT (FROM SERIAL NO. 20071534K0550073)
Vokera part no. 20082917
£13.55
