VOKERA
UNICA 28 HE REV 13 (09/2013) - (Combustion Chamber)
Appliance Code: 47-094-83 REV 13

Appliance Diagram

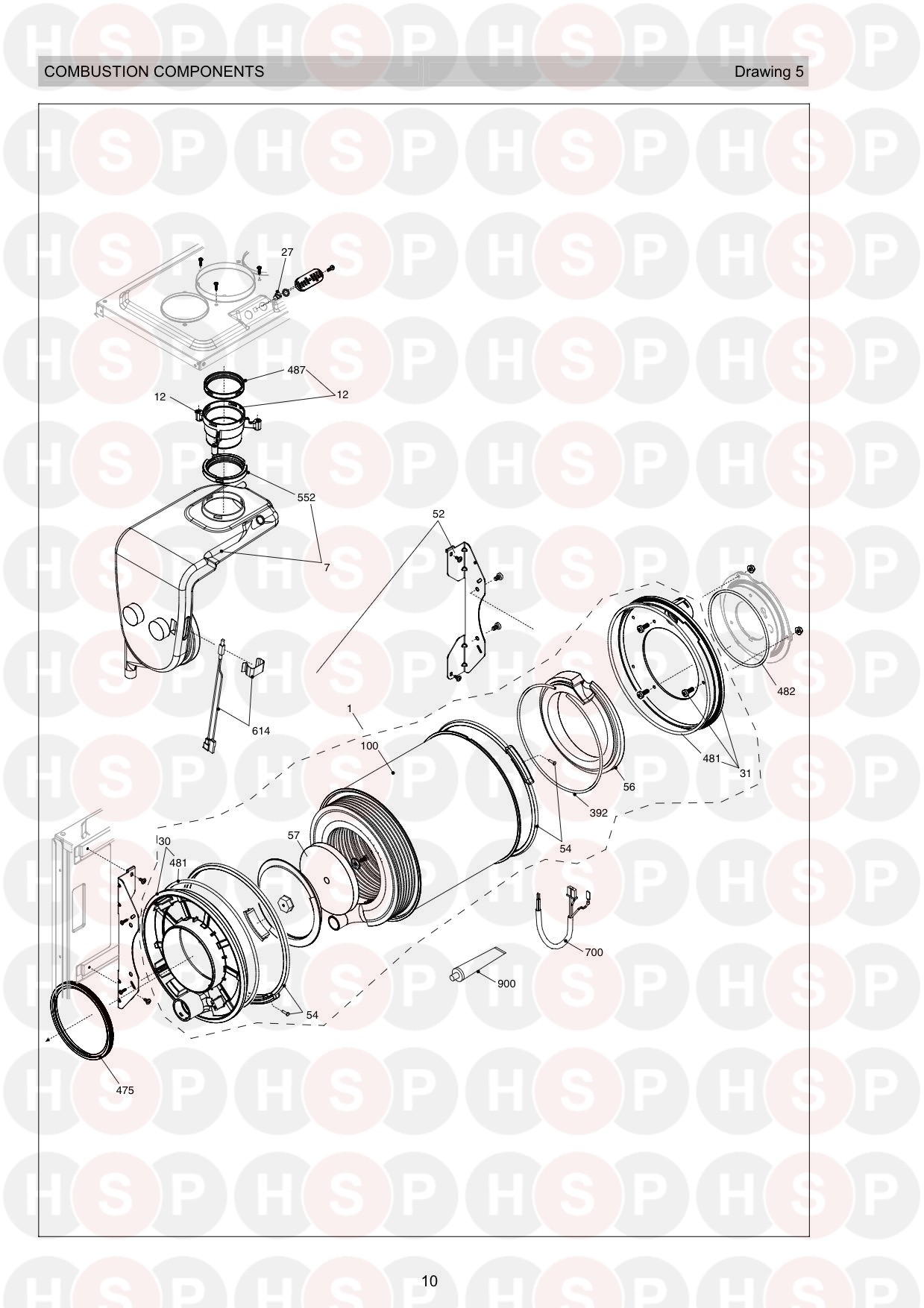

Combustion Chamber diagram for Vokera Unica 28 HE Rev 13 (09/2013)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 01005443, Condensing exchanger assembly CONDENSING EXCHANGER ASSEMBLY
Vokera part no. 01005443
£566.82
7 Part number 20008306, Conveyor Replaced 10028536 CONVEYOR REPLACED 10028536
Vokera part no. 20008306
£48.86
12 Part number 10028421, Flue drain connection Replaced 10026311 FLUE DRAIN CONNECTION REPLACED 10026311
Vokera part no. 10028421
£9.58
27 Part number 10020625, Square Plastic Nut underneath Test Plate SQUARE PLASTIC NUT UNDERNEATH TEST PLATE
Vokera part no. 10020625
£2.61
30   NOW USE 20101331 FLUE GAS FLANGE
Vokera part no. 20047573

30   FLANGE ASSEMBLY - REPLACED 20047573
Vokera part no. 20101331
£40.16
31   BURNER FLANGE
Vokera part no. 20047807
£18.04
52   NOW USE 20101332 HEAT EXCHANGER BRACKET KIT
Vokera part no. 20051029

52   HEAT EXCHANGER BRACKET - REPLACED 20051029
Vokera part no. 20101332
£7.22
54 Part number 20047811, RING CLOSING RING CLOSING
Vokera part no. 20047811
£5.04
56   INSULATION
Vokera part no. 20047812
£20.43
57 Part number 20036537, TRYTON RETARDER TRYTON RETARDER
Vokera part no. 20036537
£2.99
100   HEAT EXCHANGER SHELL
Vokera part no. 20048269
£65.89
392   WASHER
Vokera part no. 20047819
£1.26
475 Part number 10026323, Washer WASHER
Vokera part no. 10026323
£12.98
481   WASHER
Vokera part no. 20047802
£1.76
482 Part number 10026366, Washer WASHER
Vokera part no. 10026366
£5.41
487 Part number 10026345, Washer WASHER
Vokera part no. 10026345
£7.00
552 Part number 10028426, Washer WASHER
Vokera part no. 10028426
£8.58
614 Part number 20001564, High limit stat (With Clip) HIGH LIMIT STAT (WITH CLIP)
Vokera part no. 20001564
£21.75
700 Part number 10028595, X4 to Fan Signal Control, FA2 to Condense Sensor & Sense Electrode X4 TO FAN SIGNAL CONTROL, FA2 TO CONDENSE SENSOR & SENSE ELECTRODE
Vokera part no. 10028595
£54.12
900   SEALANT
Vokera part no. 20047820
£18.36
