VOKERA
UNICA I36 REV 1 ERP (05/2015) - (Hydraulics 2)
Appliance Code: 47-364-24 REV 1

Appliance Diagram


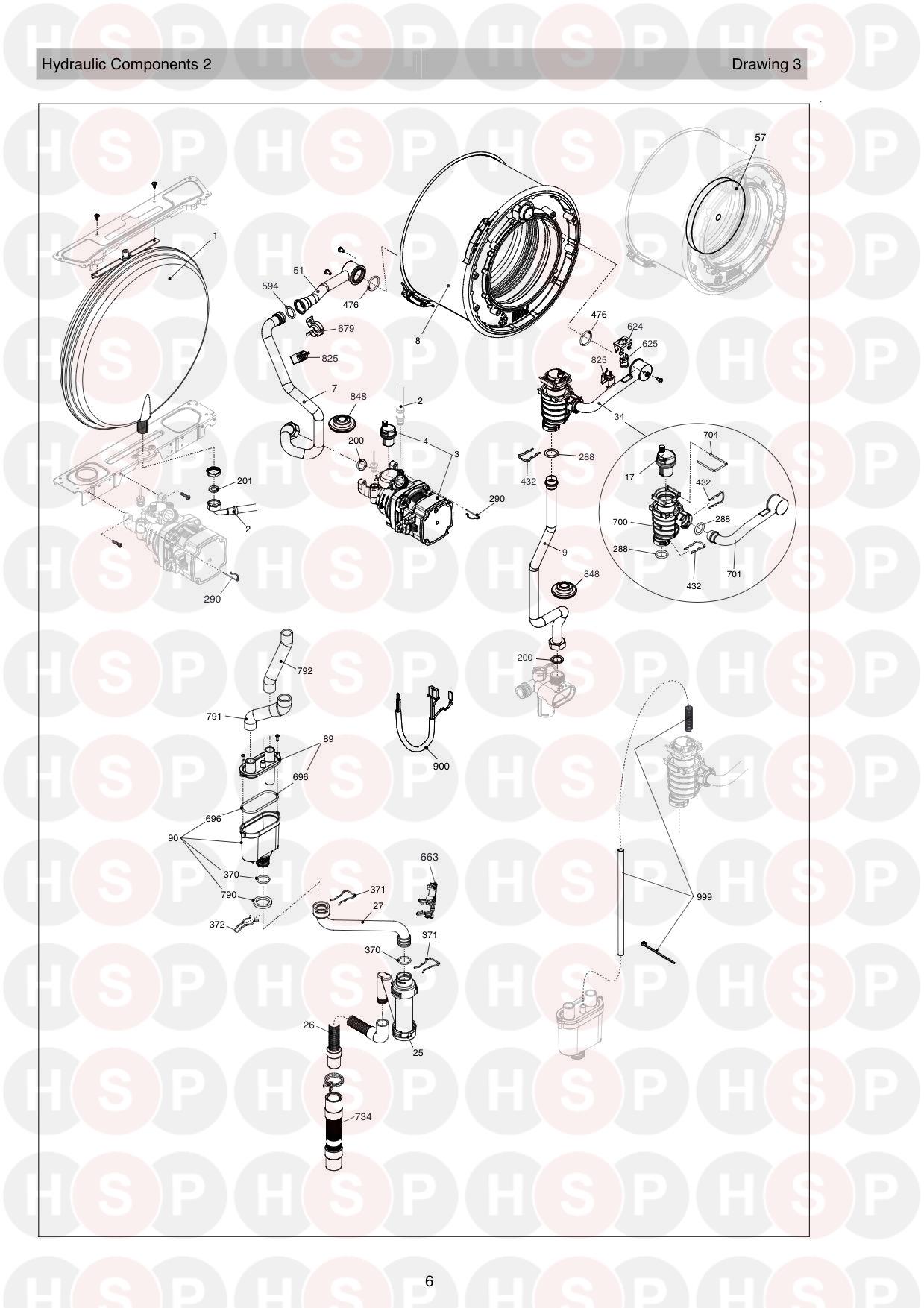

Hydraulics 2 diagram for Vokera Unica i36 Rev 1 ERP (05/2015)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   EXPANSION VESSEL - REPLACED 20138102 AND 2204
Vokera part no. 20187349		 £100.70
1 Part number 2204, NOW USE 20187349 8 Litre Expansion Vessel NOW USE 20187349 8 LITRE EXPANSION VESSEL
Vokera part no. 2204
2 Part number 10025188, Flexible pipe for Expansion vessel FLEXIBLE PIPE FOR EXPANSION VESSEL
Vokera part no. 10025188		 £16.15
3   ERP PUMP - REPLACED 20136316 AND 20099105
Vokera part no. 20194913		 £358.15
3 Part number 20099105, NOW USE 20194913 ERP Pump Assembly NOW USE 20194913 ERP PUMP ASSEMBLY
Vokera part no. 20099105
4 Part number 10025485, Auto air vent bottle (Pump) AUTO AIR VENT BOTTLE (PUMP)
Vokera part no. 10025485		 £19.95
7   PIPE
Vokera part no. 20099544		 £19.95
8   CONDENSING ASSEMBLY - REPLACED 20071921
Vokera part no. 20125030		 £646.95
8   NOW USE 20125030 CONDENSING EXCHANGER ASSEMBLY
Vokera part no. 20071921
9   FLOW PIPE
Vokera part no. 20102646		 £23.75
17   AIR VENT VALVE
Vokera part no. 20147535		 £6.30
25 Part number 20025733, SIPHON SIPHON
Vokera part no. 20025733		 £11.40
26   FLEXIBLE PIPE
Vokera part no. 20028761		 £5.13
27 Part number 20025743, PIPE TRAP PIPE TRAP
Vokera part no. 20025743		 £7.51
34   DEGASSER KIT AND PIPE
Vokera part no. 20099548		 £46.55
51   PIPE
Vokera part no. 20057866		 £70.30
57 Part number 20086269, HEAT EXCHANGER INSULATION HEAT EXCHANGER INSULATION
Vokera part no. 20086269		 £8.55
89   SIPHON COVER
Vokera part no. 20063464		 £6.56
90   SIPHON
Vokera part no. 20063463		 £9.50
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.48
201 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026		 £0.38
288 Part number 6898, O Ring O RING
Vokera part no. 6898		 £1.05
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757		 £0.76
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165
370 Part number 10023533, O Ring O RING
Vokera part no. 10023533		 £1.43
371 Part number 10023532, Locking Pin LOCKING PIN
Vokera part no. 10023532		 £13.30
372   CLIP
Vokera part no. 2588		 £0.86
432 Part number 10024958, Locking Pin LOCKING PIN
Vokera part no. 10024958		 £1.05
476 Part number 10026324, O ring O RING
Vokera part no. 10026324		 £2.95
594 Part number 20000131, O ring O RING
Vokera part no. 20000131		 £1.14
624 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472		 £1.43
625 Part number 20005585, HIGH LIMIT STAT HIGH LIMIT STAT
Vokera part no. 20005585		 £3.23
663   CABLE HOLDER
Vokera part no. 20014197
679   SPRING CLIP
Vokera part no. 20024086		 £4.94
696 Part number 20028744, O RING O RING
Vokera part no. 20028744		 £1.81
700 Part number 20019888, Air Separator (UP TO SERIAL NO. 20097278PR05P005812) AIR SEPARATOR (UP TO SERIAL NO. 20097278PR05P005812)
Vokera part no. 20019888		 £18.05
700 Part number 20032553, NOW USE 20019888 DEGASSER KIT NOW USE 20019888 DEGASSER KIT
Vokera part no. 20032553
701   PIPE
Vokera part no. 20067580		 £32.30
704 Part number 20019767, Locking Pin LOCKING PIN
Vokera part no. 20019767		 £0.48
734 Part number 10026272, Flexible Pipe FLEXIBLE PIPE
Vokera part no. 10026272		 £8.55
790   WASHER
Vokera part no. 20063468		 £1.33
791   CONDENSING PIPE
Vokera part no. 20063466		 £7.70
792   CONDENSING PIPE
Vokera part no. 20063467		 £7.22
825 Part number 20081926, Thermistor/NTC Replaced 20003819 and 20004365 THERMISTOR/NTC REPLACED 20003819 AND 20004365
Vokera part no. 20081926		 £17.10
848   FAIRLEAD
Vokera part no. 20099541		 £3.61
900   PUMP CABLE ERP - REPLACED 20100735
Vokera part no. 20126831		 £14.25
900   NOW USE 20126831 PUMP CABLE ERP
Vokera part no. 20100735
999   DEGASSER CONNECTION ASSEMBLY
Vokera part no. 20096202		 £3.99
