FERROLI
FALCON 11 - (Gas Line)
Appliance Code: 47-267-26

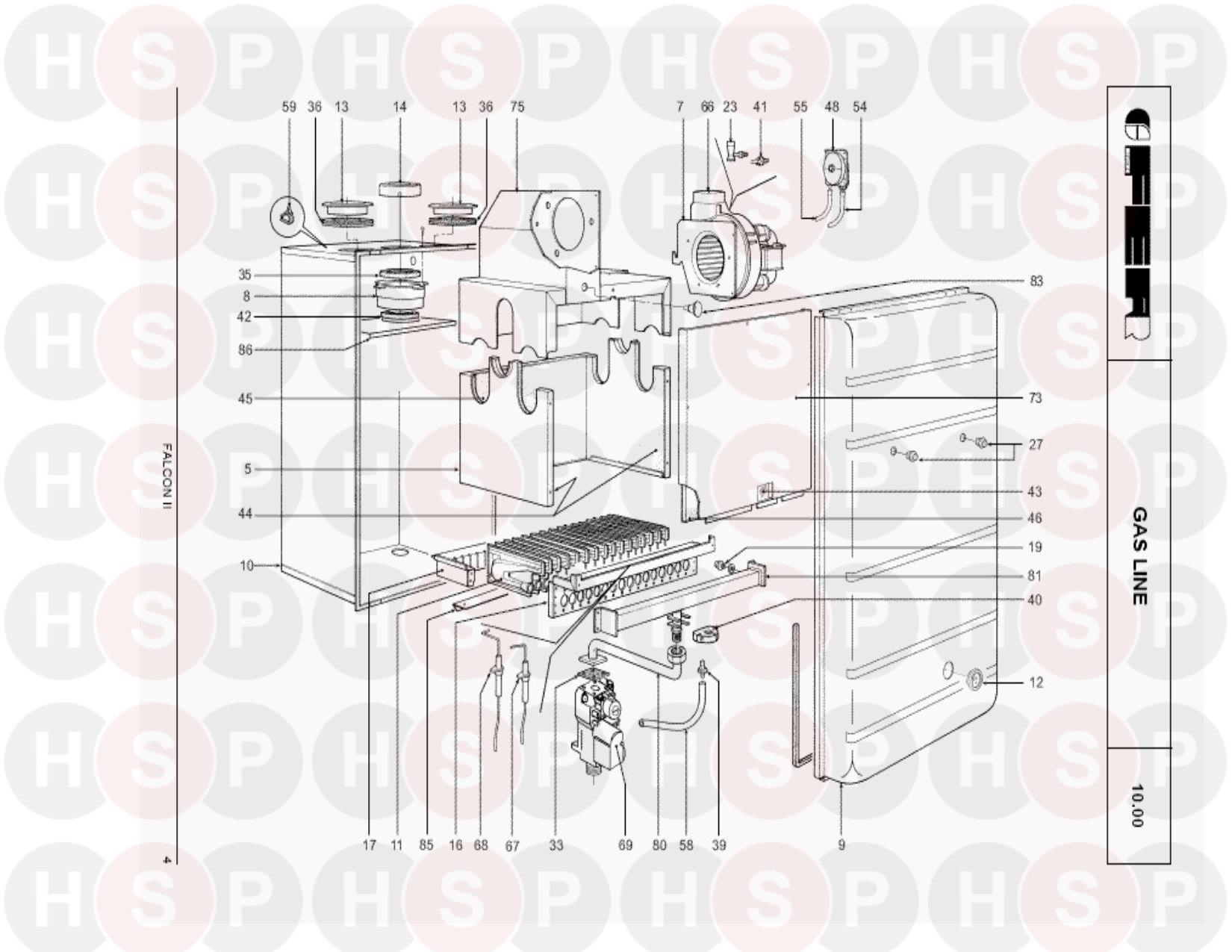

Appliance Diagram


Gas Line diagram for Ferroli Falcon 11Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

5   OBSOLETE COMBUSTION CHAMBER
Ferroli part no. 32002430		 £13.02
9   PANEL - ROOM SEALED
Ferroli part no. 32118150
11   BURNER - MAIN - ( 12 HEAD )
Ferroli part no. 32202760		 £85.57
12 Part number 39811330, SIGHT GLASS - C/W SEAL SIGHT GLASS - C/W SEAL
Ferroli part no. 39811330		 £8.42
13 Part number 32700440, BLANKING PLATE - METAL100mm BLANKING PLATE - METAL100MM
Ferroli part no. 32700440		 £10.17
14 Part number 32700610, RESTRICTOR - FLUE 47mm DIAMETER RESTRICTOR - FLUE 47MM DIAMETER
Ferroli part no. 32700610		 £2.89
14 Part number 32700620, RESTRICTOR - FLUE 50mm DIAMETER RESTRICTOR - FLUE 50MM DIAMETER
Ferroli part no. 32700620		 £4.14
14 Part number 32700690, RESTRICTOR -FLUE 52mm DIAMETER RESTRICTOR -FLUE 52MM DIAMETER
Ferroli part no. 32700690		 £2.69
19 Part number 39012200, FROLI 39012200 NG INJECTOR FROLI 39012200 NG INJECTOR
Ferroli part no. 39012200		 £2.84
19 Part number 39810160, INJECTOR KIT - (16) MAIN 0.75 LPG INJECTOR KIT - (16) MAIN 0.75 LPG
Ferroli part no. 39810160		 £14.34
19 Part number 34009470, NOW USE 39012200 INJECTOR - MAIN (1.25-NG) NOW USE 39012200 INJECTOR - MAIN (1.25-NG)
Ferroli part no. 34009470
23 Part number 39809790, VENTURI - KIT (SHORT) c/w TEST POINT VENTURI - KIT (SHORT) C/W TEST POINT
Ferroli part no. 39809790		 £5.66
27 Part number 39838830, PLUG - (12mm) PLUG - (12MM)
Ferroli part no. 39838830		 £10.93
27 Part number 35006150, NOW USE 39838830 PLUG - (12mm) NOW USE 39838830 PLUG - (12MM)
Ferroli part no. 35006150
33   GASKET - GAS VALVE FLANGE E50
Ferroli part no. 35101560		 £0.82
36 Part number 35101000, FROLI 39803760 AIR INTAKE GASKET FROLI 39803760 AIR INTAKE GASKET
Ferroli part no. 35101000		 £3.19
39 Part number 35101150, FROLI 35101150 AIR PRESSURE TEST POINT FROLI 35101150 AIR PRESSURE TEST POINT
Ferroli part no. 35101150
40 Part number 39820620, GASKET KIT - (5) ROOM SEALED GASKET KIT - (5) ROOM SEALED
Ferroli part no. 39820620		 £42.68
41 Part number 39809790, VENTURI - KIT (SHORT) c/w TEST POINT VENTURI - KIT (SHORT) C/W TEST POINT
Ferroli part no. 39809790		 £5.66
41 Part number 39805600, NOW USE 39809790 TEST POINT - FAN NOW USE 39809790 TEST POINT - FAN
Ferroli part no. 39805600
43   SIGHT GLASS - 50MM X 30MM X 3.3MM
Ferroli part no. 39821970		 £16.13
43   NOW USE 39821970 SIGHT GLASS - 50MM X 30MM X 3.3MM
Ferroli part no. 35315250
44 Part number 39804950, INSULATION KIT - MODENA 80E / FERROLI F24E/D INSULATION KIT - MODENA 80E / FERROLI F24E/D
Ferroli part no. 39804950		 £31.86
44 Part number 35320590, NOW USE 39804950 INSULATION - SIDE NOW USE 39804950 INSULATION - SIDE
Ferroli part no. 35320590
45 Part number 39804950, INSULATION KIT - MODENA 80E / FERROLI F24E/D INSULATION KIT - MODENA 80E / FERROLI F24E/D
Ferroli part no. 39804950		 £31.86
45 Part number 35321320, NOW USE 39804950 INSULATION - REAR NOW USE 39804950 INSULATION - REAR
Ferroli part no. 35321320
46 Part number 39811880, PANEL - COMBUSTION CHAMBER PANEL - COMBUSTION CHAMBER
Ferroli part no. 39811880		 £30.43
48 Part number 39805631, AIR PRESSURE SWITCH AIR PRESSURE SWITCH
Ferroli part no. 39805631		 £42.20
48 Part number 39805630, NOW USE 39805631 AIR PRESSURE SWITCH NOW USE 39805631 AIR PRESSURE SWITCH
Ferroli part no. 39805630
54 Part number 36504950, TUBE - SILICONE (4mm) CLEAR TUBE - SILICONE (4MM) CLEAR
Ferroli part no. 36504950		 £3.86
55 Part number 36505210, TUBE - SILICONE (210mm x 4mm) RED TUBE - SILICONE (210MM X 4MM) RED
Ferroli part no. 36505210		 £3.52
58 Part number 36504950, TUBE - SILICONE (4mm) CLEAR TUBE - SILICONE (4MM) CLEAR
Ferroli part no. 36504950		 £3.86
66 Part number 39805890, FAN ASSEMBLY - 30Kw FAN ASSEMBLY - 30KW
Ferroli part no. 39805890		 £122.07
67 Part number 39807470, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ferroli part no. 39807470		 £6.75
68 Part number 39805670, ELECTRODE - FLAME SENSING ELECTRODE - FLAME SENSING
Ferroli part no. 39805670		 £5.91
69 Part number 39808000, GAS VALVE - ( VK4105G ) GAS VALVE - ( VK4105G )
Ferroli part no. 39808000		 £224.21
73 Part number 39811880, PANEL - COMBUSTION CHAMBER PANEL - COMBUSTION CHAMBER
Ferroli part no. 39811880		 £30.43
75 Part number 37515510, SMOKE BOX SMOKE BOX
Ferroli part no. 37515510
80 Part number 38408730, PIPE - GAS VALVE TO MANIFOLD PIPE - GAS VALVE TO MANIFOLD
Ferroli part no. 38408730		 £5.05
81   MANIFOLD - ( 16 HEAD ) 1.25MM NG
Ferroli part no. 38410700		 £33.70
81   MANIFOLD - ( 16 HEAD ) 0.75MM LPG
Ferroli part no. 38410710		 £30.85
83   TEST POINT - SMOKE HOOD
Ferroli part no. 39820930		 £6.18
83 Part number 35101430, NOW USE 39820930 TEST POINT - SMOKE HOOD NOW USE 39820930 TEST POINT - SMOKE HOOD
Ferroli part no. 35101430
85   BAFFLE - AIR
Ferroli part no. 32914140		 £2.09
