POTTERTON
PERFORMA 24 ECO HE 2 COMPOSITE BLOCK - (Hydraulics)
Appliance Code: 47-393-25

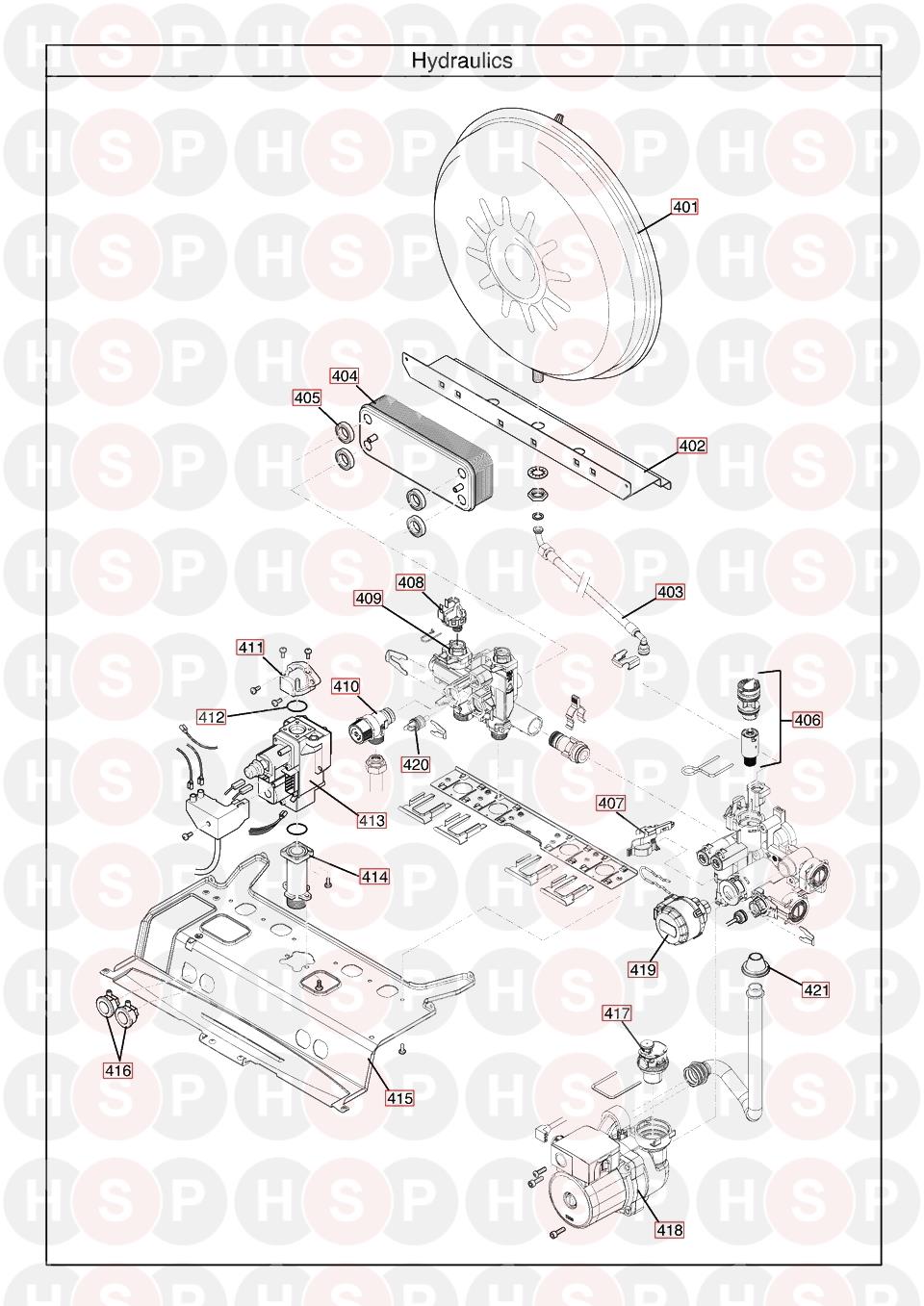

Appliance Diagram


Hydraulics diagram for Potterton Performa 24 Eco HE 2 Composite BlockClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

401 Part number 248024, VESSEL - EXPANSION - 8L VESSEL - EXPANSION - 8L
Potterton part no. 248024
£85.68
402   BRACKET-LOWER SUPPORT
Potterton part no. 5112366
£4.27
403   PIPE EXPANSION VESSEL
Potterton part no. 720066901
£17.57
404 Part number 7225724, PLATE HEAT EX 10 PLATES KIT PLATE HEAT EX 10 PLATES KIT
Potterton part no. 7225724
£102.70
404 Part number 248046, NOW USE 7225724 HEAT EXCHANGER DHW (10 PLATES) NOW USE 7225724 HEAT EXCHANGER DHW (10 PLATES)
Potterton part no. 248046

405 Part number 248049, GASKET - PLATE HEAT EXCHANGER GASKET - PLATE HEAT EXCHANGER
Potterton part no. 248049
£5.96
406 Part number 720064201, FILTER CARTRIDGE - 10L FILTER CARTRIDGE - 10L
Potterton part no. 720064201
£28.95
407 Part number 720061801, HALL SENSOR HALL SENSOR
Potterton part no. 720061801
£22.94
408 Part number 720063201, MICROSWITCH ASSEMBLY MICROSWITCH ASSEMBLY
Potterton part no. 720063201
£19.51
409   BYPASS CARTRIDGE
Potterton part no. 720070201
£14.21
409   HYDRAULIC GROUP ASSY 25KW 10LT
Potterton part no. 720957001
£419.28
410 Part number 710071201, SAFETY VALVE -3 bar SAFETY VALVE -3 BAR
Potterton part no. 710071201
£10.98
411 Part number 248082, ELBOW - GAS FLOW OUTLET ELBOW - GAS FLOW OUTLET
Potterton part no. 248082
£7.16
412 Part number 247741, O RING 22.22 x 2.62 O RING 22.22 X 2.62
Potterton part no. 247741
£3.26
413 Part number 5107339, GAS VALVE ASSY INC O-RINGS GAS VALVE ASSY INC O-RINGS
Potterton part no. 5107339
£178.59
414 Part number 248083, CONNECTOR - GAS VALVE INLET CONNECTOR - GAS VALVE INLET
Potterton part no. 248083
£9.80
415   OBSOLETE HYDRAULIC SUPPORT PANEL
Potterton part no. 720067101

416 Part number 247776, CLAMP - INPUT CABLE CLAMP - INPUT CABLE
Potterton part no. 247776
£4.51
417 Part number 720062001, AIR VENT AIR VENT
Potterton part no. 720062001
£19.38
418 Part number 720063001, PUMP PUMP
Potterton part no. 720063001

419 Part number 720064401, DIVERTER MOTOR DIVERTER MOTOR
Potterton part no. 720064401
£31.65
420 Part number 720064801, DHW TEMP SENSOR DHW TEMP SENSOR
Potterton part no. 720064801
£10.43
421 Part number 248045, GROMMET - PIPE ASSEMBLY GROMMET - PIPE ASSEMBLY
Potterton part no. 248045
£6.05
