VOKERA
SYNERGY 29 LPG REV 4 (03/2007) - (Hydraulics 2)
Appliance Code: 2350765

Appliance Diagram

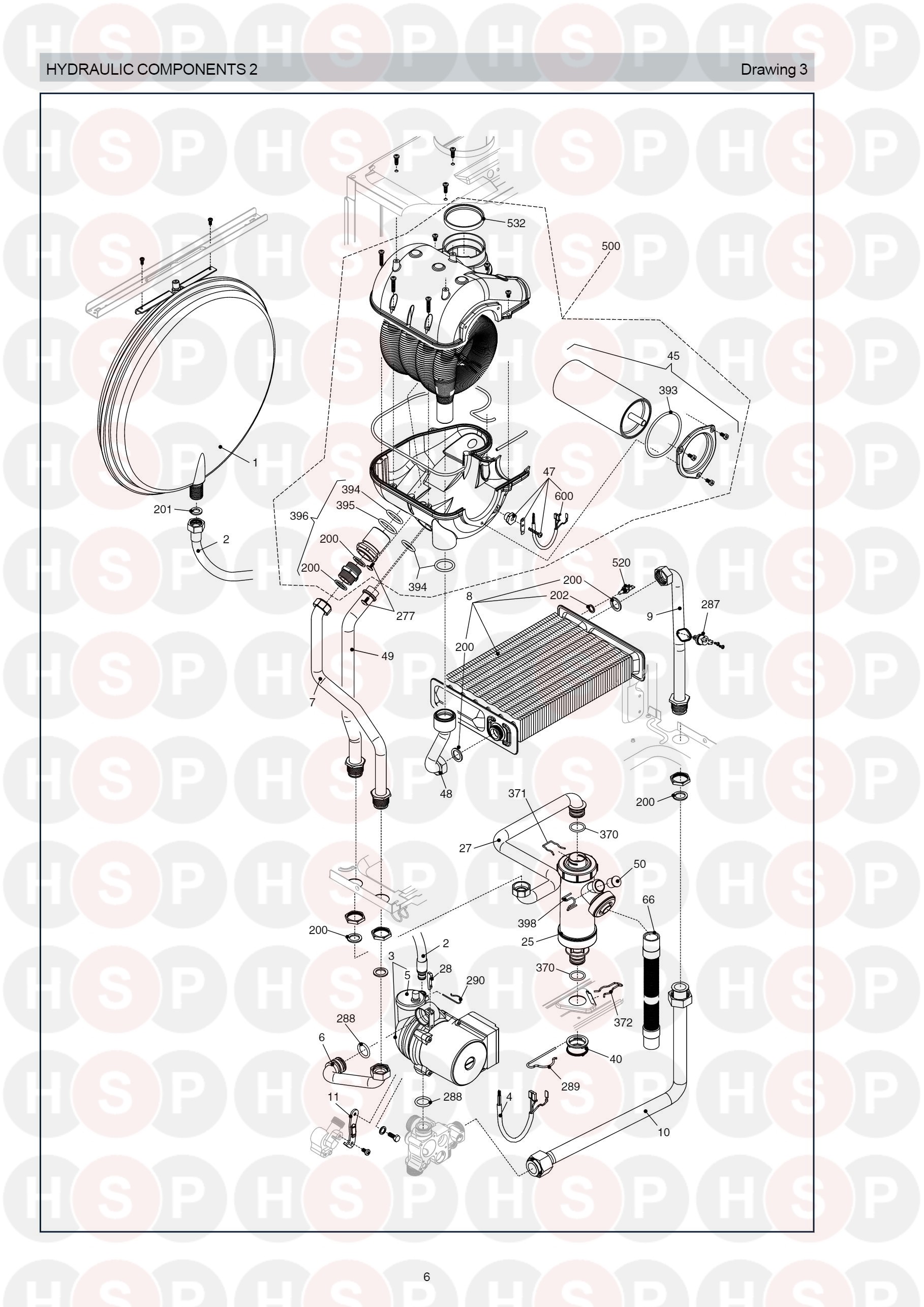

Hydraulics 2 diagram for Vokera Synergy 29 LPG Rev 4 (03/2007)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 2573, Expansion Vessel Rep 106333 10 Litre EXPANSION VESSEL REP 106333 10 LITRE
Vokera part no. 2573
£104.11
2 Part number 10023603, Flexible Expansion Pipe FLEXIBLE EXPANSION PIPE
Vokera part no. 10023603
£21.23
3 Part number 10020438, NOW USE 20104311 Pump NOW USE 20104311 PUMP
Vokera part no. 10020438

3   ERP PUMP - REPLACED 10020438 & 10021792
Vokera part no. 20104311
£212.21
4 Part number 1845, M15 to Pump Wiring M15 TO PUMP WIRING
Vokera part no. 1845
£8.33
5 Part number 0439, Auto Air Vent AUTO AIR VENT
Vokera part no. 0439
£11.88
6   PIPE
Vokera part no. 10023202
£17.19
7   PIPE
Vokera part no. 10024130
£19.31
8 Part number 01005246, Main Heat Exchanger rep 2378 & 1914 MAIN HEAT EXCHANGER REP 2378 & 1914
Vokera part no. 01005246
£250.18
8 Part number 2378, NOW USE 01005246 HEAT EXCHANGER NOW USE 01005246 HEAT EXCHANGER
Vokera part no. 2378

9 Part number 10021041, Flow Pipe FLOW PIPE
Vokera part no. 10021041
£20.16
10   PIPE
Vokera part no. 10022859

11   BRACKET
Vokera part no. 1642

25 Part number 10023495, Siphon SIPHON
Vokera part no. 10023495
£63.41
27   NOW USE 20068881 PIPE
Vokera part no. 10024132

27   PLASTIC CONDENSE PIPE REPLACED 10024132
Vokera part no. 20068881
£23.99
28   PUMP LOCK KEY
Vokera part no. 9263
£0.89
40 Part number 10023531, Siphon Plug SIPHON PLUG
Vokera part no. 10023531
£7.93
45 Part number 10024136, Retarder RETARDER
Vokera part no. 10024136
£68.33
47 Part number 10025212, Condensing level detector CONDENSING LEVEL DETECTOR
Vokera part no. 10025212
£41.20
48 Part number 10024129, Short Pipe from Condense Unit SHORT PIPE FROM CONDENSE UNIT
Vokera part no. 10024129
£26.95
49 Part number 10024131, Pipe PIPE
Vokera part no. 10024131
£17.34
50   SIPHON PLUG
Vokera part no. 10024133
£4.91
66 Part number 10026272, Flexible Pipe FLEXIBLE PIPE
Vokera part no. 10026272
£8.31
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
201 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026
£0.39
202 Part number 5041, Washer WASHER
Vokera part no. 5041
£0.19
277 Part number 6903, Screw SCREW
Vokera part no. 6903
£1.50
287 Part number 2258, High Limit Thermostat HIGH LIMIT THERMOSTAT
Vokera part no. 2258
£8.97
288 Part number 6898, O Ring O RING
Vokera part no. 6898
£1.03
289 Part number 2223, Locking Pin LOCKING PIN
Vokera part no. 2223
£3.76
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757
£0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165

370 Part number 10023533, O Ring O RING
Vokera part no. 10023533
£1.36
371 Part number 10023532, Locking Pin LOCKING PIN
Vokera part no. 10023532
£13.63
372   CLIP
Vokera part no. 2588
£0.83
393 Part number 10024141, O ring O RING
Vokera part no. 10024141
£16.60
395 Part number 10024143, O ring O RING
Vokera part no. 10024143
£11.33
396 Part number 01005292, Connections kit CONNECTIONS KIT
Vokera part no. 01005292
£29.99
398   CLIP
Vokera part no. 10024336
£5.92
500 Part number 01005291, Condensing Unit CONDENSING UNIT
Vokera part no. 01005291
£492.32
520 Part number 10027352, Thermistor/NTC Sensor (20004978) THERMISTOR/NTC SENSOR (20004978)
Vokera part no. 10027352
£13.58
532 Part number 10027540, Condense Unit Washer CONDENSE UNIT WASHER
Vokera part no. 10027540
£8.88
600 Part number 10024121, NOW USE 20006403 Wiring harness NOW USE 20006403 WIRING HARNESS
Vokera part no. 10024121

600 Part number 20006403, Condensing level detector cable Replaced 10024121 CONDENSING LEVEL DETECTOR CABLE REPLACED 10024121
Vokera part no. 20006403
£14.17
