POTTERTON COMMERCIAL
SIRIUS 2 FS CASCADE KIT 90 & 110 - (Exploded View)
Appliance Code: 90-10

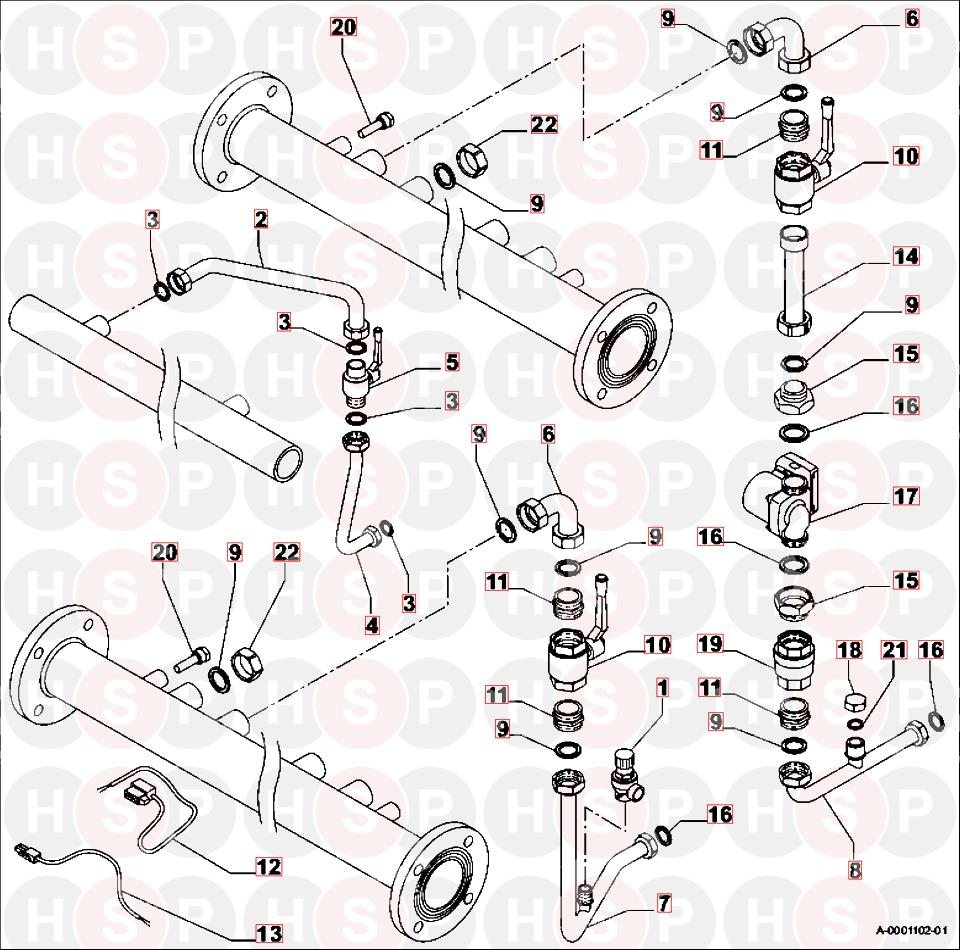

Appliance Diagram


Exploded View diagram for Potterton Commercial Sirius 2 FS Cascade Kit 90 & 110Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   4 BAR 138 KW SAFETY VALVE
Potterton part no. 7612416
£44.71
2   COLLECTOR/VALVE GAS PIPE
Potterton part no. 7614412
£20.99
3   GREEN GASKET
Potterton part no. 5142337

4   BOILER/VALVE GAS PIPE
Potterton part no. 7614271
£24.39
5   GAS VALVE
Potterton part no. 362561
£60.39
6   COMP ELBOW PIPE 90 G1.1/4 D28
Potterton part no. 7610763
£38.02
7   COMP H1150 CASCADE FLOW PIPE
Potterton part no. 7611352
£194.73
8   COMP H1150 CASCADE RETURN PIPE
Potterton part no. 7611350
£116.91
9   GREEN GASKET 38X27X2
Potterton part no. 5142481
£0.65
10   1"1/4 FF VALVE
Potterton part no. 567538
£47.21
11   BRASS NIPPLE G1.1/4 X G1.1/4
Potterton part no. 7610402
£9.19
12   POWER CABLE PUMP
Potterton part no. 7616781
£25.18
13   24V PUMP CABLE
Potterton part no. 7612372
£7.28
14   PIPE G1"1/4
Potterton part no. 7104697
£32.24
15   NIPPLE M G1 3/4 - F G1 1/2
Potterton part no. 7610464
£15.30
16   GASKET 44X32X2 (GREEN SEAL)
Potterton part no. 95013064
£1.35
17   PUMP UPML 25-105 130
Potterton part no. 7606650
£497.86
18   CAP G3/4"
Potterton part no. 94950143
£6.31
19   NON-RETURN VALVE G1" 1/4
Potterton part no. 567540
£62.05
20   L59 SENSOR TUBE
Potterton part no. 521343
£12.97
21   GREEN JOINT DIAMETER 24X17X2MM
Potterton part no. 95013060
£1.21
22   CAP G1 1/4"
Potterton part no. 7609152
£15.95
